1. ZT310-T black front spoke wheel (2.5×19/φ11.5/without valve)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:The spoke rim without a valve and a valve cap. oil seal TC φ42×φ28×7; bearing size φ42×φ20×12；bearing model: 6004-2RS.
|
|
|
|
2. 110/80R19 CM509 59V environmental protection tubeless tire (deactivated)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: front wheel deep tooth off-road tire.The Euro IV certificates of ZT310-T/ T1 and T 19 inch spoke wheels only have old tires, so you can't buy new tires with imark logo, and the old tires will not be transferred after production. Iran and other non Euro IV certified vehicles can be purchased, and other models can be purchased. It is recommended that the customer confirm the certificate before placing an order to avoid wrong purchase.
|
|
|
|

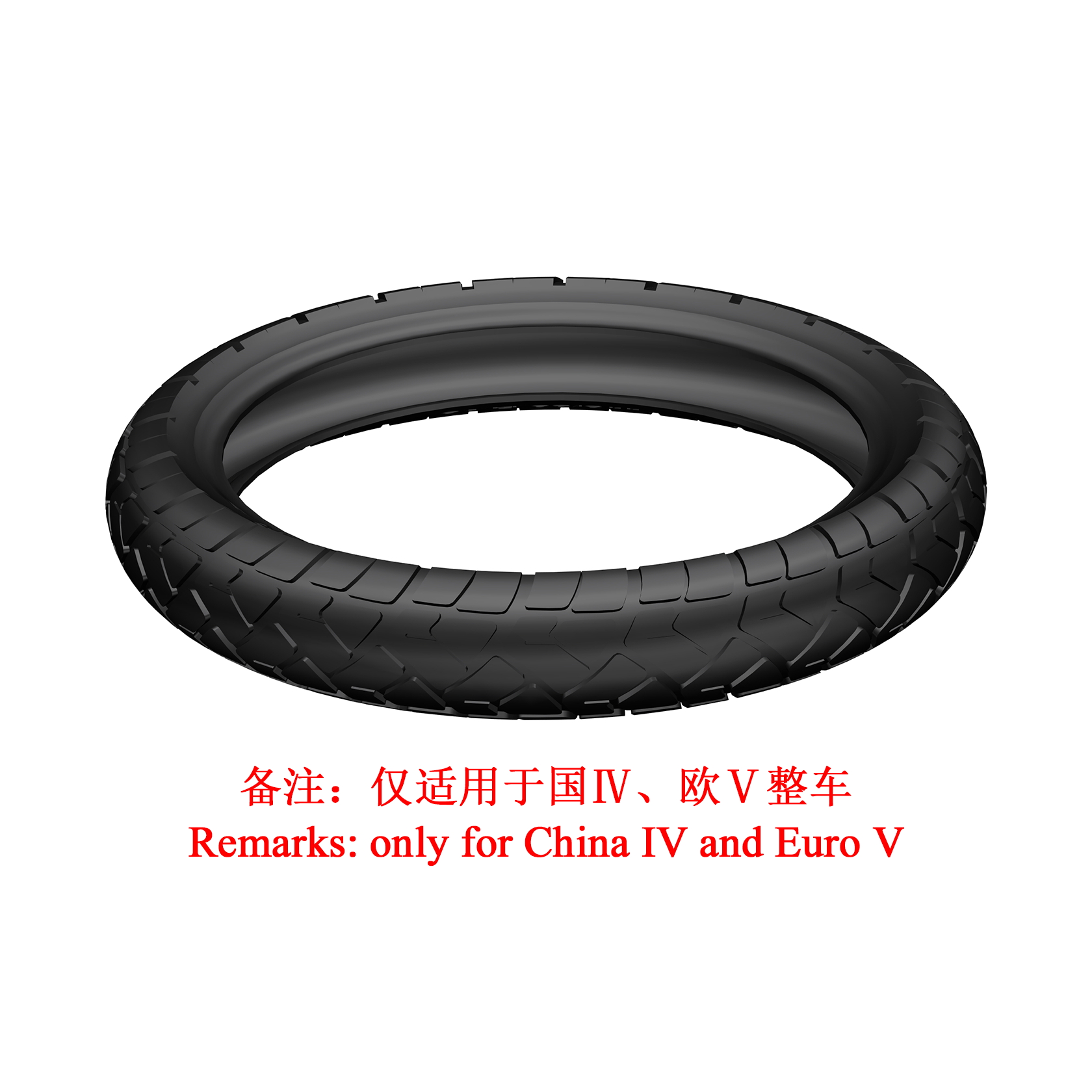

3. 110/80R19 CM509 59V TL E4 IMARK
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:only for China Ⅳ and Euro Ⅴ.The Euro IV certificates of ZT310-T/ T1 and T 19 inch spoke wheels only have old tires, so you can''t buy new tires with imark logo, and the old tires will not be transferred after production. Iran and other non Euro IV certified vehicles can be purchased, and other models can be purchased. It is recommended that the customer confirm the certificate before placing an order to avoid wrong purchase.
|
|
|
|
4. ZT310-R1 front brake disc (300×5.0)
|
|
|
|
|
|
|
|
5. Non-standard inner hex bolt M8×25 (environmental color)
|
|
|
|
|
|
|
Quantity
|
|
|
10
|
|
Remarks: If used in brake discs thread fastening glue should be applied to prevent loosening. Standard torque is 24N.m.
|
|
|
|
6. ABS induction ring (60 teeth)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Please confirm the status before purchase.
|
|
|
|
7. DF30 wheel speed sensor(deactivated)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: White coded "1184200-045000" is printed on the head with bosses and stiffeners.You can purchase the new model "1181200-118000 Wheel Speed Sensor(A)" to replace it.
|
|
|
|
|
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remaks:For the 703R/RR model for the front wheel, the other models such as the number of 2 for the front and rear wheel.
|
|
|
|
9. Non-standard bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
10. ZT310-T front wheel WSS wire clip
|
|
|
|
|
|
|
|
11. Wheel speed sensor clamp
|
|
|
|
|
|
|
|
12. 0 level fire-retardant belting (black2.5×100)
|
|
|
|
|
|
|
|
13. ZT310 tire pressure wireless built-in sensor
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:The tire repair fluid should not be used because it will block the stoma of the pressure monitoring sensor,resulting in dificulty in inflating or failure of tire pressure momnitoring .
|
|
|
|

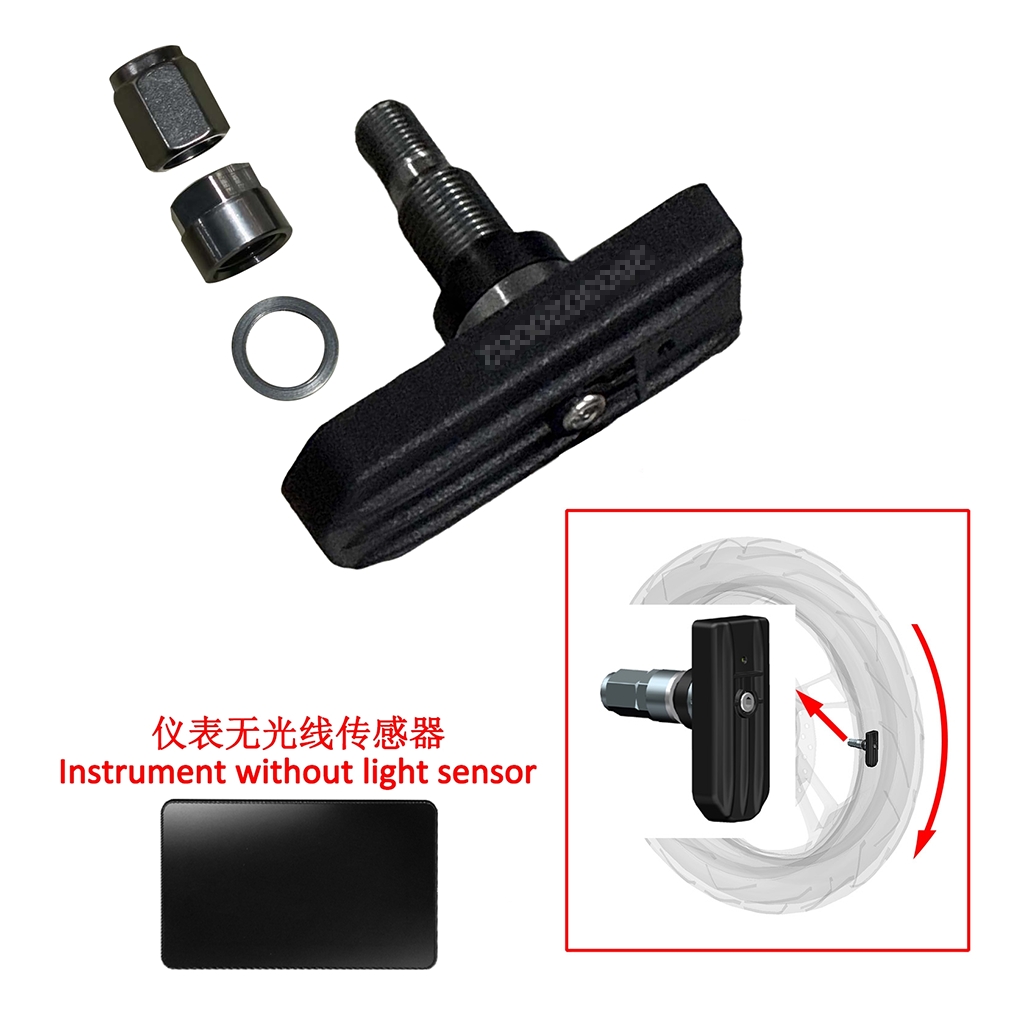

14. ZT310 tire pressure sensor (straight head M10/reinforced)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:This tire pressure sensor match with the IPS screen instrument,before purchase to confirm clearly.The tire repair fluid should not be used because it will block the stoma of the pressure monitoring sensor,resulting in dificulty in inflating or failure of tire pressure momnitoring .
|
|
|
|
15. ZT310-T vacuum spoke wheel nut
|
|
|
|
|
|
|
Quantity
|
|
|
40
|
|
Remarks:T30 plum hexagon wrench is reqiured.
|
|
|
|
16. ZT310－T Vacuum spoke wheel female set screw M4
|
|
|
|
|
|
|
Quantity
|
|
|
40
|
|
Remarks:2# inner hexagon wrench is reqiured.
|
|
|
|
17. ZT310-T vacuum spoke wheel spokes (L=214.6)
|
|
|
|
|
|
|
Quantity
|
|
|
10
|
|
Remarks: Rotate the spoke wheel to the position indicated by the arrow and observe the direction of the spokes. The spokes with the same direction or color are the same specifications.The color shown is only used to distinguish the spoke length,not the actual color.
|
|
|
|
18. ZT310-T Spoke of tubeless spoke rim(L=200.6)
|
|
|
|
|
|
|
Quantity
|
|
|
20
|
|
Remarks: Rotate the spoke wheel to the position indicated by the arrow and observe the direction of the spokes. The spokes with the same direction or color are the same specifications.The color shown is only used to distinguish the spoke length,not the actual color.
|
|
|
|
19. ZT310-T vacuum spoke wheel spokes (L=191.6)
|
|
|
|
|
|
|
Quantity
|
|
|
10
|
|
Remarks: Rotate the spoke wheel to the position indicated by the arrow and observe the direction of the spokes. The spokes with the same direction or color are the same specifications.The color shown is only used to distinguish the spoke length,not the actual color.
|
|
|
|
20. Oil seal TC φ28×φ42×7
|
|
|
|
|
|
|
|
21. GB276 Deep groove ball bearing 6004-2RS-C3
|
|
|
|
|
|
|
|
22. ZT350 tire pressure sensor N (M10 straight head)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:The tire repair fluid should not be used because it will block the stoma of the pressure monitoring sensor,resulting in dificulty in inflating or failure of tire pressure momnitoring .Early productions were engraved with the letter "N",and the current production has been cancelled.
|
|
|
|
