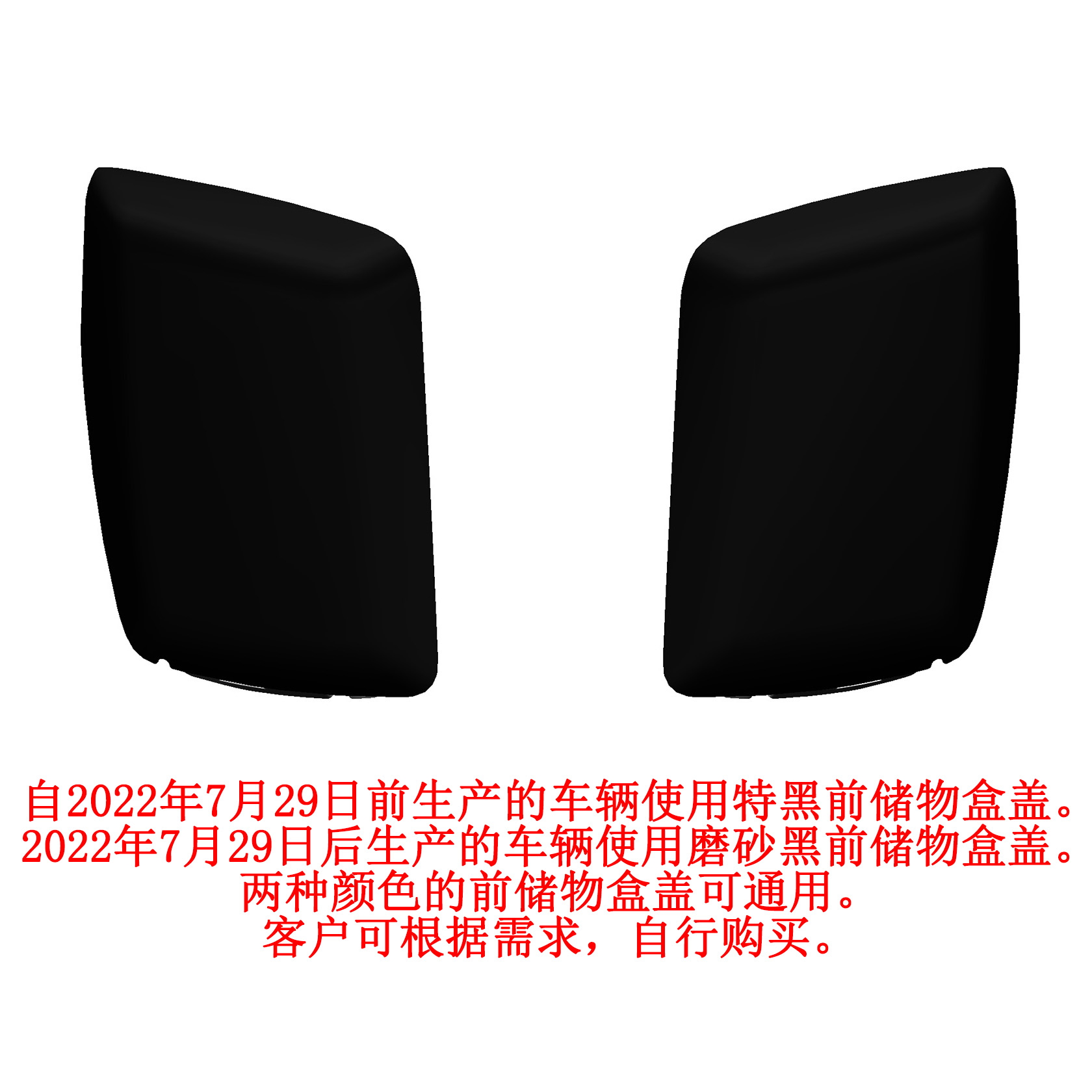

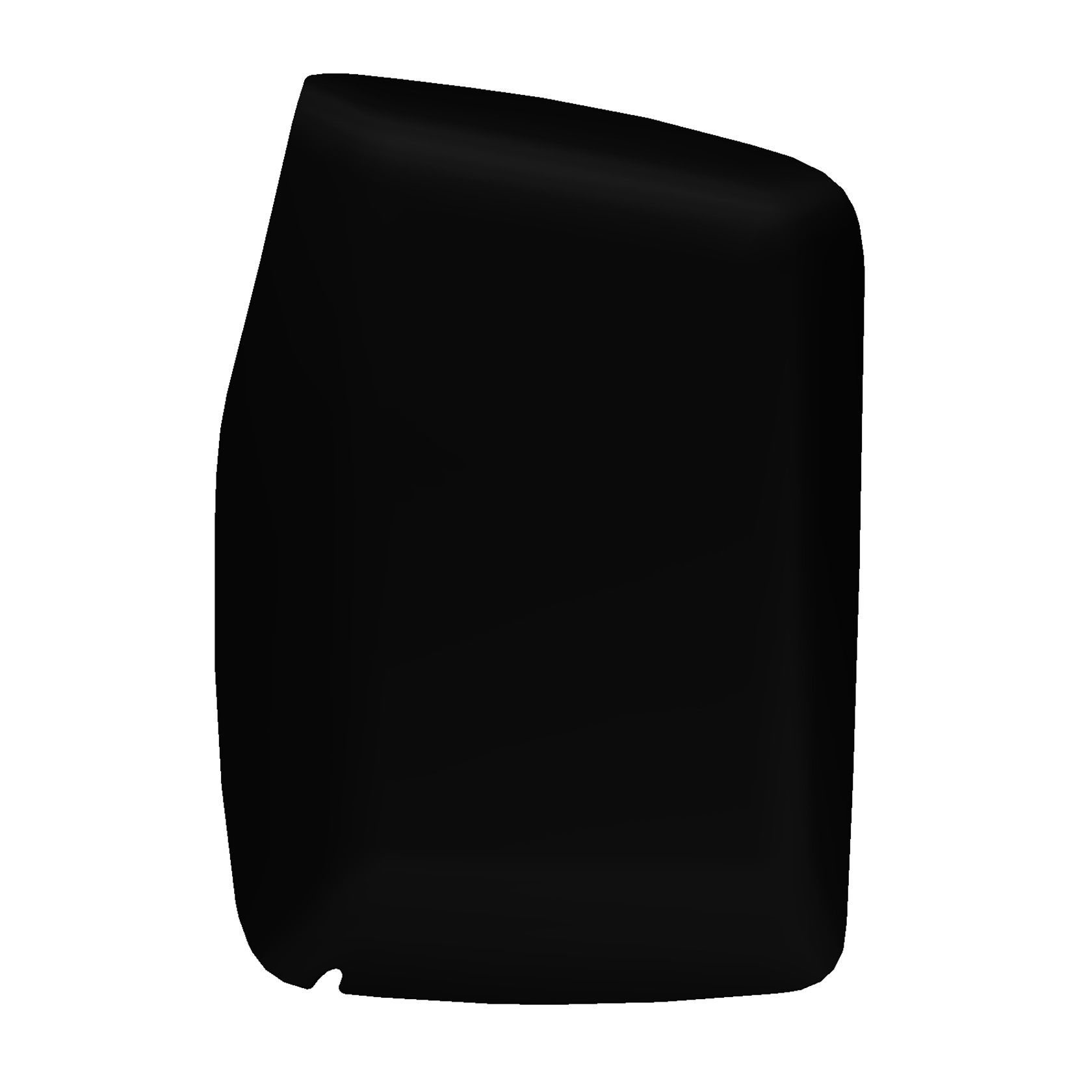

1. ZT350T-D front storage box left cover (extra black)
|
|
|
|
|
|
|
|

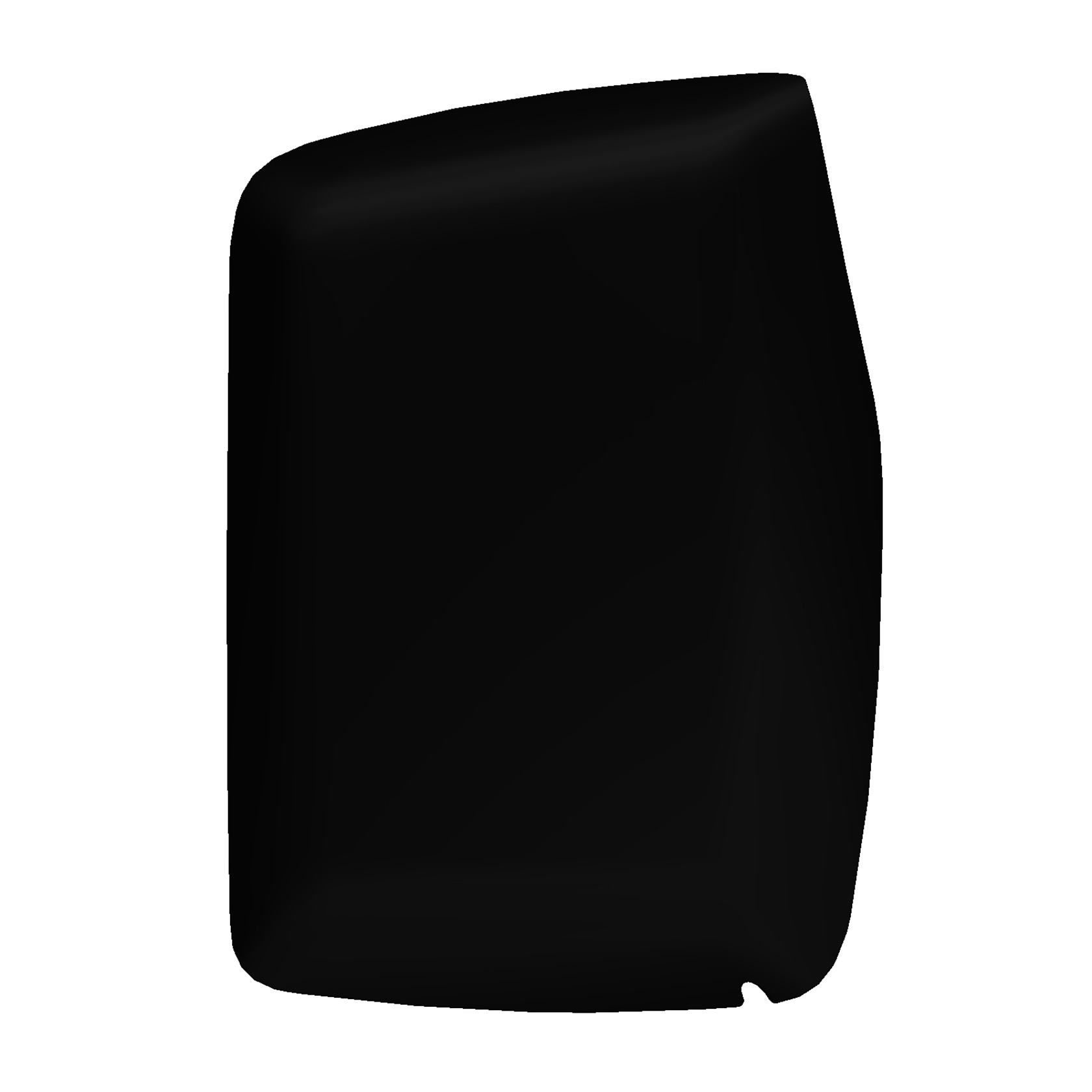

2. ZT350T-D front storage box right cover (extra black)
|
|
|
|
|
|
|
|
3. Plywood M6×11×15(zinc-nickel)
|
|
|
|
|
|
|
|
4. Left inner cover of ZT350T-D front storage box
|
|
|
|
|
|
|
|
5. ZT350T-D front storage box right inner cover
|
|
|
|
|
|
|
|
6. Hexagon socket head screw M6×14+8.5×3 SUS302
|
|
|
|
|
|
|
Quantity
|
|
|
10
|
|
Remarks:It can be used as an alternative to "1251100-120093 Non-standard bolts M6×16 (environmental color)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel）"+"1244100-037000 φ12×φ8.5×2.5 circle buffer glue"+"1274100-018000 ZT250-S muffler anti-hot plate sleeve" fixing structres.
|
|
|
|
7. ZT250-S rotating axle of fuel tank outside cover
|
|
|
|
|
|
|
|
8. ZT310T-M Torsion spring for front left storage box φ1.4×φ6×10
|
|
|
|
|
|
|
|
9. ZT310T-M Torsion spring for front right storage box φ1.4×φ6×10
|
|
|
|
|
|
|
|
10. ZT250－S Fuel tank cover rotation damping
|
|
|
|
|
|
|
|
11. ZT310-T storage box cover rotating shaft limit circlip
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:φ6×0.5mm.
|
|
|
|
12. ZT350T-D front right storage box inner cover bracket
|
|
|
|
|
|
|
|
13. ZT350T-D front left storage box inner cover bracket
|
|
|
|
|
|
|
|
14. P-240 foam (width 8mm length 1.2m thickness 6mm)
|
|
|
|
|
|
|
|
