1. ZT310-T1 hood middle decorative cover
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3. Non-standard bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5. ZT310-T windshield motor controller
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:This is old model,not commom with the new model.If you need to purchase this part,please check your vehicle actualoff-line date.If is on or before 1 August 2021,you can purchase this model.Total wire length(including plug):220±5mm.
|
|
|
|
6. ZT310T-M windshield motor controller(limited time)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:This is new model.If you need to purchase this part,please check your vehicle actualoff-line date.If is on or after 2 August 2021,you can purchase this model.
|
|
|
|
7. ZT310-T windshield controller rubber sleeve
|
|
|
|
|
|
|
|
8. ZT310-T motor pressure plate
|
|
|
|
|
|
|
|
9. ZT310-T windshield motor
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:If you buy a windshield motor,you need to buy a "1240300-007000 HJ125-6 Battery rubber gasket”，pasted
on the side of the windshield motor label.
|
|
|
|
10. ZT310-T windshield motor sheath
|
|
|
|
|
|
|
|
11. GB16674 M6×16 Hexagon flange bolts (9.8 grade/environmental color Zinc)
|
|
|
|
|
|
|
|
12. ZT310-T1 speedometerbracket
|
|
|
|
|
|
|
|

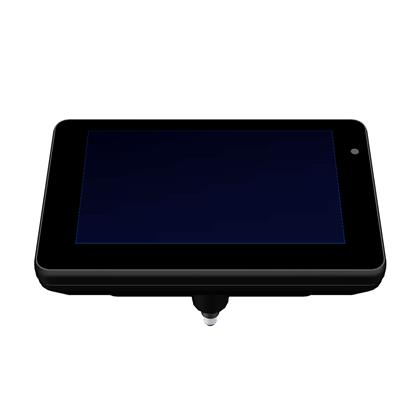

13. ZT310 TFT instrument (19 inch Spark tire/Bosch)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:When reinstalling the instrument,the torque of M6 nut is 8-12 N.m,too much torque will break the studs on the instrument.This instrument is used with “1184200-155000 ZT310 tire pressuer wireless built-in sensor”.
|
|
|
|

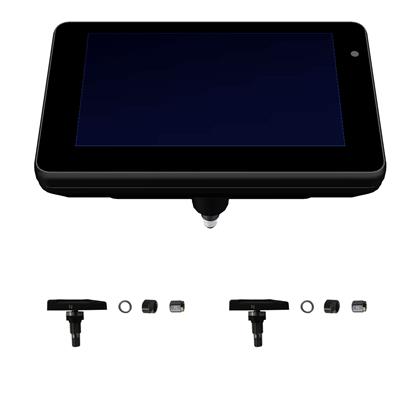

14. ZT310-T(19 inch) new version TFT speedometer after sales group parts
|
|
|
|
|
|
|
|
15. ZT310 TFT Speedometer (19 inches/BOSCH/ips)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:When reinstalling the instrument,the torque of M6 nut is 8-12 N.m,too much torque will break the studs on the instrument.This is the new type of instrument is used with "1184200-196000 ZT310 tire pressure sensor(straight head M10)".Old models instrument users to replace the new type must be matched to buy 2 pcs "1184200-196000 ZT310 tire pressure sensor(straight head M10)".Make sure before you buy the instrument.
|
|
|
|
16. GB6177.1M6 (environmental color)
|
|
|
|
|
|
|
Quantity
|
|
|
3
|
|
Remarks:10# sleeve.
|
|
|
|
17. ZT310TFT instrumentation rubber cushion
|
|
|
|
|
|
|
Quantity
|
|
|
3
|
|
Remarks: φ9×φ17×9.9mmm.
|
|
|
|
18. ZT310-T head cover aluminum bracket(outside association/Matte Black)
|
|
|
|
|
|
|
|
19. HJ125-6 Battery rubber gasket
|
|
|
|
|
|
|
|
