Multi-angle Exhibition
Technical Data
Complete vehicle Power system Suspension system
Length (mm) 2070 The body Aluminum alloy Form of frame Steel pipe frame
Width (mm) 845 Total number of cylinders Single cylinder Tire structure Radial tire
Height (mm) 1120 Camshaft system Double-top camshaft(DOHC) Front rim size MT:3.5×17
Wheel base (mm) 1390 Bore X Stoke (mm) 84.5 x 62 Rear rim size MT:4.5×17
Loading capacity (kg) 169 Cooling system Water cooling Front tire size 120/70ZR17
Curb weight (kg) 188 Fuel 95 and above Rear tire size 160/60ZR17
Minimum ground clearance(mm) 170 Compression ratio 12.3:1 Front brake size Disk brake
Gasoline tank volume (L) 17 Displacement 348 Rear brake size Disk brake
Seat height (mm) 795 Fuel supply system Fuel injection Headlight/taillight/turning signal light LED
Fuel injection system BOSCH Brake system Dual channel ABS
Ignition system Electric ignition
Transmission system Oil sealing chain
Idling speed (r/min) 1650 ± 100
Maximum power (kW/rpm) 29 / 9500
Maximum torque (N.m/rpm) 32.8 / 7500
Transmission Constant mesh 6-section transmission
Gear International gear
Clutch Wet type multi-pieces
Economical consumption of fuel (L/km) 3.2 /100





Gen 2.5 Keyless Control System
With advanced encryption technology, the Gen 2.5 Keyless Control System performs well in anti-theft protection, and induction key fob is delicate and exquisite. The portable key fob can unlock the motorcycle within 1.5m away and lock it beyond this distance through inductiveness, keeping the transponder in a backpack or pocket with no need for taking it out. It avoids the hassle of using key to unlock the motorcycle and is easy and convenient to use. The whole motorcycle adopts the electronic lock, which brings the motorcyclist a more wonderful experience. The Gen 2.5 Keyless Control System is IP67 waterproof, and equipped with a better built-in HF antenna, enhancing the sensitivity of the system. It also has a built-in chip sensor, enabling it to respond to and unlock the motorcycle when it is close to the lower right side of the seat even if its battery is removed or dead.
Electric Function
Traditional keys have been eclipsed by the electric gasoline tank cover, seat cushion lock and head lock. Buttons are distributed on the left and the right handlebars, which facilitates the motorcyclist to start by one press.
Fuel-saving and sporting dual mode
The cyclist can switch between the two modes (E is fuel-efficient mode, S is sports mode) by pressing the button on the right handlebar, which fully satisfies the fuel-saving demand during the long-distance travel and the swift and fierce experience demand of cycling in cities. In the fuel-efficient mode, the system will automatically switch to the sport mode as long as the engine speed is increased to 7,000rpm if the cyclist needs to overtake under emergency.
17L Galvanized Gasoline Tank with Baking Paint
The gasoline tank adopts one-side galvanized plate to prevent the gasoline intake filter cotton clogging and gasoline leakage caused by rust inside the tank.
TFT Full Color LCD Screen Panel
The full virtual HD HB TFT full color LCD IPS panel has four types of personalized theme interfaces. It has functions such as interconnection with mobile phones, navigation screen sharing, screen mirroring, Bluetooth music, phone answering, and automatic adjustment of backlight. It can also monitor the driving data, vehicle failure, tire temperature and air pressure in real time during the drive to ensure driving safety.

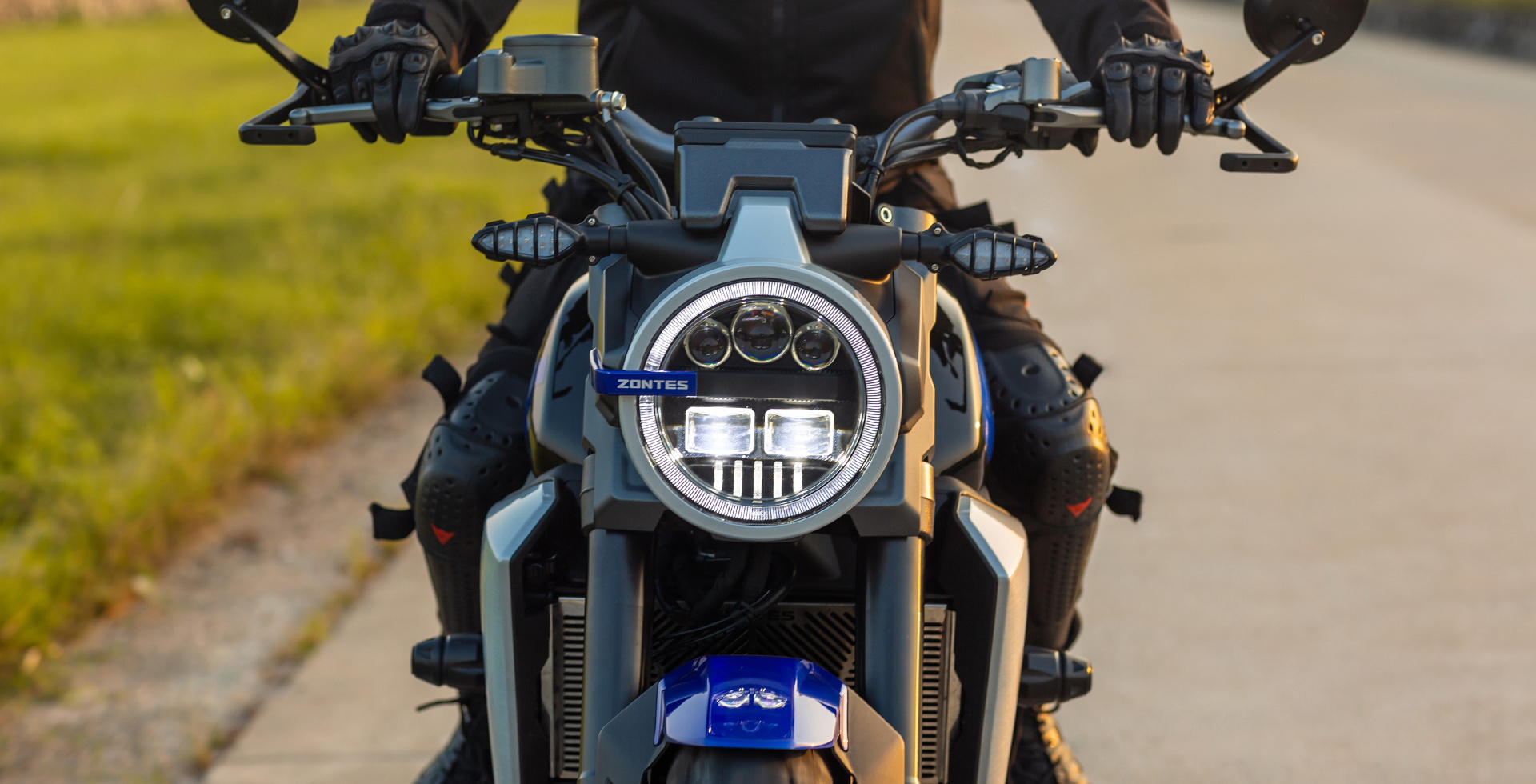

Whole Motorcycle LED Light
The auto-level LED light source is used, with a natural and soft color temperature. The integral aluminum alloy die-casting headlamp rear shell can significantly improve the heat dissipation efficiency to achieve a brighter illumination field, smaller light decay and longer service life.
One-piece Forged Hand Guard
The one-piece-forged aluminum alloy hand guard is solid and strong to ensure the motorcyclist's safety.
Second-generation handlebar switch and auxiliary handlebar switch
Brand new design, the turn signal is restored to the structure of automatically centering by pressing the turn signal button, cool backlight display, reliable performance. The new designed internal structure of the auxiliary switch improves the waterproof level to IP67, and the waterproof performance is more stable.
10AH gel battery
Large capacity and good at low temperature performance.
Second-generation stearing lock
The second-generation stearing lock has a more compact driving mechanism, better shock resistance and sealing performance, automotive levelelectronic materials, scientific algorithms, quicker action, safer and more reliable.
Dual fast charging USB ports
The USB charger (fast charging version) provides two USB output ports that support QC3.0 fast chargingprotocol for riders. During fast charging, the output power of a single port can reach 18W, and the total output power of dual ports can reach 36W at the same time. The shell is made of high temperature flame retardant material, built-in high-precision hardware current limiting chip, which can ensure that each ports works within the safe current range, effectively preventing the occurrence of output overcurrent, input overvoltage, output short circuit, etc., greatly improving safety.
Newly Tuned Front and Rear Shock Absorbers
The front shock absorber adopts φ43mm front fork tube, quasi-liter level, with stronger rigidity, significantly improving the control over the vehicle and ensure smooth driving on the road. The central rear shock absorber adopts high-pressure nitrogen inside, φ 50mm damping cylinder, oversized piston, and higher specifications than most 1000cc classes, so that it responds quickly, effectively absorbs vibration caused by small bumps on the road, and provides stronger support on rough road. It has a small spring preload and large rear wheel stroke, improving riding comfort and avoiding fatigue during long journey.
Specially Shaped Integral Seat Cushion
Tayo's unique automatic cushion production line combines with the unique anti-foaming sponge forming technology, make the soft sponge fit more closely with the skin without flaking and deformation.One-piece seat cushion, the shape is more radical and full of retro style.
Equipped with dual channel ABS
The dual-channel ABS system allows the rider to calmly control the scooter in any unexpected situation. The ABS system will bring confidence to whatever you want, whether in sand, rain or snow.
Rear Flat Fork of Aluminum Alloy
The special technology of integrated forming originates from the independent casting of Tayo Company. Through the combination of material and casting technology, the flexibility of aluminum alloy is close to that of steel tube. It is very difficult to break in bending and torsion. The characteristics of light weight and good rigidity of aluminum alloy are brought into full play.

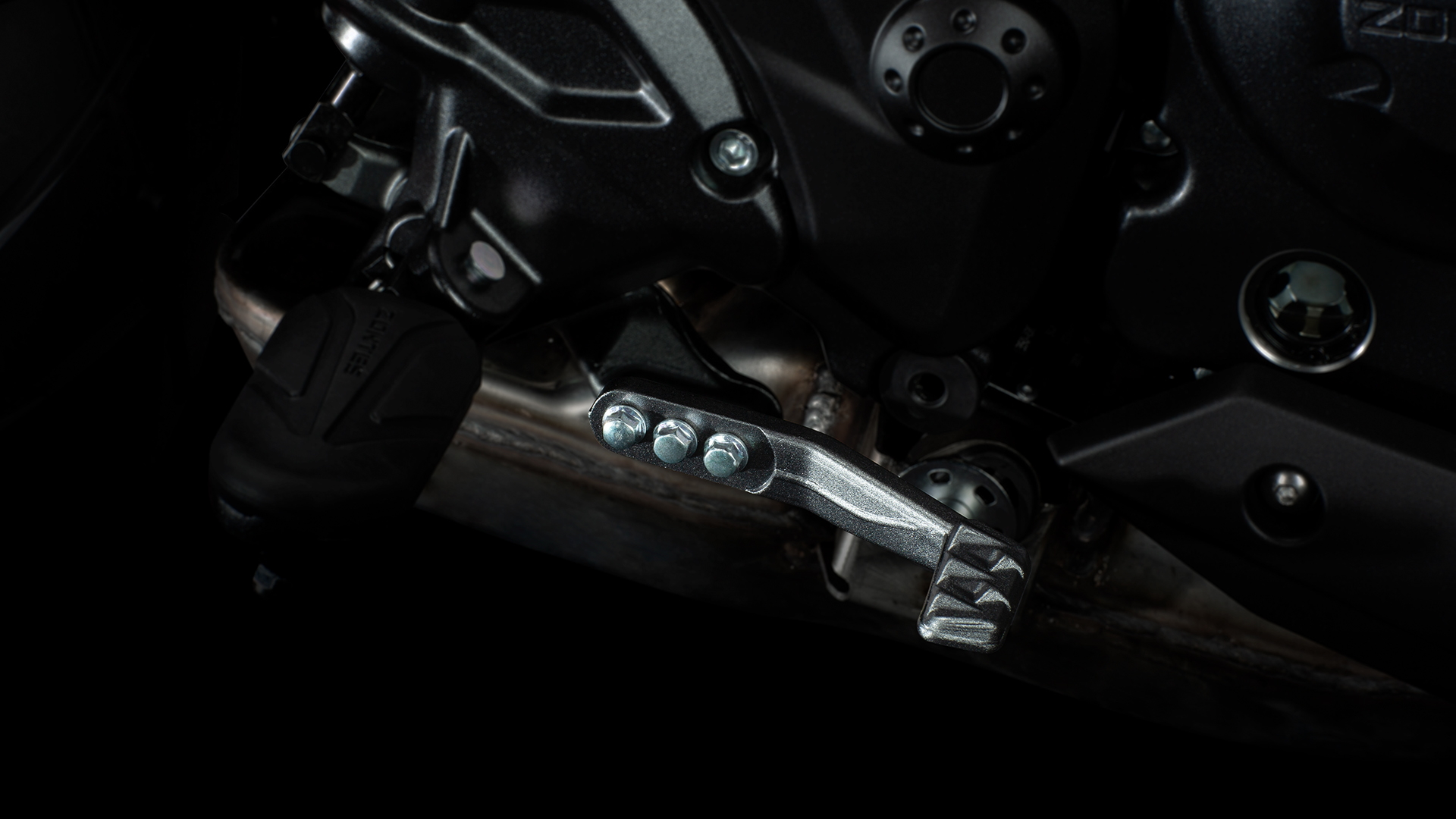

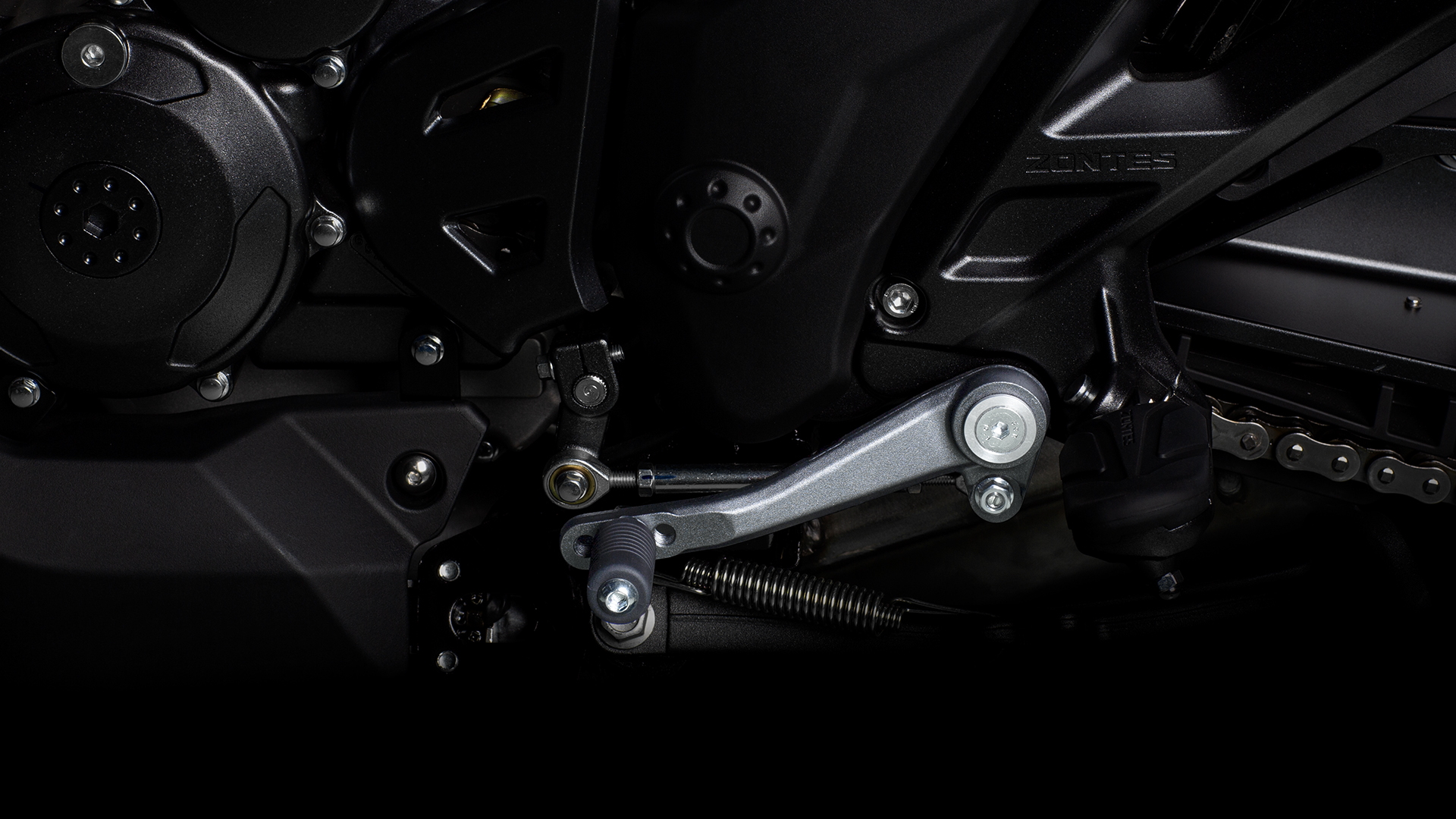

Adjustable Brake Pedal and Shift Lever
The three front and rear sections of brake pedal and shift lever can be adjusted to adapt to different foot sizes and shapes, providing users with comfortable operating experience.
anti-scald exhaust pipe
The stainless steel outer barrel and the ingenious internal heat insulation design prevent the exhaust pipe from burning when driving for a long time and allow the back seat passenger to feel at ease when placing the feet close to the baffle.
Dry and Wet Tires (Dedicated for 350GK)
The multi-purpose tread pattern makes it perform well on unsurfaced roads, ensuring your smooth driving. The sports-inclined tread pattern and semi-hot melt tire material help you control the vehicle easily when you are going straight or making a turn.
Radial Type Caliper/enlarged Disc Brake Plate/disc Brake Plate Protective Cover
The diameter of the front disc brake is increased to 320mm, and that of the rear disc brake is increased to 265mm, providing more powerful braking force and more linear hand feel of breaking.
The front disc brake adopts the radial-type four-piston caliper to make emergency braking easier and effectively shorten the braking distance, and also provide better protection for the disc brake plates.
High-strength Frame
The new design frame effectively reduces engine vibration and eliminates the hidden danger of gasoline leakage simultaneously. The strengthened front part of the frame improves the rigidity of the frame and ensures driving safety.
Tire pressure monitoring system
Adopt German imported chips to achieve high-precision monitoring. When the tire pressure is abnormal during running, it quickly locks the front and rear wheels and flashes a warning prompt on the instrument. With learning matching function, high pressure alarm function, low pressure alarm function, high temperature alarm function, rapid air leakage alarm, sensor low battery alarm, sensor signal loss alarm, etc. The tire pressure monitoring system will effectively avoid flat tires and increase driving safety; avoid damage to tires at low air pressure and extend tire life; reduce fuel consumption; and maintain the best handling performance.
Large-area Water Cooling Radiator
The integral large-area water cooling radiator is characterized by large windward heat dissipation area and sufficient heat exchange power, ensuring high-speed riding without worrying about temperature soaring. Equipped with φ 140mm self-suction radiator fan, it provides a good enough heat dissipation effect to respond to the temperature during low speed riding.
Gasoline Cooling Radiator
The gasoline cooling radiator is used as the gasoline cooler to increase the windward heat dissipation area of gasoline, and the windward air flow can take away more heat. The gasoline bypass line is removed, so there is only one gasoline line, ensuring that all gasoline passes through the gasoline cooling radiator to cool down.
New Design Air Filter
The volume of the 350 air filter is 30% larger than that of the 310 air filter. With the new muffler, it not only improves the low torque efficiency, but also greatly reduces the noise of the vehicle.
Integral Bumper
The wrapped thick bumper ensures a larger protective area.
Vacuumed Steel Wire Spoke Rim
Using the advanced technology for current high-end imported motorcycles, it adopts spin formed rim and side spokes, so that the rim has small overall weight, higher toughness and better impact resistance.
BOSCH EFI system
The latest Bosch EFI system integrates functions such as headlight control, fan control, and sports & fuel-saving mode, which is equivalent to a comprehensive optimization of thefuel economy and operating quality.
High power magneto
The power generation of high-power magneto is increased; the temperature rise is reduced and the service life is longer; the weight of the magneto rotor is reduced, which further improves the engine vibration and power output; the battery matched with the high-power magneto has greater storage capacity.
Aluminum Alloy Air Cylinder
The inner wall of the cylinder without liner is thin due to the completely home-made pure-aluminum cylinder from die-casting to processing, and the space saved is used to widen the water passage, so as to take away the heat in the cylinder quickly. The good heat dissipation performance is an important factor to guarantee the improvement of the engine performance and the extending of engine life.
High Compression Ratio Engine
The 350 engine has such a high compression ratio of 12.3:1 that a low fuel consumption can ensure a power output of 29kW/32.8N.m. As the development trend of the advanced technology of internal combustion engine in the world, high compression ratio engine is characterized by fuel-saving, environmental protection and high performance. In order to successfully use high compression ratio technology, it is necessary to overcome the technical difficulties in engine material, molding process, structural design and other aspects that are different from the ordinary engines.
Sliding clutch
It is equivalent to adding a layer of transmission protection between the engine and the rear wheel to reduce the impulse phenomenon of the clutch when the speed difference is too large; make the clutch handle lighter.
