Technical Data
Whole motorcycle   Power system   Suspension system
length (mm) 2104 The body Aluminum alloy Frame system Iron pipe frame
Width (mm) 816 Cylinder number Single cylinder  Tire structure Radial tire
Height (mm) 1143 Camshaft system Double-top camshaft(DOHC) Front rim size MT:3.0×17
Wheel base (mm) 1464 Bore X Stoke (mm) 80 x 62 Rear rim size MT:5.5×17
Loading capacity(kg) 155 Cooling system Water cooling Front tire size;Presure 110/70R17;54S 250KPa
Curb weight (kg) 165 Fuel 95 and above Rear tire size;Presure 180/55R17;73S 250KPa
Minimum ground clearance(mm) 149 Compression ratio 12.5:1 Front brake size Disk brake

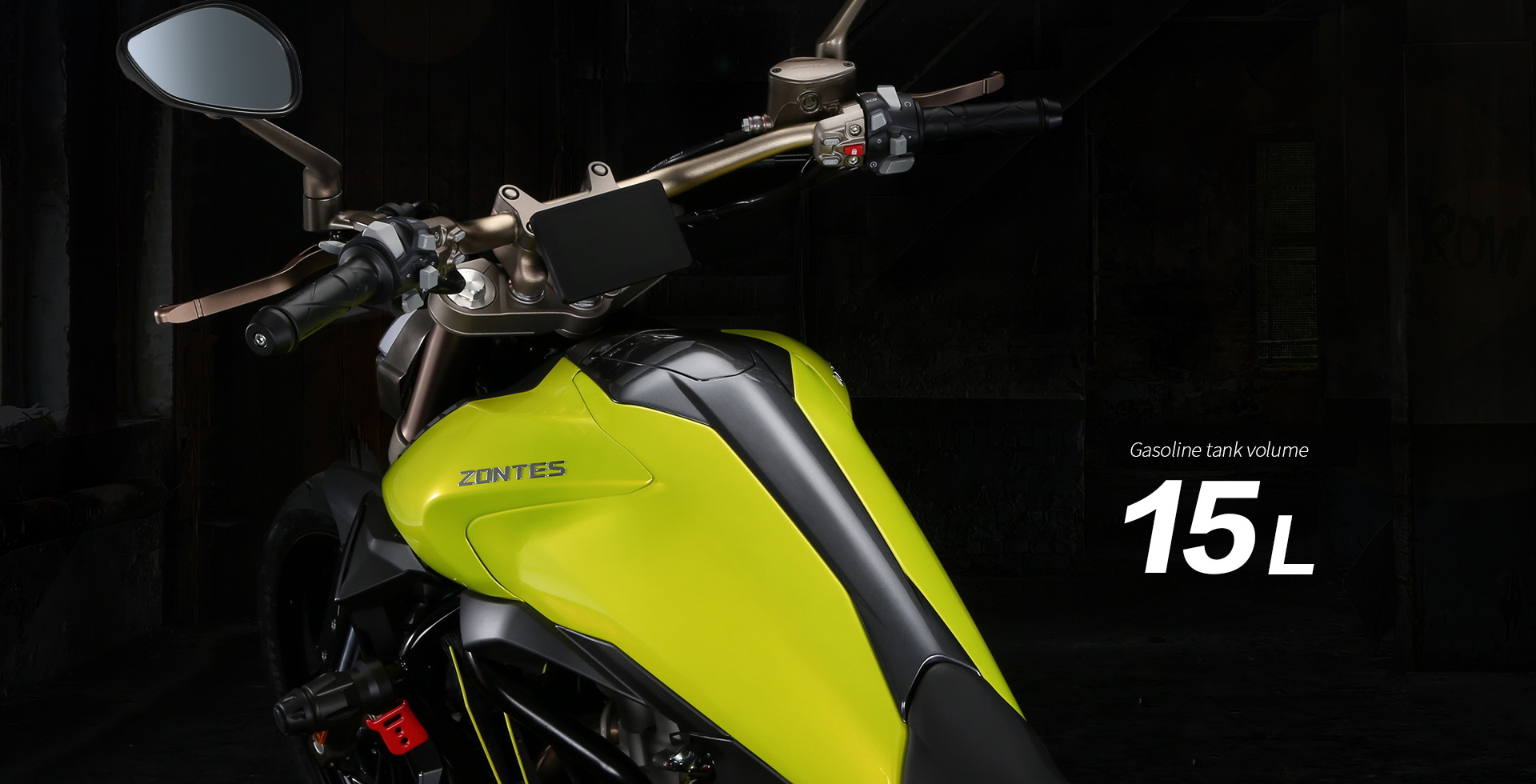

Gasoline tank volume(L) 15 Displacement(ml) 312 Rear brake size Disk brake
Seat height (mm) 750 Fuel supply system Fuel injection Headlight/taillight/turning signal light LED
    Fuel injection system BOSCH Brake system Dual channel ABS
    Ignition system Electric ignition Battery 12.8V-10Ah
    Transmission system Oil sealing chain Homologation Euro 5
    Idling speed (r/min) 1600 ± 100
    Maximum power (kW/rpm) 26 / 9500
    Maximum torque (N.m/rpm) 30 / 7500
    Transmission Constant mesh 6-section transmission
    Gear International gear
    Clutch Wet type multi-pieces
    Economical consumption of fuel (L/km) 3.1 /100



ZT310-V1

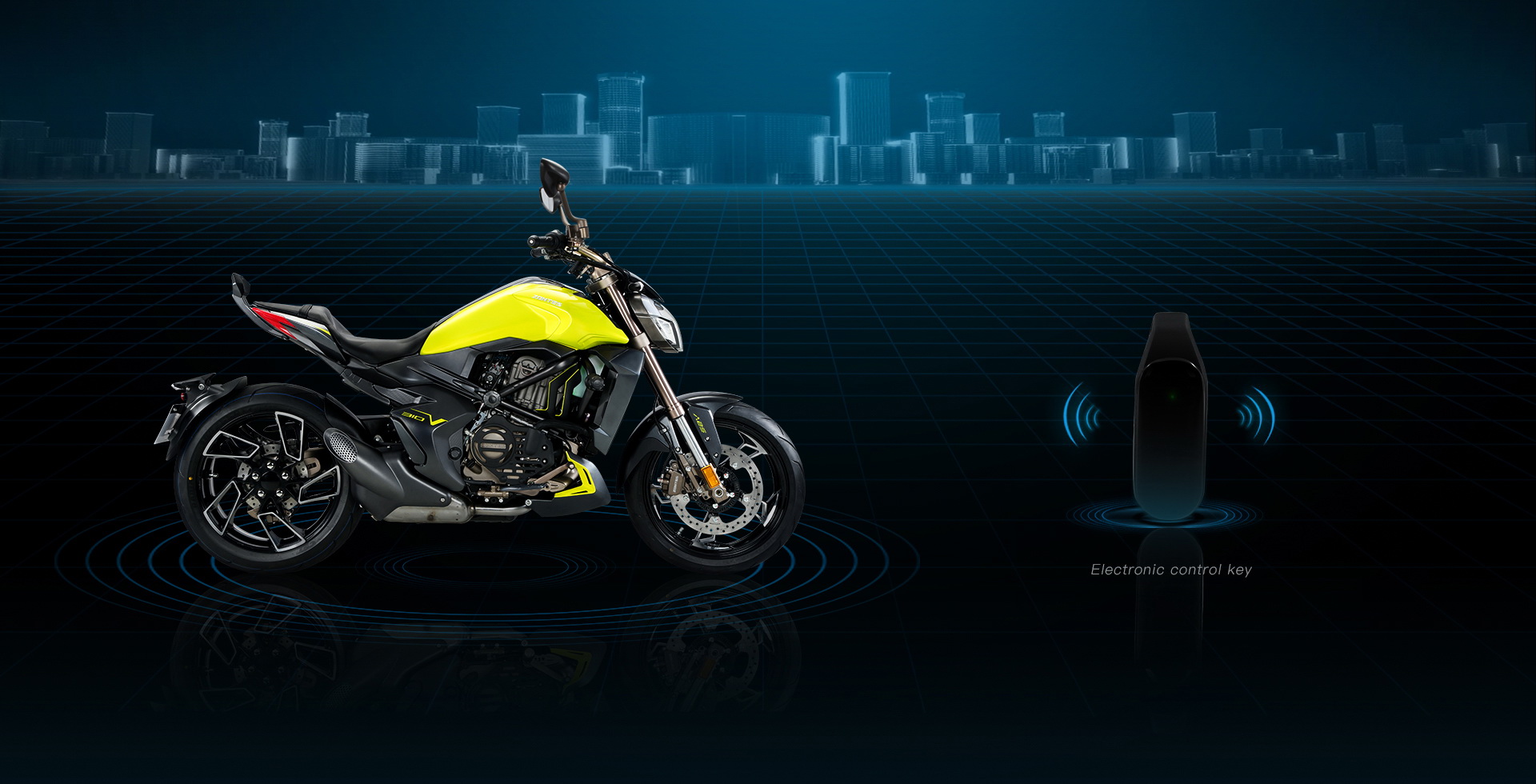

Second-generation keyless control system
The second-generation keyless control system adopts advanced encryption technology, has good security performance, and the new designed induction key is smaller and exquisite (The key can be place in a strap or band such as Mi Smart Band 3 or others with the same size). Carrying the induction key, it can be unlocked within 1.5 meters(the transponder is placed in a backpack or a pocket, you don’t need to take it out). It is also the same as leaving.It is easier, simpler and more convenient way of unlocking the key,which give you a cooler experience. The second-generation key also has a built-in chip sensor. Even if the battery is unplugged or completely empty, as long as the key is close to the lower right of the seat, it can unlock the motorcycle.
Aluminum alloy single rocker arm
The special technology of integrated forming originates from the independent casting of Tayo (Guangdong Tayo Motorcycle Technology Co., Ltd). Through the combination of material and casting technology, the flexibility of aluminium alloy is close to that of steel tube. It is very difficult to break in bending and torsion. The characteristics of light weight and good rigidity of aluminium alloy are brought into full play. At the same time, the eccentric shaft and needle bearing are adopted to replace the load-bearing state of double rocker arm. The beautiful, practical and bond shape, improves the overall appearance of the car comfort, highlights the high-end gentleman temperament, but also mixes with a bit of enduring wild atmosphere. Let you not only be as elegant as a gentleman, but also as gallop as a cheetah, free heart.

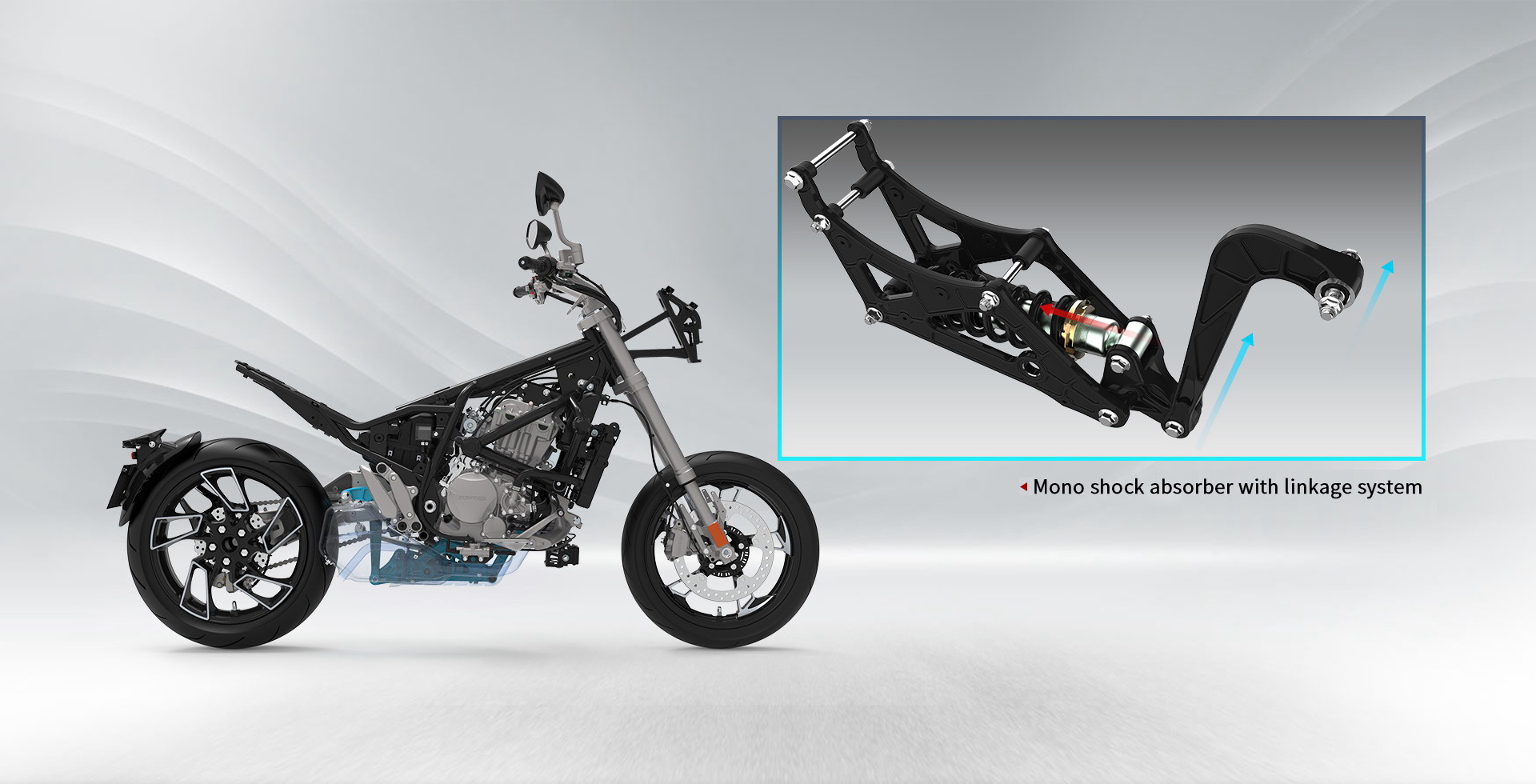

Mono shock absorber with linkage system
1. The lever ratio gradually increases with the stroke of the rear wheels. The linkage system has the characteristics of a progressive spring that can become "soft" under weak impact and "hard" under strong impact.2. The system uses lever amplification without increasing the ground clearance and buffer stroke to increase the buffer stroke of the rear wheel.3. The arrangement of parts is relatively compact which improves the handling and stability of the scooter.4. The mono shock absorber adopts the design of the built-in airbag filled with high-pressure nitrogen to reduce the hydraulic oil temperature; high-speed driving can provide greater restoring damping force. The high-pressure nitrogen in the airbag can also change the air spring characteristics inside the shock absorber. The design is comfort-oriented,the spring preload is small and the movement stroke is enlarged; the riding comfort is improved and the long-distance travel is not fatigued.
TFT full color LCD screen instrument
Full virtual TFT full color LCD screen instrument has four personalized theme interfaces. It has two modes of manual and automatic backlight, which can adjust the backlight intensity freely according to the change of light and dark of the environment. It has quick response and is convenient and efficient.

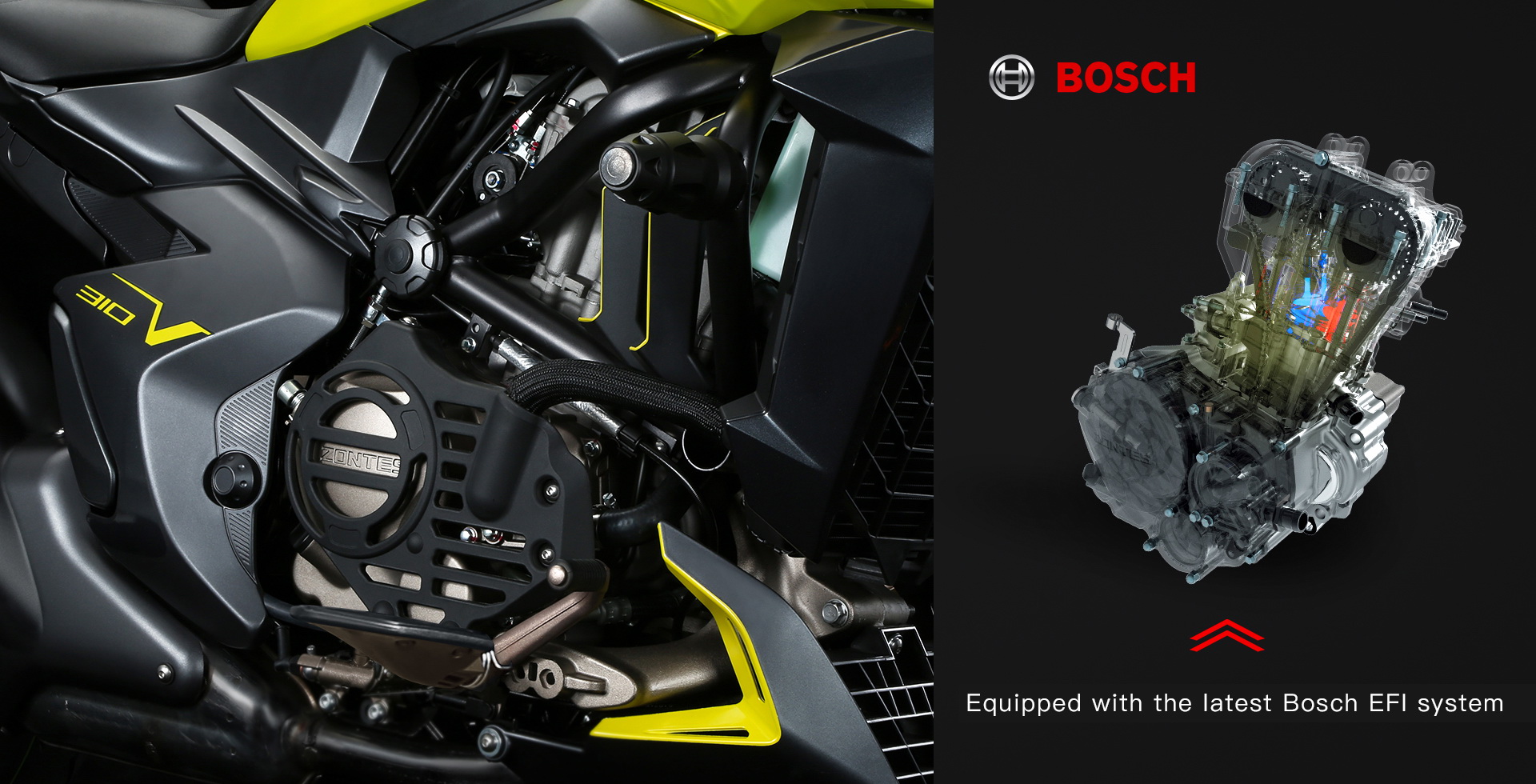

BOSCH EFI system
The latest Bosch EFI system integrates functions such as headlight control, fan control, and sports &energy-saving dual-mode, which is equivalent to a comprehensive optimization of the motorcycle's fuel saving and working quality
High power magneto
The power generation of high-power magneto is increased; the temperature rise is reduced and the service life is longer; the weight of the magneto rotor is reduced, which further improves the engine vibration and power output; the battery matched with the high-power magneto has greater storage capacity.
10AH gel battery
Large capacity and good at low temperature performance.

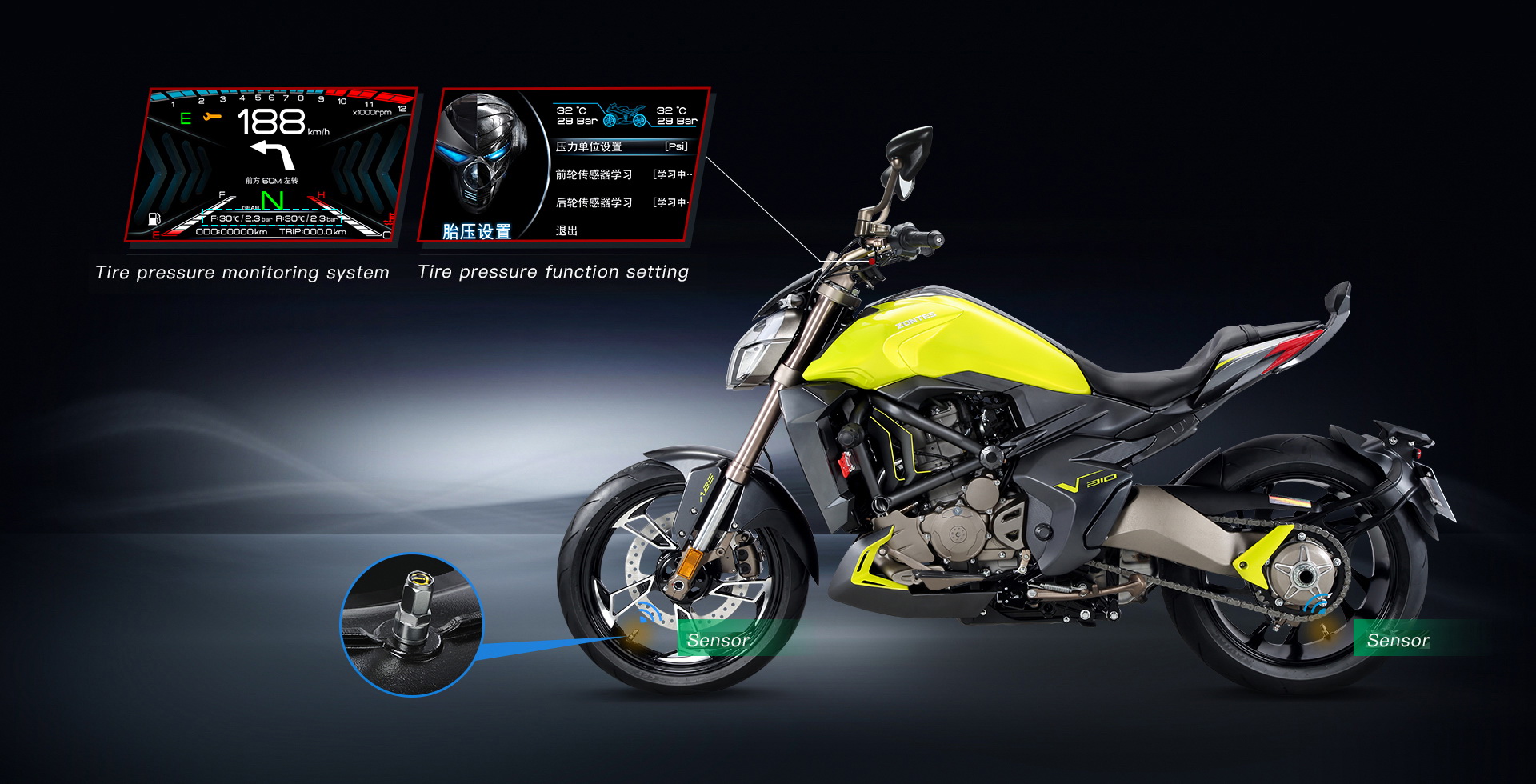

Tire pressure monitoring system
Adopt German imported chips to achieve high-precision monitoring. When the tire pressure is abnormal during running, it quickly locks the front and rear wheels and flashes a warning prompt on the instrument. With learning matching function, high pressure alarm function, low pressure alarm function, high temperature alarm function, rapid air leakage alarm, sensor low battery alarm, sensor signal loss alarm, etc. The tire pressure monitoring system will effectively avoid flat tires and increase driving safety; avoid damage to tires at low air pressure and extend tire life; reduce fuel consumption; and maintain the best handling performance.
Dual fast charging USB ports
The USB charger (fast charging version) provides two USB output ports that support QC3.0 fast chargingprotocol for riders. During fast charging, the output power of a single port can reach 18W, and the total output power of dual ports can reach 36W at the same time. The shell is made of high temperature flame retardant material, built-in high-precision hardware current limiting chip, which can ensure that each ports works within the safe current range, effectively preventing the occurrence of output overcurrent, input overvoltage, output short circuit, etc., greatly improving safety .
Second-generation stearing lock
The second-generation stearing lock has a more compact driving mechanism, better shock resistance and sealing performance, automotive levelelectronic materials, scientific algorithms, quicker action, safer and more reliable.

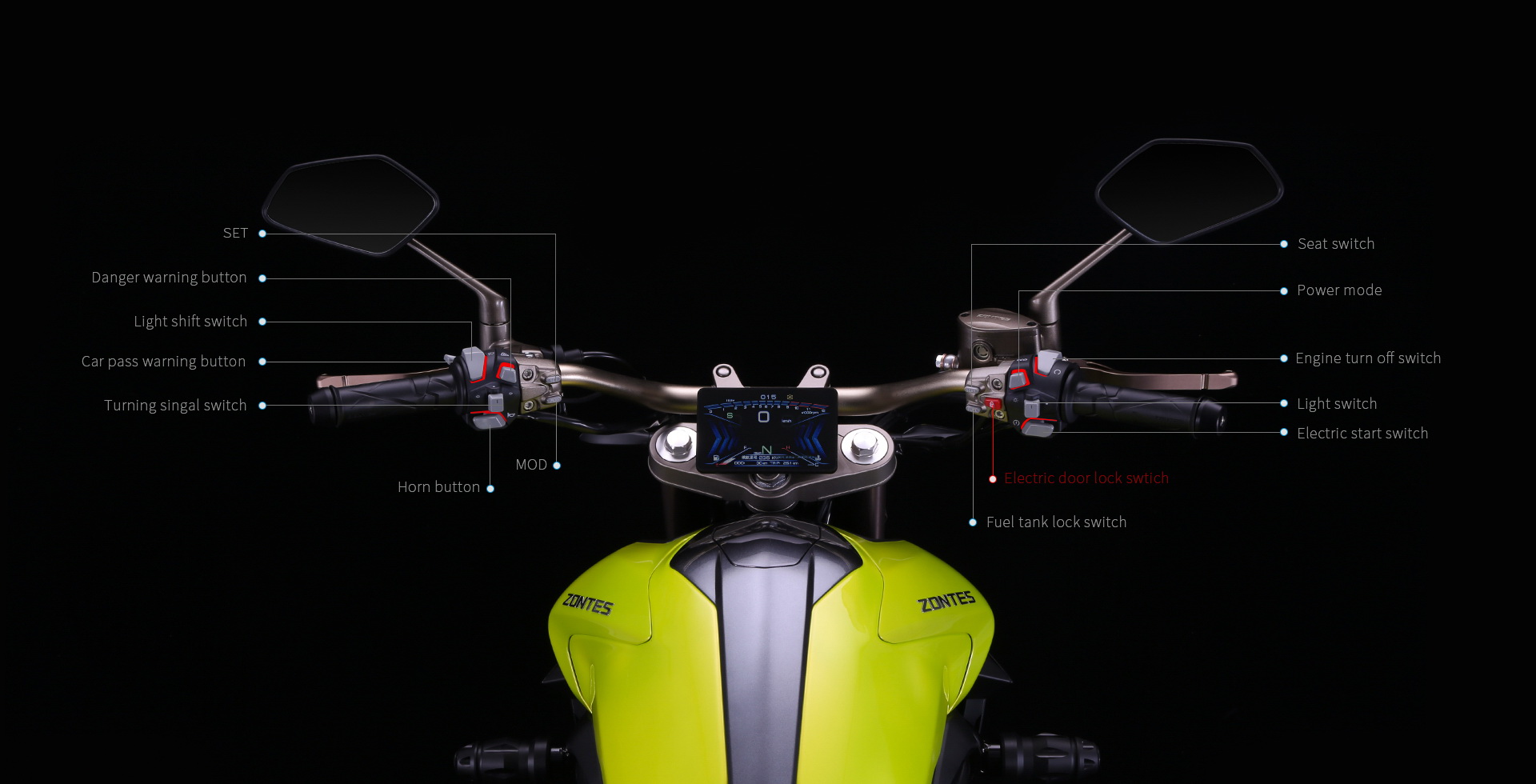

Second-generation handlebar switch and auxiliary handlebar switch
Brand new design, the turn signal is restored to the structure of automatically centering by pressing the turn signal button, cool backlight display, reliable performance. The new designed internal structure of the auxiliary switch improves the waterproof level to IP67, and the waterproof performance is more stable.
New seat cushion leather pattern
The new foam materialis very soft, and at the same time, it is re-matched with higher-grade leather, which is to increase the friction between the clothing fabric and the seat cushion.A new convex-shaped leather pattern is designed to achieve that the body is not easy to move back and forth during acceleration and braking Shift, long-distance travel is as soft and shock-absorbing as a sofa.
Three-dimensional fuel tank logo
The Zontes three-dimensional fuel tank label specially made of soft metal material is more high-end and eye-catching than the original paper decals.
Pure-aluminum cylinder
The inner wall of the cylinder without liner is thin due to the completely home-made pure-aluminum cylinder from die-casting to processing, and the space saved is used to widen the water passage, so as to take away the heat in the cylinder quickly. The good heat dissipation performance is an important factor to guarantee the improvement of the engine performance and the extending of engine life.

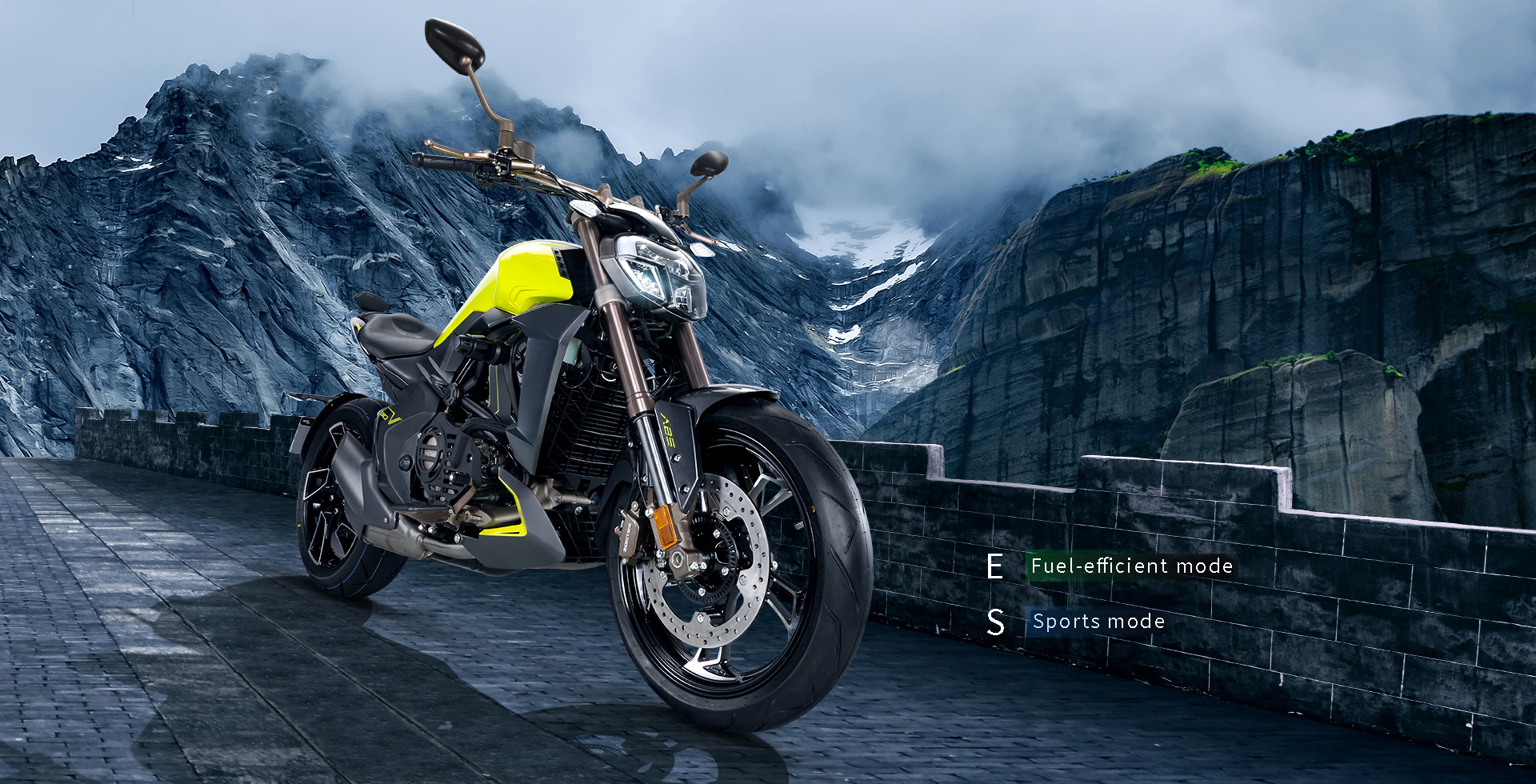

Fuel-saving and sporting dual mode
The cyclist can switch between the two modes (E is fuel-efficient mode, S is sports mode) by pressing the button on the right handlebar, which fully satisfies the fuel-saving demand during the long-distance travel and the swift and fierce experience demand of cycling in cities. In the fuel-efficient mode, the system will automatically switch to the sport mode as long as the engine speed is increased to 7,000rpm if the cyclist needs to overtake under emergency.
Sharp motorcycle headlight
Using OSRAM LED light source, the color is gentle and natural; imported light curing and anti-fogging coatings, preventing yellowing and fogging of lampshades; the integral aluminium alloy die-casting headlamp rear shell can significantly improve the heat dissipation efficiency, brighter illumination field, smaller light decay and longer life.

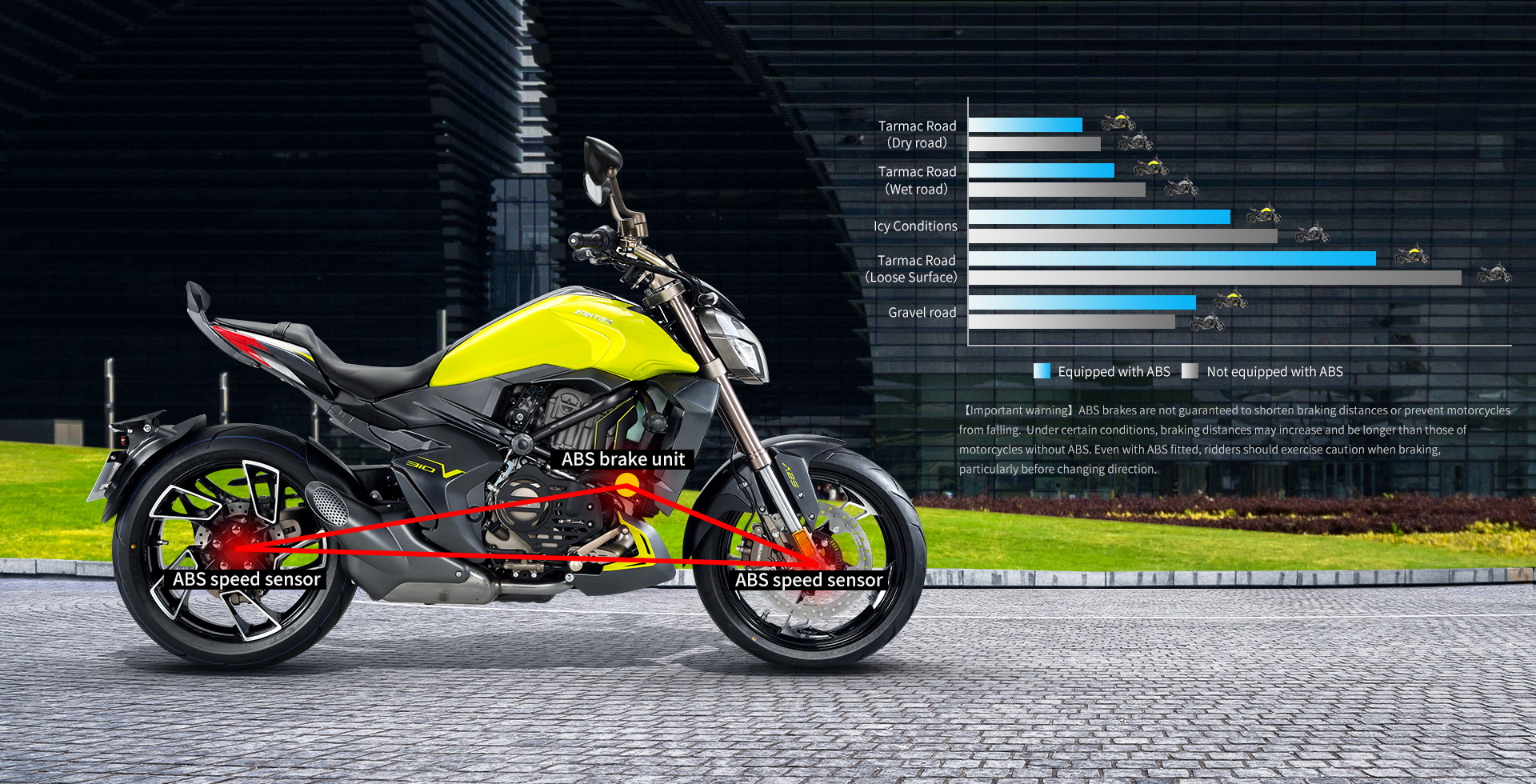

Equipped with dual channel ABS
The dual-channel ABS system allows the rider to calmly control the scooter in any unexpected situation. The ABS system will bring confidence to whatever you want, whether in sand, rain or snow.
Lightweight aluminum alloy rim
The wide rim and hollow interior design ensure both the strength and toughness.
Hidden exhaust pipe
Hidden exhaust designed, beautiful and generous, preventing the driver from burning; the whole section is provided with special stainless steel of automobile grade to exhaust, which is resistant to high and low temperature and corrosion, and ensures long service life; GB IV standard for motor vehicle pollutants makes it safer and more environmentally friendly.
Gasoline tank with galvanized liner
Eliminate the clogging of intake filter pulp and the leakage of gasoline tank due to rust.
LED rear light
Simple rear lights, the shape fits the style of the motorcycle, and the LED is more eye-catching.
Folded rear foot with rigid seam
The 310V1 folded rear foot pedal consists of 38 parts, while the 310R rear foot pedal has only 8 parts; the precision requirement of dozens of processing parts on folding rear pedal aluminium alloy support is higher than that of scooter, because the scooter does not need to be seamed, 310V1 rear pedal closes tightly with the surrounding panels, and is flexible and durable, and the left and right pedal parts can't be used universally.
180 super-wide radial tire
180 rear wheels, with a larger grasp area and aggressive appearance, allowing ordinary people to bend as smoothly and steadily as drivers.
Three adjustable front pedals
In order to satisfy the needs of the owners of different heights, 310V1 front pedal support has three adjustable functions; Support: The length /width /thickness /23cm /34cm /18cm, weight 1.8kg, not only guarantees the strength, but also eliminates the jitter in riding; In terms of technology, 310V1 front foot pedal support adopts low pressure casting technology of aluminium alloy at any cost, which greatly improves the compactness of casting materials.

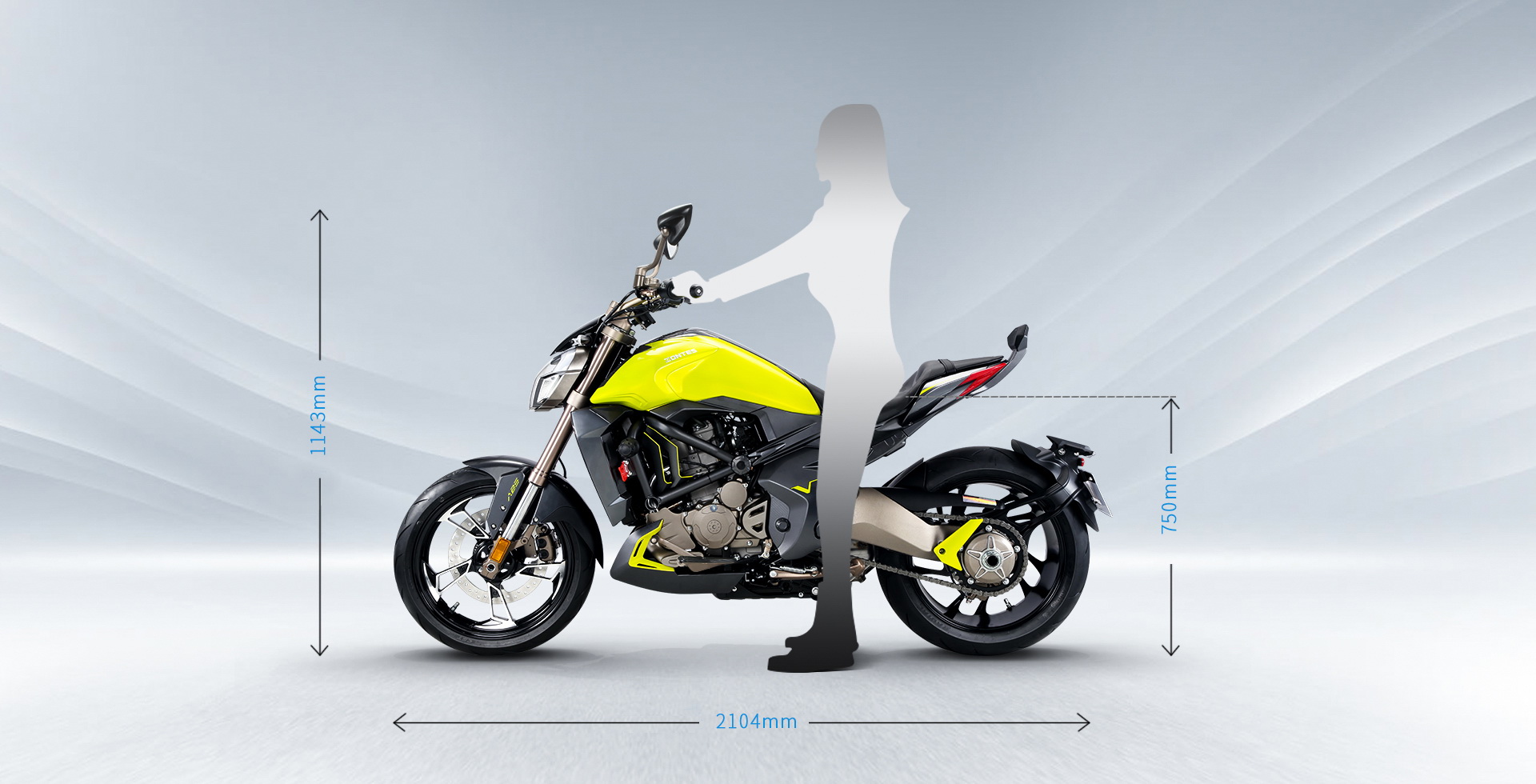

Low sitting height
For the convenience of men and women who are not tall enough, 750mm sitting height matches the excellent ergonomic design of the front of the cushion. Even knights who are only 1.6 meters tall can land on both feet.
Standard bumper
Strong standard steel pipe bumper that integrating with the body into one, protecting you and love car the safety in driving, and allowing you to drive carefreely.
Integral radiator
Integral large area water-cooled radiator, windward heat dissipation area is 1.2 times of ZT310-R split radiator, heat dissipation efficiency is higher.
Integral aluminium alloy back rest
Exquisite back rest made of aluminum alloy, in combination with rubber with leather grain, making it functional and practical without losing aesthetic feeling.
High-strength internal circulation oil-cooling frame
The frame tube is used as the engine oil cooler and the heat of the tube wall is carried away by the head-on air flow. Cracks are not allowed even when the frame is impacted. Otherwise, engine oil will be leaked, which indicates the high requirements for the strength and the tightness of the welding.
Increase disc brake plate
Provide more powerful braking force, more stronger linear braking sense.
High compression ratio engine
The ZT310-V1 engine has a high compression ratio of 12.5:1, and a low fuel consumption can get a 26KW, 30N. M power output. As the development trend of the advanced technology of internal combustion engine in the world, high compression ratio engine is characterized by fuel-saving, environmental protection and high performance. In order to successfully use high compression ratio technology, it is necessary to overcome the technical difficulties in engine material, molding process, structural design and other aspects that are different from the ordinary engines.

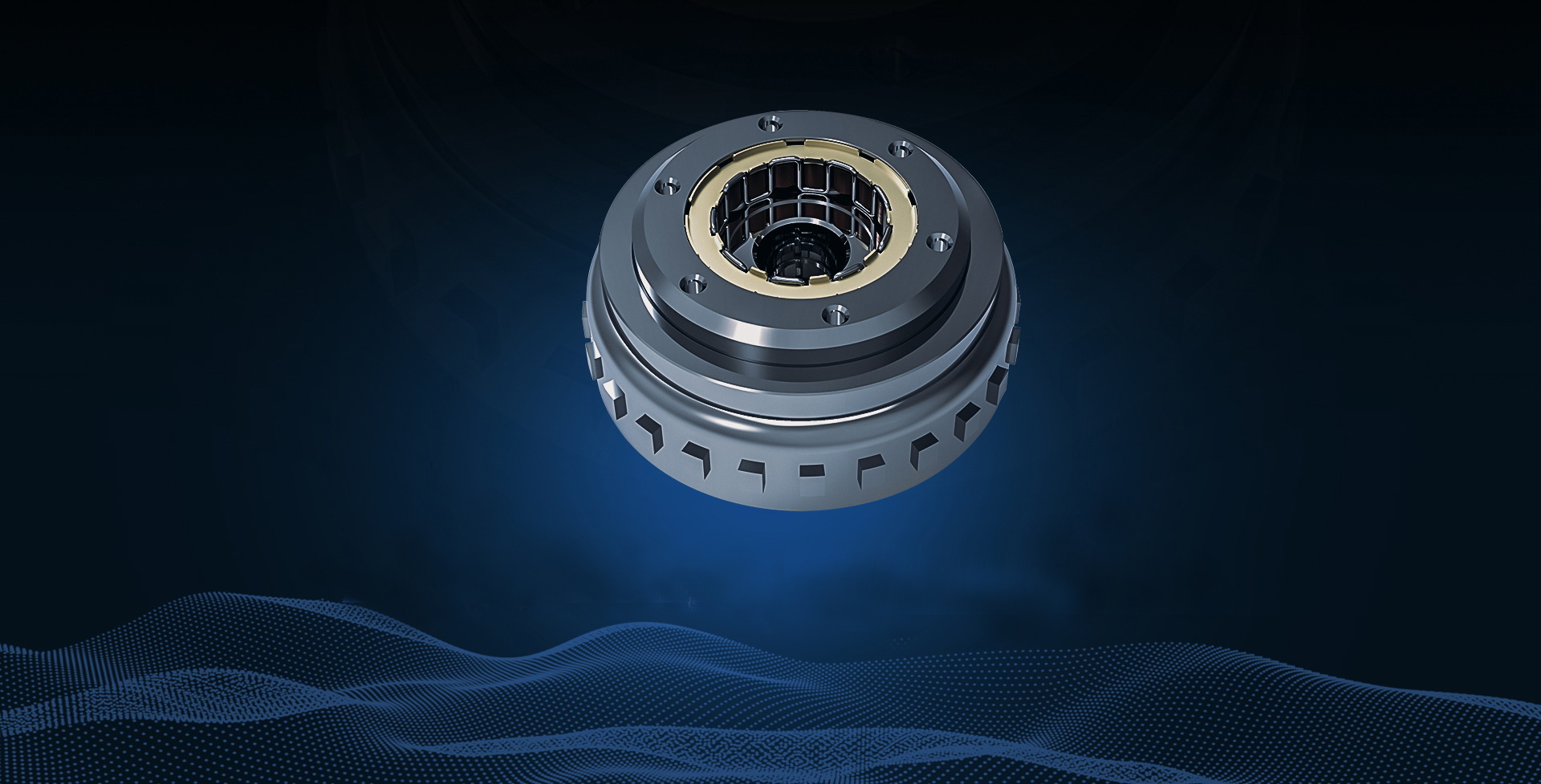

Sliding clutch
It is equivalent to adding a layer of transmission protection between the engine and the rear wheel to reduce the impulse phenomenon of the clutch when the speed difference is too large; make the clutch handle lighter.
ZONTES Intelligence
ZONTES Intelligent APP, together with TFT instrument, realizes Bluetooth connection of mobile phone, upgrades new functions, displays instrument interface and content synchronously, and also reduces navigation information in instrument center. More interesting features will be developed in the future to enhance driver's pleasure.
