Technical Data
Whole motorcycle   Power system   Suspension system
length (mm) 2099 The body Aluminum alloy Frame system Iron pipe frame
Width (mm) 835 Cylinder number Single cylinder  Tire structure Radial tire
Height (mm) 1117 Camshaft system Double-top camshaft(DOHC) Front rim size MT:3.0×17
Wheel base (mm) 1488 Bore X Stoke (mm) 80 x 62 Rear rim size MT:5.5×17
Complete vehicle dry mass(kg) 147 Cooling system Water cooling Front tire size 110/70R17
Gross mass (kg) 157 Fuel tank Gasoline Rear tire size 180/55R17
Minimum ground clearance(mm) 186 Compression ratio 12.5:1 Front brake size Disk brake
Gasoline tank volume(L) 15 Displacement(ml) 312 Rear brake size Disk brake
Seat height (mm) 720 Fuel supply system fuel injection Headlight/taillight/turning signal light LED
    Fuel injection system Delphi ABS brake system Bosch
    Ignition system Electric ignition
    Transmission system Oil sealing chain
    Idling speed (r/min) 1600 ± 100
    Maximum power (kW/rpm) 26 / 9500
    Maximum torque (N.m/rpm) 30 / 7500
    Transmission Constant mesh 6-section transmission
    Gear International gear
    Clutch Wet type multi-pieces
    Economical consumption of fuel (L/km) 3.1 /100





Keyless control system

The carry-on keyless system transponder can unlock the motorcycle through inductiveness within 1.5m from the motorcycle (the transponder can be placed in a backpack or pocket, and the cyclist doesn't need to take it out), and vice versa when the transponder is outside the range of 1.5m from the motorcycle. It is simple and convenient, which eliminates the cumbersome of using key to unlock the motorcycle. The whole motorcycle adopts the electronic lock, which presents the cyclist more wonderful experience.

Electric function

The electric gasoline tank cover, the electric cushion lock, and the electric motorcycle head all make the traditional keys seem pallid by comparison. The buttons are distributed on the left and the right handlebars, which facilitates the cyclist to press at any time.

TFT full color LCD screen instrument

Full virtual TFT full color LCD screen instrument has four personalized theme interfaces. It has two modes of manual and automatic backlight,which can adjust the backlight intensity freely according to the change of light and dark of the environment. It has quick response and is convenient and efficient.

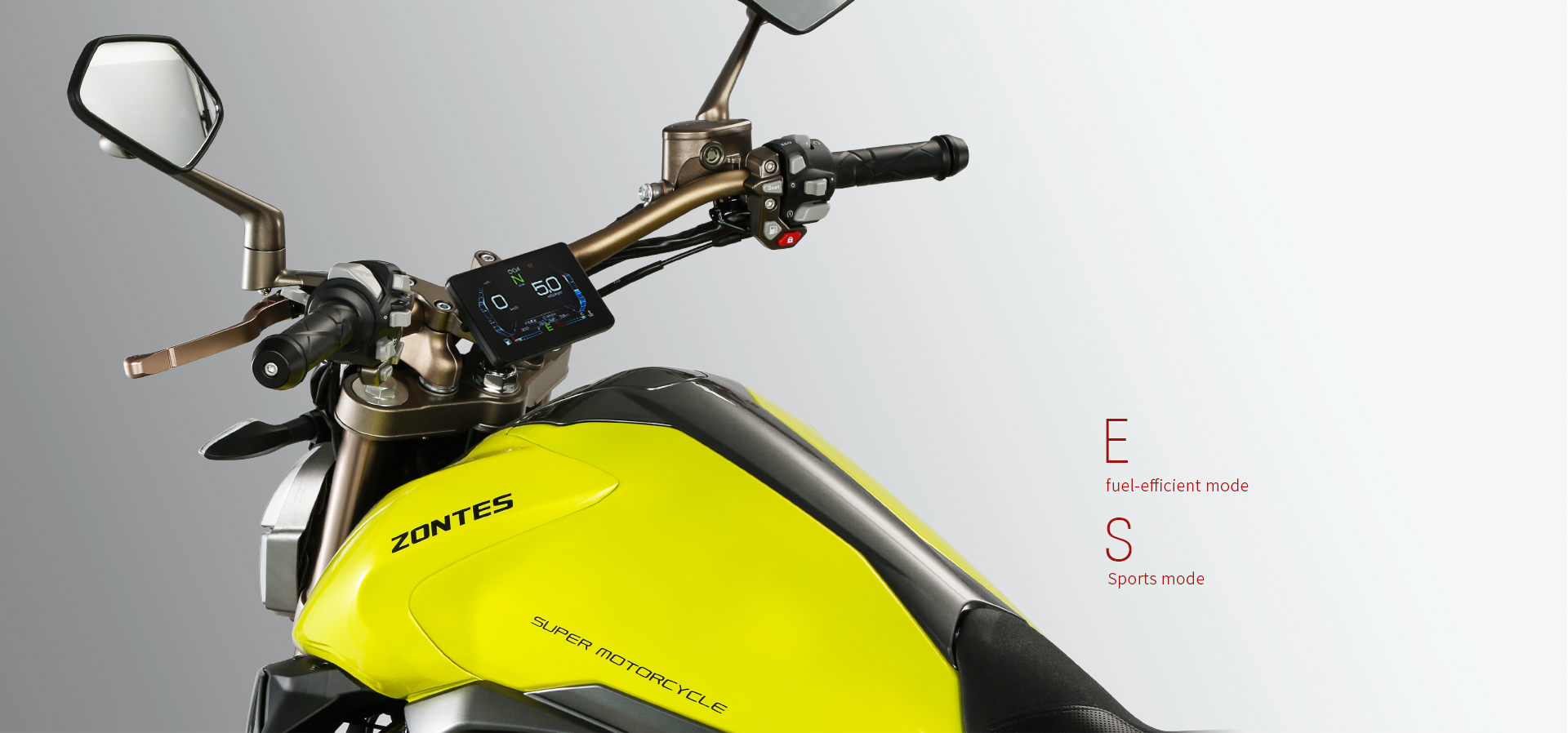

Fuel-saving and sporting dual mode

The cyclist can switch between the two modes (E is fuel-efficient mode, S is sports mode) by pressing the button on the right handlebar, which fully satisfies the fuel-saving demand during the long-distance travel and the swift and fierce experience demand of cycling in cities. In the fuel-efficient mode, the system will automatically switch to the sport mode as long as the engine speed is increased to 7,000rpm if the cyclist needs to overtake under emergency.

Pure-aluminum cylinder

The inner wall of the cylinder without liner is thin due to the completely home-made pure-aluminum cylinder from die-casting to processing, and the space saved is used to widen the water passage, so as to take away the heat in the cylinder quickly. The good heat dissipation performance is an important factor to guarantee the improvement of the engine performance and the extending of engine life.

Sharp motorcycle headlight

Using OSRAM LED light source, the color is gentle and natural; imported light curing and anti-fogging coatings, preventing yellowing and fogging of lampshades; the integral aluminium alloy die-casting headlamp rear shell can significantly improve the heat dissipation efficiency, brighter illumination field, smaller light decay and longer life.

Gasoline tank with galvanized liner

Eliminate the clogging of intake filter pulp and the leakage of gasoline tank due to rust.

It is equipped withBOSCHABS

The BOSCH9.1M model ABS system allows and brings confidence for the cyclists to manipulate the motorcycle in case of any unexpected situation unhurriedly at will, regardless of the sandy and the sleet roads.

Lightweight aluminum alloy rim

The wide rim and hollow interior design ensure both the strength and toughness.

Hidden exhaust pipe

Hidden exhaust designed, beautiful and generous, preventing the driver from burning; the whole section is provided with special stainless steel of automobile grade to exhaust, which is resistant to high and low temperature and corrosion, and ensures long service life; GB IV standard for motor vehicle pollutants makes it safer and more environmentally friendly.

Rear flat fork of aluminium alloy

The special technology of integrated forming originates from the independent casting of Tayo (Guangdong Tayo Motorcycle Technology Co., Ltd). Through the combination of material and casting technology, the flexibility of aluminium alloy is close to that of steel tube. It is very difficult to break in bending and torsion. The characteristics of light weight and good rigidity of aluminium alloy are brought into full play.

Rear auxiliary fender aluminum alloy bracket

The aluminum alloy rear auxiliary fender which is standard configuration can effectively shields the muddy water from the rear wheel and makes the cyclist worry-free during rainy days.

Rear suspension

Specially designed for cruise vehicle after shock absorption, preload stepless regulation, long stroke setting; after the domestic famous rider track personal test, careful adjustment, ensuring comfort, but also meeting the requirements of long-distance motorcycle travel.

Folded rear foot with rigid seam

The 310V folded rear foot pedal consists of 38 parts, while the 310R rear foot pedal has only 8 parts; the precision requirement of dozens of processing parts on folding rear pedal aluminium alloy support is higher than that of scooter, because the scooter does not need to be seamed, 310V rear pedal closes tightly with the surrounding panels, and is flexible and durable, and the left and right pedal parts can't be used universally.

Three adjustable front pedals

In order to satisfy the needs of the owners of different heights, 310V front pedal support has three adjustable functions; Support: The length /width /thickness /23cm /34cm /18cm, weight 1.8kg, not only guarantees the strength, but also eliminates the jitter in riding; In terms of technology, 310V front foot pedal support adopts low pressure casting technology of aluminium alloy at any cost, which greatly improves the compactness of casting materials.

180 super-wide radial tire

180 rear wheels, with a larger grasp area and aggressive appearance, allowing ordinary people to bend as smoothly and steadily as drivers.

Low sitting height

For the convenience of men and women who are not tall enough, 720mm sitting height matches the excellent ergonomic design of the front of the cushion. Even knights who are only 1.6 meters tall can land on both feet.

Integral radiator

Integral large area water-cooled radiator, windward heat dissipation area is 1.2 times of ZT310-R split radiator, heat dissipation efficiency is higher.

Standard bumper

Strong standard steel pipe bumper that integrating with the body into one, protecting you and love car the safety in driving, and allowing you to drive carefreely.

Integral
Aluminium alloy back rest

Exquisite back rest made of aluminum alloy, in combination with rubber with leather grain, making it functional and practical without losing aesthetic feeling.

Increase disc brake plate

Provide more powerful braking force, more stronger linear braking sense.

Smart lithium battery

310V uses high-performance lithium batteries that feature the advantages of small size, light weight, high energy density, long cycle service life, no memory effect, environment-friendly, safety and reliability. It has built-in high-performance protection board, and uses smart chip to protect the safety and life of battery system.

High-strength internal circulation oil-cooling frame

The frame tube is used as the engine oil cooler and the heat of the tube wall is carried away by the head-on air flow. Cracks are not allowed even when the frame is impacted. Otherwise, engine oil will be leaked, which indicates the high requirements for the strength and the tightness of the welding.

Dual-channel fast-charging USB output port

Dual-port USB charger makes full use of the installation space, and can output 2.1A heavy current to charge two USB charging devices at the same time. The charging speed is faster and the performance is more stable. It is designed with a waterproof, moisture-proof and anti-seismic structure, which brings great convenience for the journey.

Large integral molding cushion

Tayo's unique automatic cushion production line combines with the unique anti-foaming sponge forming technology, so that soft sponges become angular, together with lint-cotton bonding, making it away from flaking and deformation.

High compression ratio engine

The ZT310-V engine has a high compression ratio of 12.5:1, and a low fuel consumption can get a 26KW, 30N. M power output. As the development trend of the advanced technology of internal combustion engine in the world, high compression ratio engine is characterized by fuel-saving, environmental protection and high performance. In order to successfully use high compression ratio technology, it is necessary to overcome the technical difficulties in engine material, molding process, structural design and other aspects that are different from the ordinary engines.

Sliding clutch

It is equivalent to adding a layer of transmission protection between the engine and the rear wheel to reduce the impulse phenomenon of the clutch when the speed difference is too large; make the clutch handle lighter.

ZONTES Intelligence

ZONTES Intelligent APP, together with TFT instrument, realizes Bluetooth connection of mobile phone, upgrades new functions, displays instrument interface and content synchronously, and also reduces navigation information in instrument center. More interesting features will be developed in the future to enhance driver's pleasure.

Dry sump
310-V engine
The running resistance of the components is very small because there is no engine oil sump in the gearbox of the 310-V engine. It greatly improves the acceleration performance, which is the "dry oil sump" design that only the motorcycle on the track has. The principle: after the motorcycle is started, the scarce engine oil in the gearbox is pumped out by the oil pump A immediately, and enters the frame pipe for circulating heat dissipation. The cooled oil after heat dissipation is pumped back to the countless injection channels specially designed for the engine by the oil pump B, and sprayed at each part for heat-removing directly like the shower head.
Ordinary engine
Components operated inside the ordinary engine gearbox are immersed in the engine oil sump. The running resistance is extremely large due to the viscous nature of the engine oil, like running in the water, which is slower than that in air. The oil is more viscous and the engine acceleration performance will be significantly impacted, especially in the winter.
Copyright statement:Due to the rapid delivery of products, our company will reserve the right to change the technical parameters, equipment, optional parts and color of products. The configuration in the propaganda may vary according to different states, depending on the actual vehicle.
