| Whole vehicle |
|
|
Power system |
|

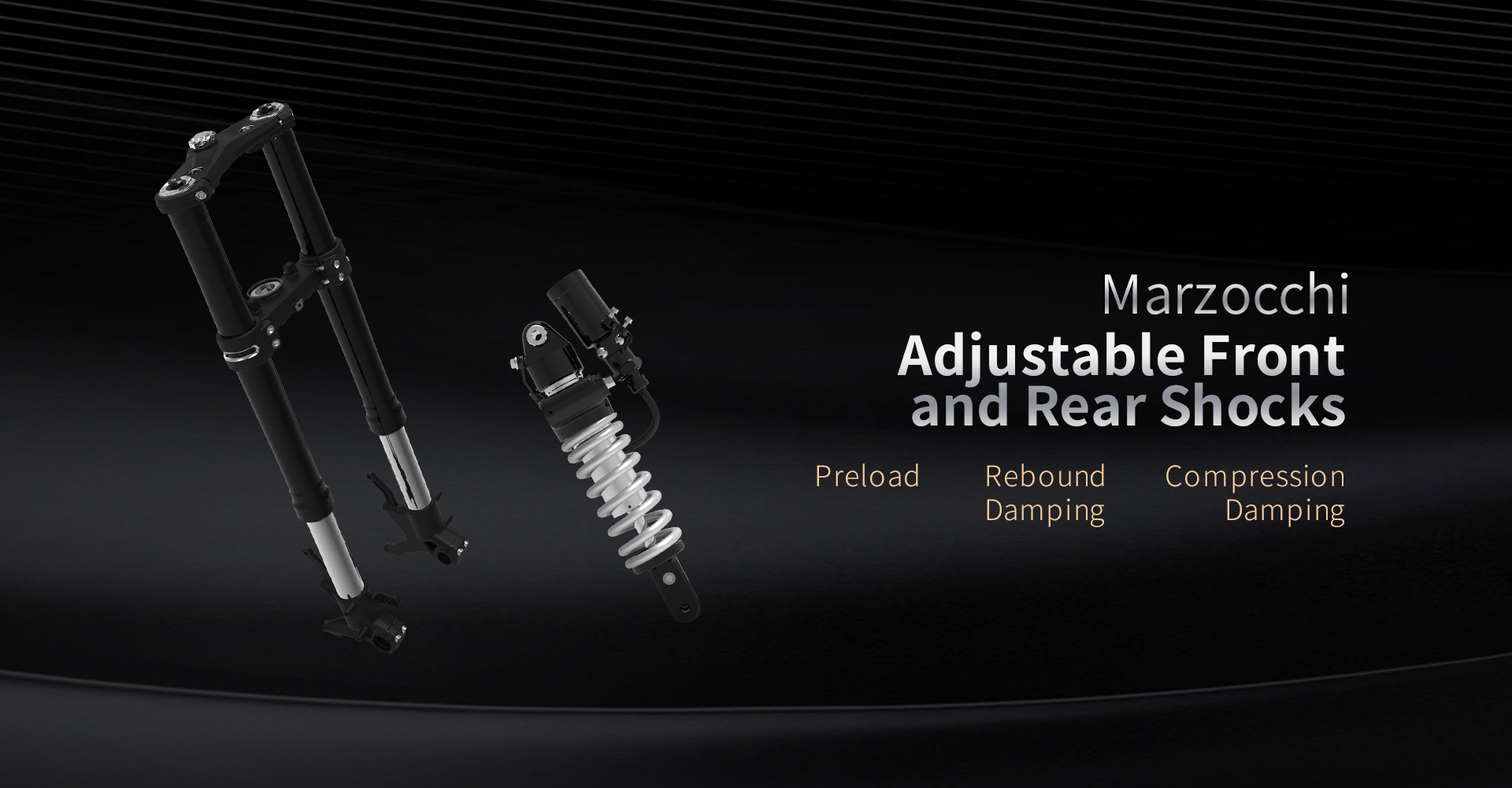

Suspension system |
|
| Length (mm) |
2305 |
The body |
Aluminum alloy |

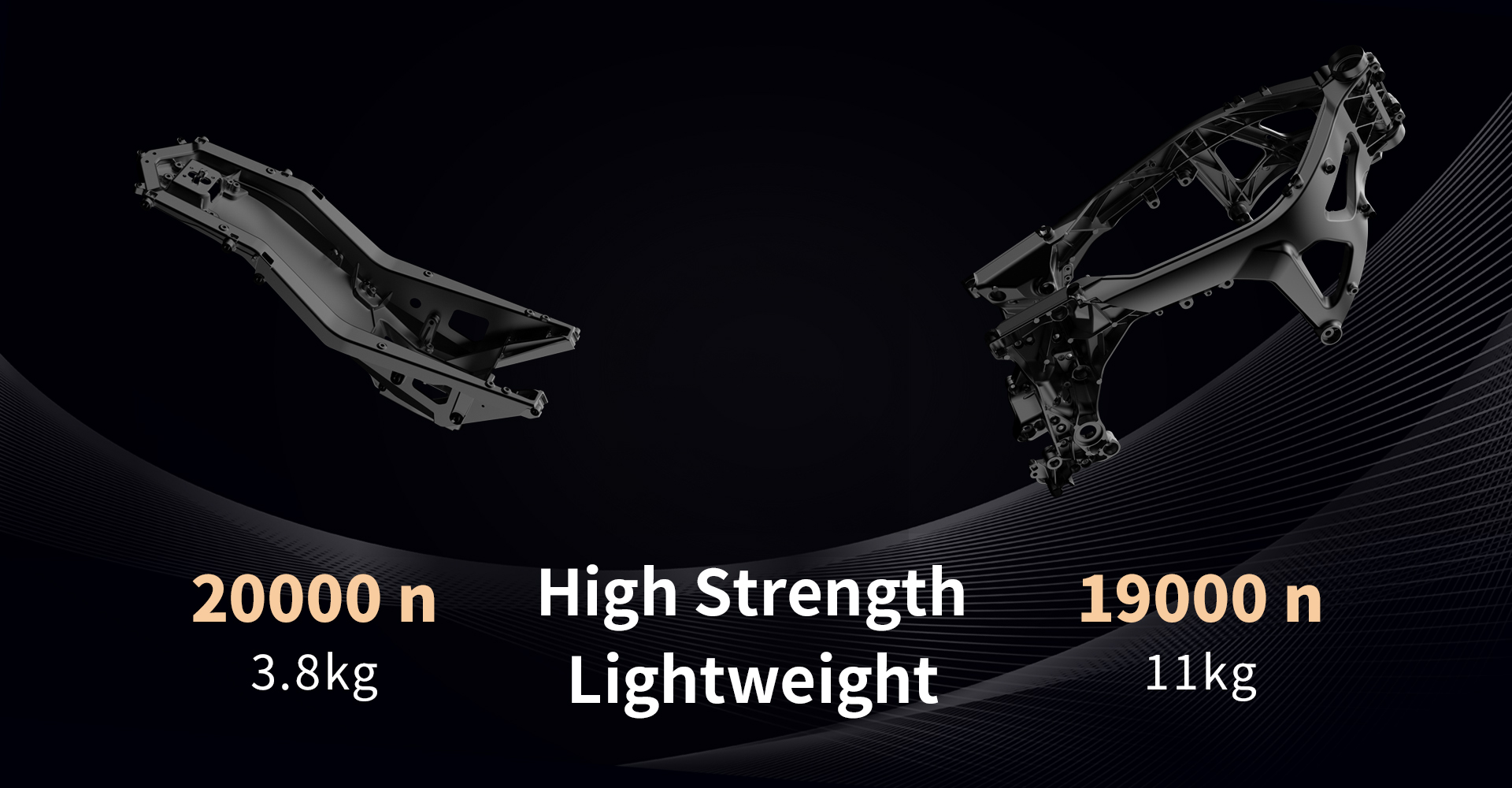

Frame system |
铝合金双翼梁车架 |
| Width (mm) |
940 |
Cylinder number |
三缸 |
Tire structure |
Semi-slick tires |
| Height (mm) |
1395 |
Camshaft mode |
Double-top camshaft(DOHC) |

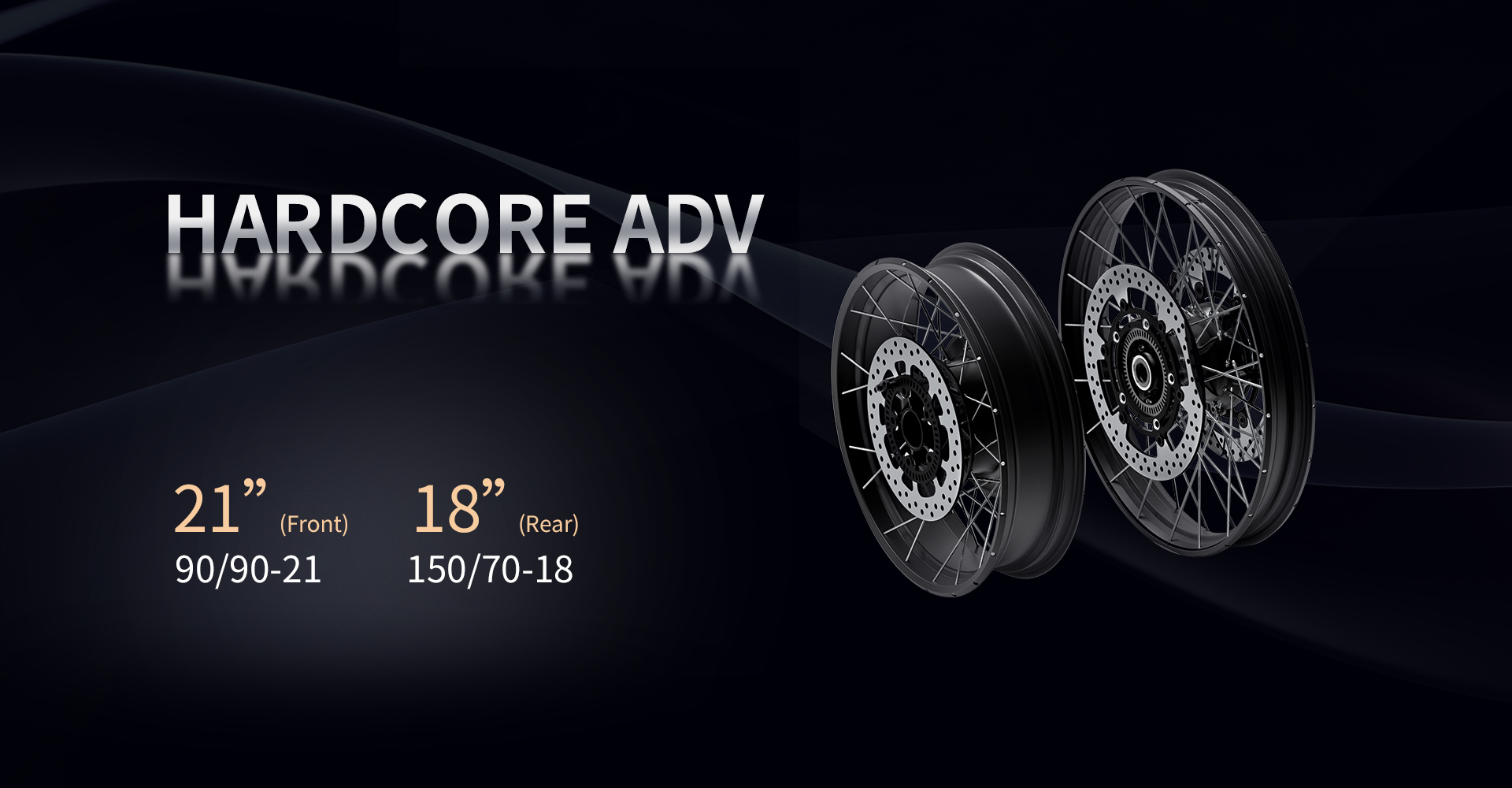

Front rim specification |
MT:2.15×21 |
| Wheel base (mm) |
1565 |
Bore x Stoke (mm) |
70×60.6 |
Rear rim specification |
MT: 4.25×18 |
| Loading capacity(kg) |
208 |

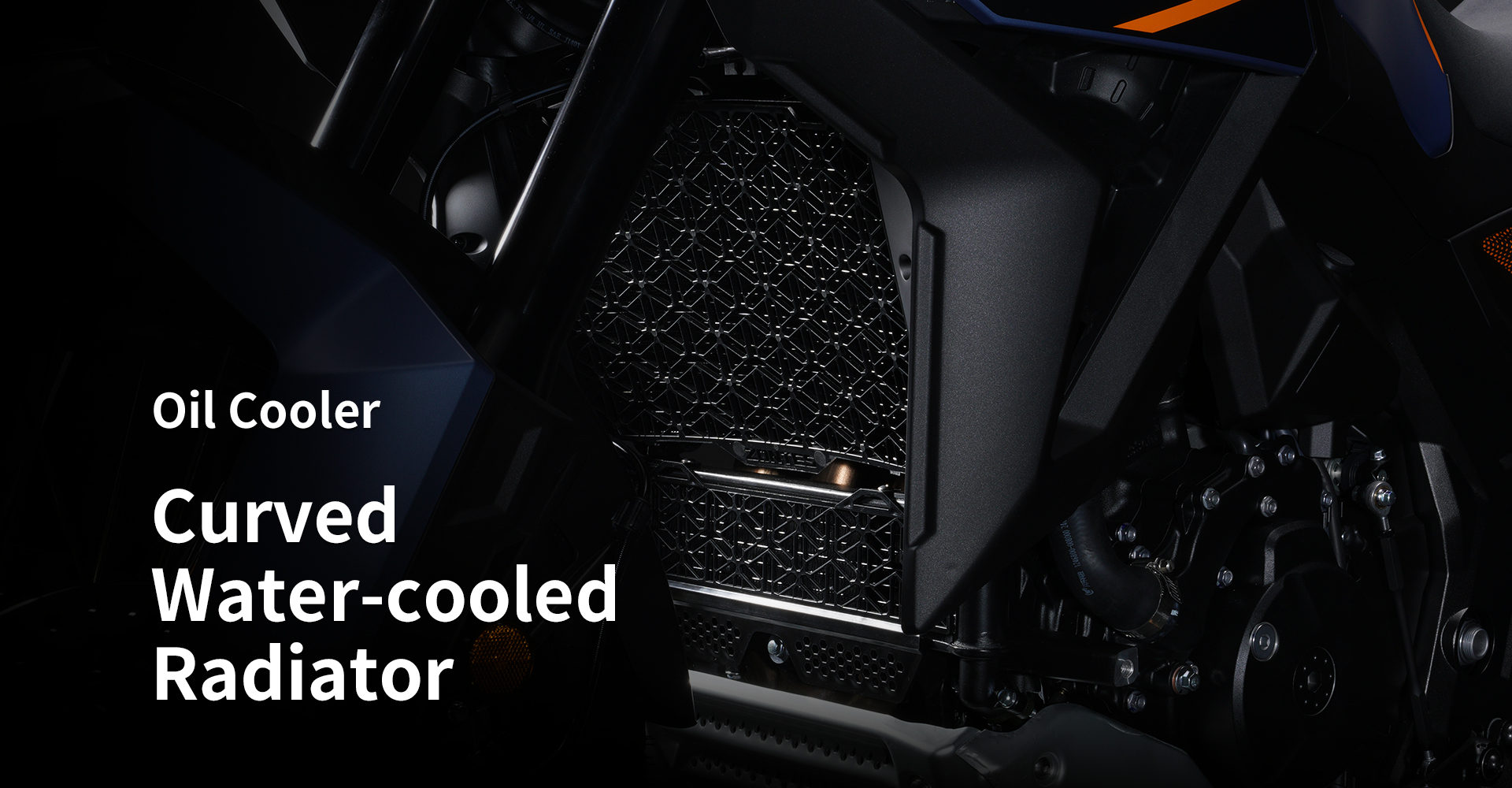

Cooling system |
Water cooling |

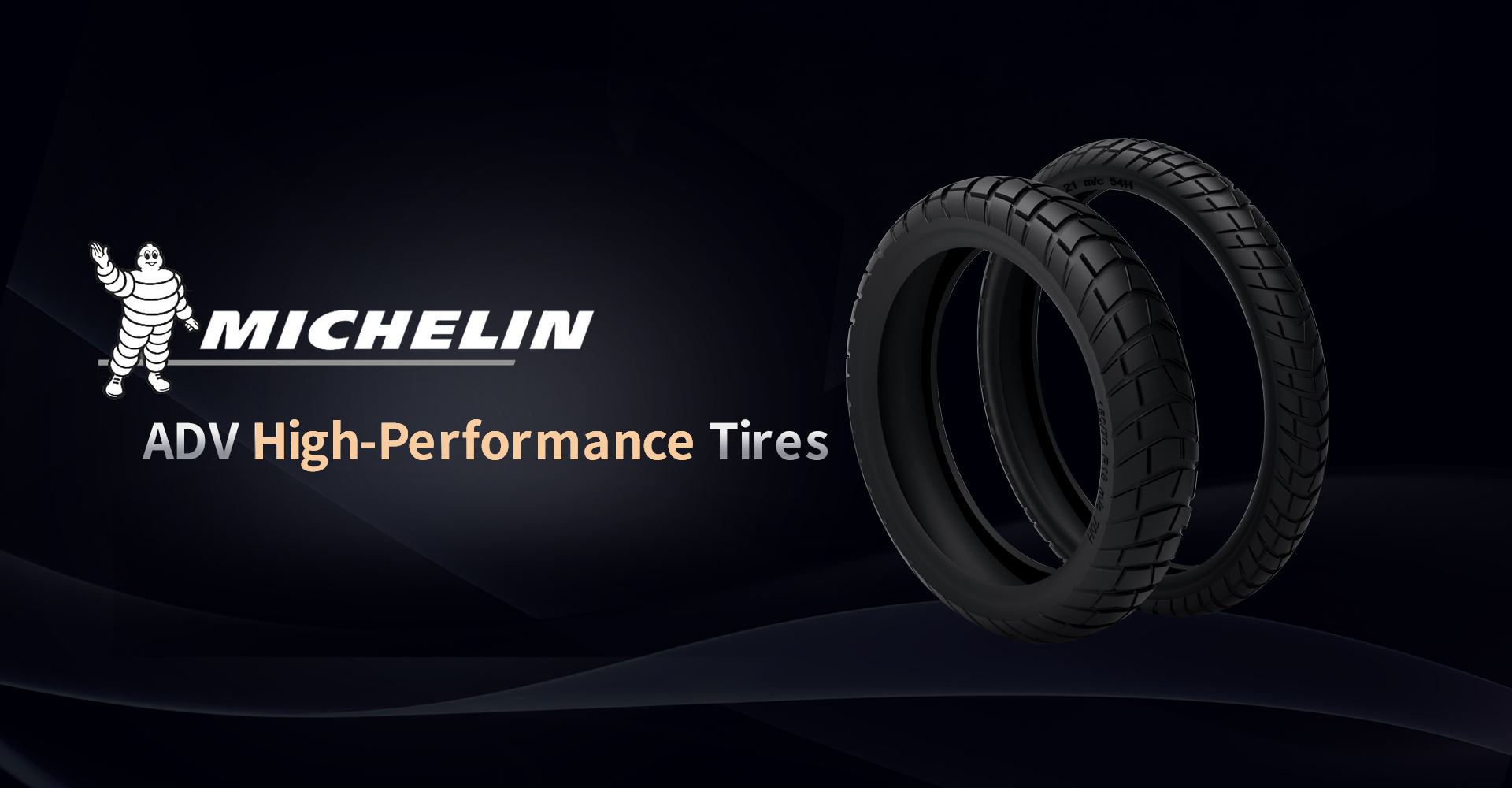

Front tire specification |
90/90-21 |
| Gross mass(kg) |
228 |
Fuel |
95 and above |
Rear tire specification |
150/70-18 |
| Minimum ground clearance (mm) |
205 |

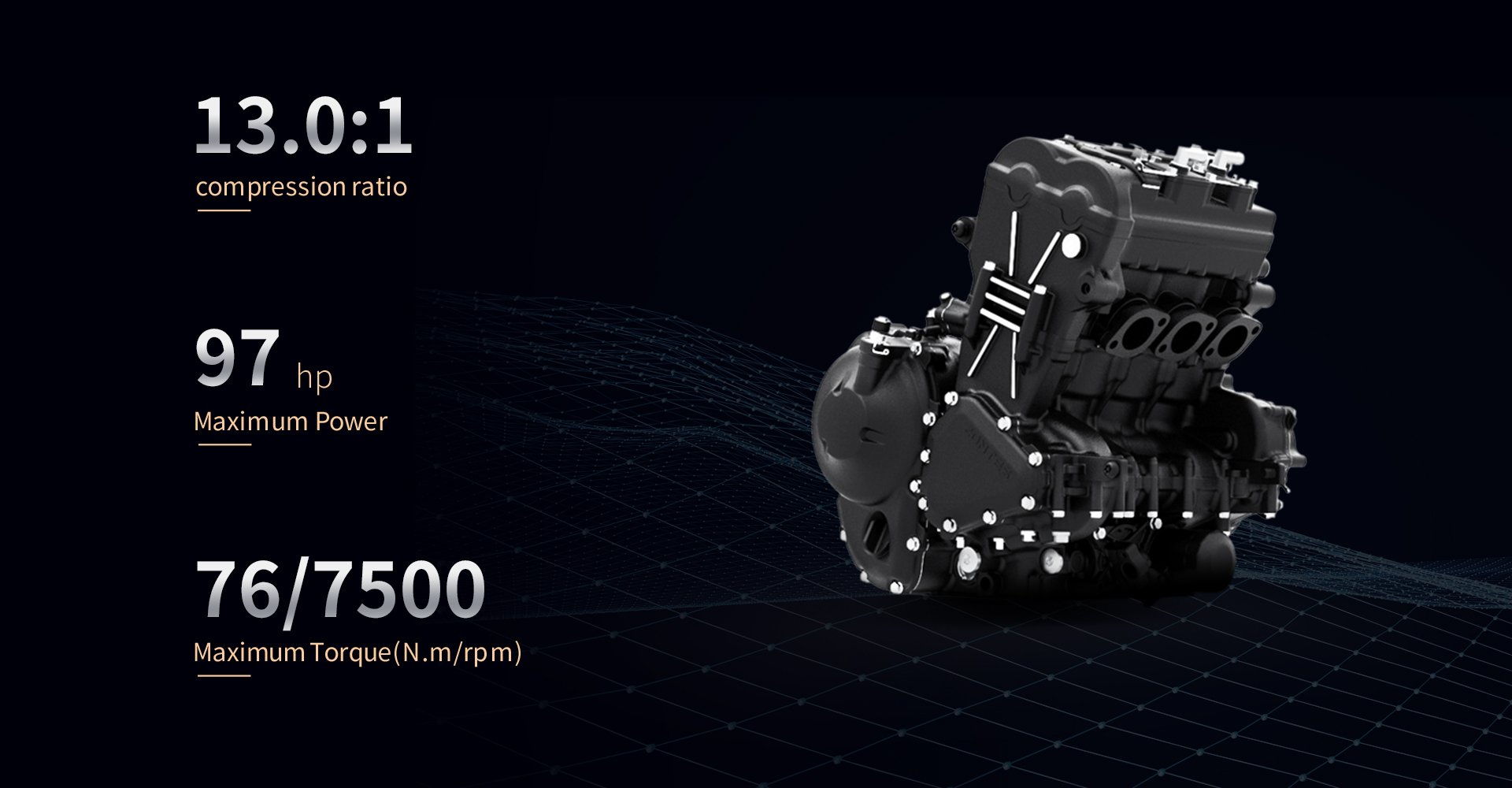

Compression ratio |
13:1 |

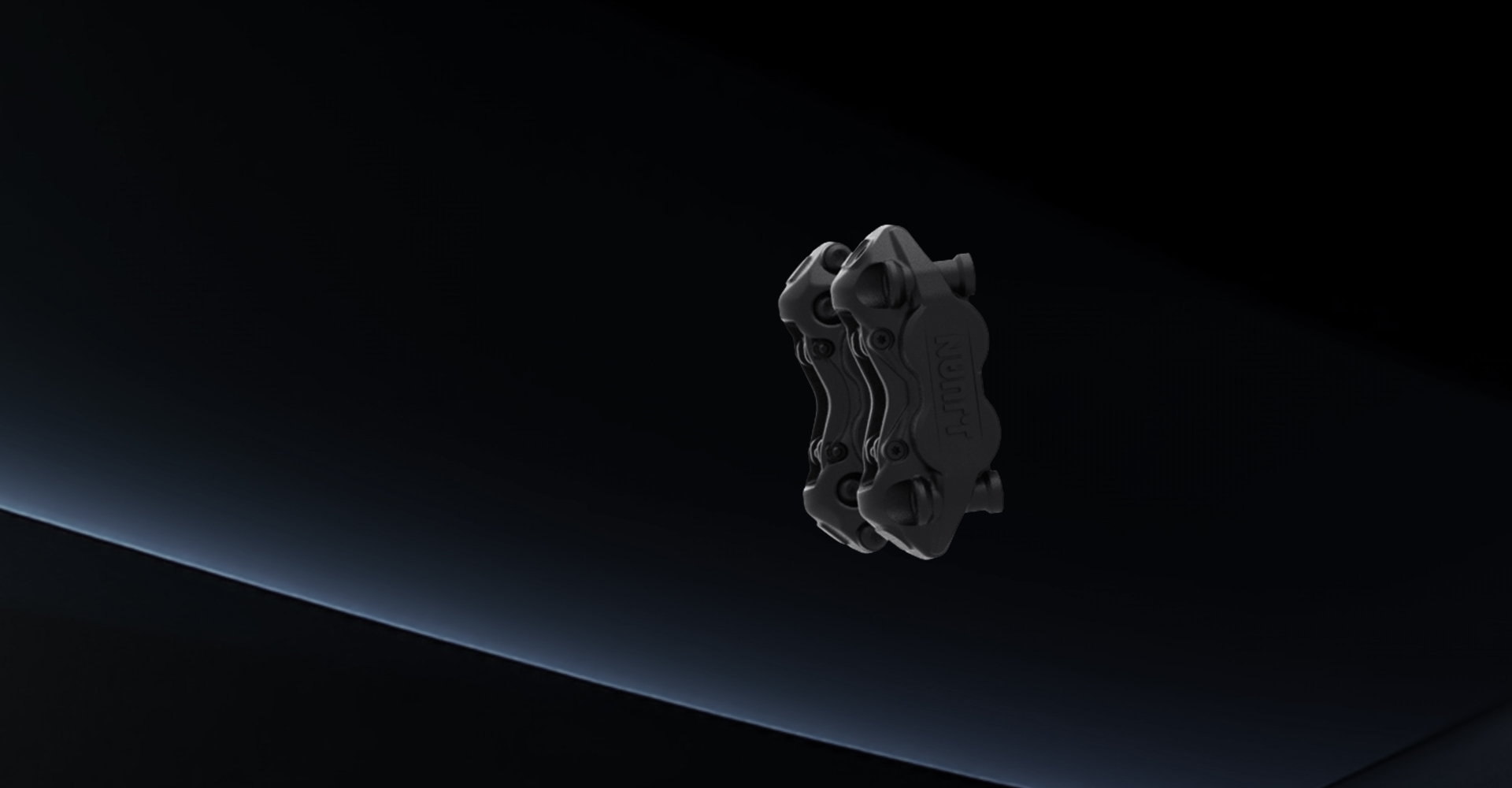

Front brake specification |
Disc brake |

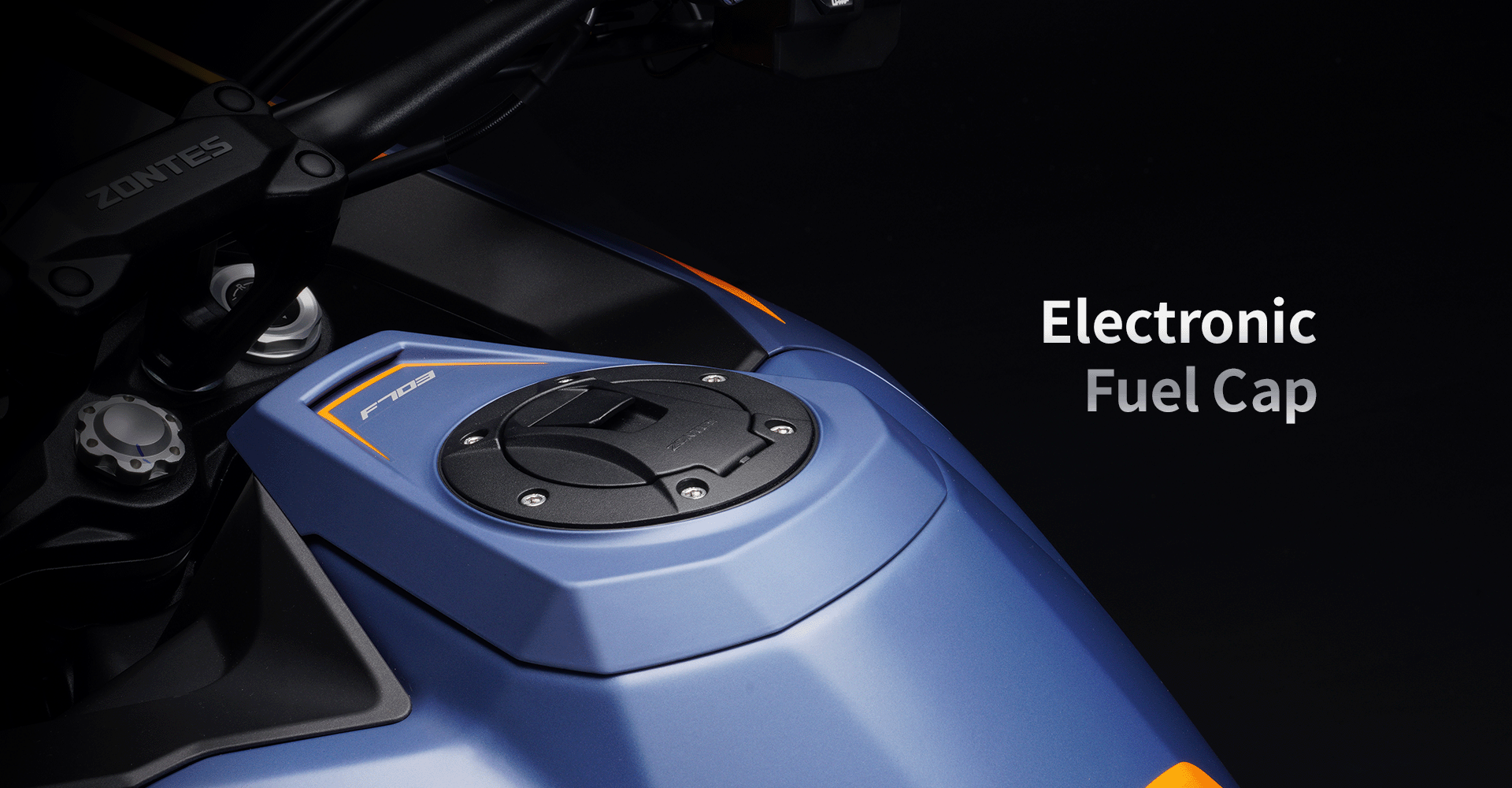

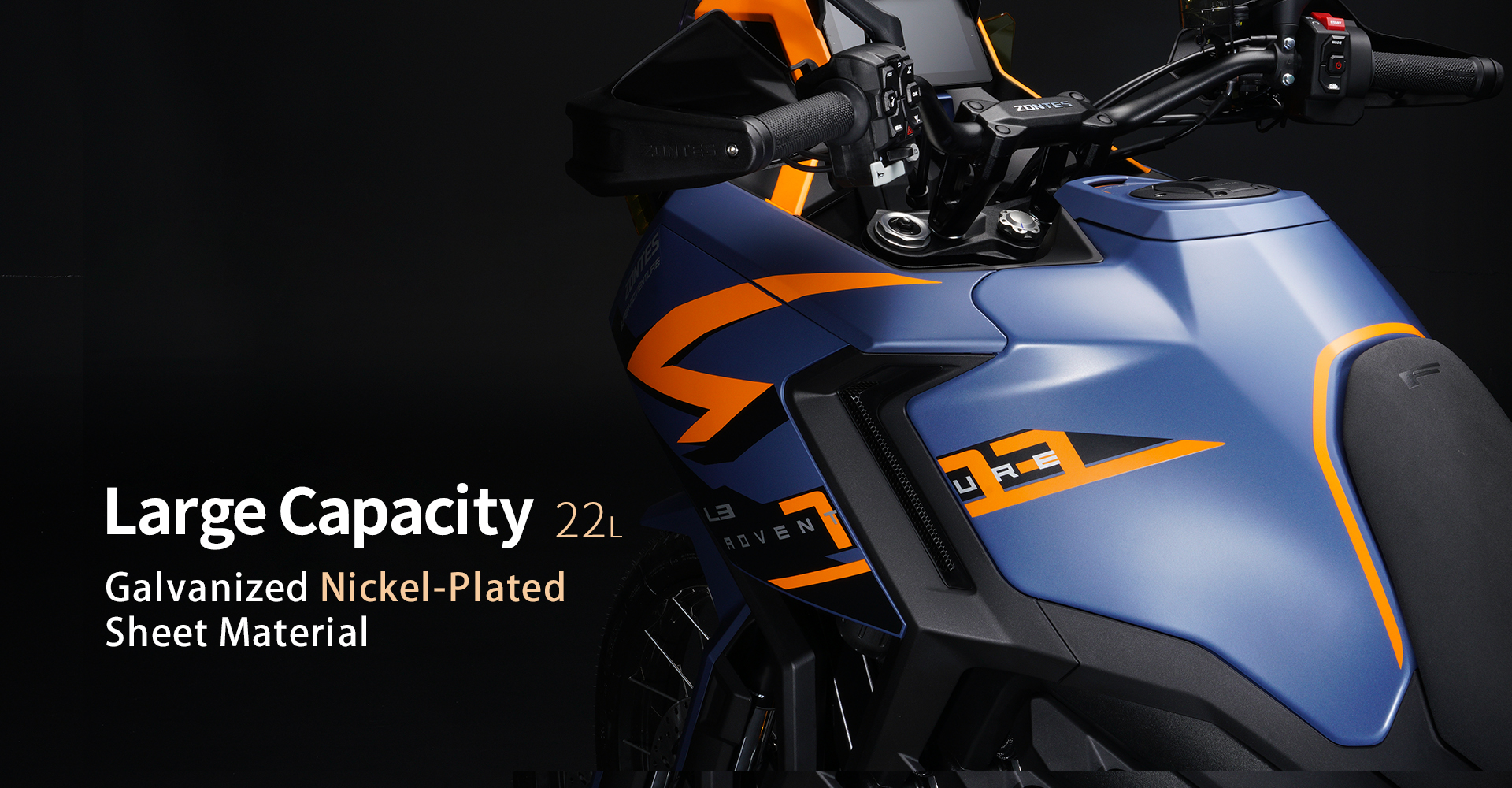

| Gasoline tank volume (L) |
22 |
Displacement |
699 |
Rear brake specification |
Disc brake |
| Seat height (mm) |
845 |
Fuel supply method |
Intelligent electrical fuel |

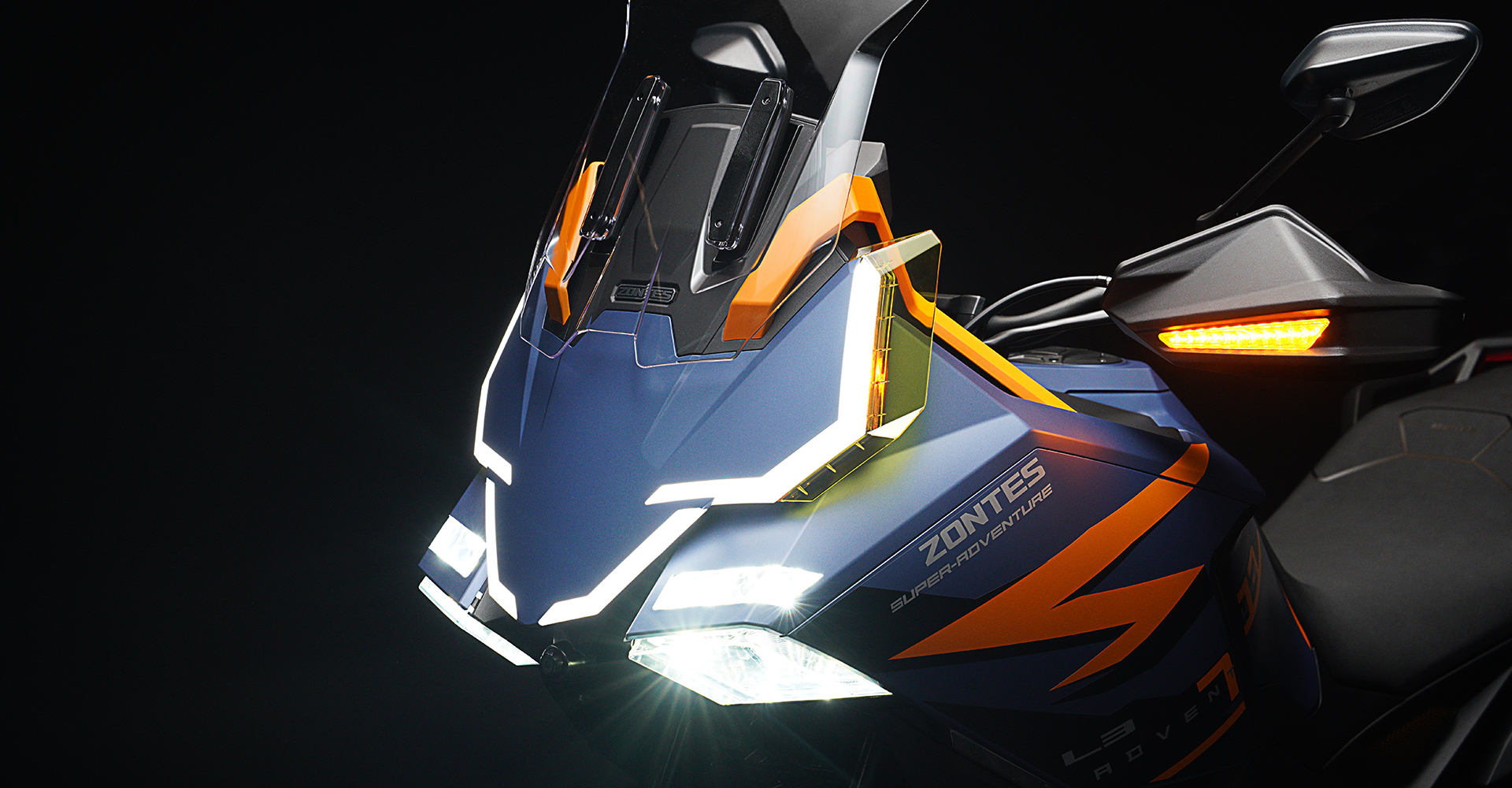

Headlamp/tail light/steering lamp |
LED |
| |
|
Electrical fuel injection system |
谟绅 |
Brake system |
Dual channel ABS |
| |
|
Ignition mode |
Electronic ignition |
|
|
| |
|
Idle speed (r/min) |
1500 ± 100 |
|
|
| |
|
Maximum power (kW/rpm) |
71.5 / 10000 |
|
|
| |
|
Maximum torsion (N.m/rpm) |
76 / 7500 |
|
|
| |
|
Gearbox |
Constant mesh 6-section transmission |
|
|
| |
|
Shift mode |
International gears |
|
|
|
| |
|
Clutch |
Wet multi-disk type |
|
|
|
| |
|
Economical consumption of fuel (L/km) |
5/100 |
|
|
