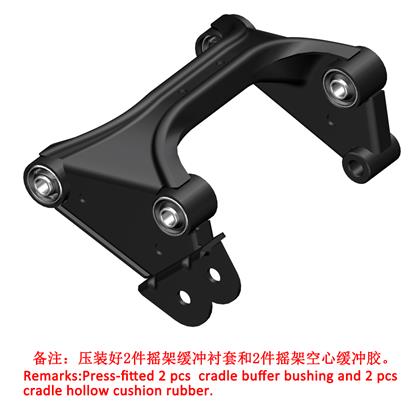

1. ZT310T-M cradle assembly (double arms)
|
|
|
|
|
|
|
|
2. ZT310T-M engine cradle buffer bushing(φ12×41+φ34×35)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:Need to check every 1 years or 10000km.If you need to replace the cradle buffer bushing,it is recommended to measure the size first to avoid purchasing errors.
|
|
|
|
3. ZT310T-M cradle hollow cushion rubber (φ12×35+φ34×29)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:If you need to replace the cradle buffer bushing,it is recommended to measure the size first to avoid purchasing errors.If not according to the angle of the assembly may cause vehicle vibration.
|
|
|
|
4. Non-standard bolt M12×1.25×290 (Dacromet)
|
|
|
|
|
|
|
|
5. Non-standard bolt M12×1.25×105 (Dacromet)
|
|
|
|
|
|
|
Quantity
|
|
|
4
|
|
Remarks:In order to facilitate after-sale (the bolt head is 15# sleeve) this bolt is discontinued,you can buy "1251112-018000 GB5787 non-standard bolt M12×1.25×105(10.9 garde/dacromet)" instead.The bolt head used to replace is 14# sleeve.
|
|
|
|
6. GB5787 non-standard bolt M12×1.25×105(10.9 garde/dacromet)
|
|
|
|
|
|
|
|
7. GB6187.1 M12×1.25(White Zinc)
|
|
|
|
|
|
|
|
8. ZT310T-M cradle spacer (Φ12.2×Φ17×150)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
