Multi-angle Exhibition
Technical Data
Whole vehicle
length (mm)2025
Width (mm)790
Height (mm)1190
Wheel base (mm)1405
Loading capacity (kg)158
Gross mass (kg)168
Minimum ground clearance (mm)150
Gasoline tank volume (L)12
Seat height (mm)760








Power system
The bodyAluminum alloy
Cylinder numberSingle cylinder
Camshaft systemSingle overhead camshaft(SOHC)
Bore X Stoke (mm)79 x 75
Cooling systemWater cooling
Fuel95 and above
Compression ratio11.8:1
Displacement(ml)368
Fuel supply methodIntelligent electrical fuel injection
Electrical fuel injection systemBOSCH
Ignition systemElectric ignition
Idling speed (r/min)1600 ± 100
Maximum power (kW/rpm)28.5/7500
Maximum torque (N.m/rpm)40 / 6000
Transmission typeAutomatic stepless speed change
Economical consumption of fuel (L/km)3.5 /100

Suspension system
Frame systemSteel pipe frame
Tire structureSemi-slick tires
Front rim sizeMT3.5×15
Rear rim sizeMT3.75×14
Front tire specification120/70-15
Rear tire specification140/70-14
Front brake specificationDisc brake
Rear brake specification Disc brake
Headlamp/tail light/steering lamp LED
Brake systemDual channel ABS















The 368D model debuts a bold new look with a mechanized front panel design featuring intricate decorative elements and vent-like structures, enhancing its unique visual appeal and recognition.
The newly designed sporty windscreen adds depth and visual impact to the motorcycle's appearance.
The storage box panel includes user-friendly hooks and an improved compartment release button, combining utility with convenience.
The optimized design of the rear armrests and the styling of the rear spoiler showcase a more sporty and modern flair.


Relentless Power Unsheathed

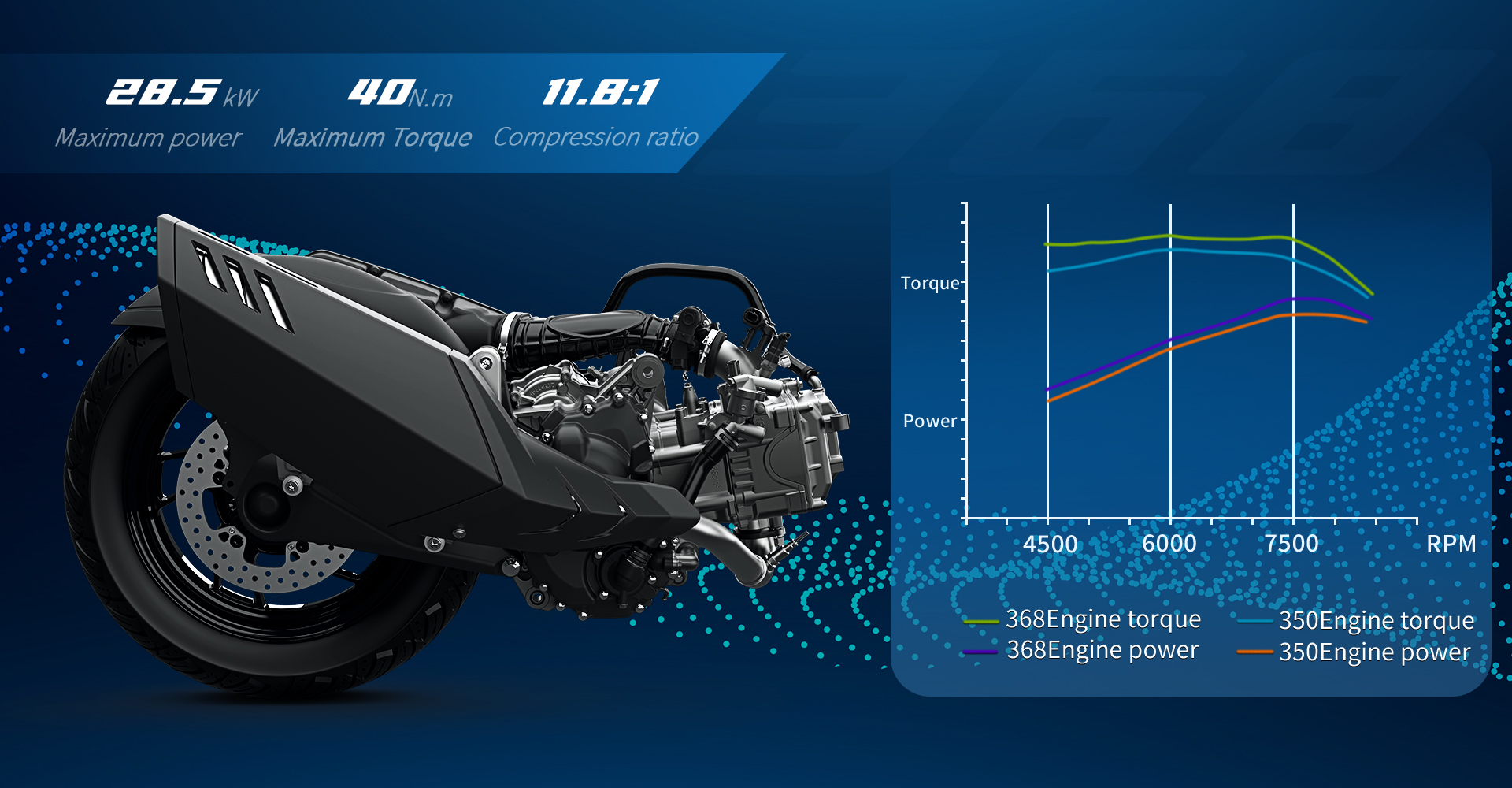

Equipped with a 368cc engine boasting a high compression ratio of 11.8:1, this model offers a powerful output of 28.5 kW and 40 N.m of torque while maintaining low fuel consumption.
A New Chapter in Stylish Performance
The vehicle's lightweight design strategy has reduced its weight by nearly 20kg, enhancing both acceleration and handling agility.

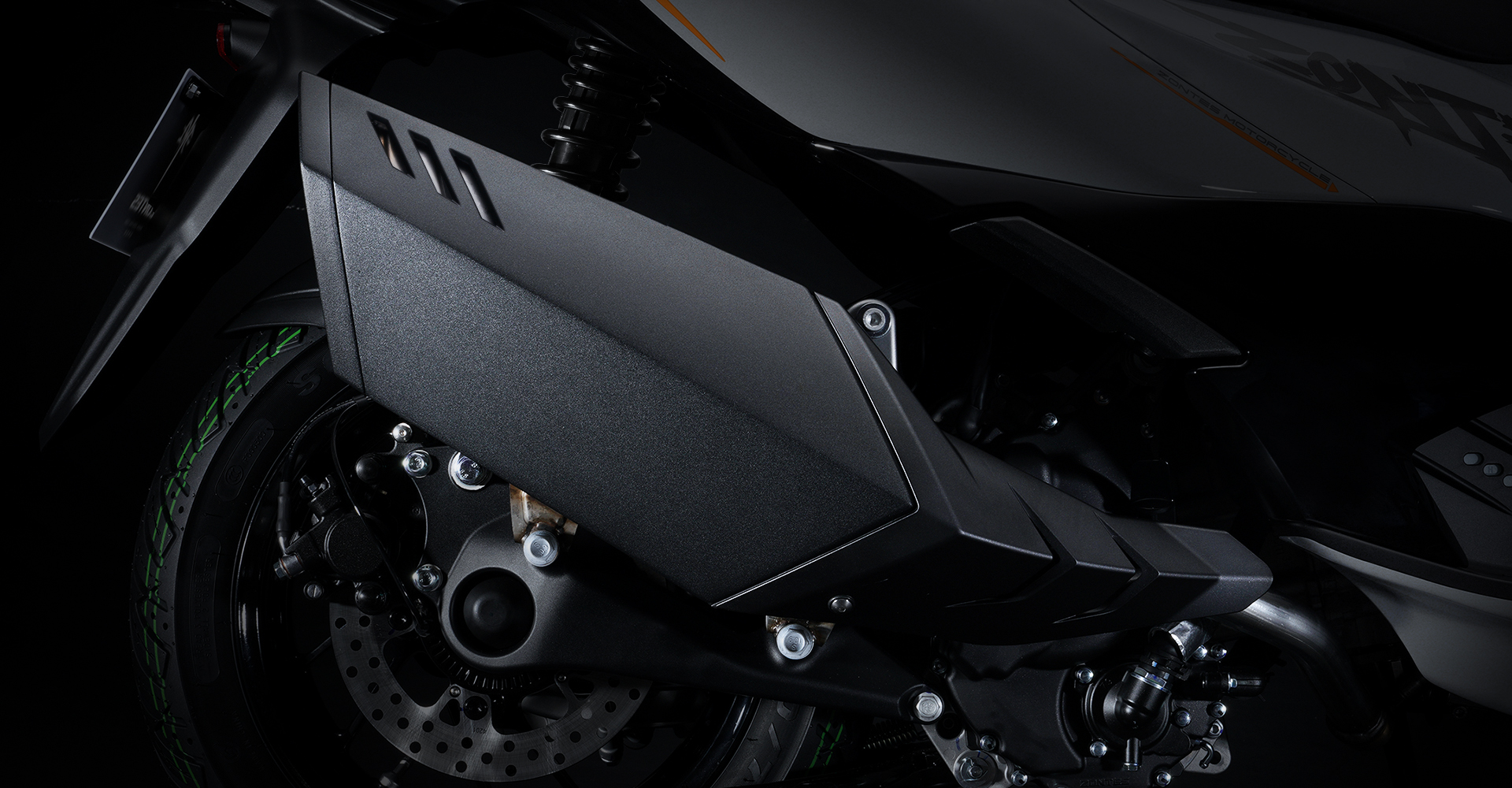

The new muffler design not only upgrades its external appearance but also improves the internal piping and chamber structure, boosting power and amplifying the exhaust sound.

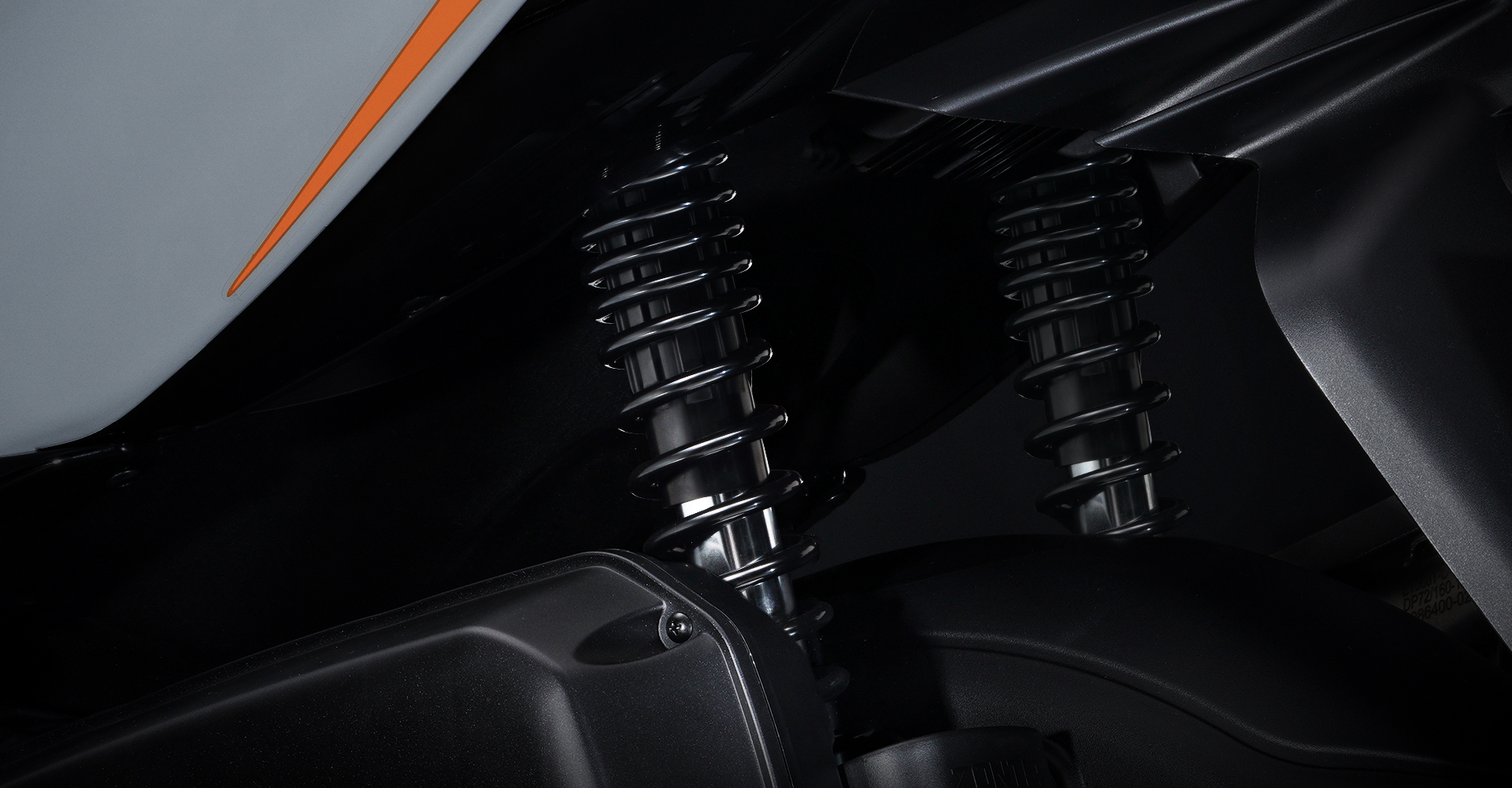

The suspension system, both front and rear, has been finely tuned for smoother operation and enhanced shock absorption, efficiently mitigating minor road irregularities and providing solid support on more challenging surfaces.

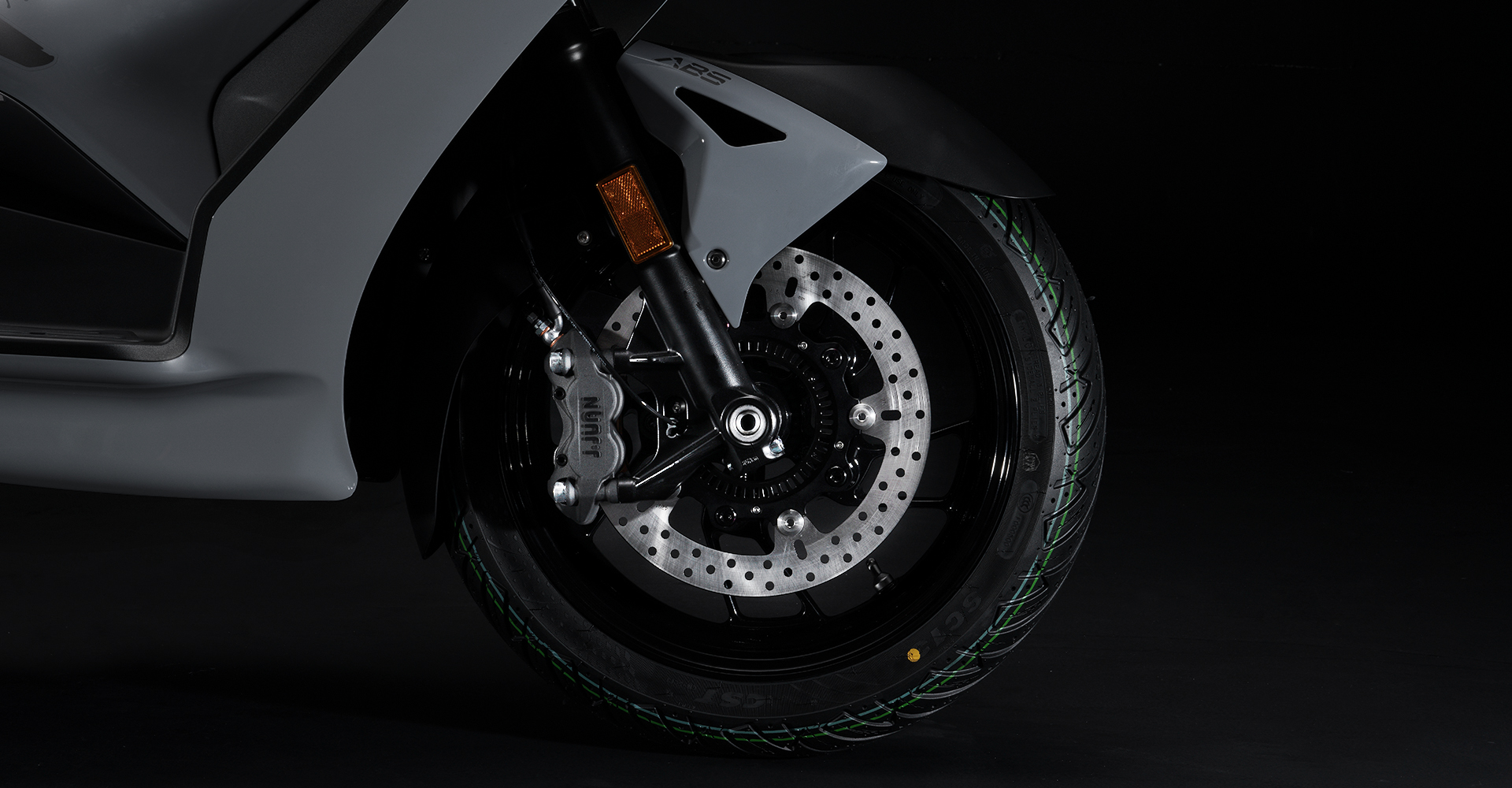

Equipped with J JUAN radially mounted, opposed four-piston calipers and enlarged brake discs, this system ensures stable, efficient braking with shorter stopping distances.

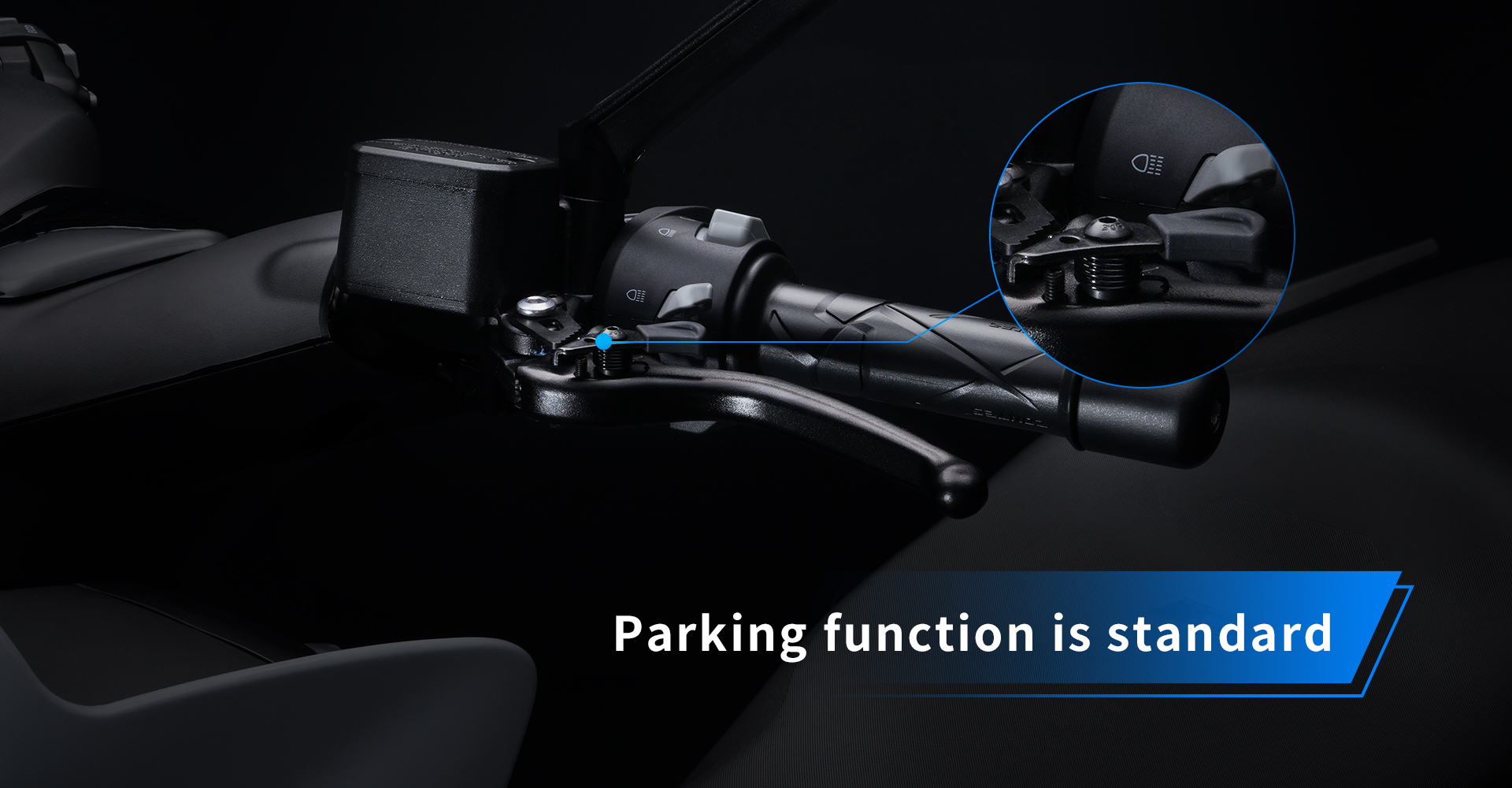

The brake lever is standard-equipped with a parking brake feature, offering added security during temporary stops on slopes.

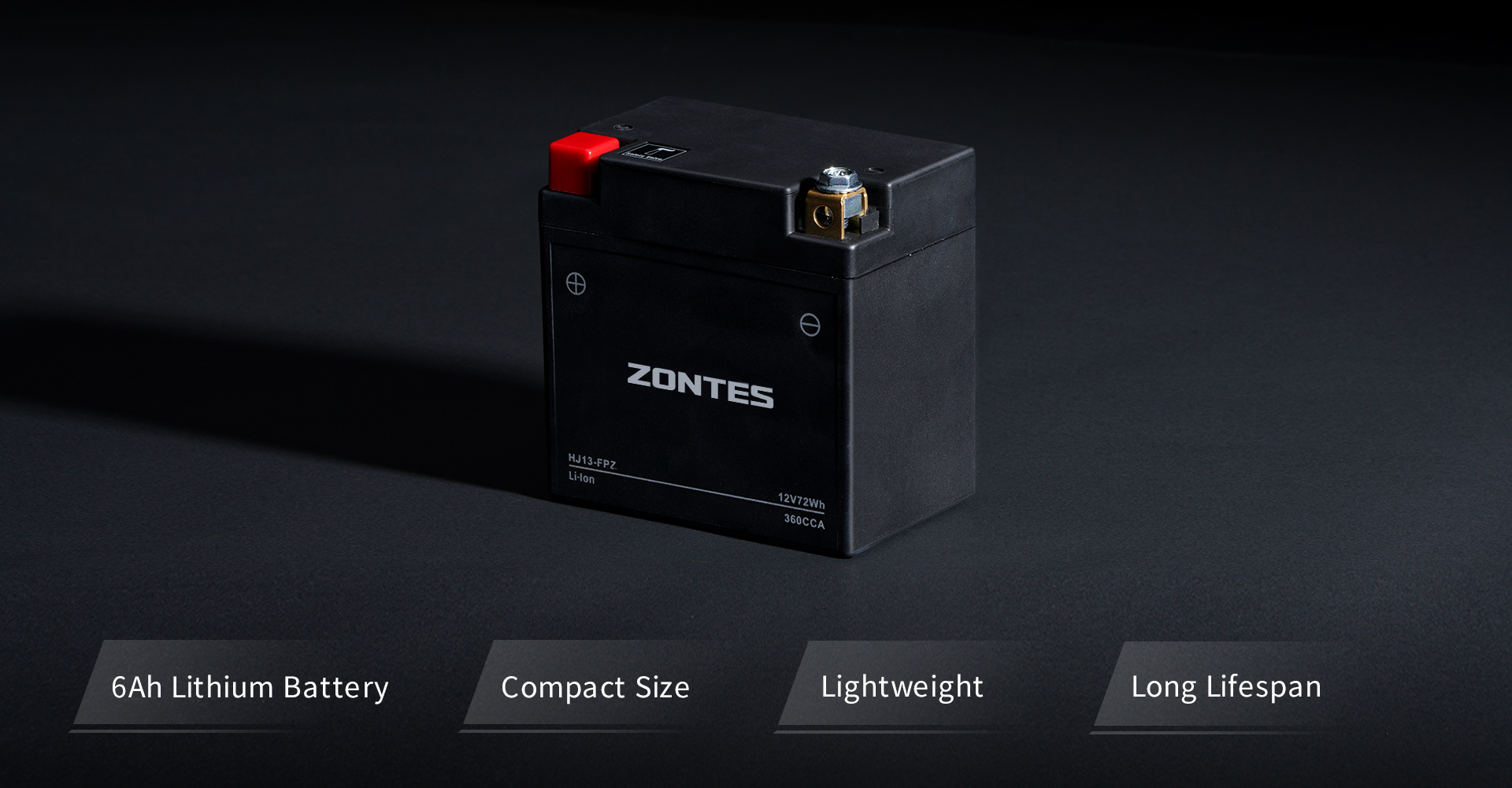

A 6Ah lithium battery features a smaller size and lighter weight, enhanced low-temperature discharge capability, and a longer lifespan.

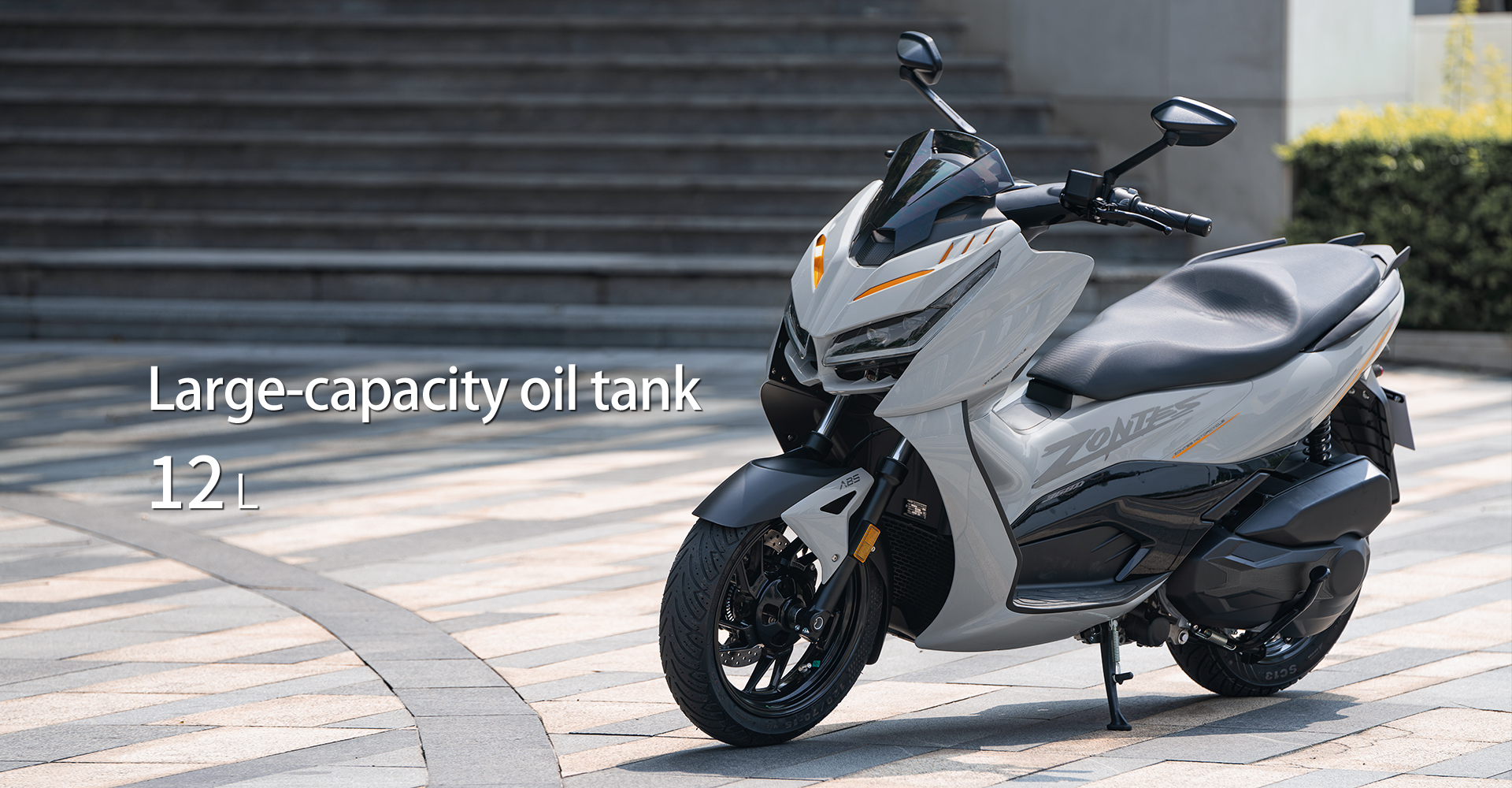

A large 12L fuel tank meets everyday usage requirements.

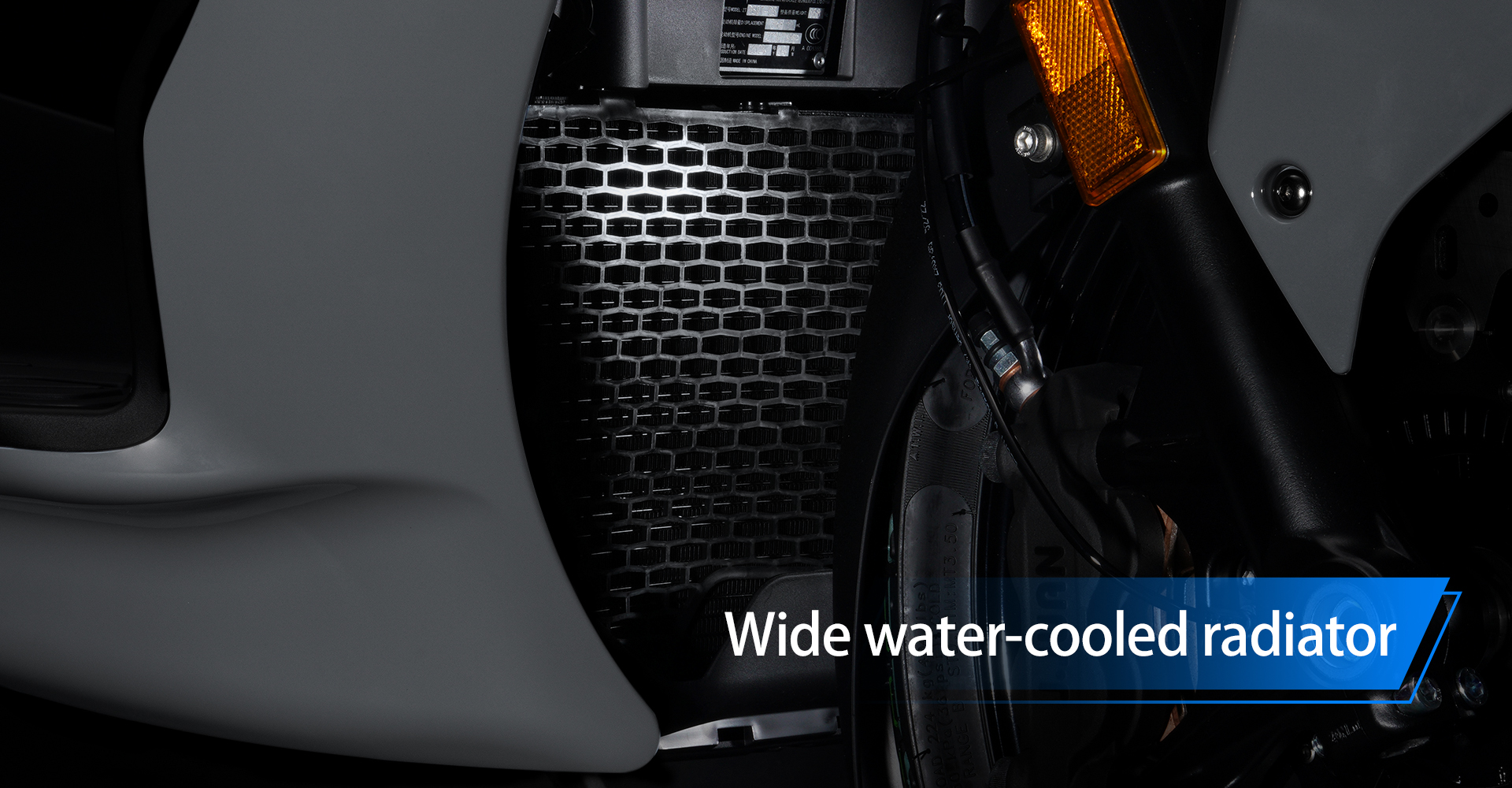

The broad-faced water-cooling radiator supports high-performance engine functions, preventing overheating and ensuring smooth starts in low temperatures.
Smart Connectivity: A Secure and Enhanced Riding Experience
The third-generation keyless control system supports CAN communication for real-time interaction with the ECU and dashboard, featuring 4G, GPS, and Bluetooth capabilities. The compact remote key offers intuitive operation, energizing every journey.

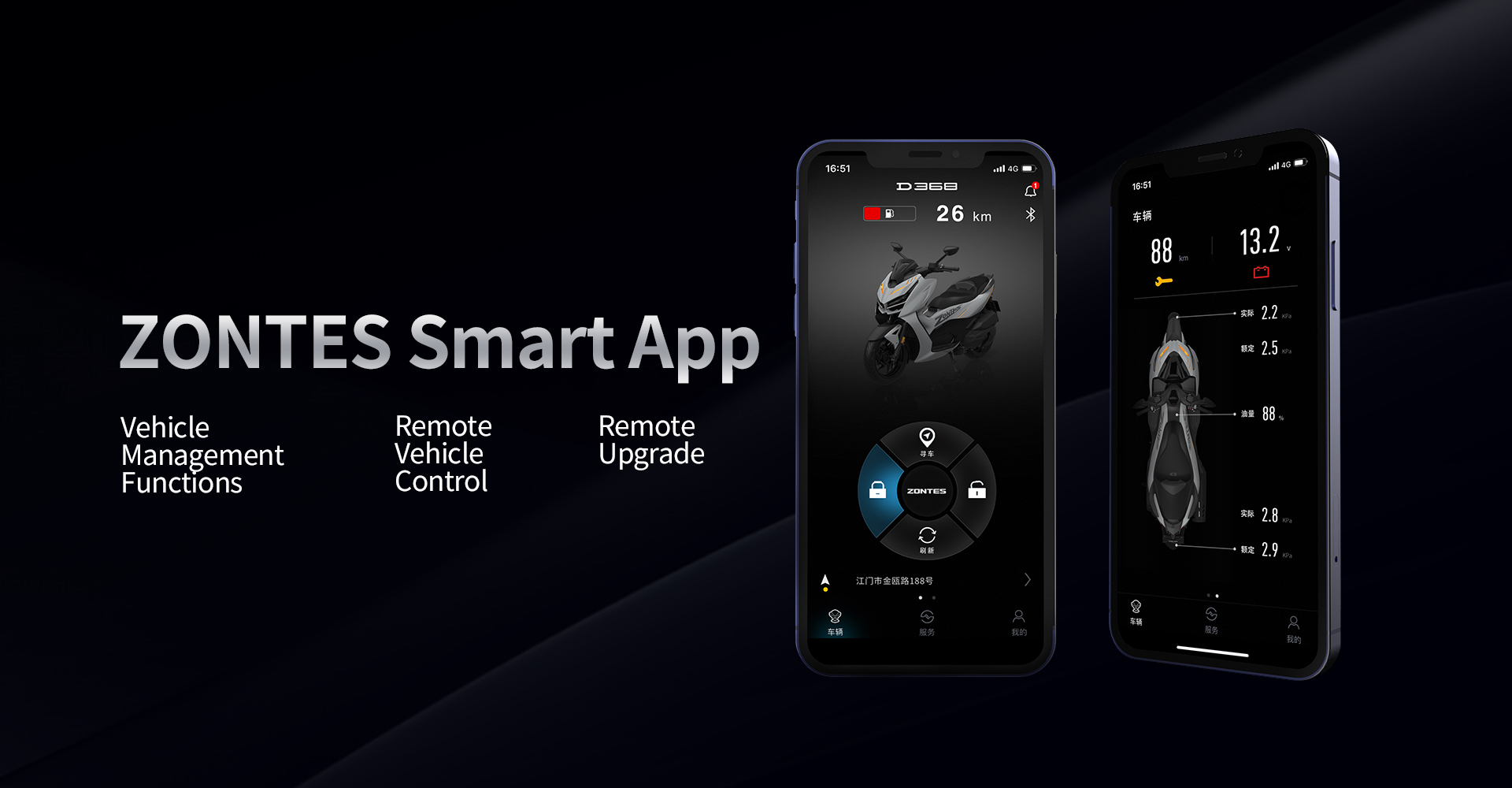

The upgraded ZONTES intelligent app provides comprehensive vehicle management, including remote vehicle control, vehicle data access, user authorization, travel history logging, and remote software updates.
The newest version of the app integrates dashboard projection for navigation, over-the-air updates, and DVR viewing and downloading capabilities, enhancing the convenience and intelligence of your travel experience.

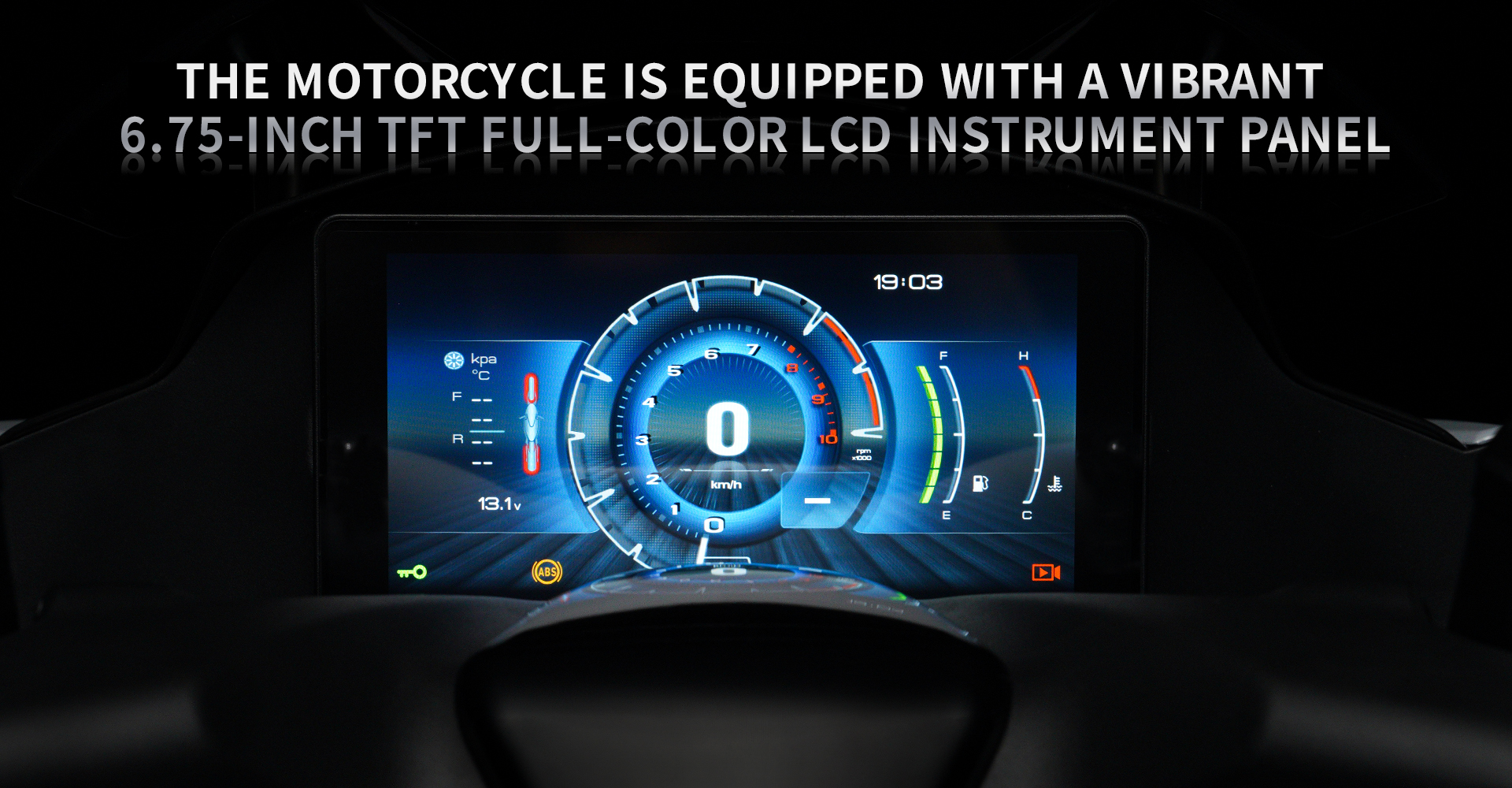

The 6.75-inch TFT full-color LCD display offers a streamlined interface. It supports simultaneous connections to both a smartphone and a Bluetooth-enabled helmet, providing access to features like screen mirroring for navigation, tire pressure monitoring, auto-brightness adjustment, real-time vehicle monitoring, and diagnostics.
The tire pressure monitoring system actively prevents tire blowouts, ensuring a safer journey.
The motorcycle features Eco and Sport modes, selectable via a button on the handle, automatically transitioning from Eco to Sport mode when the engine revs to 7,000 RPM during critical overtaking maneuvers.
Empowering Enhancements: Experience the Freedom and Allure
The vehicle features full-LED lighting, meticulously configured LED projector lenses that offer high efficiency, expansive coverage, and greater confidence during nighttime cornering. The headlights now include an ambient lighting option, with side light strips adjustable via the ZONTES Smart App, introducing four new animated ambient effects that breathe life into the vehicle.

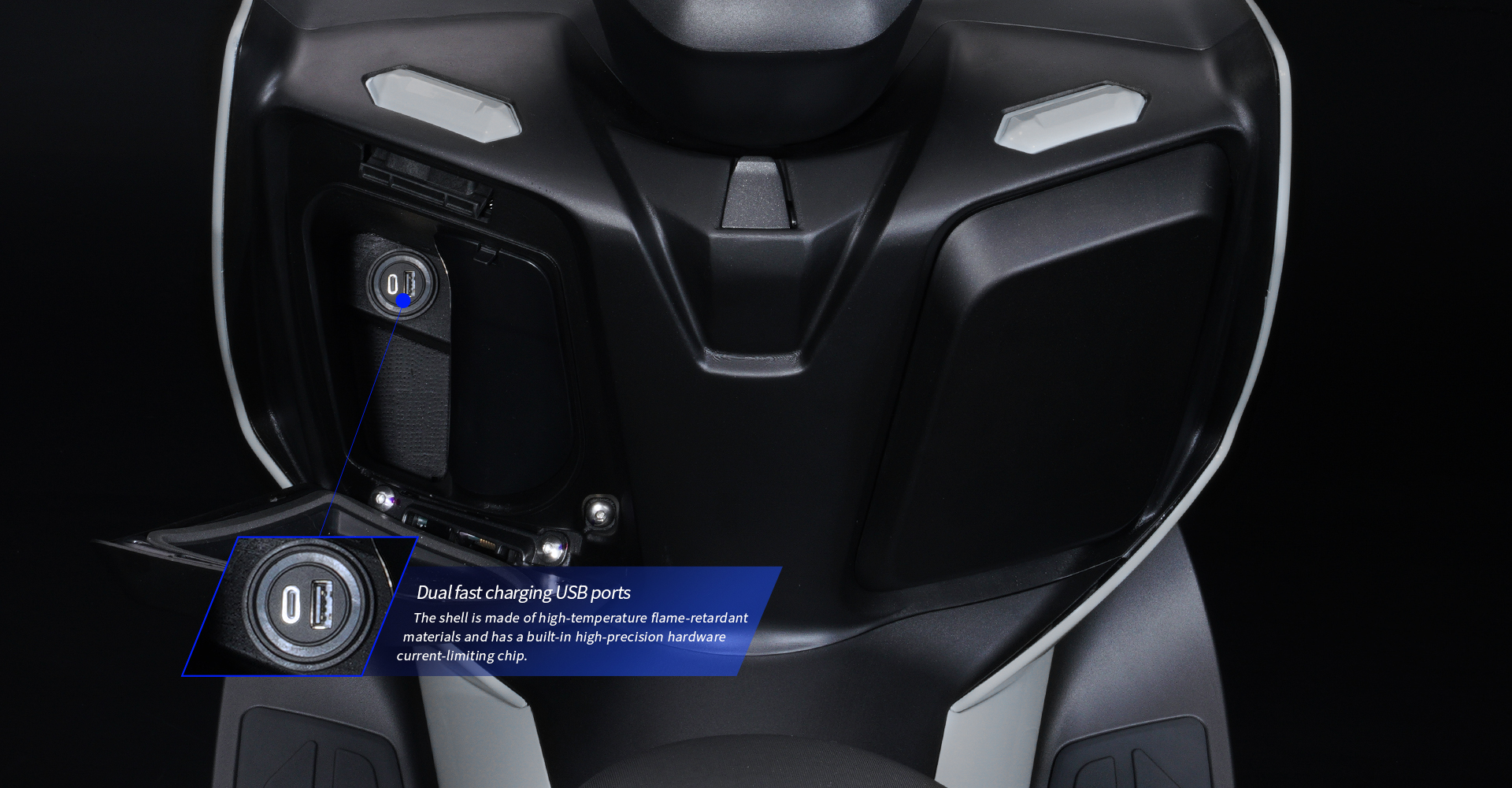

Equipped with dual USB charging ports (Type A and Type C), the system supports the QC 3.0 fast-charging protocol, allowing for up to 18W power output per port for rapid charging.

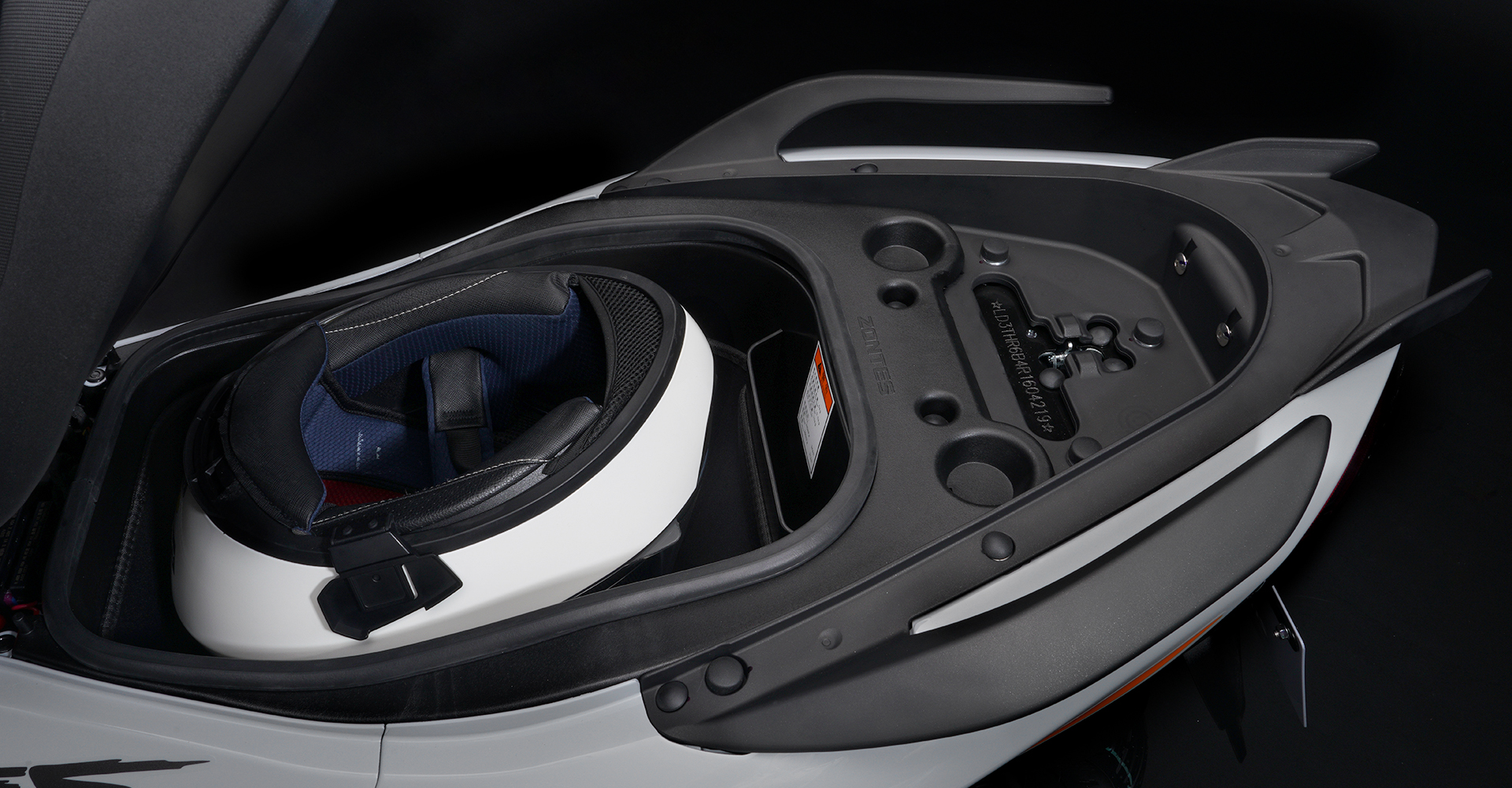

The rear storage compartment accommodates a single full-face helmet, with the option to purchase a high-version seat pad for increased storage capacity.
Thoughtfully pre-wired for connections such as adjustable windscreens, spotlights, heated grips, and a camera, the motorcycle can be further customized with options like an elevated and widened electric windscreen, wind guards, heated grips, aluminum alloy rear handrails, and a top case, catering to diverse seasonal needs and enhancing its free-spirited charm.
Steadfast and Assured: Enhanced Reliability Throughout Your Journey
The robust Bosch electronic fuel injection system ensures a safer and more dependable ride.
The reliable Traction Control System (TCS) continuously monitors the operational status of both front and rear wheels, ensuring vehicular stability and preventing skidding under various complex road conditions for safer riding.
The dual-channel Anti-lock Braking System (ABS) ensures controlled handling in emergencies, providing confidence across different terrains, including sandy, wet, and snowy conditions.
