1. ZT310T-M-H1 muffler (self-made/ Chinese IV) (improved)
|
|
|
|
|
|
|
|
2. ZT250-S Engine exhaust outlet seal
|
|
|
|
|
|
|
|
3. Inner hexagonal nut M8 (color Zinc)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:25±1.5N.m.
|
|
|
|
4. GB70.1 M10×1.5×20(Dacromet)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks: The rear section of the original muffler uses "1250205-129000 GB70.1M10×1.5×20 (Dacromet)" + "1251500-007091 non-standard flat pad φ10.5×φ24×2 (white zinc)" installation structure, at present, GB70.1M10×1.5×20 bolts have been discontinued, and you need to buy "1250205-187000 GB70.1 flat gasket combination screw M10×1.5×20 (304 stainless steel)" instead, Since the combination screw already contains a gasket, there is no need to install a φ10.5×φ24×2 flat pad.
|
|
|
|
5. GB70.1 Flat Washer Combined Bolt M10×1.5×20 (304 Stainless Steel)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:35～38N.m.
|
|
|
|
6. ZT310T-M Anti-heat Board front part (outside association)
|
|
|
|
|
|
|
|
7. ZT350T-D anti-scalding board rear part
|
|
|
|
|
|
|
|
8. ZT368T-G muffler hot plate rubber buffer
|
|
|
|
|
|
|
|
9. ZT250-S muffler anti-hot plate sleeve
|
|
|
|
|
|
|
|
10. Plywood M6×11×15(zinc-nickel)
|
|
|
|
|
|
|
|
11. Non-standard bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
12. Stainless steel heat insulation mat 6×20×1.6
|
|
|
|
|
|
|
|
13. ZT368T-G stainless steel flanging sleeve(φ6.4×φ9×6＋φ20×2)
|
|
|
|
|
|
|
|
14. Non-standard bushing φ6.4×φ9×7+φ20×1.6 (environmental color)
|
|
|
|
|
|
|
|
15. ZT310T-M rear rocker arm after-sales assembly (remodeled/dark gray matte)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|

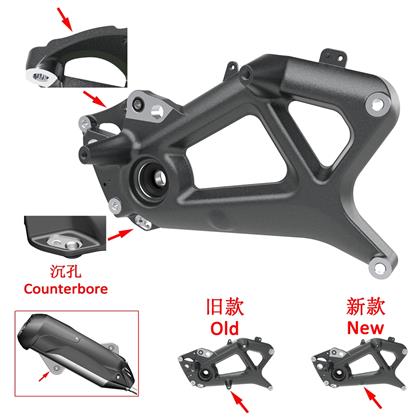

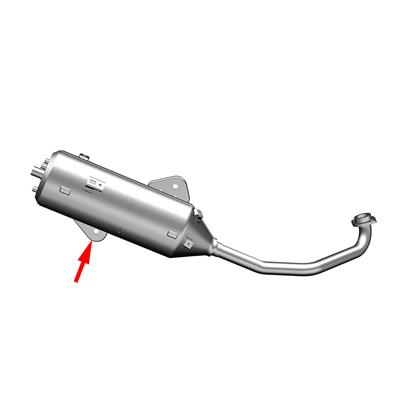

Remarks:Please check the muffler as show in the picture before purchase,if yes ,you can buy this part.Included “ 8×20×19 shock absorption lifting bushing”，“GB276 deep groove ball bearing 6204-2RS-C3”，“Oil seal TC φ28×φ47×7”，“Oil seal TC φ28×φ40×5”，“GB893.1 Hole Retaining Ring (Type A) φ47×1.75”one piece each.
|
|
|
|
16. 8×20×19 shock absorption lifting bushing
|
|
|
|
|
|
|
|
17. GB276 deep groove ball bearing 6204-2RS-C3
|
|
|
|
|
|
|
|
18. Oil seal TC φ28×φ47×7
|
|
|
|
|
|
|
|
19. Oil seal TC φ28×φ40×5
|
|
|
|
|
|
|
|
20. GB893.1 Hole Retaining Ring (Type A) φ47×1.75
|
|
|
|
|
|
|
|
21. Non-standard bolts M10×1.5×66(Dacromet)
|
|
|
|
|
|
|
|
22. Non-standard bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
23. ZT310-T front wheel WSS wire clip
|
|
|
|
|
|
|
|
24. ZT250 anti-water rubber of frame
|
|
|
|
|
|
|
|
