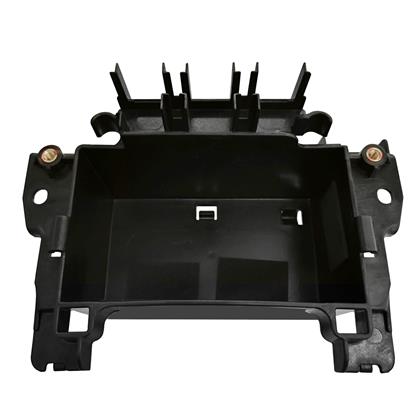

1. ZT350T-D rear storage box
|
|
|
|
|
|
|
|
2. ZT310T-M rear storage box left Decorative adhesive
|
|
|
|
|
|
|
|
3. ZT310T-M rear storage box right Decorative adhesive
|
|
|
|
|
|
|
|
4. ZT310T-M rear glove box wear pad after-sales assembly
|
|
|
|
|
|
|
|
5. ZT310T-M rear storage box water retaining skin
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: The old model can be replaced by the new one.
|
|
|
|
6. ZT310T-M front left storage box front glue
|
|
|
|
|
|
|
|
7. ZT310T-M rear glove box atmosphere light(after-sale)
|
|
|
|
|
|
|
|
8. ZT250-S Expansion nail(5 pcs/after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
5
|
|
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|
9. ZT350T-D sealing rubber ring（1300mm）
|
|
|
|
|
|
|
|
10. M6 hexagon socket bolt decorative buckle
|
|
|
|
|
|
|
|
11. Non-standard bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
12. Hexagon socket head screw M6×14+8.5×3 SUS302
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:It can be used as an alternative to "1251100-120093 Non-standard bolts M6×16 (environmental color)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel）"+"1244100-037000 φ12×φ8.5×2.5 circle buffer glue"+"1274100-018000 ZT250-S muffler anti-hot plate sleeve" fixing structres.
|
|
|
|
13. ZT350T-D electrical device box assembly
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Note: Paste 4 pieces of "3M Sponge Rubber Pad (50×30×2)".
|
|
|
|
14. ZT310T-M gel battery (YTX12-BS) (12Ah)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Note: The two appearances will be shipped randomly. When used for the 703F model modification parts, the battery pad in the battery compartment needs to be removed first, and the battery rubber pads should be pasted on the bottom and four sides of the battery compartment as shown in the general assembly diagram; because the standby voltage of the lithium battery and the gel battery, which are standard for the 703F model, is different, the voltage warning light on the instrument will flash when the vehicle is not started after modification, so please purchase with caution. The dimensions are approximately 150×87×120mm (error ±2mm).
|
|
|
|
15. ZT310 gel battery strap
|
|
|
|
|
|
|
|
16. 3M sponge pad (50×30×2)(5 pcs/after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
5
|
|
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|
17. ZT310T-M vehicle-mounted tool
|
|
|
|
|
|
|
|
18. ZT310T-M warning label (including tire pressure)
|
|
|
|
|
|
|
|
19. ZT350T-K rear compartment wear mat velcro (short)
|
|
|
|
|
|
|
|
