1. ZT368T-E right-hand handle (with rivet nut)
|
|
|
|
|
|
|
|
2. ZT368T-E left handle (with rivet nut)
|
|
|
|
|
|
|
|
3. Flat head vertical grain M5 rivet nut (blue and white zinc plating)
|
|
|
|
|
|
|
|
4. ZT350T-K left handle pressure block (matte black)
|
|
|
|
|
|
|
|
5. ZT350T-K right-hand handle pressure block (matte black)
|
|
|
|
|
|
|
|
6. GB70.1 M8×45(White Zinc)
|
|
|
|
|
|
|
|
7. GB93 φ8 (environmental color)
|
|
|
|
|
|
|
|
8. Non-standard flat pad φ13×φ8.2×1.5 (environmental color)
|
|
|
|
|
|
|
|
9. ZT310-X1 Left Handle Switch
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:The switch without the anti-rotation bolt,If the hand switch anti-rotation bolt is missing, can be purchased "1251100-219000 Cross ball screw M5×30".
|
|
|
|
10. ZT368T－E right handle switch
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: This is a new type of handlebar switch. For models without heating handle switch,you can purchase "1251100-219000 Cross ball screw M5×30".models with heating handle switches can purchase"1274300-123000 Cross ball screw M5×45".
|
|
|
|
11. ZT350-X heating handle switch assembly
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: The wire length is 810±10mm. The switch does not include the M5×45 bolt. For some models with heated grips as standard at the factory, if this bolt is missing, you can purchase "1274300-123000 Cross ball screw M5×45". The 560±10mm switch in the original retrofit parts of the T-M/D series models has been discontinued, and you can purchase this switch as a replacement. The 150T-X model does not require the M5×45 bolt.
|
|
|
|
12. ZT350-X left heating handle
|
|
|
|
|
|
|
|
13. Handle bar tape（100×15×0.4）
|
|
|
|
|
|
|
|
14. ZT368T-E right heated handlebar
|
|
|
|
|
|
|
|
15. Hex cone-end setting screw M5X10
|
|
|
|
|
|
|
|
16. Cross ball screw M5×45
|
|
|
|
|
|
|
|
17. ZT350-R balance block (matte black)
|
|
|
|
|
|
|
|
18. Cross ball screw M5×30
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Note: If the left or right hand switch anti-rotation bolt is missing,you can purchase this bol.
|
|
|
|
19. ZT368T-K throttle cable (Integrated)
|
|
|
|
|
|
|
|

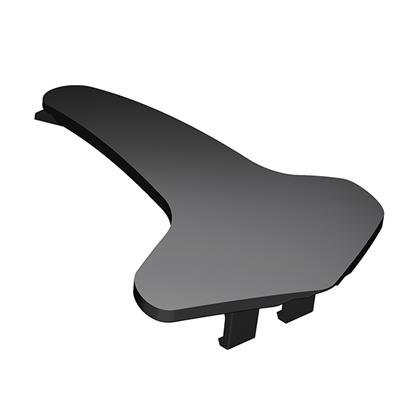

20. ZT350T-K Handlebar Upper Cover (Matte Black/WX)
|
|
|
|
|
|
|
|

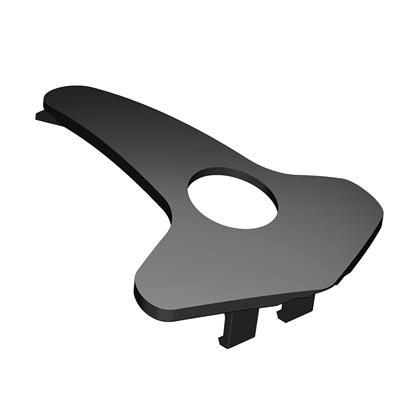

21. ZT350T-K Handlebar Upper Cover (Perforated/Matte Black/WX)
|
|
|
|
|
|
|
|
22. Hexagon socket head screw M6×16+8.5×5 SUS302
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:This bolt can be used to replace the structure of "M6×16 Bolt + GB 96.1 φ 6 + flanging bushing buffer glue + muffler anti-ironing plate bushing". Such as U rear fender / X rear fender and rear fender steering bracket in front of the installation point.
|
|
|
|

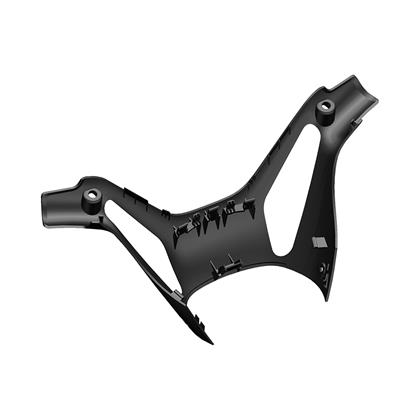

23. ZT350T-K direction handle lower cover (matte black /WX)
|
|
|
|
|
|
|
|
24. ZT250-S Expansion nail
|
|
|
|
|
|
|
|

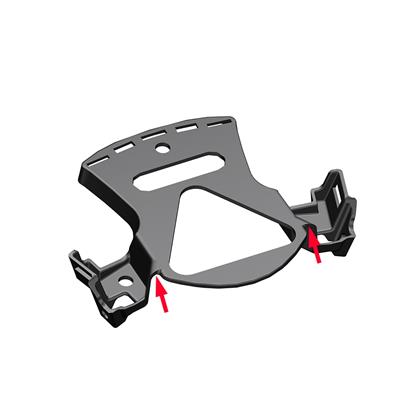

25. ZT368T-K direction handle lower cover mounting plate
|
|
|
|
|
|
|
|
26. Hexagon socket head screw M6×14+8.5×3 SUS302
|
|
|
|
|
|
|
Quantity
|
|
|
3
|
|
Remarks:It can be used as an alternative to "1251100-120093 Non-standard bolts M6×16 (environmental color)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel）"+"1244100-037000 φ12×φ8.5×2.5 circle buffer glue"+"1274100-018000 ZT250-S muffler anti-hot plate sleeve" fixing structres.
|
|
|
|
27. ZT350T-K aluminum alloy steering handle (matte black)
|
|
|
|
|
|
|
|
28. GB70.1 Hexagonal Socket M8×30 (Eco-Friendly Color Zinc)
|
|
|
|
|
|
|
Quantity
|
|
|
3
|
|
Remarks:From January 3,2023 , some vehicles the bolts whitch used to lock the direction handle pess piece , the upper and lower plate lock the front shock absorber are unified by GB70.1 M8×35 to GB70.1 M8×30 , and you can choose the corresponding number according to your needs.
|
|
|
|
29. ZT310T-M Balance Block(Rubber Column)
|
|
|
|
|
|
|
|
