1. ZT310T-M front storage box panel (black foam)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|

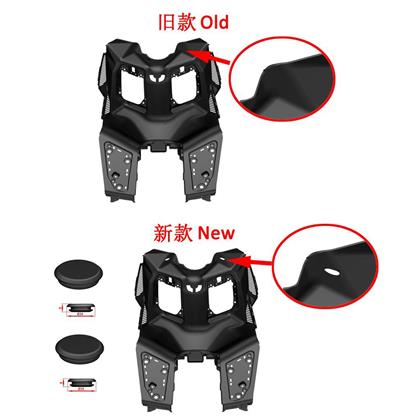

Remarks:ZT150/155T-M If you need to replace this part, you need to purchase a piece of "1224200-066000 ZT310PKE External antenna mount". The new model already includes 1 piece of "1226200-029100 ZT310T-M front storage box panel (Ⅱ)" and 2 pieces of "1246400-251000 ZT368T-M front shock absorption adjustment hole rubber plug", which can replace the old model.
|
|
|
|
2. ZT250-S Side cover round rubber
|
|
|
|
|
|
|
|
3. Plywood M6×11×15(zinc-nickel)
|
|
|
|
|
|
|
|
4. Non-standard bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
5. Hexagon socket head screw M6×14+8.5×3 SUS302
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:It can be used as an alternative to "1251100-120093 Non-standard bolts M6×16 (environmental color)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel）"+"1244100-037000 φ12×φ8.5×2.5 circle buffer glue"+"1274100-018000 ZT250-S muffler anti-hot plate sleeve" fixing structres.
|
|
|
|

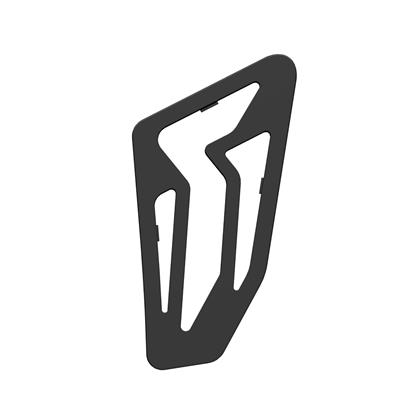

6. ZT310T-M front left pedal pad pressure plate
|
|
|
|
|
|
|
|

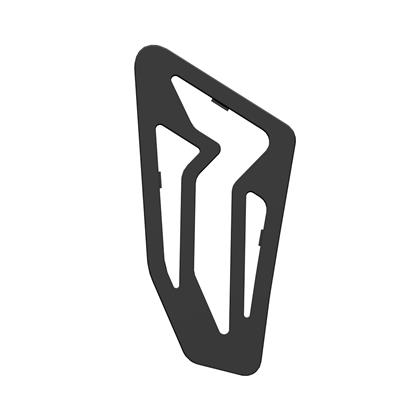

7. ZT310T-M front right pedal pad pressure plate
|
|
|
|
|
|
|
|

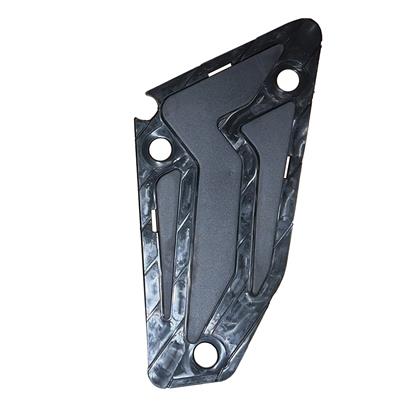

8. ZT310T-M front left pedal rubber pad
|
|
|
|
|
|
|
|
9. ZT310T-M front right pedal pad
|
|
|
|
|
|
|
|
10. Black foam single side tape(wide1cm/length1m/thin2mm)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Each roll is 1 meter long and 1 cm wide. It is used to prevent noise from being generated by mutual friction between the cover members.
|
|
|
|
11. ZT310T-M front storage box panel (Ⅱ)
|
|
|
|
|
|
|
|
12. ZT368T-M front shock absorption adjustment hole rubber plug
|
|
|
|
|
|
|
|
