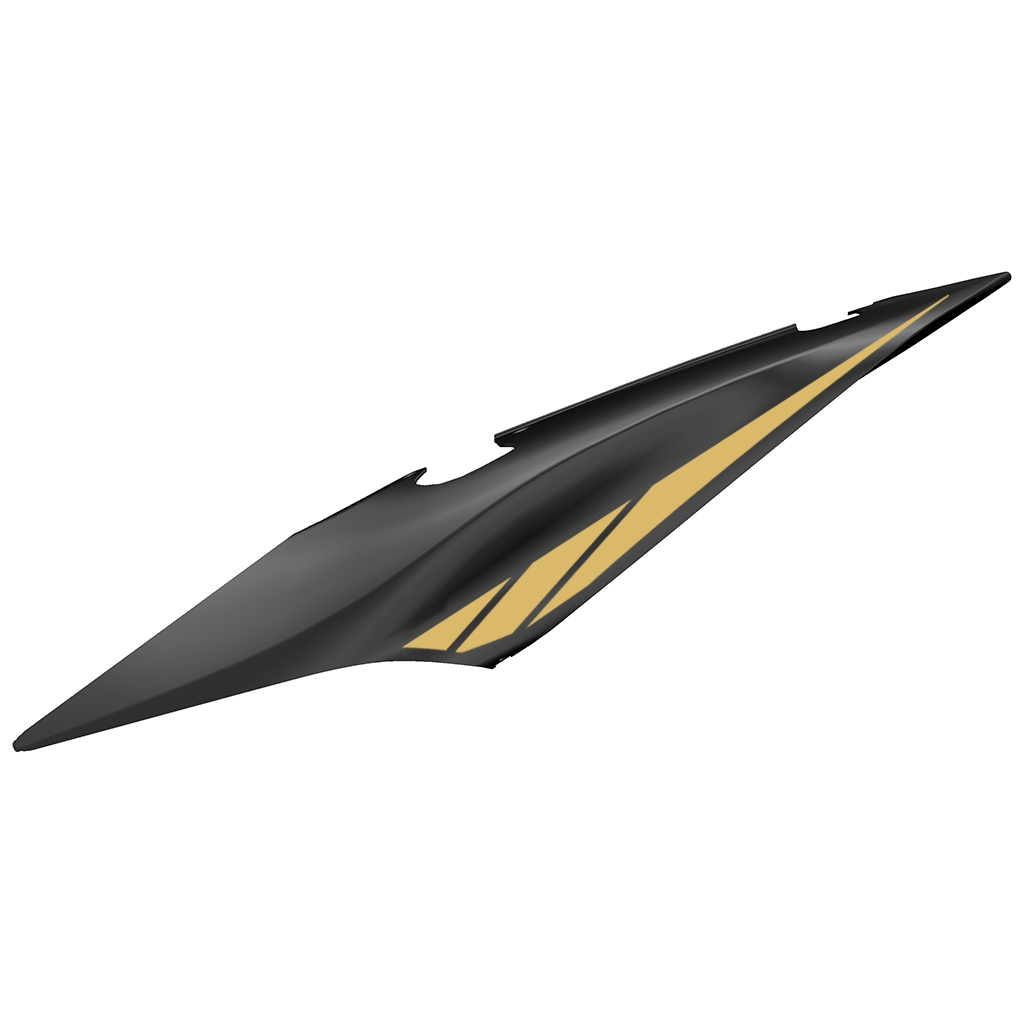

1. ZT368T-E Tail Skirt Left (Matte Black/Patchwork Matte/Dark Gold/WX)
|
|
|
|
|
|
|
|

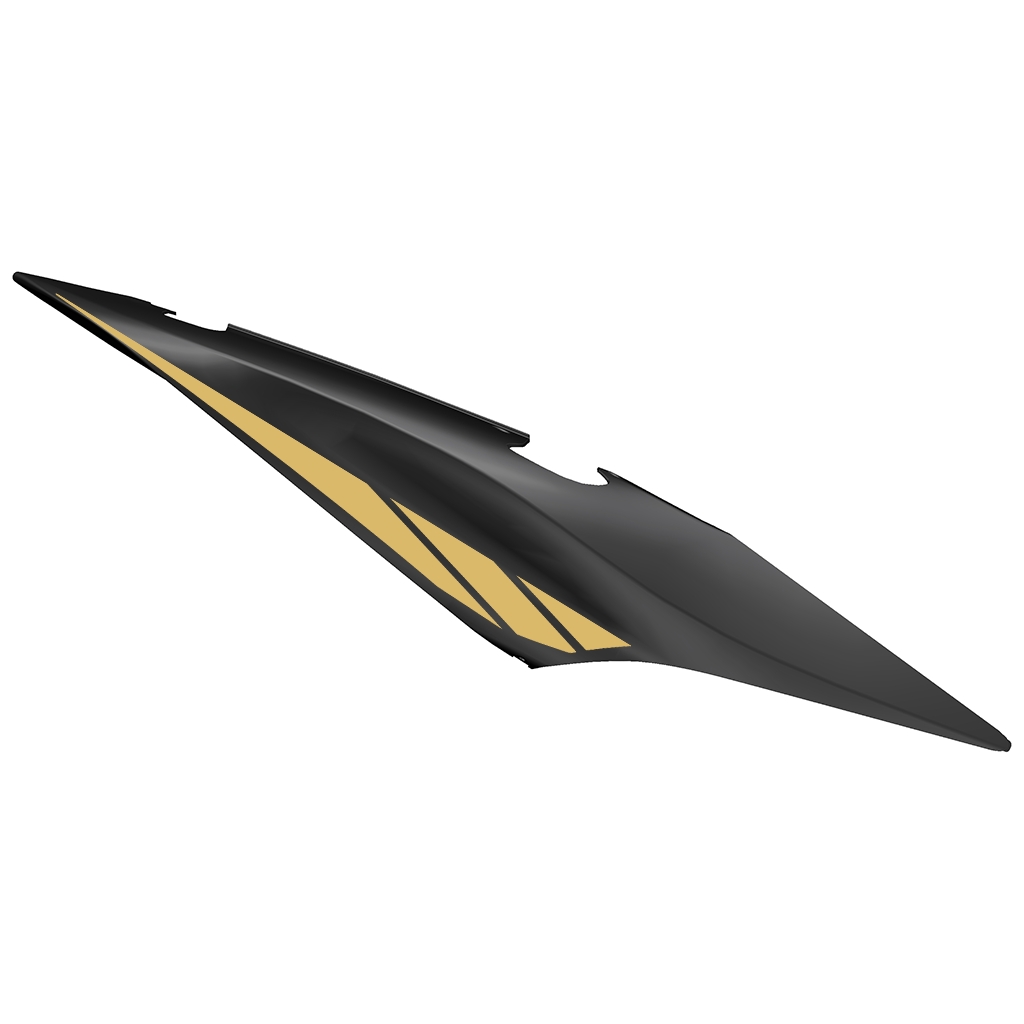

2. ZT368T-E Tail Skirt Right (Matte Black/Matte Decal/Dark Gold/WX)
|
|
|
|
|
|
|
|
3. ZT350T-E tail skirt left interior
|
|
|
|
|
|
|
|
4. ZT350T-E tail skirt right interior
|
|
|
|
|
|
|
|
5. Hexagon socket head screw M6×14+8.5×3 SUS302
|
|
|
|
|
|
|
Quantity
|
|
|
8
|
|
Remarks:It can be used as an alternative to "1251100-120093 Non-standard bolts M6×16 (environmental color)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel）"+"1244100-037000 φ12×φ8.5×2.5 circle buffer glue"+"1274100-018000 ZT250-S muffler anti-hot plate sleeve" fixing structres.
|
|
|
|
6. ZT250-S Expansion nail
|
|
|
|
|
|
|
|
7. Non-standard cross tapping screws ST3.9×12 (Black Zinc)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks: 1.3~1.8N.m.
|
|
|
|
8. ZT350T-E tail skirt left bottom plate
|
|
|
|
|
|
|
|
9. ZT350T-E tail skirt right bottom plate
|
|
|
|
|
|
|
|
10. ZT250-S Side cover round rubber
|
|
|
|
|
|
|
|
11. Plywood M6×11×15(zinc-nickel)
|
|
|
|
|
|
|
|
12. ZT368T-E Left Rear Armrest (Ⅱ)
|
|
|
|
|
|
|
|
13. ZT368T-E Right Rear Armrest (Ⅱ)
|
|
|
|
|
|
|
|
14. GB5789M8×35 (environmental color)
|
|
|
|
|
|
|
|
15. GB5789M8×30 (environmental color)
|
|
|
|
|
|
|
|
16. ZT310PKE External antenna mount
|
|
|
|
|
|
|
|
17. ZT368T-E Rear Skirt Left Sticker (Matte / Dark Gold / High Polymer / High Adhesion)
|
|
|
|
|
|
|
|
18. ZT368T-E Rear Skirt Right Sticker (Matte / Dark Gold / High Polymer / High Adhesion)
|
|
|
|
|
|
|
|
