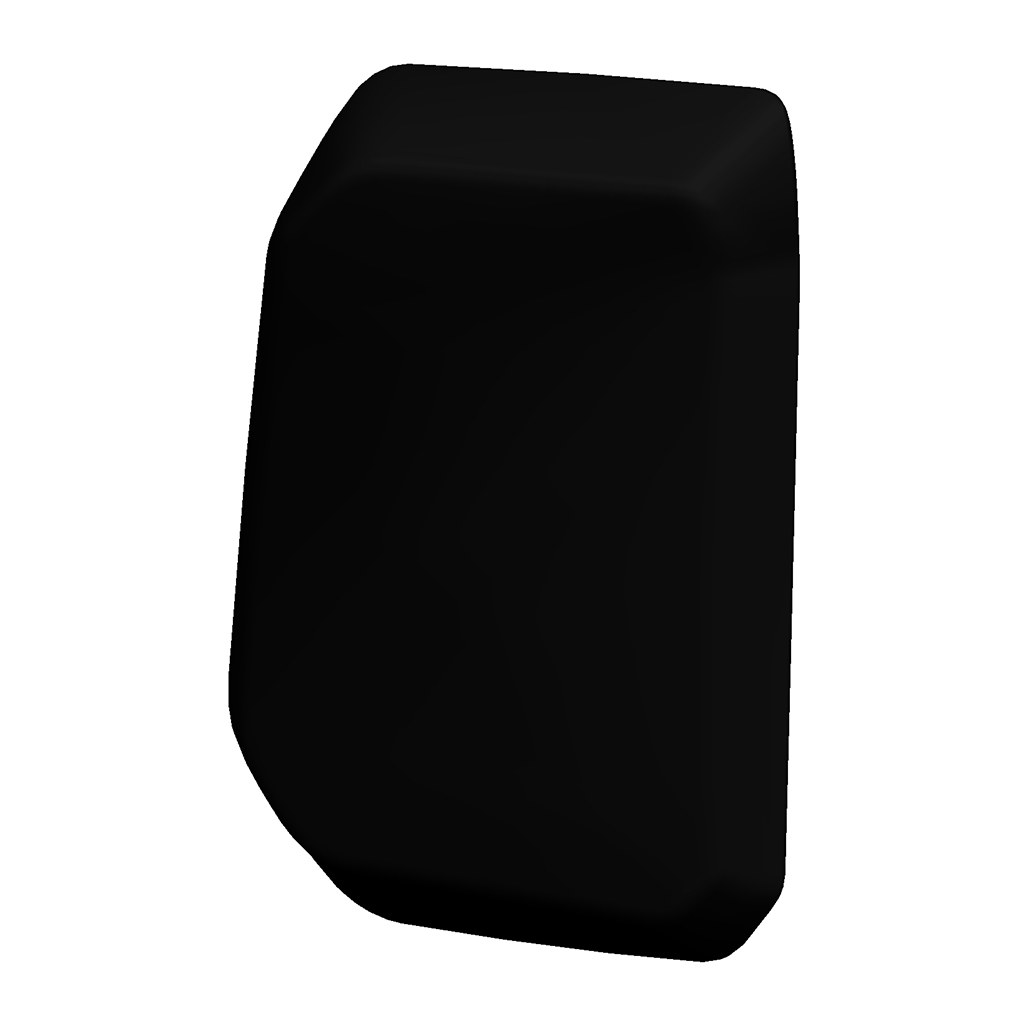

1. ZT310T-M front storage box left cover ( black)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:From October 18, 2022, the left and right covers of the front storage box of other ZT125T-M models, except for the silver blue vehicle, will be unified from extra black to frosted black, and the ones produced on the same day should be distinguished.
|
|
|
|

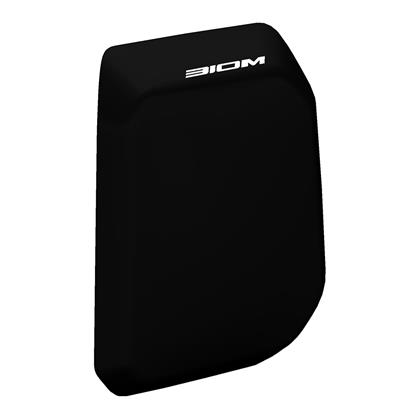

2. ZT310T-M right cover,front storage box (special black/310M decal)
|
|
|
|
|
|
|
|
3. Plywood M6×11×15(zinc-nickel)
|
|
|
|
|
|
|
|
4. ZT310T-M left inner cover of front storage box (P-240 foam improvement)
|
|
|
|
|
|
|
|
5. Hexagon socket head screw M6×14+8.5×3 SUS302
|
|
|
|
|
|
|
Quantity
|
|
|
6
|
|
Remarks:It can be used as an alternative to "1251100-120093 Non-standard bolts M6×16 (environmental color)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel）"+"1244100-037000 φ12×φ8.5×2.5 circle buffer glue"+"1274100-018000 ZT250-S muffler anti-hot plate sleeve" fixing structres.
|
|
|
|
6. ZT250-S rotating axle of fuel tank outside cover
|
|
|
|
|
|
|
|
7. ZT310T-M Torsion spring for front left storage box φ1.4×φ6×10
|
|
|
|
|
|
|
|
8. ZT250－S Fuel tank cover rotation damping
|
|
|
|
|
|
|
|
9. ZT310-T storage box cover rotating shaft limit circlip
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:φ6×0.5mm.
|
|
|
|
10. ZT310T-M front storage box right inner cover (P-240 foam improvement)
|
|
|
|
|
|
|
|
11. ZT310T-M Torsion spring for front right storage box φ1.4×φ6×10
|
|
|
|
|
|
|
|

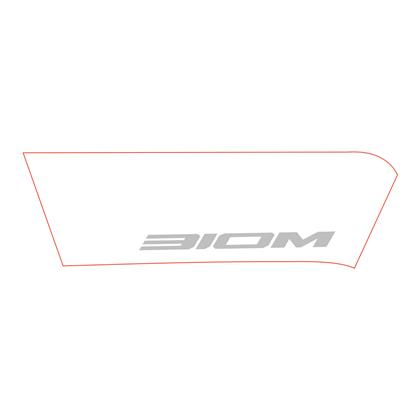

12. ZT310T-M front storage box right cover decal (electroforming/nickel/60mm/310M)
|
|
|
|
|
|
|
|
13. P-240 foam improvement (width 6mm, length 1m, thickness 5mm)
|
|
|
|
|
|
|
|

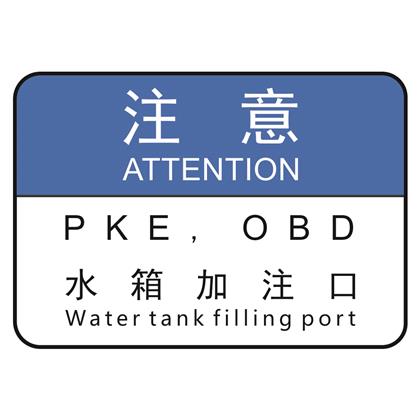

14. ZT310T-M water tank filling port label
|
|
|
|
|
|
|
|
