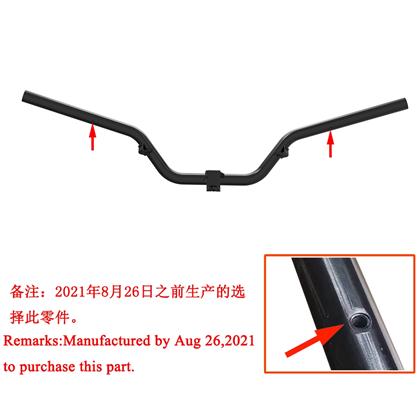

1. ZT310T-M handle bar(after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:Vehicles produced before August 26, 2021 are assembly this handle bar,which has been discontinued. If you need to replace the steering handle, you need to buy "4096200-012000 ZT310T-M handle bar(with pull the rivet nut)" instead. At the same time, you need to polish the left and right handle switches slightly. The specific method can fill in the quality feedback form and be guided by the engineer.
|
|
|
|

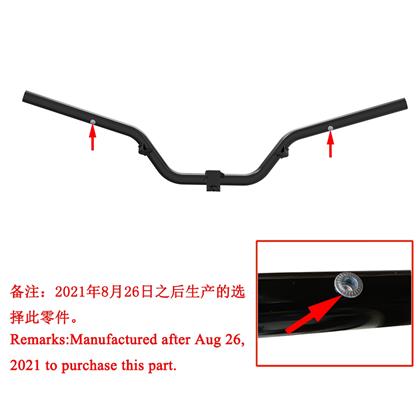

2. ZT310T-M handle bar(with pull the rivet nut)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:Manufactured after Aug 26,2021 to purchase this part.
|
|
|
|
3. ZT310T-M Left handle switch
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:The switch without the anti-rotation bolt,If the hand switch anti-rotation bolt is missing, can be purchased "1251100-219000 Cross ball screw M5×30".
|
|
|
|
4. ZT310-V1 Right handle switch
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:The switch without the anti-rotation bolt,If the hand switch anti-rotation bolt is missing, can be purchased "1251100-219000 Cross ball screw M5×30".
|
|
|
|
5. ZT250-R left hand rubber sleeve
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: If you need to remove the left handle rubber sleeve from the handle bar, you can soak it in hot water for about 10 minutes, then use the dust blower to blow the air to the middle part between the left hand rubber and handlebar(as indicated by the left arrow) or by other tool.
|
|
|
|
6. ZT250-R right handle bar rubber sleeve
|
|
|
|
|
|
|
|
7. ZT310T-M throttle refueling cable
|
|
|
|
|
|
|
|
8. ZT310T-M throttle return cable
|
|
|
|
|
|
|
|
9. ZT310T-M balance block (aggravated)
|
|
|
|
|
|
|
|
10. Cross ball screw M5×30
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Note: If the left or right hand switch anti-rotation bolt is missing,you can purchase this bol.
|
|
|
|
11. ZT310T-M Balance Block(Rubber Column)
|
|
|
|
|
|
|
|
