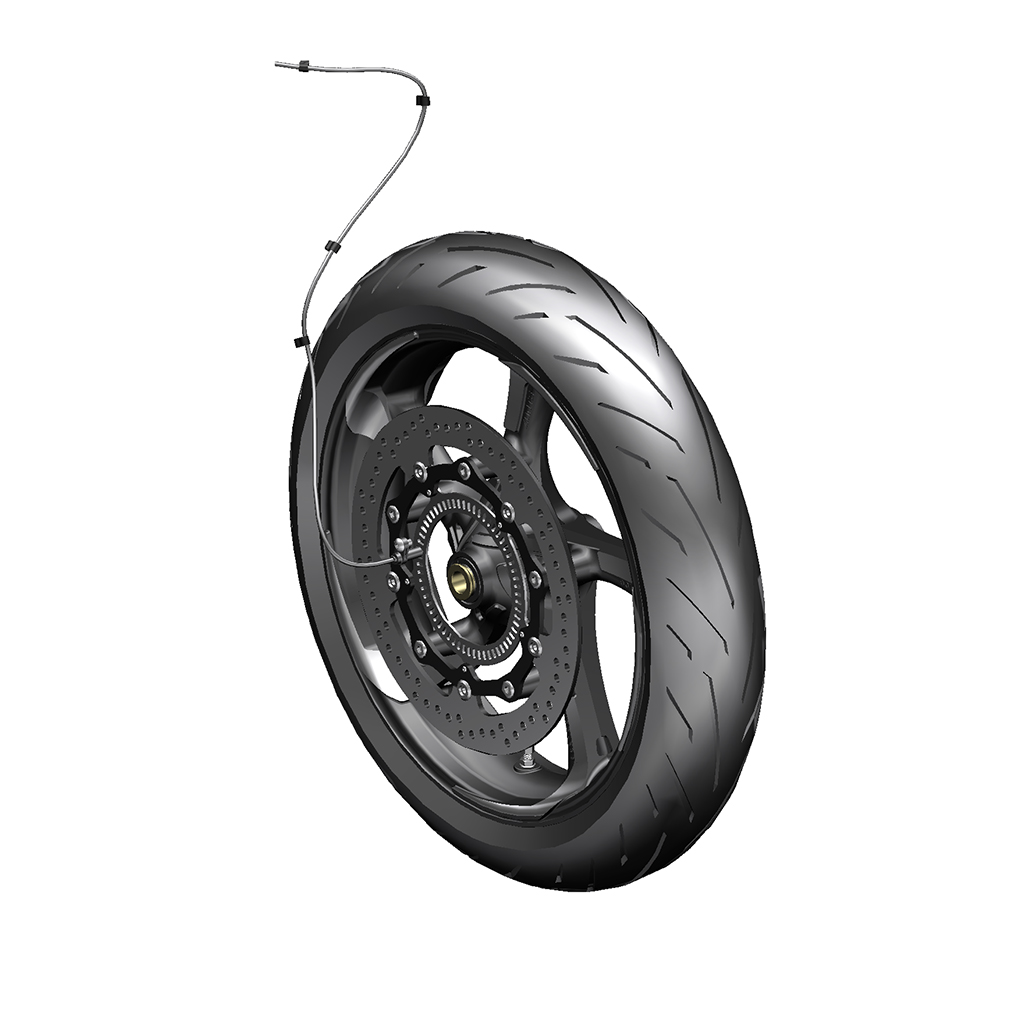

1. ZT350-GK front aluminum wheel (MT3.5×17/black/single disc)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: oil seal TC φ42×φ28×7; bearing size φ42×φ20×12；bearing model: 6004-2RS.
|
|
|
|
2. 120/70ZR17 CM-S3N (58W) TL E4 IMARK
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: DOT certificate: 17F MOT 01A.
|
|
|
|
3. ZT350-GK front brake disc aftermarket components (including brake disc ring gear)
|
|
|
|
|
|
|
|
4. ZT350-GK front brake disc (320×5.0)
|
|
|
|
|
|
|
|
5. ZT350 tire pressure sensor N (M8 straight head)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:The tire repair fluid should not be used because it will block the stoma of the pressure monitoring sensor,resulting in dificulty in inflating or failure of tire pressure momnitoring . Early productions were engraved with the letter "N",and the current production has been cancelled.
|
|
|
|
6. Non-standard inner hex bolt M8×25 (environmental color)
|
|
|
|
|
|
|
Quantity
|
|
|
5
|
|
Remarks: If used in brake discs thread fastening glue should be applied to prevent loosening. Standard torque is 24N.m.Use a 6mm Allen wrench.
|
|
|
|
7. ZT350-GK ABS induction ring gear (60 teeth)
|
|
|
|
|
|
|
|
8. GB12615 φ3.2×9 rivet (stainless steel)
|
|
|
|
|
|
|
Quantity
|
|
|
5
|
|
Remarks: Blind rivets require special tools for installation.
|
|
|
|
|
|
|
|
|
|
|
|
|
10. Non-standard bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
11. Wheel speed sensor clamp
|
|
|
|
|
|
|
|
12. Oil seal TC φ28×φ42×7
|
|
|
|
|
|
|
|
13. GB276 Deep groove ball bearing 6004-2RS-C3
|
|
|
|
|
|
|
|
14. ZT350 independent valve (M8 straight head)
|
|
|
|
|
|
|
|
15. Wheel rim balancing block (15g-Norton rubber-XT)
|
|
|
|
|
|
|
|
16. Wheel rim balancing block (10g-Norton rubber-XT)
|
|
|
|
|
|
|
|
