1. ZT703-F rear wheel hollow shaft Φ25x307
|
|
|
|
|
|
|
|
2. ZT703-F Right Chain Adjuster(II)
|
|
|
|
|
|
|
|
3. GB5782 Hexagon Head Bolt M8×50 (Environmental Color)
|
|
|
|
|
|
|
|
4. GB6170M8 (environmental color)
|
|
|
|
|
|
|
|
5. ZT703-F Rear Wheel Right Axle Sleeve (II) (φ25×φ32×19.4 - Shoulder φ37)
|
|
|
|
|
|
|
|
6. Non-standard plum blossom groove shoulder bolt M8 × 25-φ10 × 6 (grade 10.9/zinc nickel black)
|
|
|
|
|
|
|
|
7. KD200-C rear wheel induction ring gear (50 teeth)
|
|
|
|
|
|
|
|
8. ZT350-GK rear brake disc (265×4.5)
|
|
|
|
|
|
|
|
9. ZT703-F Rear Vacuum Spoke Wheel(MT4.25×18/Black)
|
|
|
|
|
|
|
|
10. ZT703-RR sprocket buffer rubber
|
|
|
|
|
|
|
|
11. 150/70R18 ANAKEE ADVENTURE 70V TL E4
|
|
|
|
|
|
|
|
12. ZT350 Tire Pressure Sensor N (M8 Elbow/120°)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:The tire repair fluid should not be used because it will block the stoma of the pressure monitoring sensor,resulting in dificulty in inflating or failure of tire pressure momnitoring .
|
|
|
|
13. ZT703-RR sprocket seat assembly (doubble bearing-black veil ）
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:This is an old model, with 6 pieces of "1251100-407094 Non-standard plum blossom groove shoulder bolt M8 × 25-φ10 × 6 (grade 10.9/zinc nickel black)". The old model is no longer available to purchase "1096800-058022 ZT703-RR sprocket seat assembly (doubble bearing/black veil/WX)" + 6 pieces "1251100-588000 hexagonal thin head flute bolt M8×25-φ10×4 (grade 10.9/zinc-nickel black)" to replace, pay attention to the bolt to apply an appropriate amount of thread fastening glue to prevent loosening. The old and new models can be distinguished by the bolt head of the sprocket, the old model uses the T45 inner torx head bolt, and the new model uses the 14# external hexagon bolt. It already contains 2 pieces of "1250601-136000 GB276-6006-2RD/P5C3 Deep Groove Ball Bearings" and 1 piece of "1251700-232000 ZT703-F Double Bearing Sprocket Seats Bushings (II.)". When dismantling the sprocket bolt, the sprocket fixing bolt needs to be heated, and the thread fastening glue is softened to facilitate the removal of the sprocket fixing bolt.
|
|
|
|
14. ZT703-RR sprocket seat assembly (doubble bearing/black veil/WX)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Contains 2 pieces of "1250601-136000 GB276-6006-2RD/P5C3 Deep Groove Ball Bearing". This is a new model with 6 pieces of "1251100-588000 hexagonal thin head flute bolt M8×25-φ10×4 (grade 10.9/zinc-nickel black)", and the bolt should be applied with an appropriate amount of thread fastening glue to prevent loosening. When removing the sprocket bolt, the sprocket fixing bolt needs to be heated to soften the thread.
|
|
|
|
15. Hexagonal thin head flute bolt M8×25-φ10×4 (grade 10.9/zinc-nickel black)
|
|
|
|
|
|
|
Quantity
|
|
|
6
|
|
Remarks:14# sleeve, pay attention to the bolt to apply an appropriate amount of thread fastening glue to prevent loosening.
|
|
|
|
16. GB6187.1 M8(White Zinc)
|
|
|
|
|
|
|
|
17. ZT703-F Rear Wheel Left Axle Sleeve (II) (φ25×φ30×17 Shoulder φ43)
|
|
|
|
|
|
|
|
18. ZT703-F 520-48 T sprocket
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: 48T-525.
|
|
|
|
19. ZT703-F 525-47 T sprocket
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: 47T-525.
|
|
|
|

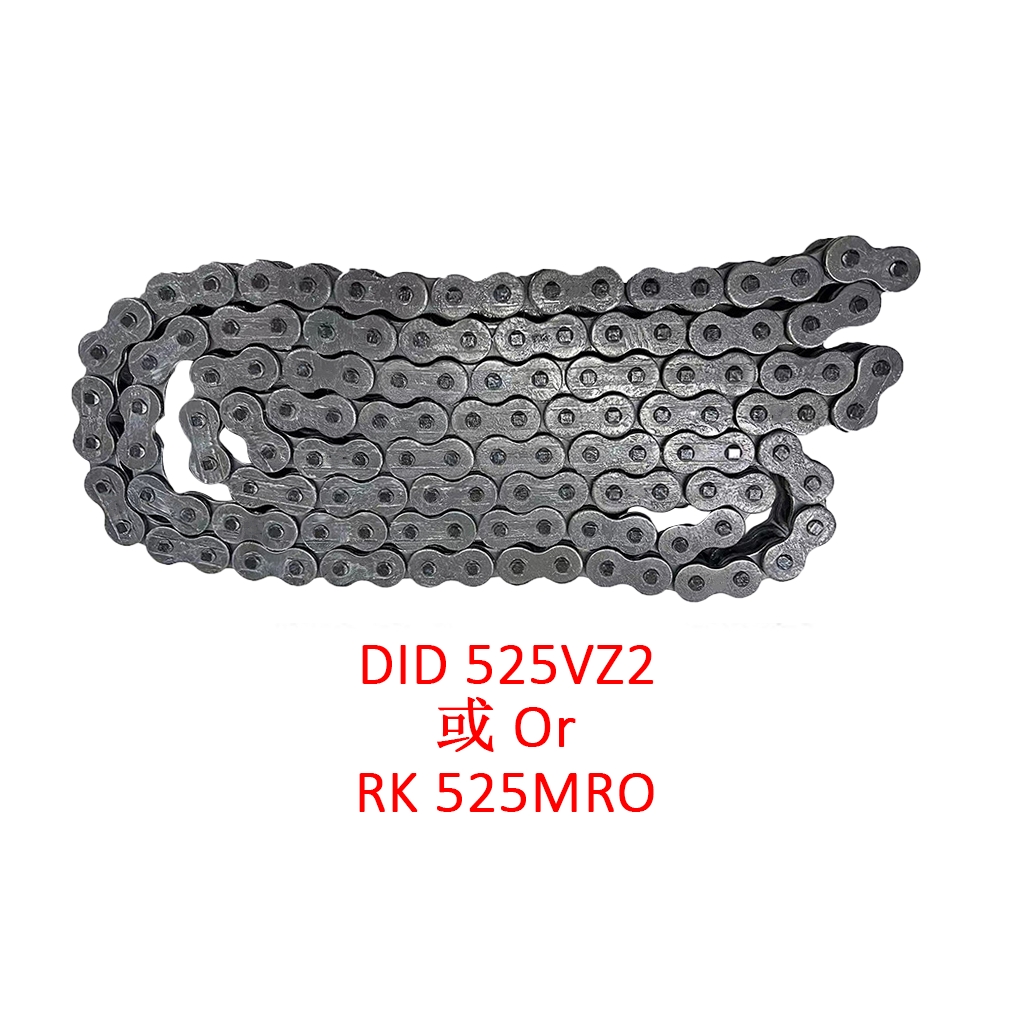

20. ZT703-F 126-section chain (525 oil seal chain)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: “ DID 525VZ2” or “RK 525MRO”.
|
|
|
|
21. ZT703-F 126-section chain (525 oil seal chain/open type)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Please make sure that the card is facing outwards.Open-type chains require special chain installation tools. This chain does not include tools and must be purchased separately. The chain mark “ DID 525VZ2” or “RK 525MRO”.
|
|
|
|
22. ZT703-F Left Chain Tuner (II)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
24. ZT703-F Double Bearing Sprocket Holder Shaft Sleeve (II)
|
|
|
|
|
|
|
|
25. ZT703-F Rear Axle Slotted Nut(M24×1.5)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:120～130N.m.30# sleeve.
|
|
|
|
26. GB276-6006-2RD/P5C3 deep groove ball bearing
|
|
|
|
|
|
|
|
27. ZT350-GK outer oil seal of sprocket seat
|
|
|
|
|
|
|
|
28. ZT370MU rubber-covered output sprocket subassembly-16T
|
|
|
|
|
|
|
|
29. M22×1.0 Protruding Hexagon Lock Nut (Grade 8/Environmental Color Zinc)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:130±10N.m.
|
|
|
|
30. φ22.4×φ35.5×4.5×4 Anti-loose washer (Dacromet)
|
|
|
|
|
|
|
|
31. Oil seal TC φ52×φ32×7
|
|
|
|
|
|
|
|
32. GB276 deep groove ball bearing 6205-2RS-C0
|
|
|
|
|
|
|
|
33. ZT703-F Vacuum Spoke Wheel Spoke(Φ3.6/L=203)
|
|
|
|
|
|
|
|
34. ZT703-F Vacuum Spoke Wheel Spoke(Φ3.6/L=206)
|
|
|
|
|
|
|
|
35. ZT703-F Vacuum Spoke Wheel Spoke(Φ3.6/L=227)
|
|
|
|
|
|
|
|
36. ZT703-F Vacuum Spoke Wheel Spoke(Φ3.6/L=216)
|
|
|
|
|
|
|
|
37. ZT310－T Vacuum spoke wheel female set screw M4
|
|
|
|
|
|
|
Quantity
|
|
|
40
|
|
Remarks:2# inner hexagon wrench is reqiured.
|
|
|
|
38. ZT310-T vacuum spoke wheel nut
|
|
|
|
|
|
|
Quantity
|
|
|
40
|
|
Remarks:T30 plum hexagon wrench is reqiured.
|
|
|
|
39. ZT703-F Rear Spoke Wheel Middle Spacer (φ32×φ25.3×117.4)
|
|
|
|
|
|
|
|
40. ZT350 independent valve (M8 elbow/120°)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:Only the valve part is included, not the tire pressure sensor body. Pay attention to the distinction before purchasing. If this part of the cap different from your vehicle,it can be replaced the cap by your vehicle.
|
|
|
|
