1. ZT310-X frame after-sales assembly(including seat/310X nameplate/national)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|

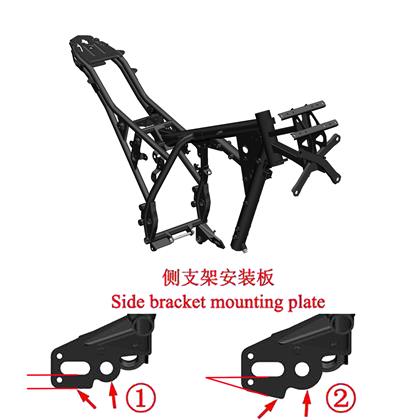

Remarks: Nameplate, bearing race and packing box are included. This item requires ID photo, driving license photo, and the frame code of the motorcycle to be verified by the company as the owner of the motorcycle and you can purchase them. Due to the upgrade of the frame side bracket mounting plate.If the motorcycle production date is before May 2019, it is the type ①, the production date is May-October 2019, you need to check the side bracket mounting plate before placing an order, if the production date is after October 2019, it is the type ② .Customers who place orders to purchase additional parts of the frame, please leave a message that your vehiles'''''''''''''''' status is ① or ② at the place of order.Division l will be based on customer note frame status,scheduling and production of this state of the frame.
|
|
|
|
2. ZT310-X frame after-sales assembly(including seat/ZT Euro Ⅳ nameplate)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Including nameplate, steel bowl and without packaging motorcycleton. Due to the upgrade of the frame side bracket mounting plate.If the motorcycle production date is before May 2019, it is the type ①, the production date is May-October 2019, you need to check the side bracket mounting plate before placing an order, if the production date is after October 2019, it is the type ② .Customers who place orders to purchase additional parts of the frame, please leave a message that your vehiles'''' status is ① or ② at the place of order.According to the customer''''s remarks on the frame status, our company.
|
|
|
|
3. ZT250-S upper steel bowl (after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks: Note that it must be pressed in place.
|
|
|
|
4. ZT250-S frame oil strainer
|
|
|
|
|
|
|
|
5. 27.4×2.65 Acrylate rubber o-rings
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: It is recommended to replace with the new parts after disassembly to prevent leakage.
|
|
|
|
6. ZT250-S oil cooling connectors
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Torque 50±4N.m.
|
|
|
|
7. Combined sealing gasket 12×φ20×2
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: It is recommended to replace with the new parts after disassembly to prevent leakage.
|
|
|
|
8. M12×1.5×15 ablassschraube (9.8 grade/environmental color Zinc)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remark: It is recommended to replace the combination seal 12×φ20×2 at the same time of replacing the oil. ZT310/350 &250-S/R series knight car the standard torque is 24±4N.m;KD/ZT125/150/155-U/U1/G1/Z2/GK is 25±3N.m;ZT125/310/350/368 series scooters 25N.m.
|
|
|
|
9. Non-standard bolt M10×1.5×112 (Dacromet)
|
|
|
|
|
|
|
|
10. Non-standard nut M10×1.5(Dacromet)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:14# sleeve.
|
|
|
|
11. HJ125-6 Battery rubber gasket(5 pcs/after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|
12. KD250-J head cover pad
|
|
|
|
|
|
|
|
13. ZT250-S Flanging bushing buffer(5 pcs/after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
4
|
|
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|
14. ZT250 anti-water rubber of frame
|
|
|
|
|
|
|
|
15. ZT310-X1 wiring bracket
|
|
|
|
|
|
|
|
16. GB5789M6×16 (environmental color)
|
|
|
|
|
|
|
|
17. GB6177.1M6 (environmental color)(5 pcs/after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|
