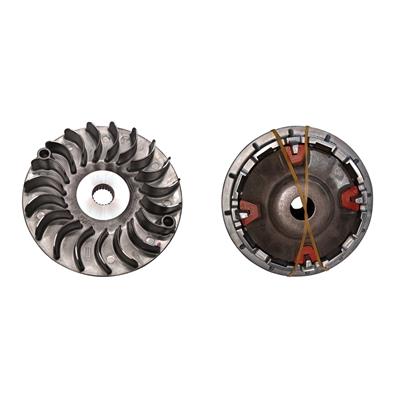

1. ZT1P72MN drive wheel sub-assembly
|
|
|
|
|
|
|
|

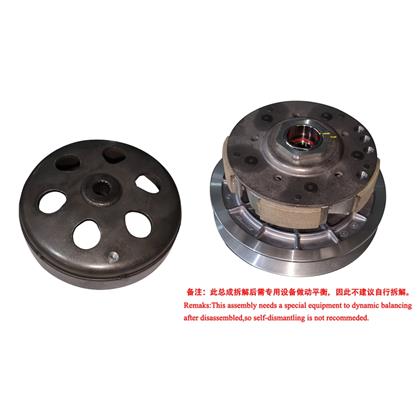

2. ZT1P72MN driven wheel sub-assembly
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remark:It is recommended to use Montblanc brand molybdenum-based grease. Since the grease has been pre-filled before leaving the factory, small-packaged grease cannot be provided. If self-maintenance is required, genuine products can be purchased through other channels.
|
|
|
|
3. ZT1P72MN V-shaped drive belt
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|

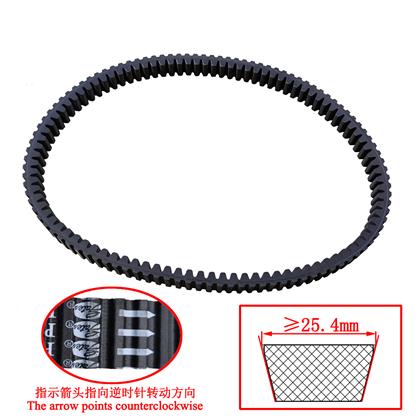

Remarks:Belt top width theory 26.4mm,wear limit 25.4mm,if the width less than 25.4 need to be replaced.Check the direction of the belt when assembling.The arrow points counterclockwise.
|
|
|
|
|
|
|
|
|
|
|
|
|

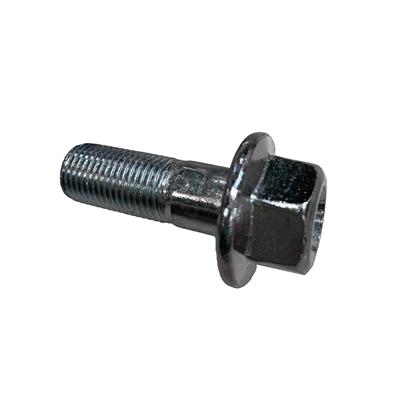

5. M12×1.25×35 hexagon flange bolts (10.9 grade/environmental color)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:17# sleeve.
|
|
|
|

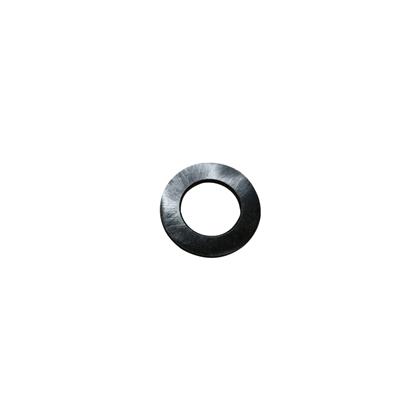

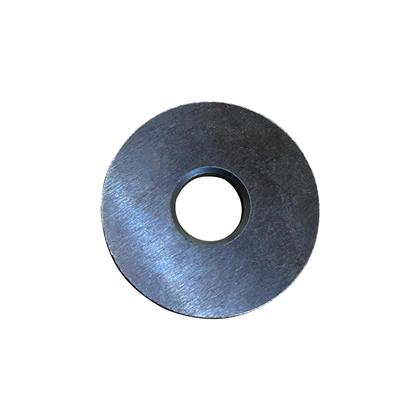

6. φ12.3 × φ40 × 4 washer
|
|
|
|
|
|
|
|
7. M14×1 hexagonal flange nut (10 grade/green color Zinc)
|
|
|
|
|
|
|
|
8. Φ14.5×φ25×16 driven wheel bushing
|
|
|
|
|
|
|
|
9. φ21.2×φ1.8 Fluorine rubber O-ring
|
|
|
|
|
|
|
|
