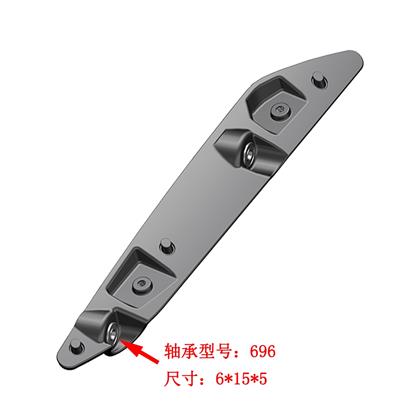

2. ZT350T-E windshield upper left pressure block
|
|
|
|
|
|
|
|

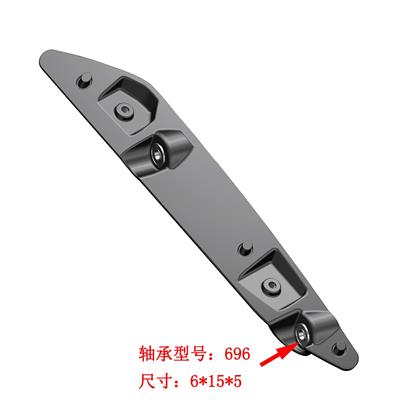

3. ZT350T-E windshield upper right pressure block
|
|
|
|
|
|
|
|
4. Non-standard bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
5. Buffer rubber of flanging bushing (φ8.5×φ14×1)
|
|
|
|
|
|
|
|
6. Flanged bushing φ6.2×φ8.4×3.5＋φ14×1.5
|
|
|
|
|
|
|
|
7. ZT310T-M windshield decorative cover decorative buckle
|
|
|
|
|
|
|
|
8. ZT350T-E windshield left lower pressure block
|
|
|
|
|
|
|
|
9. ZT350T-E windshield left lower pressure block gasket
|
|
|
|
|
|
|
|

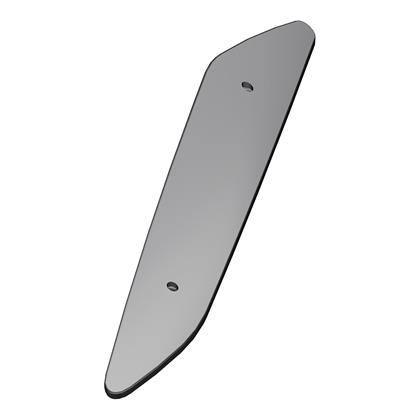

10. ZT350T-E windshield lower right pressure block
|
|
|
|
|
|
|
|
11. ZT350T-E windshield lower right pressure block gasket
|
|
|
|
|
|
|
|
12. GB16674 M6×16 Hexagon flange bolts (9.8 grade/environmental color Zinc)
|
|
|
|
|
|
|
|
13. ZT250-S flanging sleeve(φ6.4×φ9×6＋φ20×2)
|
|
|
|
|
|
|
|
14. ZT250-S Flanging bushing buffer
|
|
|
|
|
|
|
|
15. ZT310T-M windshield motor controller(limited time)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:This is new model.If you need to purchase this part,please check your vehicle actualoff-line date.If is on or after 2 August 2021,you can purchase this model.
|
|
|
|
16. M6×22 Hex flang bolt thread (8.8 garde/environmental color Zinc)
|
|
|
|
|
|
|
|
17. ZT350T-K motor pressure plate
|
|
|
|
|
|
|
|
18. ZT350T－K Horseshoe Flasher Bracket
|
|
|
|
|
|
|
|
19. ZT350T-K Windshield Liner Mounting Bracket
|
|
|
|
|
|
|
|
20. ZT310-T windshield motor
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:If you buy a windshield motor,you need to buy a "1240300-007000 HJ125-6 Battery rubber gasket”，pasted
on the side of the windshield motor label.
|
|
|
|
21. ZT310-T windshield motor sheath
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

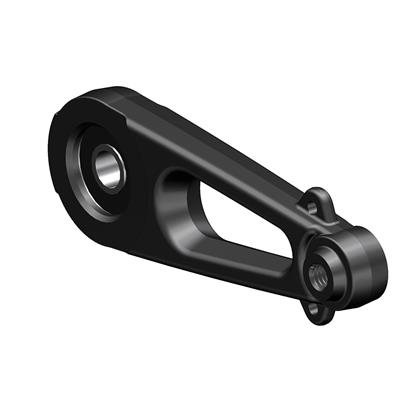

23. ZT350T-K windshield upper rocker arm (dark gray matte/pressed bearing)
|
|
|
|
|
|
|
|

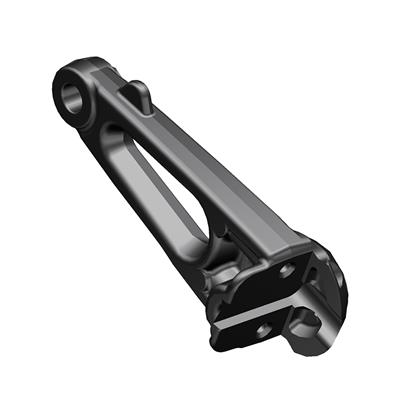

24. ZT350T-K Windshield Lower Left Rocker Arm (Dark Gray Matte)
|
|
|
|
|
|
|
|

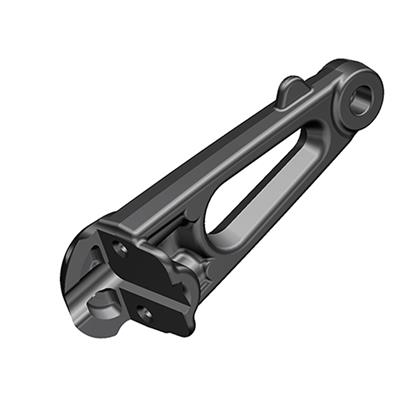

25. ZT350T-K right rocker arm under windshield (dark gray matte)
|
|
|
|
|
|
|
|
26. GB70.3 M8×30 (10.9 grade environmental protection color)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:18～28N.m, must be coated with screw fastening glue to prevent loosening.
|
|
|
|
27. ZT350 pedal bearing cover
|
|
|
|
|
|
|
|
28. GB818 cross recessed pan head screw M4×16 (environmental color)
|
|
|
|
|
|
|
|
29. ZT310-T mounting plate of head cover lower rocker (dark gray matte)
|
|
|
|
|
|
|
|
30. ZT310-T windshield front rocker buffer rubber
|
|
|
|
|
|
|
|
31. HJ125-6 Battery rubber gasket
|
|
|
|
|
|
|
|
