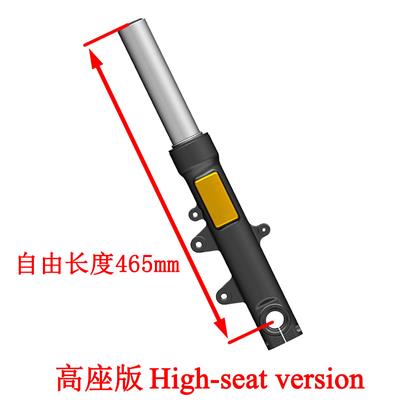

1. ZT310T-M front left shock absorber(Hight-seat version)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:This is a low-seat version of the front shock absorber,applicable to March 1,2021 before the production of vehicles.The shock absorption without dust shield stop selling.Single front shock-absorbing assembly total shock-absorbing oil consumption is 220ml. It is recommended that all the shock absorbing oil be completely discharged out of the measuring cup and finally poured into total damping oil at a time. It is recommended to use 10W hydraulic oil.If there is leakage,it is recommended that the oil seal and the dust seal be replaced at the same time.Foreign customers purchase front shock absorber oil seal and dust seal in the wearing parts of the modified parts assembly.
|
|
|
|

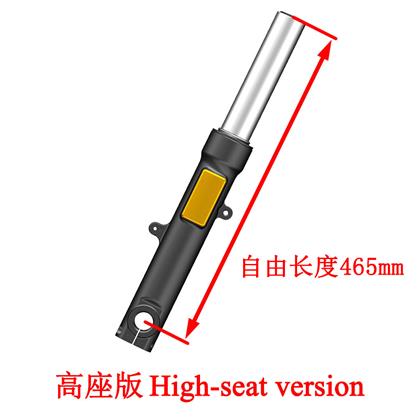

2. ZT310T-M front right shock absorber(hight-seat version)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:This is a low-seat version of the front shock absorber,applicable to March 1,2021 before the production of vehicles.The shock absorption without dust shield stop selling.Single front left shock-absorbing assembly total shock-absorbing oil consumption is 220ml. It is recommended that all the shock absorbing oil be completely discharged out of the measuring cup and finally poured into total damping oil at a time. It is recommended to use 10W hydraulic oil.If there is leakage,it is recommended that the oil seal and the dust seal be replaced at the same time.Foreign customers purchase front shock absorber oil seal and dust seal in the wearing parts of the modified parts assembly.
|
|
|
|
3. ZT310T－M front wheel hollow shaft Φ20×243
|
|
|
|
|
|
|
|
4. ZT250-R front wheel right shaft sleeve
|
|
|
|
|
|
|
|
5. ZT250-R front wheel right fixed bushing
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:M20×1.5.
|
|
|
|
6. GB70.1 inner hexagonal M8×35 (color Zinc)
|
|
|
|
|
|
|
|
7. Reflection light(KM115)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks: Shock absorber is included and is available for after sale.
|
|
|
|
