1. ZT350-GK engine exhaust outlet seal
|
|
|
|
|
|
|
|
2. ZT368T-D-H1 front muffler (homemade/China IV)
|
|
|
|
|
|
|
|
3. Inner hexagonal nut M8 (color Zinc)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:25±1.5N.m.
|
|
|
|
4. ZT368T-G Muffler stainless steel bar clasp
|
|
|
|
|
|
|
|
5. ZT368T-G muffler graphite gasket(φ35.3×φ45×10)
|
|
|
|
|
|
|
|
6. Non-standard bolts M10×1.5×90 (Dacromet)
|
|
|
|
|
|
|
|
7. GB70.1 Flat Washer Combined Bolt M10×1.5×20 (304 Stainless Steel)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:35～38N.m.
|
|
|
|
8. Non standard plum blossom groove with column pan head bolt M8 × 1.25 × 35 - 22 (grade 10.9)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:25±2N.m.
|
|
|
|
9. Bosch Oxygen Sensor (LSFMH)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Before purchasing, please check the engraving on the original car oxygen sensor and select the corresponding engraving status to place an order.
|
|
|
|
10. ZT368T-D rear part of muffler
|
|
|
|
|
|
|
|
11. Non-standard internal plum bolt M6×16 (thread glue/304 stainless steel)
|
|
|
|
|
|
|
Quantity
|
|
|
5
|
|
Remarks:T25 plum wrench.
|
|
|
|
12. Stainless steel heat insulation mat 6×20×1.6(5 pcs/after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
5
|
|
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|

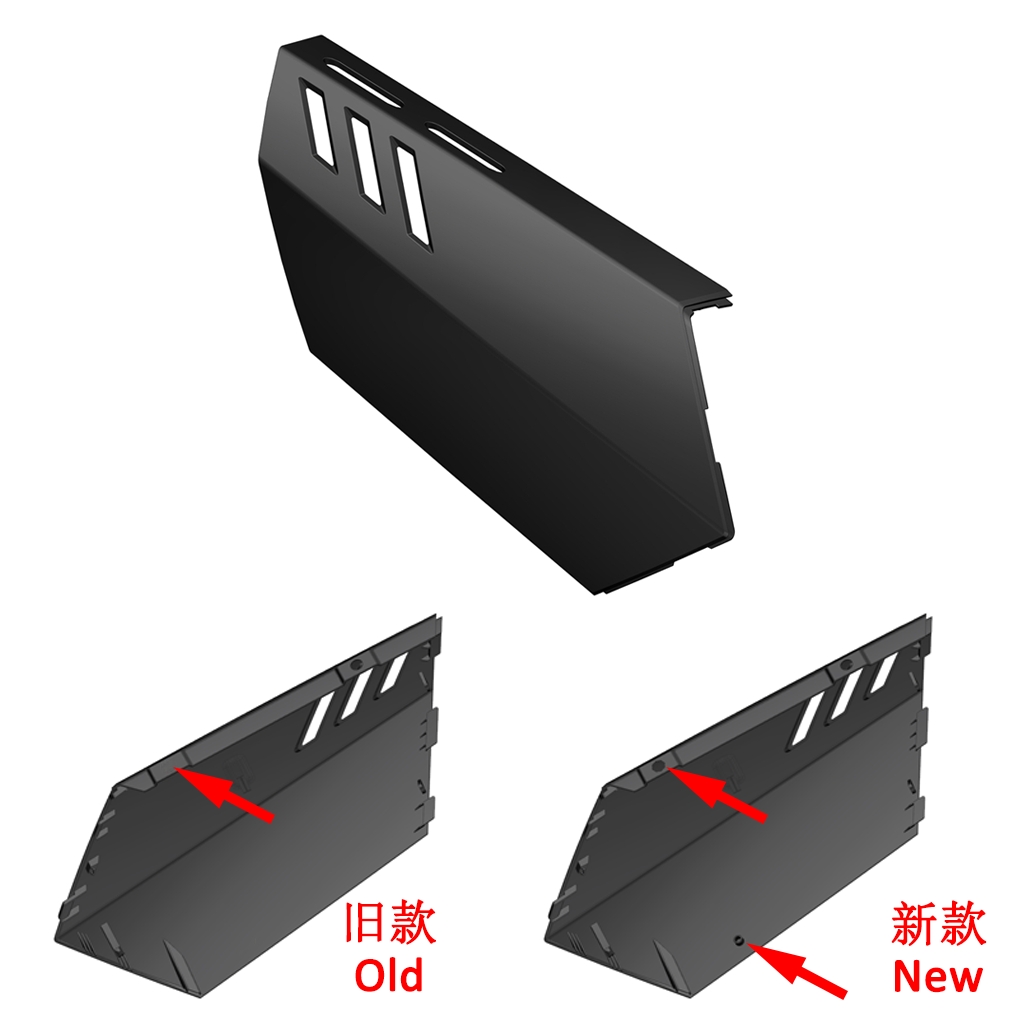

13. ZT368T-G anti-scalding plate rear part (self-made/magnesium alloy/anode black)
|
|
|
|
|
|
|
|
14. GB70.2M5×12 (stainless steel)
|
|
|
|
|
|
|
|
15. ZT368T-G muffler anti scald plate support adhesive
|
|
|
|
|
|
|
|
16. ZT368T-G Anti-heat Board front part (outside association)
|
|
|
|
|
|
|
|
17. ZT368T-G stainless steel flanging sleeve(φ6.4×φ9×6＋φ20×2)(after-sale)
|
|
|
|
|
|
|
|
18. ZT368T-G muffler hot plate rubber buffer(5 pcs/after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
4
|
|
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|
19. ZT368T-G Anti-scalding plate middle part (Nylon - anodized black/WX)
|
|
|
|
|
|
|
|
