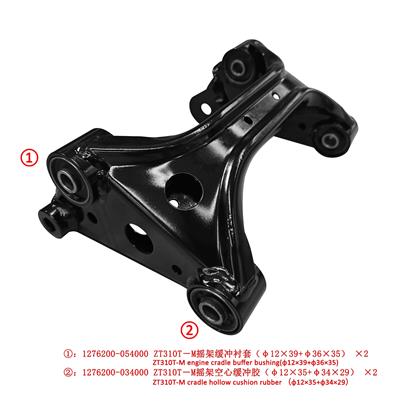

1. ZT310T-M cradle (36 cradle buffer bushing) assembly(MES)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:Press-fit 2 pieces of cradle buffer bushing and 2 pieces of cradle hollow buffer glue.
|
|
|
|
2. ZT310T-M cradle buffer bushing (φ12×39+φ36×35)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:If you need to replace the cradle buffer bushing,it is recommended to measure the size first to avoid purchasing errors.After the old stock is depleted, it will be switched to the new environmentally friendly color. It is recommended to purchase 2 pieces at the same time to ensure consistent color.
|
|
|
|
3. ZT310T-M cradle hollow cushion rubber (φ12×35+φ34×29)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:If you need to replace the cradle buffer bushing,it is recommended to measure the size first to avoid purchasing errors.If not according to the angle of the assembly may cause vehicle vibration.
|
|
|
|
4. Non-standard bolt M12×1.25×290 (Dacromet)
|
|
|
|
|
|
|
|

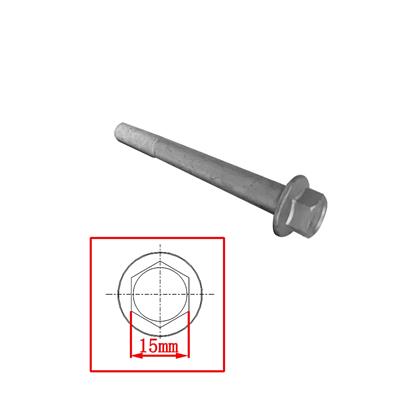

5. Non-standard bolt M12×1.25×105 (Dacromet)
|
|
|
|
|
|
|
Quantity
|
|
|
4
|
|
Remarks:In order to facilitate after-sale (the bolt head is 15# sleeve) this bolt is discontinued,you can buy "1251112-018000 GB5787 non-standard bolt M12×1.25×105(10.9 garde/dacromet)" instead.The bolt head used to replace is 14# sleeve.
|
|
|
|
6. GB5787 non-standard bolt M12×1.25×105(10.9 garde/dacromet)
|
|
|
|
|
|
|
|
7. GB6187.1 M12×1.25(White Zinc)(5 pcs/after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
5
|
|
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|
8. Zt350t-d frame socket (φ12.2 × φ17 ×151)
|
|
|
|
|
|
|
|
9. φ12.3×φ26×3 High-strength Flat Washer
|
|
|
|
|
|
|
|
