1. ZT350T-D rear storage box
|
|
|
|
|
|
|
|
2. ZT310T-M rear storage box left Decorative adhesive
|
|
|
|
|
|
|
|
3. ZT310T-M rear storage box right Decorative adhesive
|
|
|
|
|
|
|
|
4. ZT310T-M rear glove box wear pad after-sales assembly
|
|
|
|
|
|
|
|
5. ZT310T-M rear storage box water retaining skin
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: The old model can be replaced by the new one.
|
|
|
|
6. ZT310T-M rear glove box atmosphere light
|
|
|
|
|
|
|
|
7. ZT310T-M front left storage box front glue
|
|
|
|
|
|
|
|
8. ZT350T-D sealing rubber ring（1300mm）
|
|
|
|
|
|
|
|
9. ZT250-S Expansion nail
|
|
|
|
|
|
|
|
10. M6 hexagon socket bolt decorative buckle
|
|
|
|
|
|
|
|
11. Non-standard bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
12. Non-standard bolts M6×16 (environmental color)
|
|
|
|
|
|
|
|
13. Flanged bushing φ6.2×φ8.4×3.5＋φ14×1.5
|
|
|
|
|
|
|
|
14. Buffer rubber of flanging bushing (φ8.5×φ14×1)
|
|
|
|
|
|
|
|

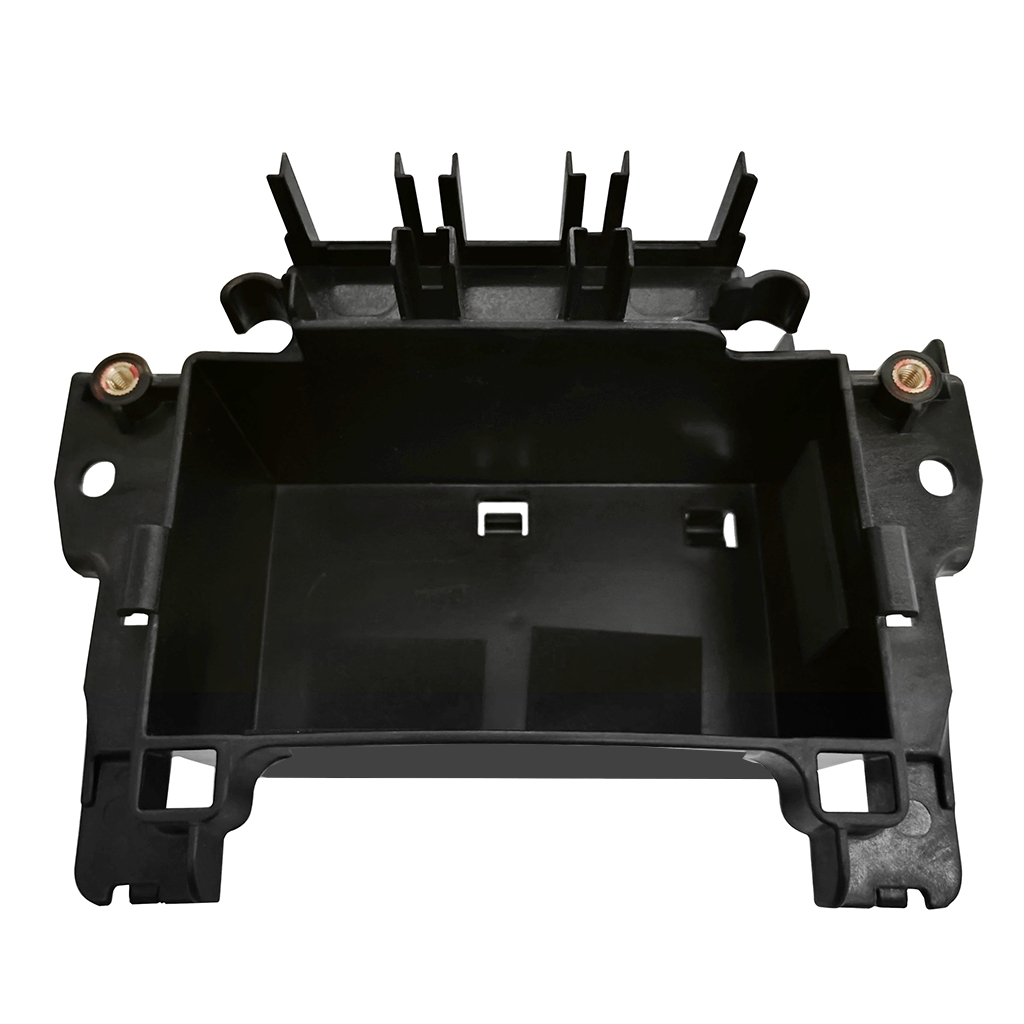

15. ZT310T-M electrical device box
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:This model has been discontinued, you can buy "1226400-149000 ZT350T-D electrical device box assembly assembly (MES)" instead. If the frame is threaded hole, the boss indicated by the red arrow should be cut off by hand and the corresponding bolts should be reduced, and if it is a through hole, it can be directly replaced. If the original vehicle has a battery cover plate, it will not be installed after replacing it with a 350D electrical device box, so the battery cover plate and waterproof rubber need to be reduced.
|
|
|
|
16. ZT350T-D electrical device box assembly
|
|
|
|
|
|
|
|
17. ZT310T-M gel battery (YTX12-BS) (12Ah)
|
|
|
|
|
|
|
|
18. ZT310 gel battery strap
|
|
|
|
|
|
|
|
19. 3M sponge pad (50×30×2)
|
|
|
|
|
|
|
|
20. ZT310T-M vehicle-mounted tool
|
|
|
|
|
|
|
|
21. ZT310T-M warning label (including tire pressure)
|
|
|
|
|
|
|
|
22. ZT350T-K rear compartment wear mat velcro (short)
|
|
|
|
|
|
|
|
