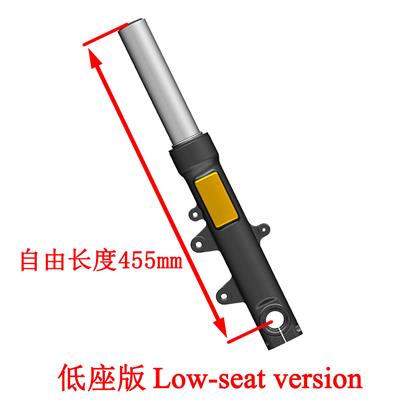

1. ZT310T-M front Left shock absorber (low-seat version)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:This is a low-seat version of the front shock absorber,applicable to March 1,2021 after the production of vehicles.The shock absorption without dust shield stop selling,need to buy the model with dust sield,and"1246200-062000 ZT310T-M front shock absorber corrugated dust shield".Front left shock-absorbing assembly total shock-absorbing oil consumption is 220ml. It is recommended that all the shock absorbing oil be completely discharged out of the measuring cup and finally poured into total damping oil at a time. It is recommended to use 10W hydraulic oil.If there is leakage,it is recommended that the oil seal and the dust seal be replaced at the same time.Foreign customers purchase front shock absorber oil seal and dust seal in the wearing parts of the modified parts assembly.
|
|
|
|

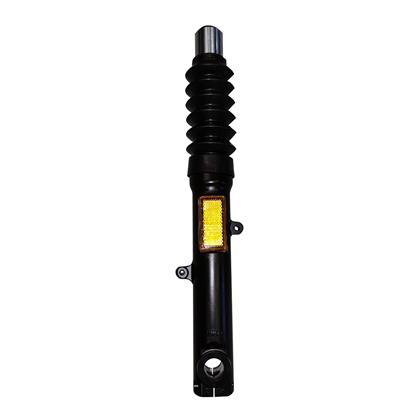

2. ZT310T-M front left shock absorber (low seat/dust cover)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Front left shock-absorbing assembly total shock-absorbing oil consumption is 220ml. It is recommended that all the shock absorbing oil be completely discharged out of the measuring cup and finally poured into total damping oil at a time. It is recommended to use 10W hydraulic oil.If there is leakage,it is recommended that the oil seal and the dust seal be replaced at the same time.Foreign customers purchase front shock absorber oil seal and dust seal in the wearing parts of the modified parts assembly.The distance of free length is 455±2mm.
|
|
|
|
3. ZT310T-M front Right shock absorber (low-seat version)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:This is a low-seat version of the front shock absorber,applicable to March 1,2021 after the production of vehicles.The shock absorption without dust shield stop selling,need to buy the model with dust sield,and"1246200-062000 ZT310T-M front shock absorber corrugated dust shield".Front right shock-absorbing assembly total shock-absorbing oil consumption is 220ml. It is recommended that all the shock absorbing oil be completely discharged out of the measuring cup and finally poured into total damping oil at a time. It is recommended to use 10W hydraulic oil.If there is leakage,it is recommended that the oil seal and the dust seal be replaced at the same time.Foreign customers purchase front shock absorber oil seal and dust seal in the wearing parts of the modified parts assembly.
|
|
|
|

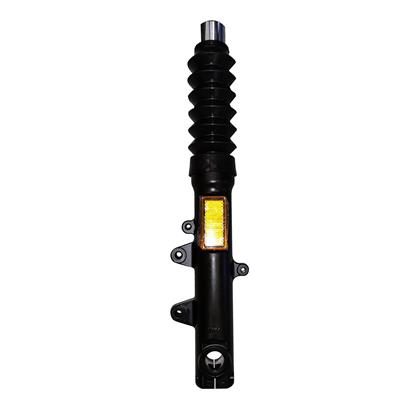

4. ZT310T-M front right shock absorber (low seat/dust cover)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Front right shock-absorbing assembly total shock-absorbing oil consumption is 220ml. It is recommended that all the shock absorbing oil be completely discharged out of the measuring cup and finally poured into total damping oil at a time. It is recommended to use 10W hydraulic oil.If there is leakage,it is recommended that the oil seal and the dust seal be replaced at the same time.Foreign customers purchase front shock absorber oil seal and dust seal in the wearing parts of the modified parts assembly.The distance of free length is 455±2mm.
|
|
|
|
5. GB70.1 inner hexagonal M8×35 (color Zinc)
|
|
|
|
|
|
|
|
6. ZT310T－M front wheel hollow shaft Φ20×243
|
|
|
|
|
|
|
|
7. ZT250-R front wheel right shaft sleeve
|
|
|
|
|
|
|
|
8. ZT250-R front wheel right fixed bushing
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:M20×1.5.
|
|
|
|
9. Reflection light(KM115)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks: Shock absorber is included and is available for after sale.
|
|
|
|
