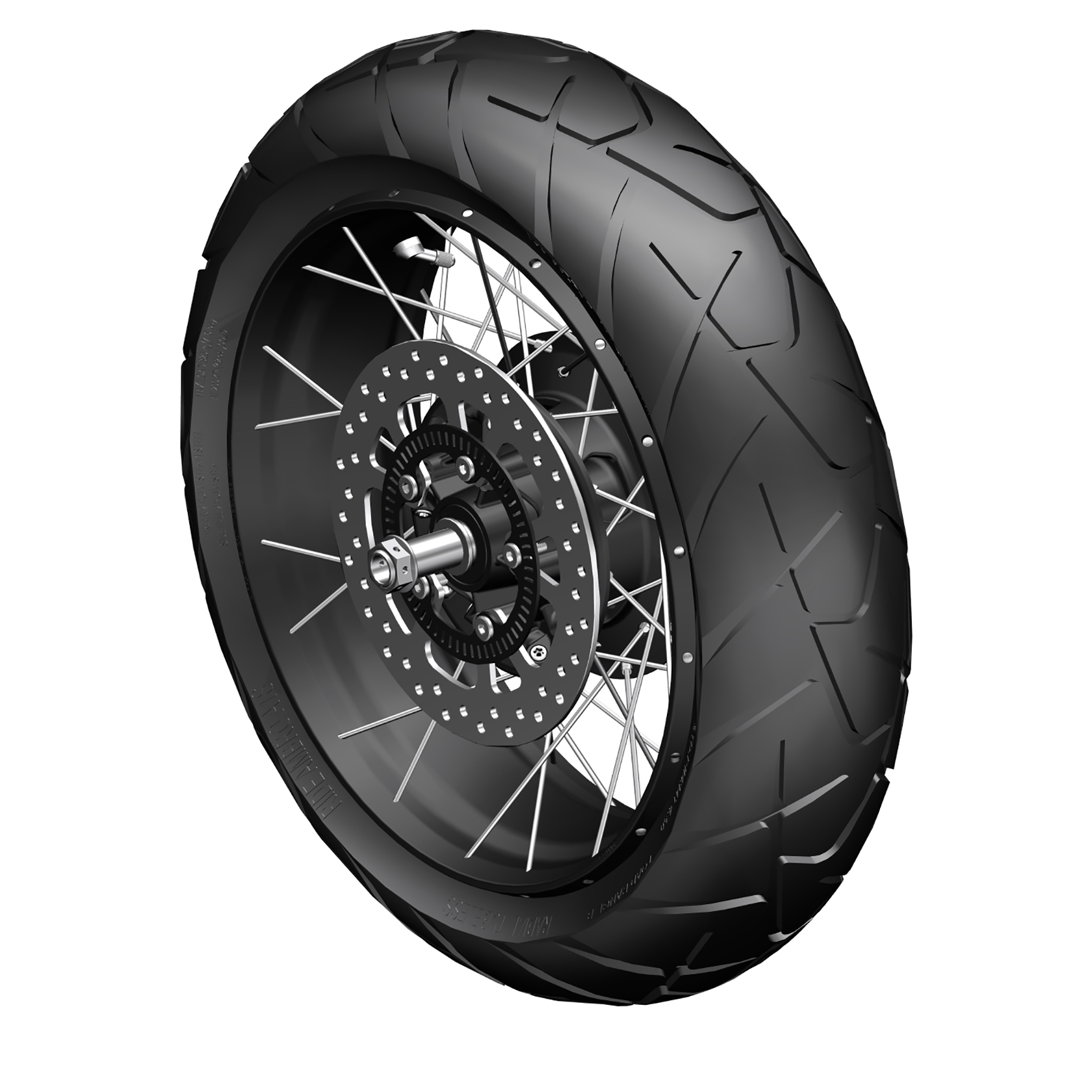

1. ZT350-T rear spoke wheel (MT4.5×17/black)
|
|
|
|
|
|
|
|
2. 160/60ZR17 CM－A1S (69W) TL E4 IMARK
|
|
|
|
|
|
|
|
3. ZT350 rear wheel hollow shaft Φ25×278
|
|
|
|
|
|
|
|
4. ZT350-GK rear wheel right sleeve(φ25×φ30×15.5/shoulder φ38)
|
|
|
|
|
|
|
|
5. ZT350 rear wheel hollow shaft nut(M25)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:30# sleeve.100～110N.m.
|
|
|
|
6. ZT350 tire pressure sensor (M8 elbow joint/120°)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:Pay attention to the orientation when installing,elbow to the left.The tire repair fluid should not be used because it will block the stoma of the pressure monitoring sensor,resulting in dificulty in inflating or failure of tire pressure momnitoring .
|
|
|
|
7. ZT350 Tire Pressure Sensor N (M8 Elbow/120°)(after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Note: Pay attention to the orientation during installation. Tire sealant is prohibited as it may clog the air hole of the tire pressure monitoring sensor, leading to inflation difficulty or TPMS failure. For 310M models, please check that there is a light sensor in the upper right corner of the instrument cluster before purchasing this product. The old aluminum alloy hex nut indicated by the arrow requires a size 12 wrench; it will be switched to a stainless steel lock hex nut requiring a size 13 wrench around September 24,2026. Tightening torque: 7N. m.
|
|
|
|
|
|
|
|
|
|
|
|
|
9. ZT350-GK rear brake disc (265×4.5)
|
|
|
|
|
|
|
|
10. ABS induction ring (60 teeth)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Please confirm the status before purchase.
|
|
|
|
11. Non-standard inner hex bolt M8×25 (environmental color)
|
|
|
|
|
|
|
Quantity
|
|
|
5
|
|
Remarks: If used in brake discs thread fastening glue should be applied to prevent loosening. Standard torque is 24N.m.Use a 6mm Allen wrench.
|
|
|
|
12. Wheel speed sensor(A)
|
|
|
|
|
|
|
|
13. Non-standard bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
14. ZT310-R Rear disc brake pipe clamp
|
|
|
|
|
|
|
|
15. Wheel speed sensor clamp
|
|
|
|
|
|
|
|
16. Oil seal TC φ30×φ52×7
|
|
|
|
|
|
|
|
17. GB276-6205-2RS/P5C3 Deep Groove Ball Bearing(after-sale)
|
|
|
|
|
|
|
|
18. ZT310－T Vacuum spoke wheel female set screw M4
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:2# inner hexagon wrench is reqiured.
|
|
|
|
19. ZT310-T Spoke of tubeless spoke rim(L=219.6)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Rotate the spoke wheel to the position indicated by the arrow and observe the direction of the spokes. The spokes with the same direction or color are the same specifications.The color shown is only used to distinguish the spoke length,not the actual color.
|
|
|
|
20. ZT310-T Spoke of tubeless spoke rim(L=200.6)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Rotate the spoke wheel to the position indicated by the arrow and observe the direction of the spokes. The spokes with the same direction or color are the same specifications.The color shown is only used to distinguish the spoke length,not the actual color.
|
|
|
|
21. ZT310-T vacuum spoke wheel spokes (L=187.6)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Rotate the spoke wheel to the position indicated by the arrow and observe the direction of the spokes. The spokes with the same direction or color are the same specifications.The color shown is only used to distinguish the spoke length,not the actual color.
|
|
|
|
22. Wheel rim balancing block (15g-Norton rubber-XT)
|
|
|
|
|
|
|
|
23. Wheel rim balancing block (10g-Norton rubber-XT)
|
|
|
|
|
|
|
|
24. ZT350 independent valve (M8 elbow/120°)(after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Note: Pay attention to the orientation during installation. Tire sealant should not be used, as it may clog the air hole of the tire pressure monitoring sensor, leading to difficulty in inflation or failure of the tire pressure monitoring system. The old aluminum alloy hex nut indicated by the arrow requires a No. 12 wrench, and it will be switched to a stainless steel lock hex nut requiring a No. 13 wrench around September 24,2026. Tightening torque: 7N. m.
|
|
|
|
25. ZT350-T Rear Spoke Wheel Middle Spacer (φ32×φ26×98.5)
|
|
|
|
|
|
|
|
