1. ZT703-F Fuel Tank (Pearl White)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: The fuel tank without E5 gasoline label and the Fuel Tank Warning Sticker , you need to be purchased separately.
|
|
|
|
2. ZT703 electronic fuel tank lock（matte black)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Including "1246800-090000 ZT703 Electronic Fuel Tank Lock Base Gasket (Aftermarket)", "1246800-091000 ZT703 Electronic Fuel Tank Lock Body Gasket (Aftermarket)", "1246800-092000 ZT703 Electronic Fuel Tank Lock Port Gasket (Aftermarket)","1246800-183000 ZT703 electronic fuel tank lock one-way valve sealing ring (after-sales)".
|
|
|
|
3. GB70.1M5×30 (304 stainless steel)
|
|
|
|
|
|
|
|
4. ZT703-F oil level sensor
|
|
|
|
|
|
|
|
5. GB6177.1M6 (environmental color)
|
|
|
|
|
|
|
Quantity
|
|
|
4
|
|
Remarks:10# sleeve.
|
|
|
|

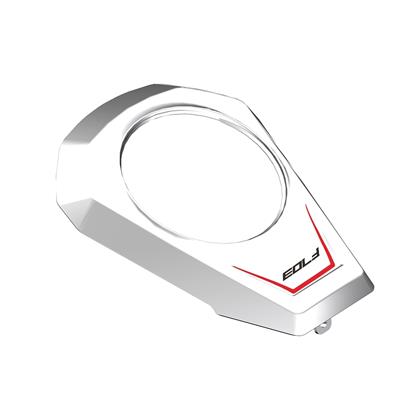

6. ZT703-F fuel tank trim cover subassembly (pearl white/MES)
|
|
|
|
|
|
|
|
7. KD150-U fuel tank liner limit glue
|
|
|
|
|
|
|
|
8. T03 built-in fuel pump (ZT700ADV/350KPa)
|
|
|
|
|
|
|
|
9. GB5789M6×16 (environmental color)
|
|
|
|
|
|
|
|
10. ZT700ADV high-pressure tubing
|
|
|
|
|
|
|
|
11. ZT310PKE External antenna mount
|
|
|
|
|
|
|
|
12. GB818M4×6 (white Zinc)
|
|
|
|
|
|
|
|
13. GB96 washer φ4×φ12×1 (304 stainless steel)
|
|
|
|
|
|
|
|
14. ZT703 electronic fuel tank lock dust proof rubber sleeve (B)
|
|
|
|
|
|
|
|
15. KD200-C electronic fuel tank lock base plate
|
|
|
|
|
|
|
|
16. Black foam single side tape(wide1cm/length1m/thin2mm)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Each roll is 1 meter long and 1 cm wide. It is used to prevent noise from being generated by mutual friction between the cover members.
|
|
|
|
17. ZT703 Electronic Fuel Tank Lock Base Gasket (Aftermarket)
|
|
|
|
|
|
|
|
18. ZT703 Electronic Fuel Tank Lock Body Gasket (Aftermarket)
|
|
|
|
|
|
|
|
19. ZT703 Electronic Fuel Tank Lock Port Gasket (Aftermarket)
|
|
|
|
|
|
|
|
20. ZT703-F Fuel Tank Decorative Cover Decal (Bright Red/703/Polymer/High Viscosity)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: This decal is an inner sticker (that is, the decal is pasted first and then covered with varnish), due to process reasons, the decal can not be purchased separately to achieve the original decal effect, so the decal is not sold separately only for quality feedback.
|
|
|
|
21. ZT703-F Fuel Tank Top Decal (Cold Gray/Polymer/High Viscosity)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: This decal is an inner sticker (that is, the decal is pasted first and then covered with varnish), due to process reasons, the decal can not be purchased separately to achieve the original decal effect, so the decal is not sold separately only for quality feedback.
|
|
|
|
22. ZT703-F Fuel Tank Left Decal (Bright Red/Cool Gray/URE/Polymer/High Viscosity)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: This decal is an inner sticker (that is, the decal is pasted first and then covered with varnish), due to process reasons, the decal can not be purchased separately to achieve the original decal effect, so the decal is not sold separately only for quality feedback.
|
|
|
|
23. ZT703-F Fuel Tank Right Decal (Bright Red/Cool Gray/ADV/Polymer/High Viscosity)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: This decal is an inner sticker (that is, the decal is pasted first and then covered with varnish), due to process reasons, the decal can not be purchased separately to achieve the original decal effect, so the decal is not sold separately only for quality feedback.
|
|
|
|
24. ZT703-F Chinese Fuel Tank Warning Sticker (Gloss Black/Polymer/High Adhesion)
|
|
|
|
|
|
|
|
25. ZT703 electronic fuel tank lock one-way valve sealing ring (after-sales)
|
|
|
|
|
|
|
|
