Quantity
|
|
|
1
|
|
Remarks:Please use original parts!Otherwise may cause damage to the ECU!Any loss caused by the using of non-original parts does not beling to the scope of guarantees.
|
|
|
|

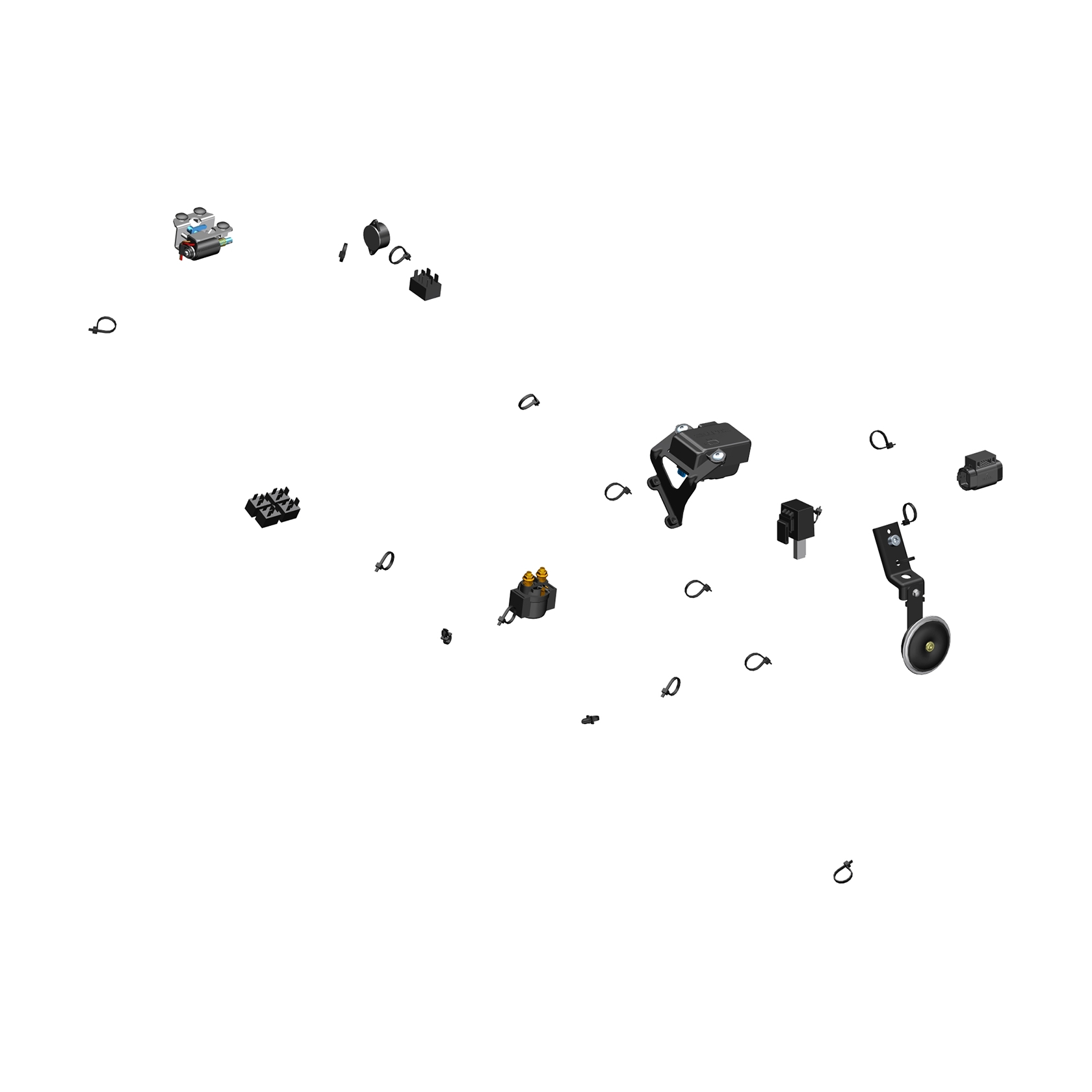

2. ZT250-S Four-pin Normally Open Relay
|
|
|
|
|
|
|
Quantity
|
|
|
6
|
|
Remarks: Model KH-1A4T-R.
|
|
|
|
3. Grade 0 flame retardant tie (black 3.6×295)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:Note that the drain hole indicated by the arrow should be down or at a low positioon to avoid buzzer silencing dute to water accumulation.
|
|
|
|
6. Non-standard bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8. ZT250-R dump switch sleeve
|
|
|
|
|
|
|
|
9. HJ150-3 square flasher (LED)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
11. ZT310T-M Horn Bracket
|
|
|
|
|
|
|
|
12. GB70.1 inner hex bolt M8×16(color Zinc)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: 6# inner hexgon socket.
|
|
|
|
13. GB16674M6×12 (chromed/HH)
|
|
|
|
|
|
|
|
14. ZT310 Electric seat lock
|
|
|
|
|
|
|
|
15. M6 hexagon socket bolt decorative buckle
|
|
|
|
|
|
|
|
16. ZT310 univsersal fuse (10A small)
|
|
|
|
|
|
|
Quantity
|
|
|
9
|
|
Remarks: Small 10A.
|
|
|
|
17. ZT310 univsersal fuse (15A small)
|
|
|
|
|
|
|
Quantity
|
|
|
6
|
|
Remarks: Small 15A.
|
|
|
|
18. ZT310 univsersal fuse (25A small)
|
|
|
|
|
|
|
Quantity
|
|
|
3
|
|
Remarks: Small 25A.
|
|
|
|
19. ZT310 PKE new version (band version )
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: The old "ZT310 PKE Controller (Single Antenna)" for ZT250-R National IV and 310 series models can purchase this assmbly directly and the antenna uses the single antenna of the original car.If the original car is a "ZT310 PKE controller with dual antennas", it must be used with the purchase of "1184200-053000 ZT310PKE external single antenna".The battery type of the sensor key is Camelion CR1225.
|
|
|
|
20. ZT310 Induction Key (Bracelet Edition)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: If you can not purchase this sensor key , please consult your salesman for more details.
|
|
|
|
21. Battery for key (CR1225)
|
|
|
|
|
|
|
|
22. Bracelet key battery cover
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:Only battery cover ,no other accessories. Only for small battery version of induction key.
|
|
|
|
23. Hexagon socket head screw M6×14+8.5×3 SUS302
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:It can be used as an alternative to "1251100-120093 Non-standard bolts M6×16 (environmental color)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel）"+"1244100-037000 φ12×φ8.5×2.5 circle buffer glue"+"1274100-018000 ZT250-S muffler anti-hot plate sleeve" fixing structres.
|
|
|
|
24. ZT310T-M PKE mounting bracket
|
|
|
|
|
|
|
|
25. ZT310PKE external single antenna
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Note: If the original motorcycle is a new state single-antenna PKE controller, this material can be purchased separately. Click or download the image on the left to see a larger picture. If you need the velcro can purchase "1226400-188000 Velcro (External Single Antenna)" for after-sale.
|
|
|
|
26. ZT310 induction key rubber ring
|
|
|
|
|
|
|
|
27. ZT310 Induction Key (Bracelet Edition-enlarge battery)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:If you need to purchase the sensor key , please consult your salesman for details.
|
|
|
|
28. Bracelet key battery cover (enlarge battery)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:Only battery cover ,no other accessories. Only for big battery version of induction key.
|
|
|
|
29. ZT310 PKE Assembly (enlarge battery induction key)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: The battery type of the sensor key is CR2032.
|
|
|
|
30. Button battery (Camelion CR2032)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:Just for the enlarge battery version PKE Induction Key .
|
|
|
|
31. ZT310PKE External antenna mount
|
|
|
|
|
|
|
|
32. HJ125-6 Battery rubber gasket
|
|
|
|
|
|
|
|
33. Velcro (external single antenna )
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:The external PKE antenna of individual models is pasted on the cover, and it is recommended to purchase this part at the same time if you need to replace the cover.
|
|
|
|
