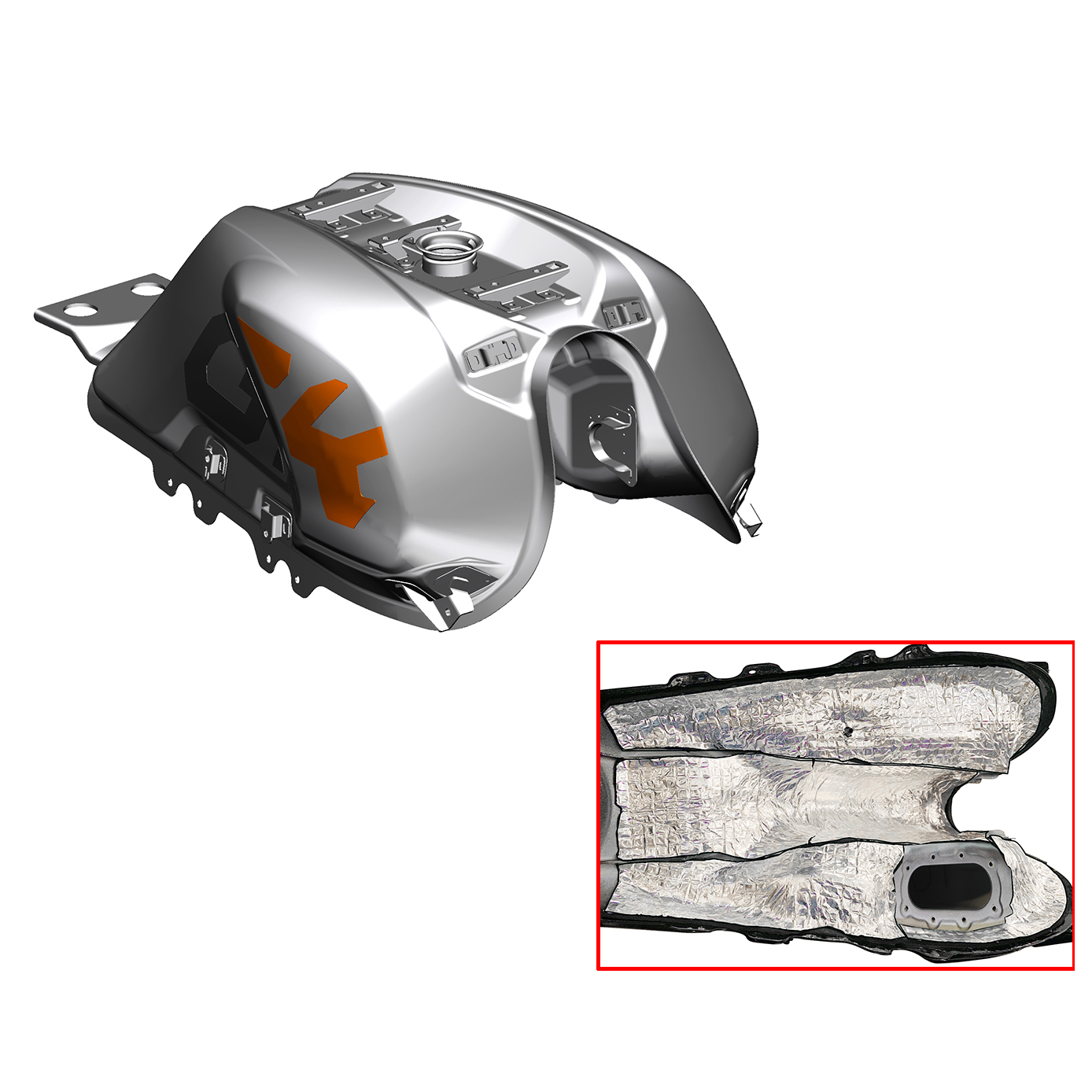

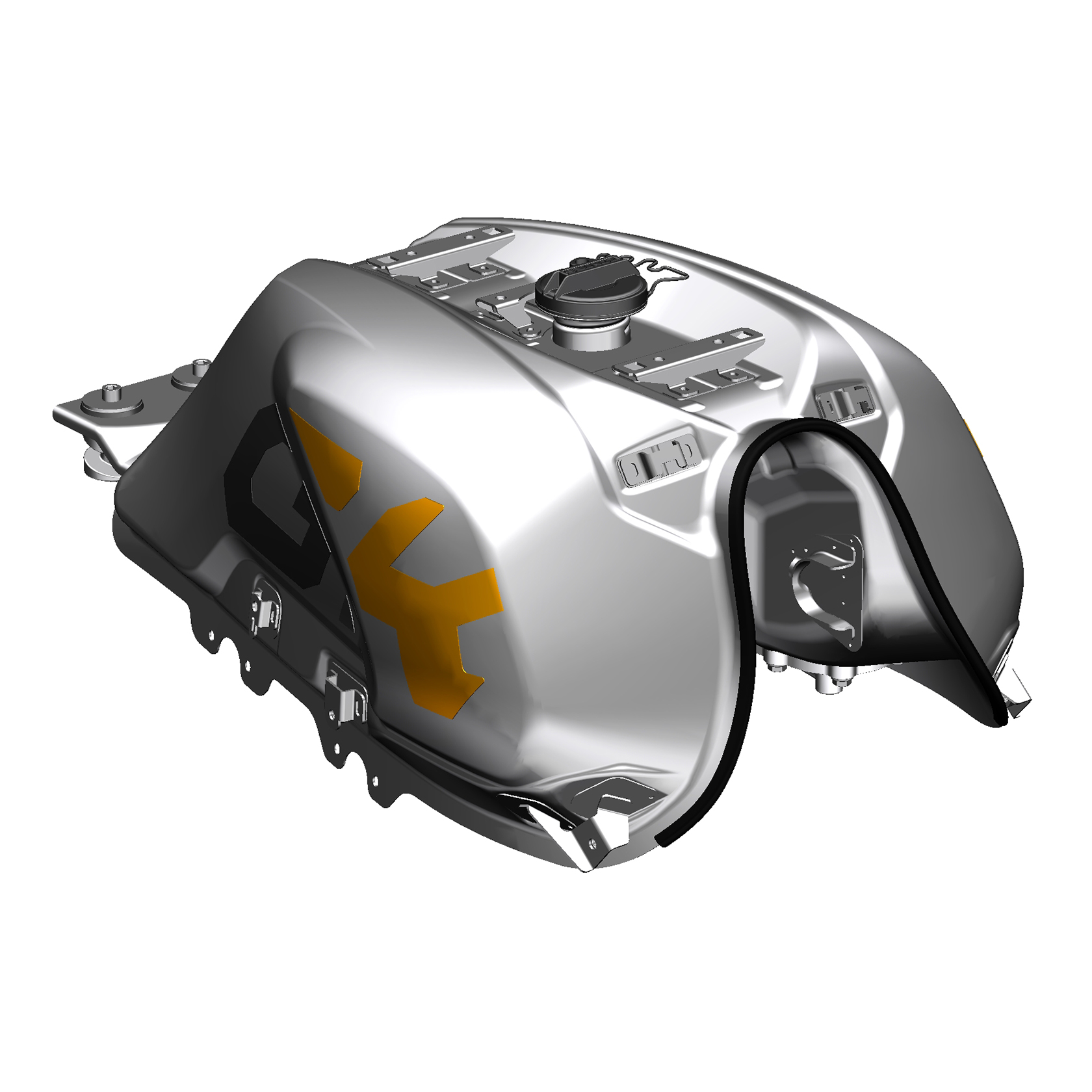

1. ZT350－GK bright silver fuel tank ( Chinese IV/ZONTES/insulation cotton/bright orange decal)
|
|
|
|
|
|
|
|
2. ZT250-S thread cap of the fuel tank
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: With threaded liner. Be motorcycleeful not to pull the nylon cord hard to prevent it from breaking.
|
|
|
|
3. T02 built-in fuel pump (ZT350-GK)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks：If you need to buy the fuel pump filter and sealing rubber ring, please purchase from the wearing parts of the modification parts of the corresponding model,or place an order by searching by Code.
|
|
|
|
4. GB5789M6×16 (environmental color)
|
|
|
|
|
|
|
|
5. ZT310PKE External antenna mount(after-sale)
|
|
|
|
|
|
|
|
6. HJ125-6 pod glass strip (1.5m)(after-sale)
|
|
|
|
|
|
|
|
7. KD150-U EFI High Pressure Tubing Sub-assembly
|
|
|
|
|
|
|
|
8. ZT250-R cushion fixing block
|
|
|
|
|
|
|
|
9. ZT250-R fuel tank flat pad φ9×φ37.5×2 (environmental color)
|
|
|
|
|
|
|
|
10. ZT250-S tank pressure glue
|
|
|
|
|
|
|
|
11. ZT250-S fuel tank gasket
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks: ZT250-S upgraded version of the old state square pad can be purchased with 2 pieces of this second generation fuel tank pad to instead them.
|
|
|
|
12. GB70.1M8×55(environmental color)
|
|
|
|
|
|
|
|
13. middle part ,ZT350-GK fuel tank insulation cotton
|
|
|
|
|
|
|
|
14. right part ,ZT350-GK fuel tank insulation cotton
|
|
|
|
|
|
|
|
15. ZT350-GK fuel tank insulation cotton front left part
|
|
|
|
|
|
|
|
16. ZT350-GK fuel tank insulation cotton left rear part
|
|
|
|
|
|
|
|
17. KD150-U fuel tank liner limit glue
|
|
|
|
|
|
|
|

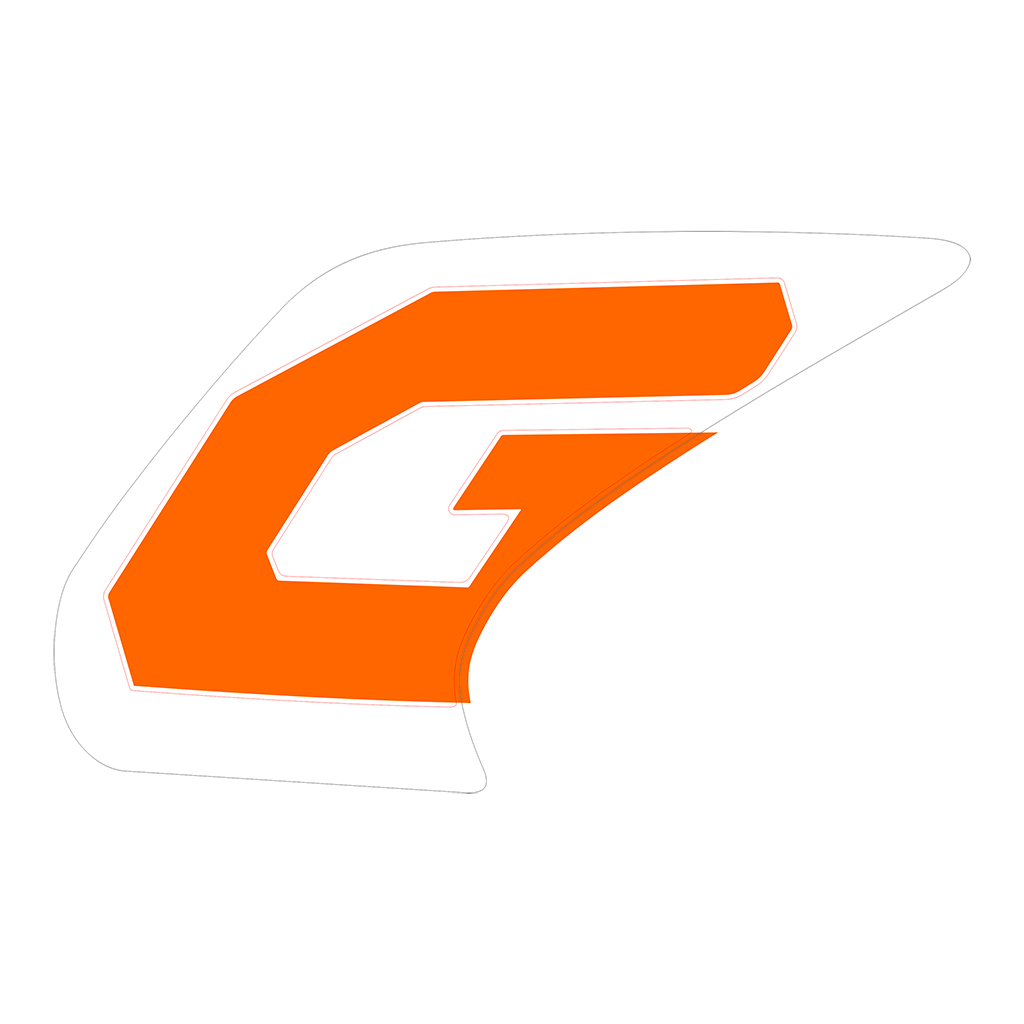

18. ZT350-GK fuel tank left front decal (bright orange/G/high viscosity)
|
|
|
|
|
|
|
|

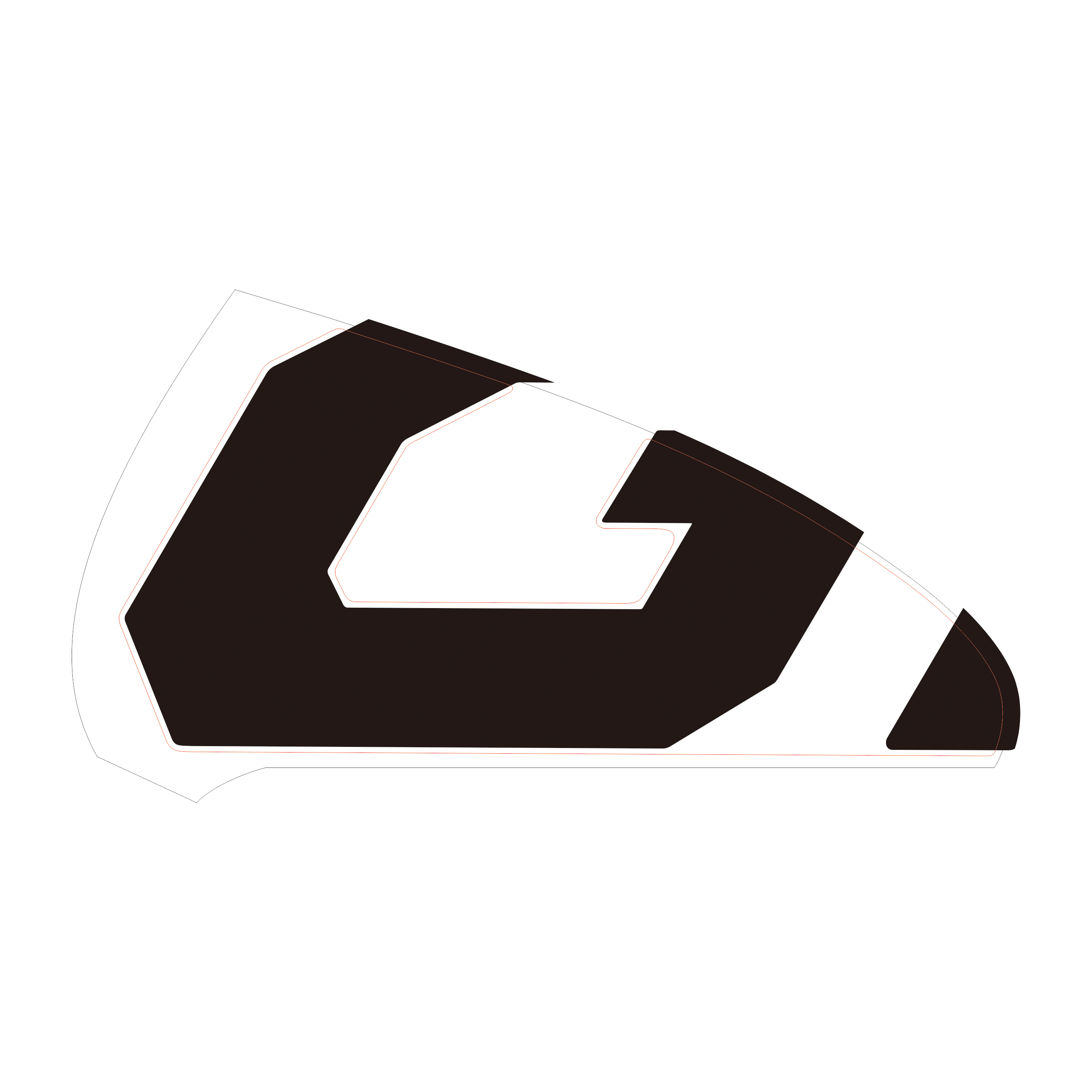

19. ZT350-GK fuel tank left rear decal (black/K/high viscosity)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Note: This decal is used for the inner sticker on the matte fuel tank (that is, paste the decal first and then cover the light oil). The inner sticker cannot achieve the original decal effect if the decal is purchased separately for process reasons. Please buy it carefully. It is used for external stickers on the bright fuel tank, which can be purchased directly. Be sure to check and confirm before pasting; once used, we will not be able to provide you with return and exchange services.
|
|
|
|

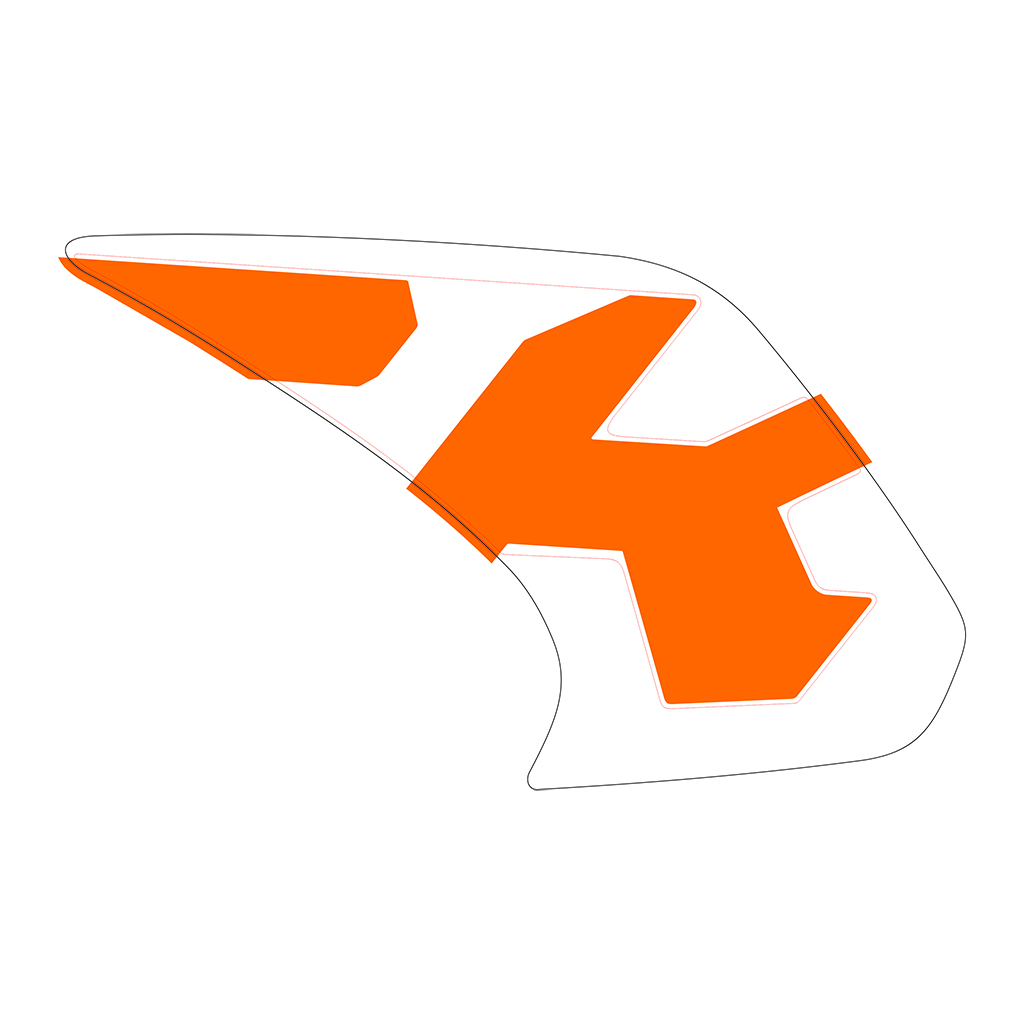

20. ZT350-GK fuel tank right front decal (bright orange/GK/high viscosity)
|
|
|
|
|
|
|
|

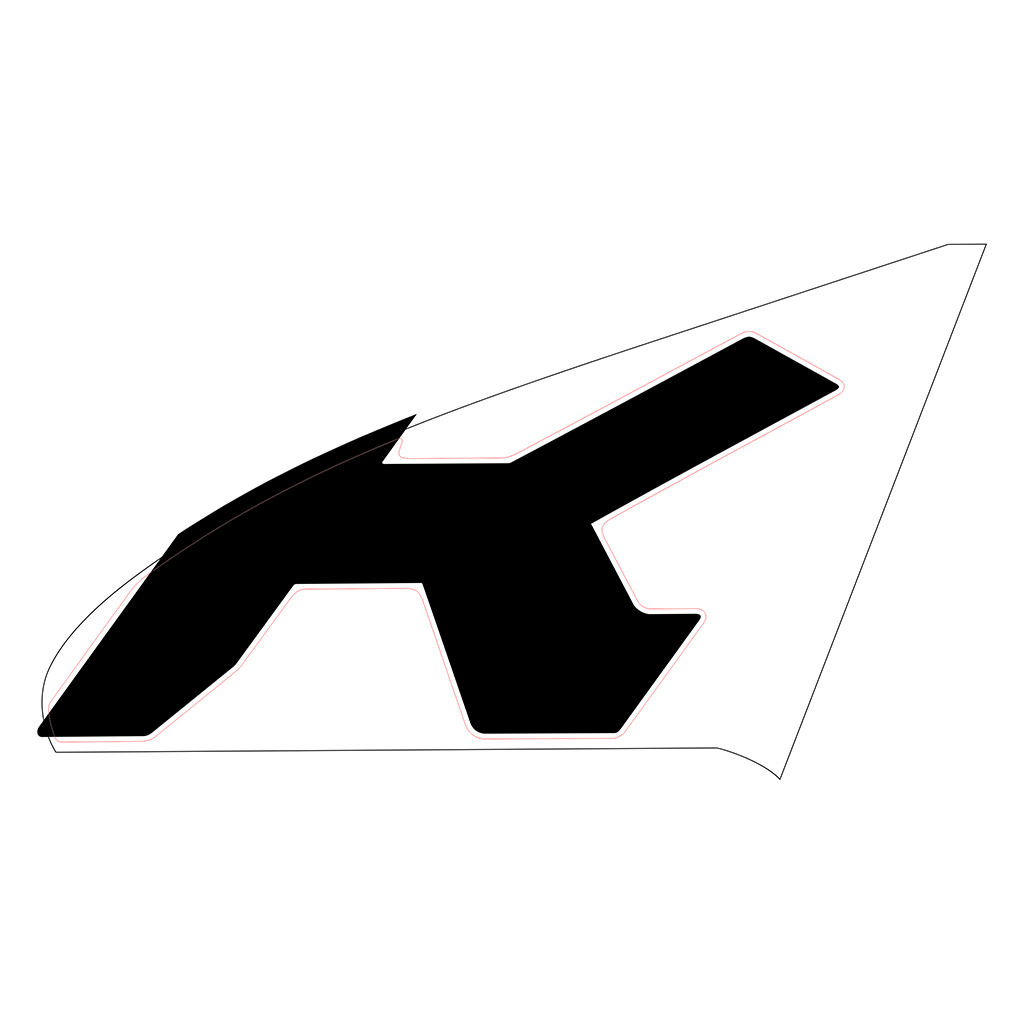

21. ZT350-GK fuel tank right rear decal (black/GK/high viscosity)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Note: This decal is used for the inner sticker on the matte fuel tank (that is, paste the decal first and then cover the light oil). The inner sticker cannot achieve the original decal effect if the decal is purchased separately for process reasons. Please buy it carefully. It is used for external stickers on the bright fuel tank, which can be purchased directly. Be sure to check and confirm before pasting; once used, we will not be able to provide you with return and exchange services.
|
|
|
|
22. T02 oil level sensor (KD-GK ZJSL)
|
|
|
|
|
|
|
|
