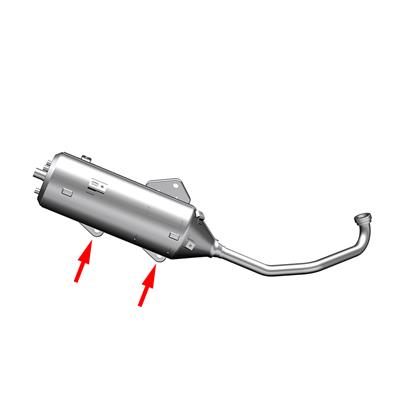

1. ZT310T-M-H1 muffler (self-made/national Ⅳ)
|
|
|
|
|
|
|
|
2. KD200－F fuel tank decorative cover right middle and lower decals (yellow gray/high viscosity)
|
|
|
|
|
|
|
|
3. ZT250-S Engine exhaust outlet seal
|
|
|
|
|
|
|
|
4. ZT250-S muffler flange (outsourcing)
|
|
|
|
|
|
|
|
5. Inner hexagonal nut M8 (color Zinc)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:25±1.5N.m.
|
|
|
|
6. Non-standard bolts M10×1.5×20(Dacromet)
|
|
|
|
|
|
|
|

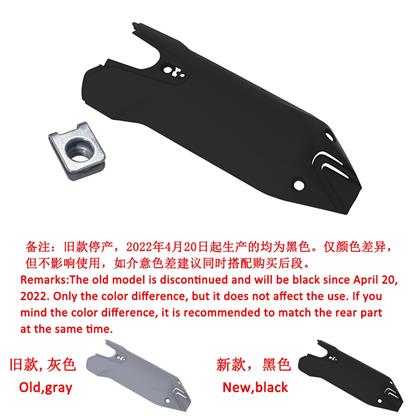

7. ZT310T-M Anti-heat Board front part assembly (WX)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Note: The old model has been discontinued, and all products manufactured since April 20, 2022, are black. There is only a color difference, which does not affect usage. If you mind the color difference, it is recommended to purchase the rear section together. Includes a Plywood M6×11×15.
|
|
|
|
8. ZT350T-D anti-scalding board rear part
|
|
|
|
|
|
|
|
9. ZT368T-G muffler hot plate rubber buffer(5 pcs/after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
7
|
|
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|
10. ZT250-S muffler anti-hot plate sleeve
|
|
|
|
|
|
|
|
11. Plywood M6×11×15(zinc-nickel)(5 pcs/after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|
12. Non-standard bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
13. Stainless steel heat insulation mat 6×20×1.6(5 pcs/after-sale)
|
|
|
|
|
|
|
Quantity
|
|
|
4
|
|
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|
14. ZT368T-G stainless steel flanging sleeve(φ6.4×φ9×6＋φ20×2)(after-sale)
|
|
|
|
|
|
|
|
15. Non-standard bushing φ6.4×φ9×7+φ20×1.6 (environmental color)
|
|
|
|
|
|
|
|

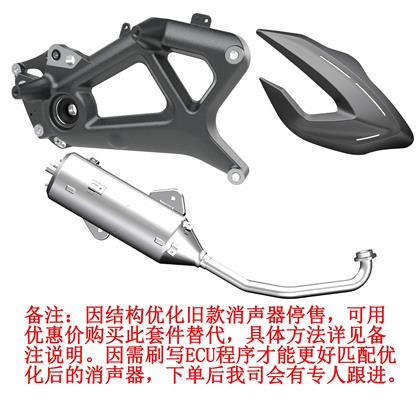

16. ZT310T-M rear swingarm after-sales assembly (dark gray matte)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|

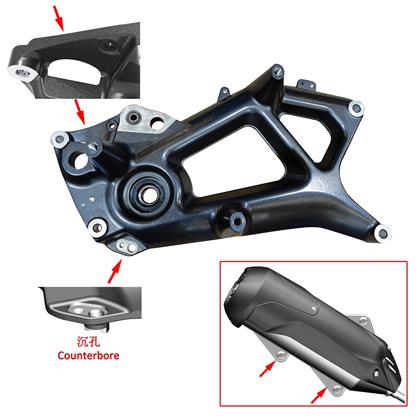

Note：Please check the muffler status as shown in the picture before purchase,if yes,you can buy it directly.
|
|
|
|
17. 8×20×19 shock absorption lifting bushing(after-sale)
|
|
|
|
|
|
|
|
18. GB276 deep groove ball bearing 6204-2RS-C3
|
|
|
|
|
|
|
|
19. Oil seal TC φ28×φ47×7
|
|
|
|
|
|
|
|
20. Oil seal TC φ28×φ40×5(after-sale)
|
|
|
|
|
|
|
|
21. GB893.1 Hole Retaining Ring (Type A) φ47×1.75
|
|
|
|
|
|
|
|
22. Non-standard bolts M10×1.5×66(Dacromet)
|
|
|
|
|
|
|
|
23. Non-standard bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
24. ZT310-T front wheel WSS wire clip
|
|
|
|
|
|
|
|
25. ZT250 anti-water rubber of frame
|
|
|
|
|
|
|
|
