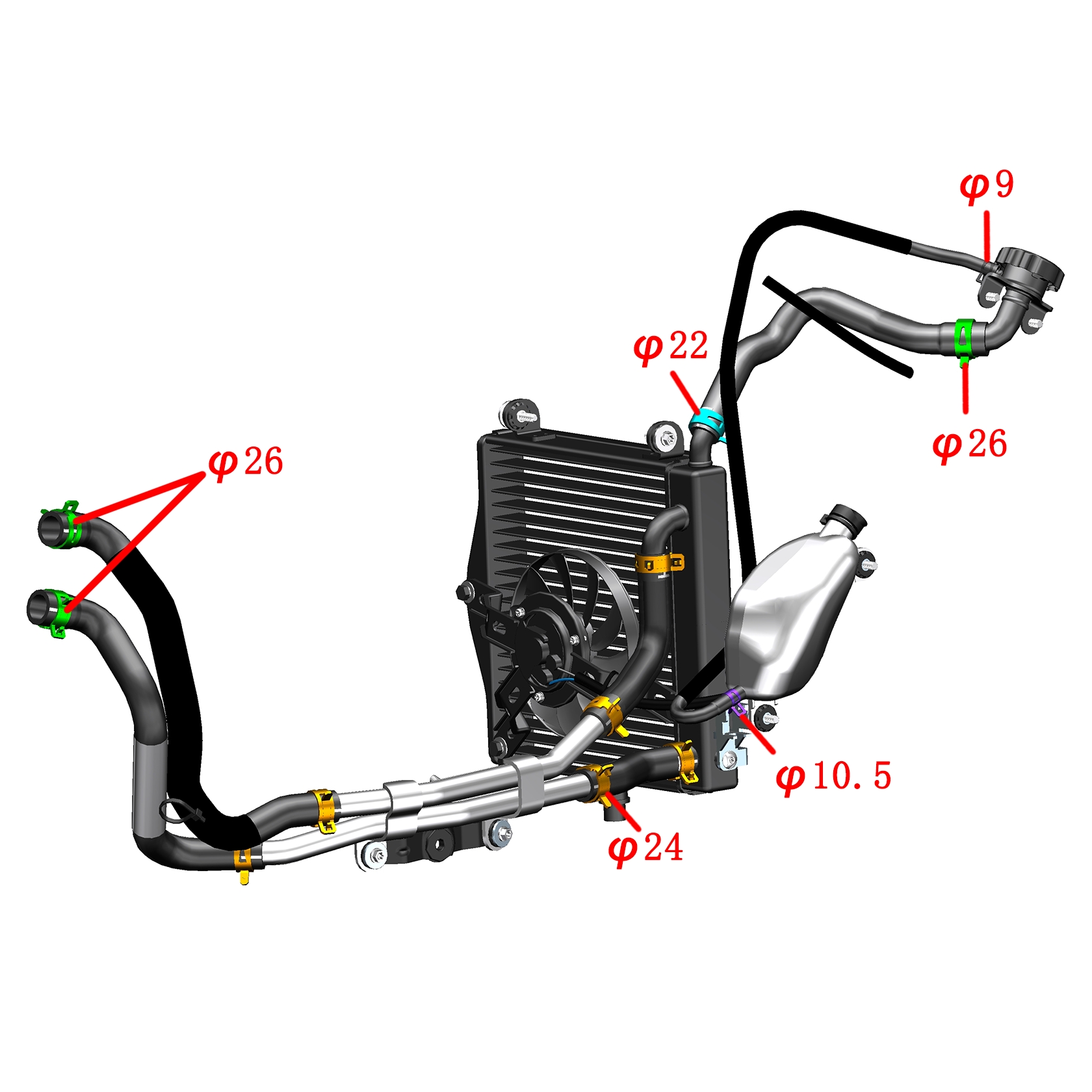

1. ZT350T-K main water tank (original color)
|
|
|
|
|
|
|
|

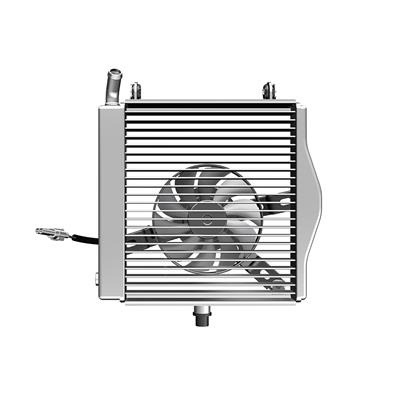

2. ZT350T-K main water tank fan assembly
|
|
|
|
|
|
|
|
3. Hexagonal small flange internal plum blossom bolt M6 × 30 (9.8/zinc nickel alloy)
|
|
|
|
|
|
|
|
4. Hexagonal small flange internal plum blossom bolt M6 × 22(9.8/zinc nickel alloy)
|
|
|
|
|
|
|
|
5. ZT350T-K main water tank inlet pipe
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7. ZT350T-K main water tank outlet pipe
|
|
|
|
|
|
|
|
8. ZT350T-E lower rightfairing bracket
|
|
|
|
|
|
|
|
9. Hexagonal small flange internal plum blossom bolt M6 × 16 (9.8/zinc nickel alloy/Ⅱ)
|
|
|
|
|
|
|
|
10. ZT250-S Side cover round rubber(5 pcs/after-sale)
|
|
|
|
|
|
|
|
11. ZT350T-K aluminum water pipe
|
|
|
|
|
|
|
|
12. ZT350T-K thermostat outlet pipe
|
|
|
|
|
|
|
|
13. ZT368T-K engine water inlet pipe
|
|
|
|
|
|
|
|
14. ZT310 water pipe clamp(φ26)
|
|
|
|
|
|
|
|
15. ZT350T-K water tank filling port
|
|
|
|
|
|
|
|
16. Radiator Pressure Cap (1.3bar)
|
|
|
|
|
|
|
|
17. Non standard internal plum blossom bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
18. ZT350T-K water tank filling port connecting water pipe
|
|
|
|
|
|
|
|
19. ZT350T-K auxiliary water tank connecting water pipe
|
|
|
|
|
|
|
|
20. ZT310 water pipe clamp(φ9)(after-sale)
|
|
|
|
|
|
|
|
21. ZT310 water pipe clamp(φ10.5)(after-sale)
|
|
|
|
|
|
|
|
22. ZT310 water pipe clamp(φ22)
|
|
|
|
|
|
|
|
23. ZT350T-K auxiliary water tank
|
|
|
|
|
|
|
|
24. Inner plum blossom shaft shoulder screw M6×14+ φ8.5×2.9 (304 stainless steel)
|
|
|
|
|
|
|
|
25. ZT350T-E fan plug socket
|
|
|
|
|
|
|
|
26. ZT350T－K Engine inlet and outlet water pipe clamp
|
|
|
|
|
|
|
|
27. Grade 0 flame retardant tie (black 3.6×295)(5 pcs/after-sale)
|
|
|
|
|
|
|
|
28. HJ125-6 pod glass strip (1.5m)(after-sale)
|
|
|
|
|
|
|
|
