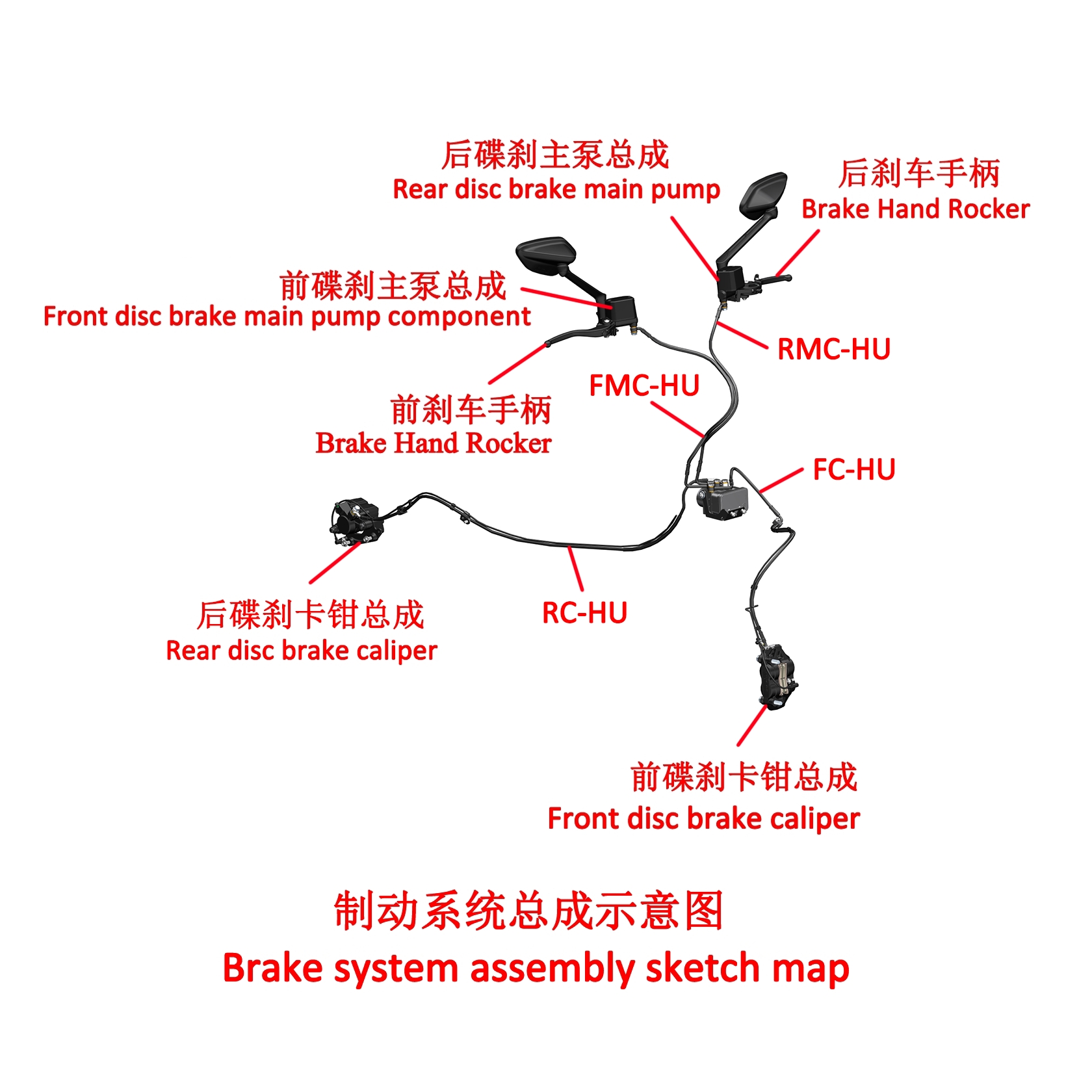

ZT368T-K brake system assembly (ETC)
单价总客 编码数量
   Return



1. ZT368T-E front disc brake main pump assembly（φ14/Matt black/Ⅱ）
Code：1100300-417022
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
248

2. ZT368T-G Front Brake Handle (φ14/dumb black/Ⅱ)
Code：1100300-437000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
125

3. ZT368T-D front brake switch
Code：1100300-305000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
16

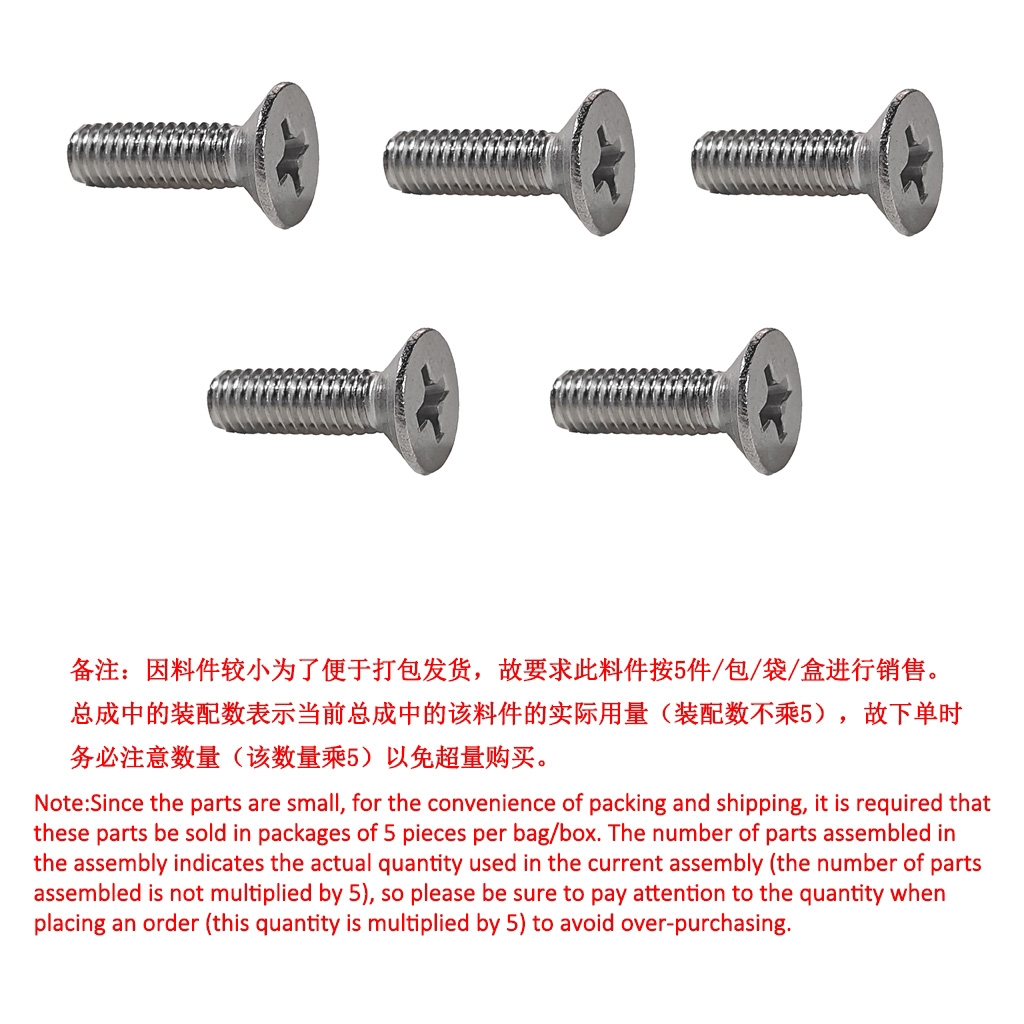

4. GB/T 819 M4×14 (304 stainless steel)(5 pcs/after-sale)
Code：1100300-620000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
4
Note: Since the parts are small, for ease of packaging and shipping, these parts are required to be sold in units of 5 pieces per package/bag/box. The assembly quantity in the assembly indicates the actual usage of this part in the current assembly (the assembly quantity is not multiplied by 5), so please be sure to pay attention to the quantity when placing an order (this quantity is multiplied by 5) to avoid over-purchasing.

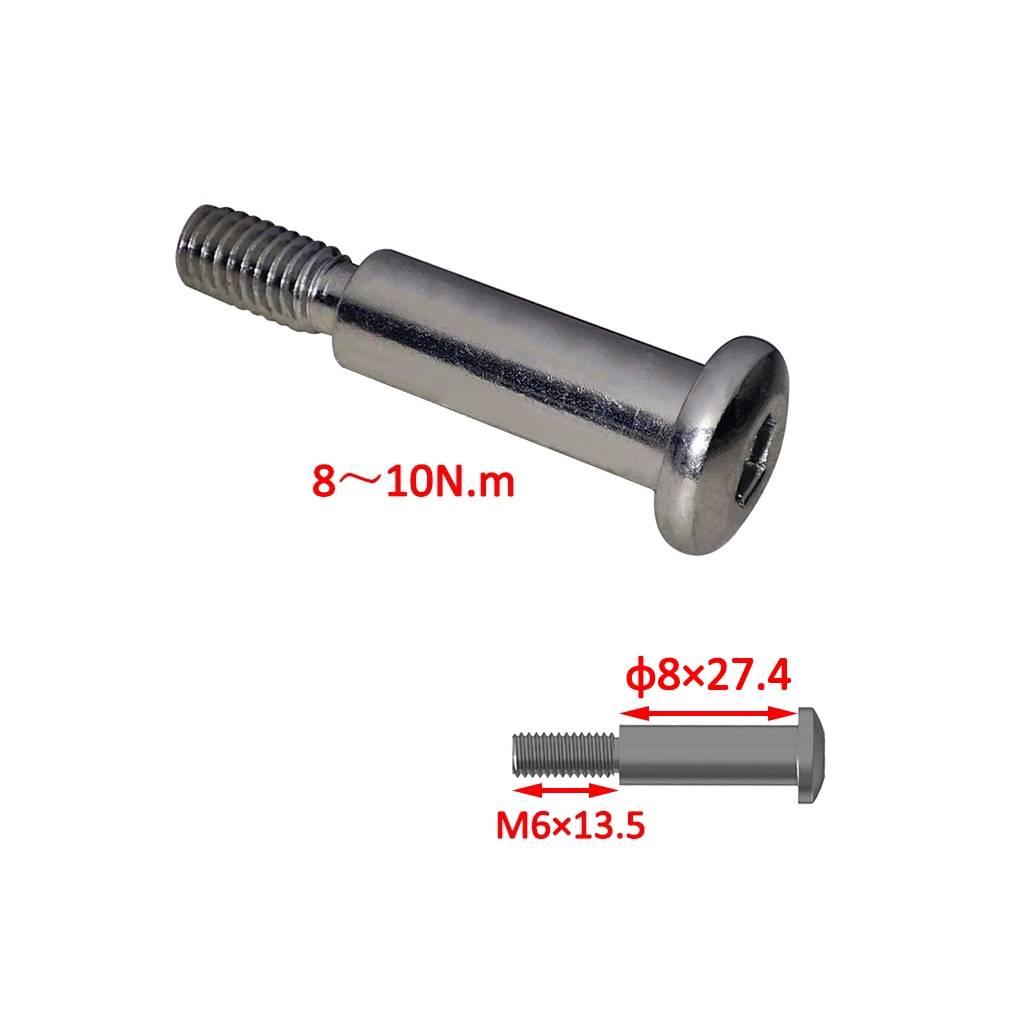

5. Brake handle bolt M6×13.5 - φ8×27.4 (zinc-nickel grey)
Code：1100300-690000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
3
Note: Used for the front brake master cylinder of ETC models. If unsure, it is recommended to measure the length shown in the diagram. Before replacing this bolt, be sure to remove the nut that comes with the master cylinder first.
6. ZT368T-D right rearview mirror（Ⅱ）
Code：1190300-059000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
138
Remarks: Has been contained rear view mirror rubber plug, M8×25 hexagonal bolt and φ8 spring pad.
7. ZT368T-D right rearview mirror rubber plug
Code：1246400-118000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
2

8. Disc brake pipe bolt M10×1-22
Code：1251100-112000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
2
Remarks:The standard torque for disc brake tube is 32N.m.
9. Disc brake pipe copper washer φ 15× φ 10.2 × 1.5 (5 pcs/after-sale)
Code：1100101-835000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
4
Note: Since the parts are small, for ease of packaging and shipping, these parts are required to be sold in units of 5 pieces per package/bag/box. The assembly quantity in the assembly indicates the actual usage of this part in the current assembly (the assembly quantity is not multiplied by 5), so please be sure to pay attention to the quantity when placing an order (this quantity is multiplied by 5) to avoid over-purchasing.
10. ZT368T-K brake hosepipe FMC-HU (C)
Code：1100300-373000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
120
Stop sale

11. ZT368T－E rear disc brake main pump assembly（φ12.7/matt black/Ⅱ）
Code：1100300-418022
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
265

12. ZT368T-G rear brake handle (φ12.7/dumb black/Ⅱ)
Code：1100300-436000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
145

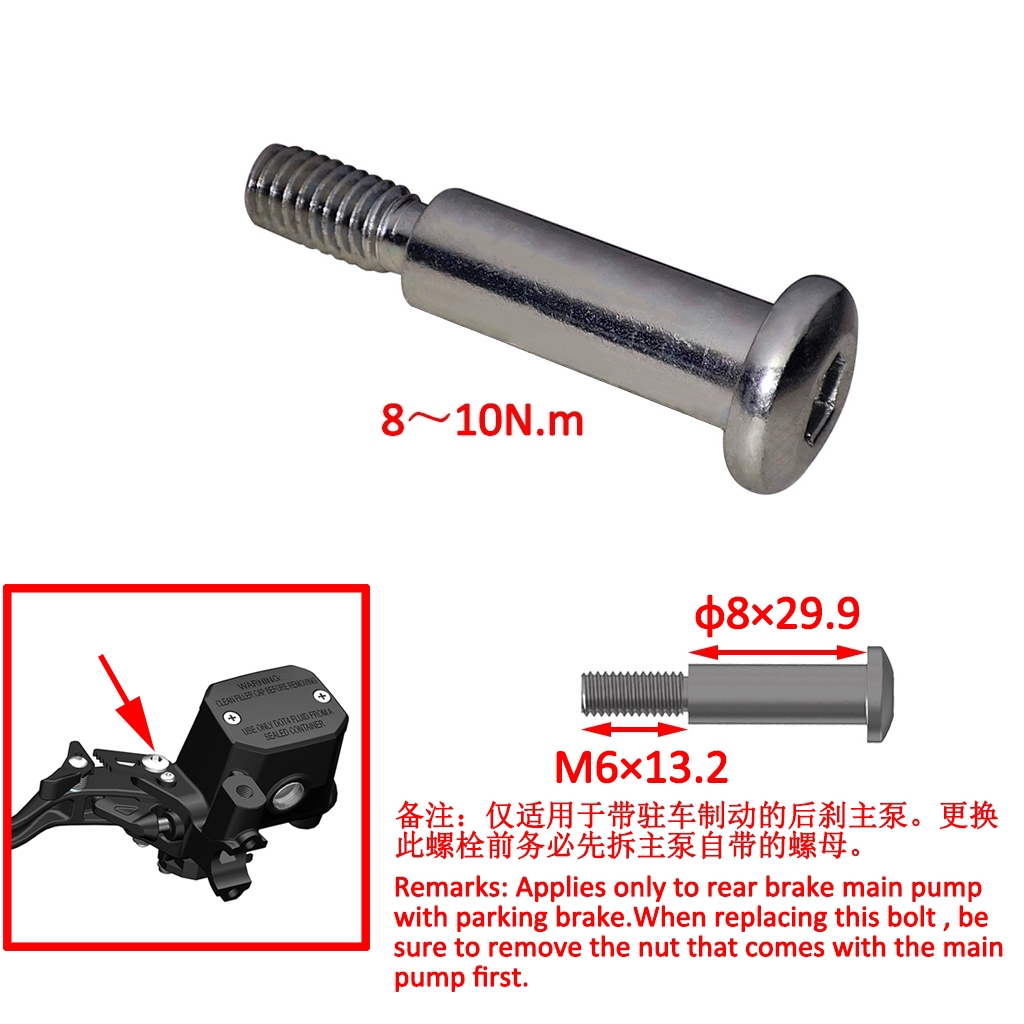

13. Brake handle bolt M6×13.2 - φ8×29.9 (zinc-nickel grey)
Code：1100300-689000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
3
Note: For ETC rear brake master cylinders. If unsure, it is recommended to measure the length shown in the diagram. Before replacing this bolt, be sure to remove the nut that comes with the main pump first.
14. ZT368T-D rear brake switch
Code：1100300-306000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
16

15. ZT368T-D left rearview mirror（Ⅱ）
Code：1190300-058000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
138
Remarks: Has been contained rear view mirror rubber plug, M8×25 hexagonal bolt and φ8 spring pad.
16. ZT368T-D left rearview mirror rubber plug
Code：1246400-117000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
2

17. ZT368T-K brake hosepipe RMC-HU(C)
Code：1100300-371000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
120
Stop sale

18. ZT368T-K brake hosepipe FC-HU (C)
Code：1100300-372000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
135
Stop sale

19. Hexagonal small flange internal plum blossom bolt M6 × 22(9.8/zinc nickel alloy)
Code：1251112-052000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
1

20. Caliper bleeder screw rubber cap
Code：1100100-936000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
1
Note: Used with "Disc Brake Bleeder Screw M6".

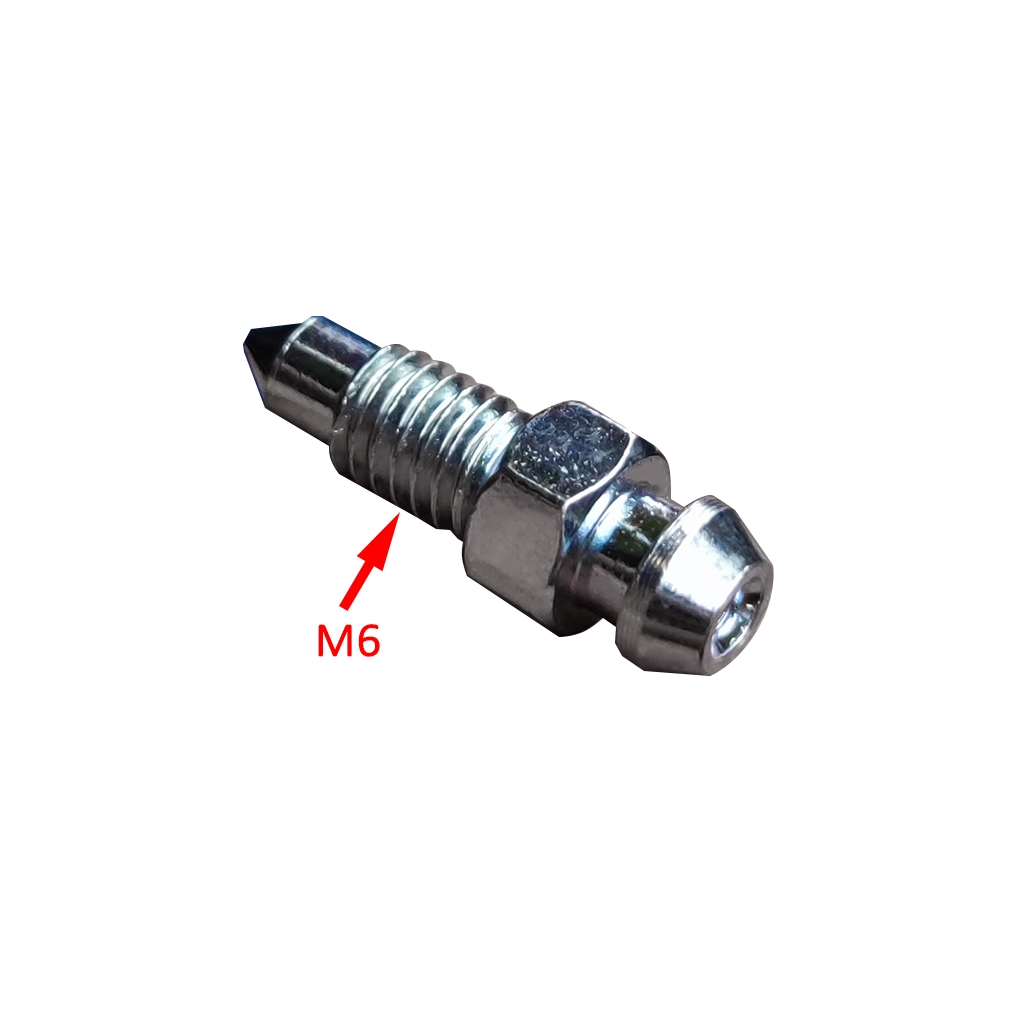

21. Disc brake bleeder screw M6
Code：1100100-895000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
8
Note: Used with "Caliper Bleeder Screw Rubber Cap".

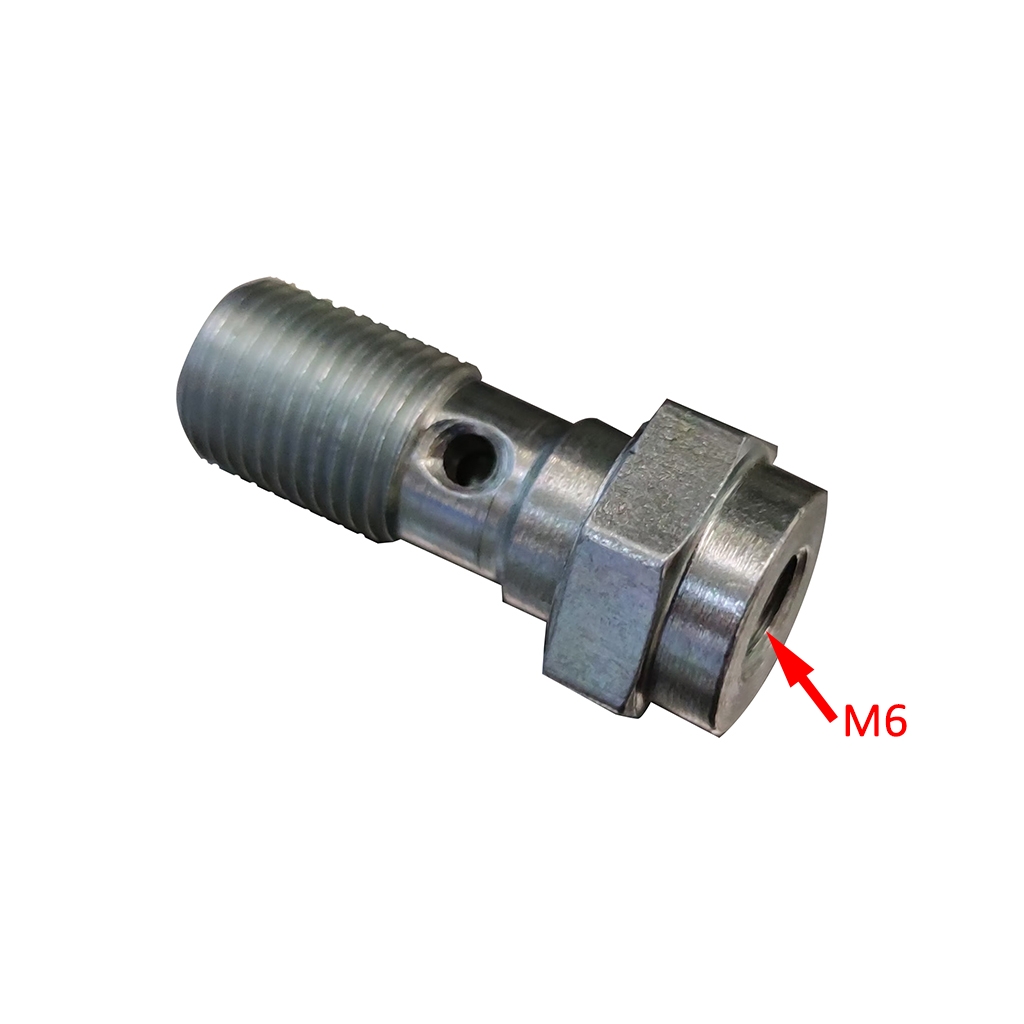

22. Disc brake oil pipe bolts M10×1×22 (with M6 exhaust threaded holes)
Code：1251100-307000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
7
Note: Used with "Caliper Bleeder Screw Rubber Cap" and "Disc Brake Bleeder Screw M6".
23. ZT703-F integrated front right radial caliper (JL)
Code：1100101-198000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
520
Stop sale

24. ZT703-F front disc brake pads (TFT101)
Code：1100101-261000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
245

25. GB70.1 Hexagon socket head bolt M10×1.5×60 (grade 12.9 / environmental protection color Zinc)
Code：1251100-303093
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
6
Remarks:When used in front disc brake calipers standard torque 45～50N.m.
26. Wheel speed sensor(A)
Code：1181200-118000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
80

27. Non standard internal plum blossom bolt M6×16 (304 stainless steel)
Code：1251100-421000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
1
Remarks:T25.
28. Wheel speed sensor clamp
Code：1224100-044000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
7

29. ZT250-S flanging sleeve(φ6.4×φ9×6＋φ20×2)(5 pcs/after-sale)
Code：1274101-015000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
8
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
30. ZT250-S Flanging bushing buffer(5 pcs/after-sale)
Code：1244100-137000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
8
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
31. Hexagonal small flange internal plum blossom bolt M6 × 16 (9.8/zinc nickel alloy/Ⅱ)
Code：1251112-245000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
1
Remarks:T30 or 8# sleeve.
32. ZT368T-G Hydraulic Control Unit Bracket (C)
Code：1100300-389000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
30

33. Disc brake oil pipe hexagon head bolt M10 × 1 × 20 (after-sale)
Code：1100101-837000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
3

34. ZT368T-K ABS hydraulic control unit (C/ETC/wet type)
Code：1100300-441000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
1680

35. ZT368T-K brake pipe RC-HU（C）
Code：1100300-370000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
158
Stop sale

36. wheel speed sensor ( L=800 cm)
Code：1100300-285000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
80

37. ZT310-R Rear disc brake pipe clamp
Code：1224200-003000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
9

38. Non standard internal plum blossom bolt M6×12 (304 stainless steel)
Code：1251100-420000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
1
Remarks: T25.
39. ZT368T-E Rear Disc Brake Caliper Assembly (Matte Black / Φ34)
Code：1100300-356000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
209
Stop sale

40. ZT250-S rear disk brake pads (CM102)
Code：1100100-092000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
76
Remarks: The back panel is engraved with the words “HT H10” and the print production serial number.
41. ZT310T-M rear disc brake caliper brake pad pin shaft anti-loose pin
Code：1100300-197000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
1
Remarks:Available for the rear disc brake caliper of scooter. And also avaiable for the ZT310T-M &ZT125/155T-D/M model of front disc brake caliper.
42. ZT310T-M rear disc brake caliper brake pad pin shaft
Code：1100300-196000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
2
Remarks:Available for the rear disc brake caliper of scooter. And also avaiable for the ZT310T-M &ZT125/155T-D/M model of front disc brake caliper.
43. Hexagonal Flanged Internal Star Bolt M8×30 (Grade 10.9 / Eco-friendly Color Zinc)(5 pcs/after-sale)
Code：1251112-218000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
4
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
44. ZT310T-M rear disc brake caliper elastic card
Code：1100300-194000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
1
Remarks: Only applicable to calipers produced on or after January 1, 2023 (calipers printed with production date),not available before that.
45. ZT368T－E Rear Brake Parking Positioning Plate
Code：1100300-298000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
8

46. GB70.2 M4×10 (stainless steel)
Code：1250205-131000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
1
