Multi-angle Exhibition
Technical Data
Whole vehicle Power system Suspension system
length (mm) 2195 The body Aluminum alloy Frame system Steel pipe frame
Width (mm) 795 Cylinder number Single cylinder Tire structure Semi-slick tires
Height (mm) 1395 Camshaft system Single overhead camshaft(SOHC) Front rim size MT3.5×15
Wheel base (mm) 1565 Bore X Stoke (mm) 77.0 x 74.9 Rear rim size MT3.75×14
Minimum ground clearance (mm) 155 Cooling system Water cooling Front tire specification 120/70-15
Gasoline tank volume (L) 16 Fuel 95 and above Rear tire specification 140/70-14
Seat height (mm) 770 Compression ratio 11.8 : 1 Front brake specification Disc brake
    Displacement(ml) 349 Rear brake specification Disc brake
    Fuel supply method Intelligent electrical fuel injection Headlamp/tail light/steering lamp LED
Electrical fuel injection system BOSCH Brake system Dual channel ABS
Ignition system Electric ignition
Idling speed (r/min) 1600 ± 100
Maximum power (kW/rpm) 27 / 7500
Maximum torque (N.m/rpm) 38 / 6000
Transmission type Automatic stepless speed change
Economical consumption of fuel (L/km) 3.5 /100

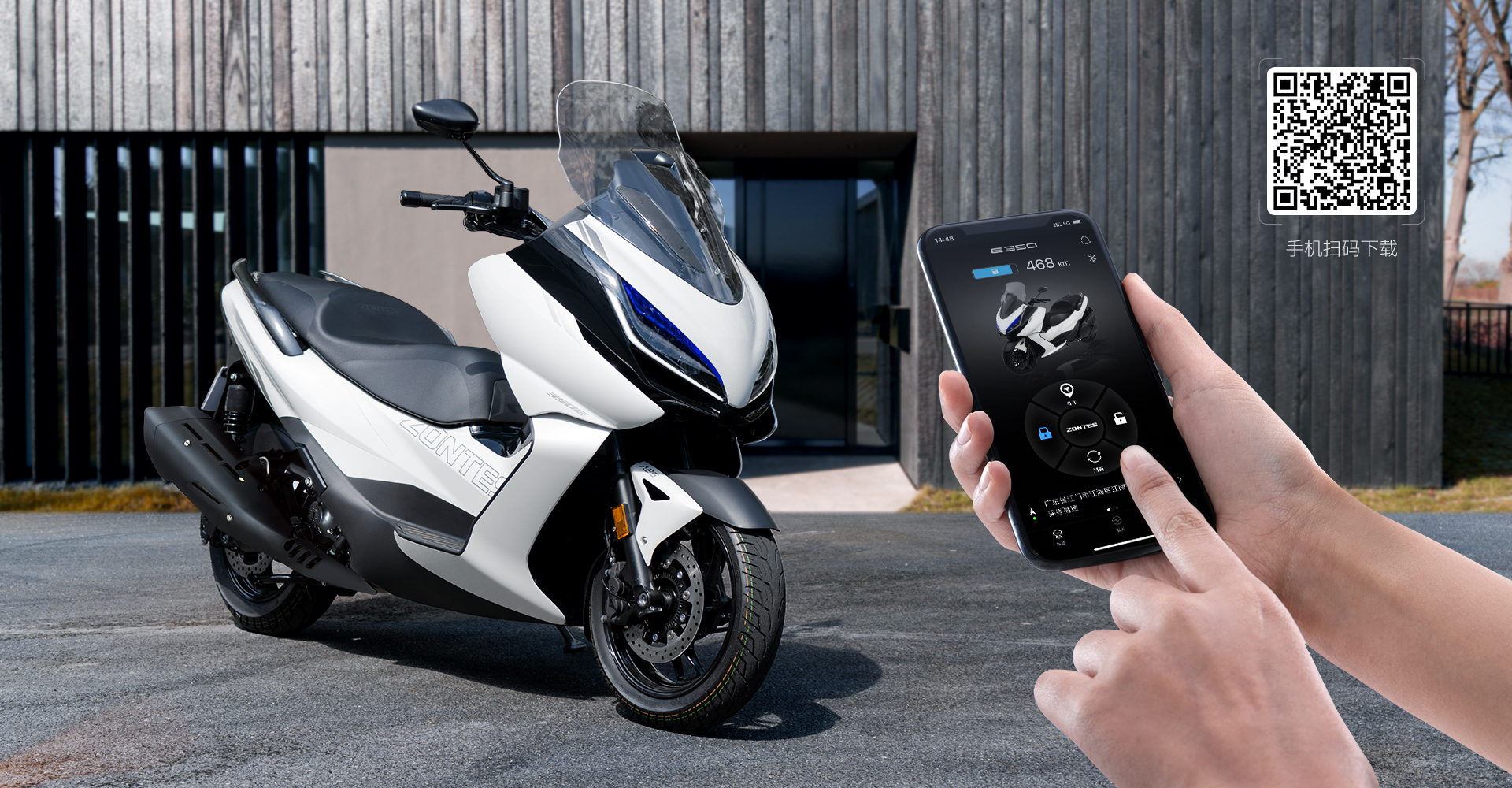

3.0 Keyless Control System
The 3.0 keyless control system adopts an advanced encryption technology . It is equipped with a mini sensor key. When the key is within 1.5 m from the vehicle, it will sense and unlock the vehicle no matter placed in a bag or in your pocket. Similarly, it will lock the vehicle when the distance exceeds 1.5 m, so the rider needs not to take the key out; 3.0 keyless control system owns the water resistance at IP67 level; A HF antenna is installed in the vehicle together with the chip sensor. Even the battery is taken out or the power if off, the key can communicate with and unlock the vehicle when it gets close to the no-power sensor area of the vehicle.
Switch of Comfort to Sport Mode
The cyclist can switch between the two modes (E is Comfort Mode, S is sports mode) by pressing the button on the right handlebar, which fully satisfies the fuel-saving demand during the long-distance travel and the swift and fierce experience demand of cycling in cities.In the comfort mode, the system will automatically switch to the sport mode as long as the engine speed is increased to 7,000 rpm if the driver needs to overtake under emergency.
TFT full color LCD screen instrument
The vehicle adopts the full virtual TFT full color LCD IPS screen instrument with four theme interfaces, which is able to switch between day and night modes. It provides all popular functions, including phone interconnection, tire pressure monitoring, navigation screen sharing, mirror screen sharing, Bluetooth music, call answer, automatic adjustment of backlight brightness; When travelling, the vehicle monitors the vehicle data and faults with the important components of the 3rd generation of PKE system.
BOSCH EFI system
The latest Bosch EFI system integrates functions such as headlight control, fan control, and sports & fuel-saving mode, which is equivalent to a comprehensive optimization of thefuel economy and operating quality.
Standard TCS System
The stable and reliable TCS system can monitor the operating status of the front and rear wheels of the vehicle and thereby ensure the vehicle stability and avoidsideslippingunder complex road conditions, providing a better safety guarantee for drivers.
12AH large capacity battery
Large capacity and good at low temperature performance
Widened and heightened electric windshield
The electric windshield is wider and higher, leading the headwind towards the head top and the surroundings and ensuring a comfortable long-distance scooter travel.
Tire pressure monitoring system
Adopt German imported chips to achieve high-precision monitoring. When the tire pressure is abnormal during running, it quickly locks the front and rear wheels and flashes a warning prompt on the instrument. With learning matching function, high pressure alarm function, low pressure alarm function, high temperature alarm function, rapid air leakage alarm, sensor low battery alarm, sensor signal loss alarm, etc. The tire pressure monitoring system will effectively avoid flat tires and increase driving safety; avoid damage to tires at low air pressure and extend tire life; reduce fuel consumption; and maintain the best handling performance.
Fast charging USB ports
The vehicle is equipped with a TypeA+Type C dual-port quick charger and a single-port quick charger. Both chargers support most common quick charge protocols, such as QC2.0/3.0, Huawei, Samsung, Apple, etc. The output power of a single port is up to 18W in case of the quick charge. The shell is made of high temperature flame-retardant materials and a high-precision hardware current limiting chip is installed inside to ensure each interface works within the safe current range, effectively preventing the occurrence of over-current output, over-pressure input and short-circuit output, etc. and greatly improving the security.
High compression ratio engine
Equipped with a 350cc engine, with a high compression ratio of 11.8:1, the power output of 27kW and 38N.m can be obtained with low fuel consumption. The high compression ratio engine is the development trend of the advanced technology of internal combustion engines in the world.Fuel saving, environmental protection and high performance are the characteristics of high compression ratio engines. In order to successfully use high compression ratio technology, it is necessary to overcome technical difficulties different from ordinary engines in many aspects such as engine materials, molding processes, and structural design.
Pure-aluminum cylinder
The inner wall of the cylinder without liner is thin due to the completely home-made pure-aluminum cylinder from die-casting to processing, and the space saved is used to widen the water passage, so as to take away the heat in the cylinder quickly. The good heat dissipation performance is an important factor to guarantee the improvement of the engine performance and the extending of engine life.

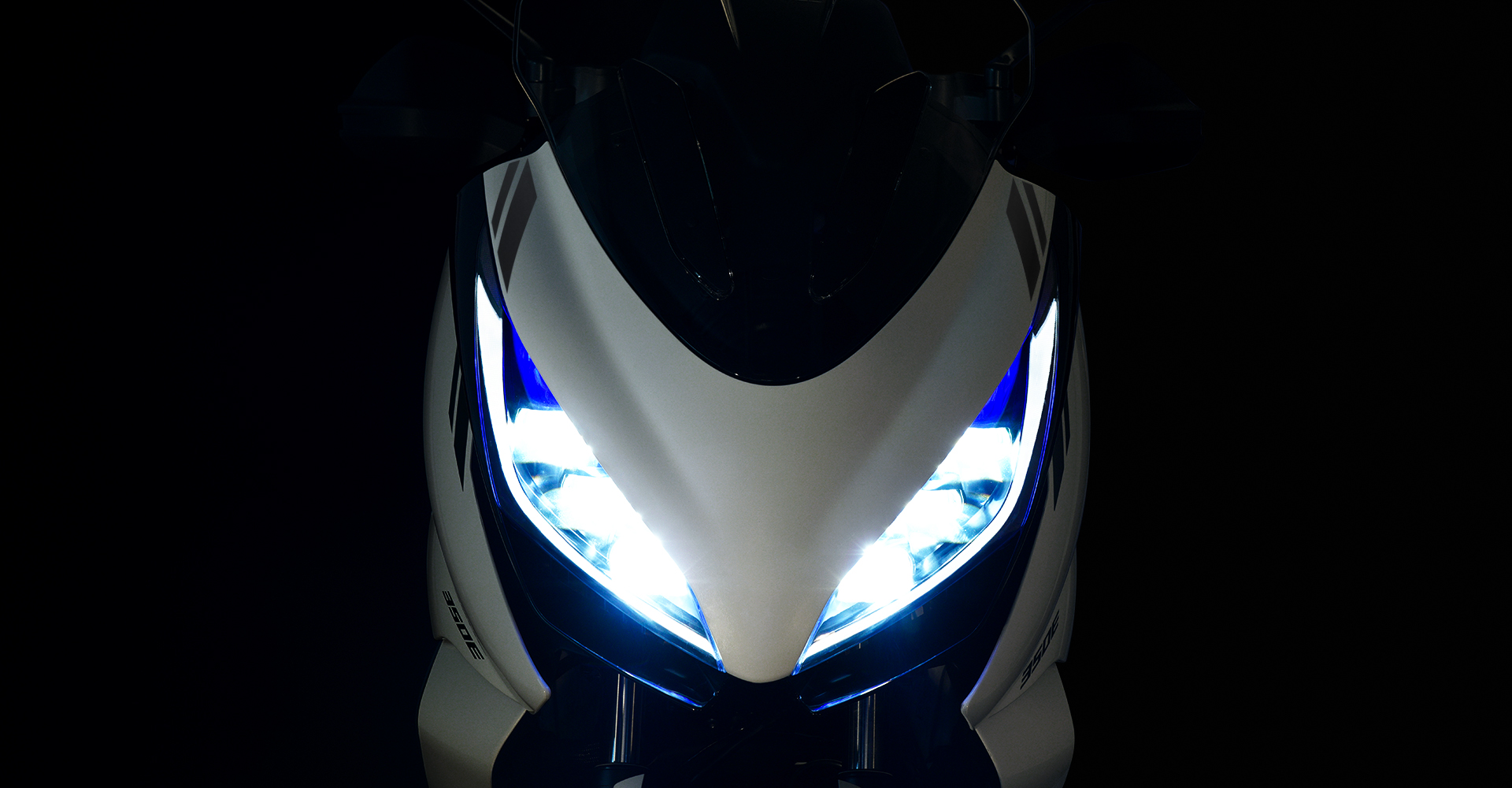

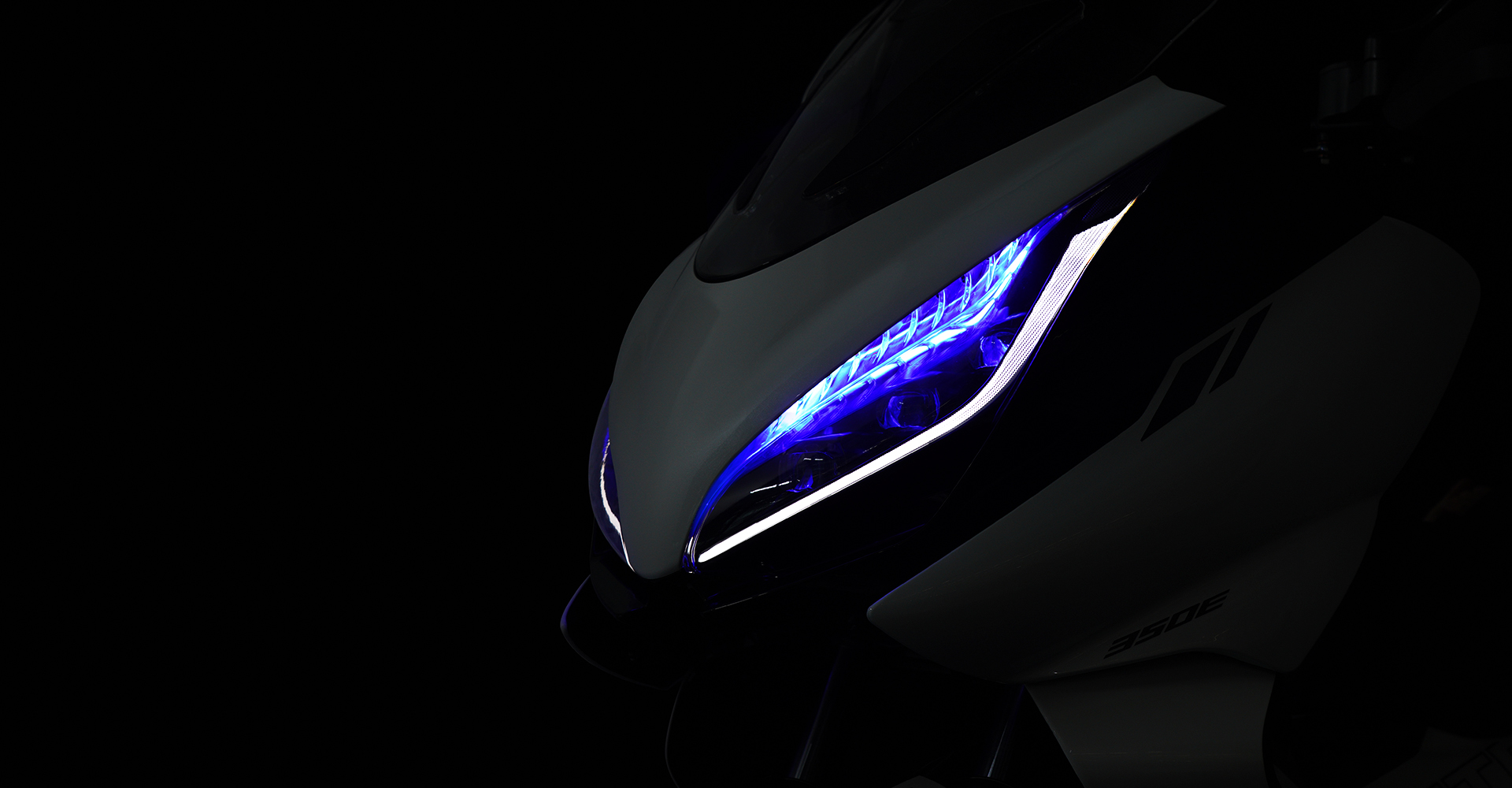

Whole Motorcycle LED Light
The super bright headlamp has a cool chasing effect, add the sense of ceremony of the illuminating lamp. A 6 led lens module is designed specially to realize the soft color temperature, strong penetrating power and high brightness. In addition, it widens the illuminating range, which helps the drivers meet the challenges of various road conditions and bad weather easily. The vehicle adopts a large-area efficient radiator featured by mall luminous decay and long lifespan, which ensures the satisfactory illuminating during a night trip or a long journey. The distinct rear tail lamp and rear steering lamp with a chasing effect offer more obvious warning for braking and steering and thereby improve the security. The profound blue ambient light creates a sense of breathing and touches the soul directly.
Equipped with dual channel ABS
The dual-channel ABS system allows the rider to calmly control the scooter in any unexpected situation. The ABS system will bring confidence to whatever you want, whether in sand, rain or snow.
Radial Type Caliper
The vehicle uses the Spanish J.Juan brake system and extended disc brake plate, greatly lifting the efficiency of front brake. The front disc brake adopts the radiation type facing four-piston calliper, achieving the stable emergency brake and short braking distance.
Brake handle with parking function
The brake handle is equipped with a parking function as standard, which is simple and convenient to operate, making it safer for you to temporarily park on a slope.
Newly tuned front and rear shock absorbers
The front shock absorber with a diameter of 37 mm has a built-in independent damper and adopts the double clamping structure composed of the upper and lowerconnectingplate, balancing the comfort at low speed and stability at high speed; It adopts a light design by reducing the unsuspended mass and improving the handling performance of the complete vehicle, which ensures a free ride along streets. The rear shock absorber is carefully calibrated to filter the small bumpinesson roads and better support the vehicle on significantly fluctuated roads, improving the comfort of riders and avoiding fatigue in a long journey.
Enlarged capacity of fuel tank
The 16L large-capacity fuel tank, so that long-distance travel is no longer a concern.
Wide water-cooled radiator
The Wide water-cooled radiator is a new product that redesign and combine the key components, including radiating pipe, cooling fin, water pipe, fan, etc. and customized for the 350 motor. The high performance motor cannot fully functions without the successful assistance of the radiator. In any case, the users need not worry out the excessively high water temperature and difficult start under low temperature.
Ultra-large volume rear storage compartment
The ultra-large volume rear storage compartment can accommodate two full-face helmets of sizeXXL model and the protective equipment and small articles.
Ultra-large volume left and right front storage compartment
The ultra-large volume left and right front storage compartment,storage as you wish
Electric heating handgrip and hand protective cover
The complete vehicle is equipped with electric heating handgripand hand protective cover will be presented together with the vehicle as the standard parts, giving a considerable care for a winter ride.
Thoughtful design of Storage box
The box can accommodate the charging wire, cards, tickets and other small articles and has a single-port charger inside.
Sofa-level cushion
The wide and comfortable seat cushion not only brings a sofa-level experience, but also is equipped with a pneumatic damping rod, which is more convenient and stable to open and close.
Adjustable integrated aluminum alloy steering handle
The integrated aluminum alloy steering handle can be adjusted in two gears front and rear, allowing users to choose a more comfortable handle position.Standard with two top covers of the steering handle,the users can install the mobile phone bracket without any modification
Complete vehicle cable with an interface for driving recorder
The complete vehicle cable has a pre-embedded wire harness for driving recorder and the complete vehicle is equipped with the front and rear camera and the main engine installation structure for convenient modification by users.
Modified parts
A spotlight interface has been reserved andthe front and rear cameras and aluminum alloy support for the tail box can be optional to installed in the later period.
