1. ZT250-S Engine exhaust outlet seal
|
|
|
|
|
|
|
|
2. Inner hexagonal nut M8 (color Zinc)
|
|
|
|
|
|
|
|
3. ZT703-F muffler graphite gasket(48×57.7×11)
|
|
|
|
|
|
|
|

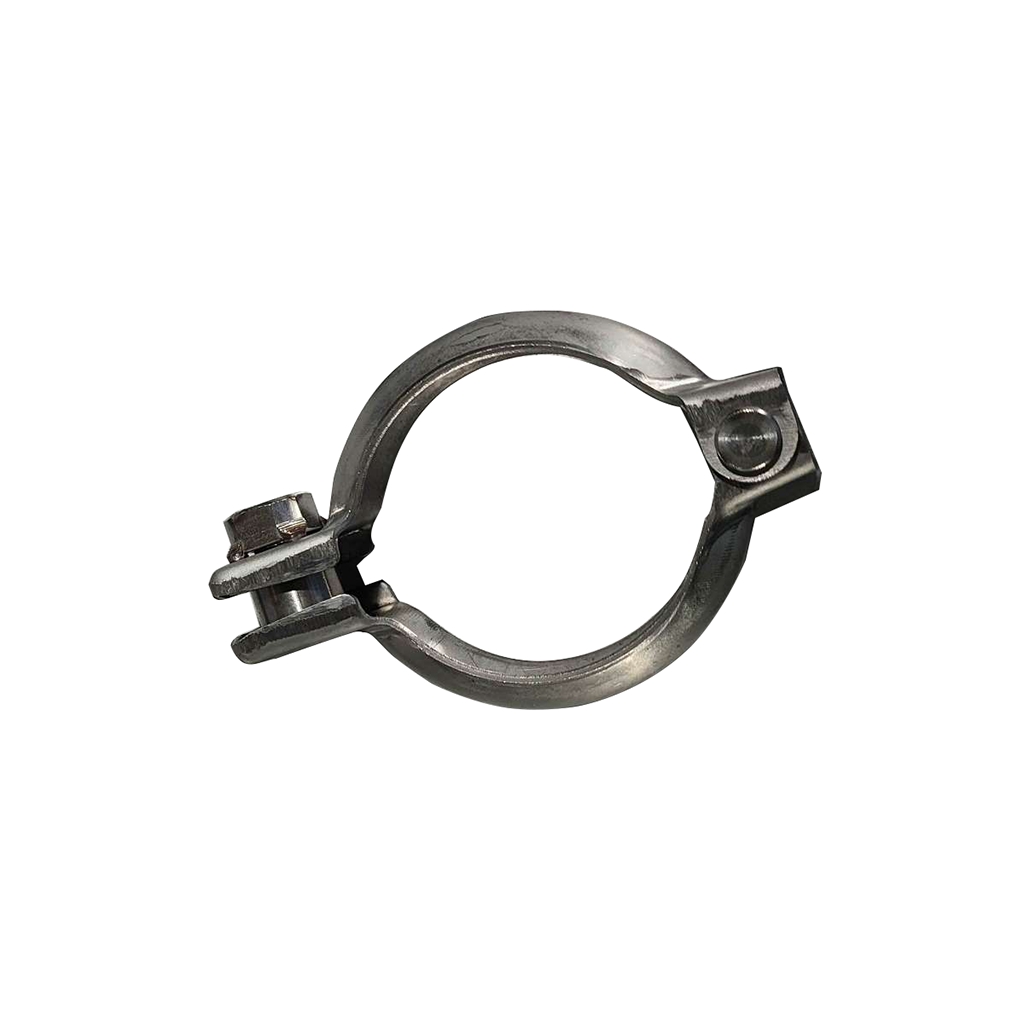

4. ZT703-F Muffler stainless steel bar clasp
|
|
|
|
|
|
|
|
5. ZT500-T Muffler stainless steel bar clasp
|
|
|
|
|
|
|
|
6. ZT500-T Silencer Graphite Sealing Gasket (42.3×51.9×11)
|
|
|
|
|
|
|
|
7. ZT350-GK-H1 muffler suspension hollow cushioning rubber
|
|
|
|
|
|
|
|
8. Non standard plum blossom groove with column pan head bolt M8 × 1.25 × 20 (grade 10.9)
|
|
|
|
|
|
|
|
9. ZT350-GK muffler stainless steel flanging bushing (φ9×φ12×20.5×φ9.1×φ33×1.5)
|
|
|
|
|
|
|
|
10. ZT250-S Side cover round rubber
|
|
|
|
|
|
|
|

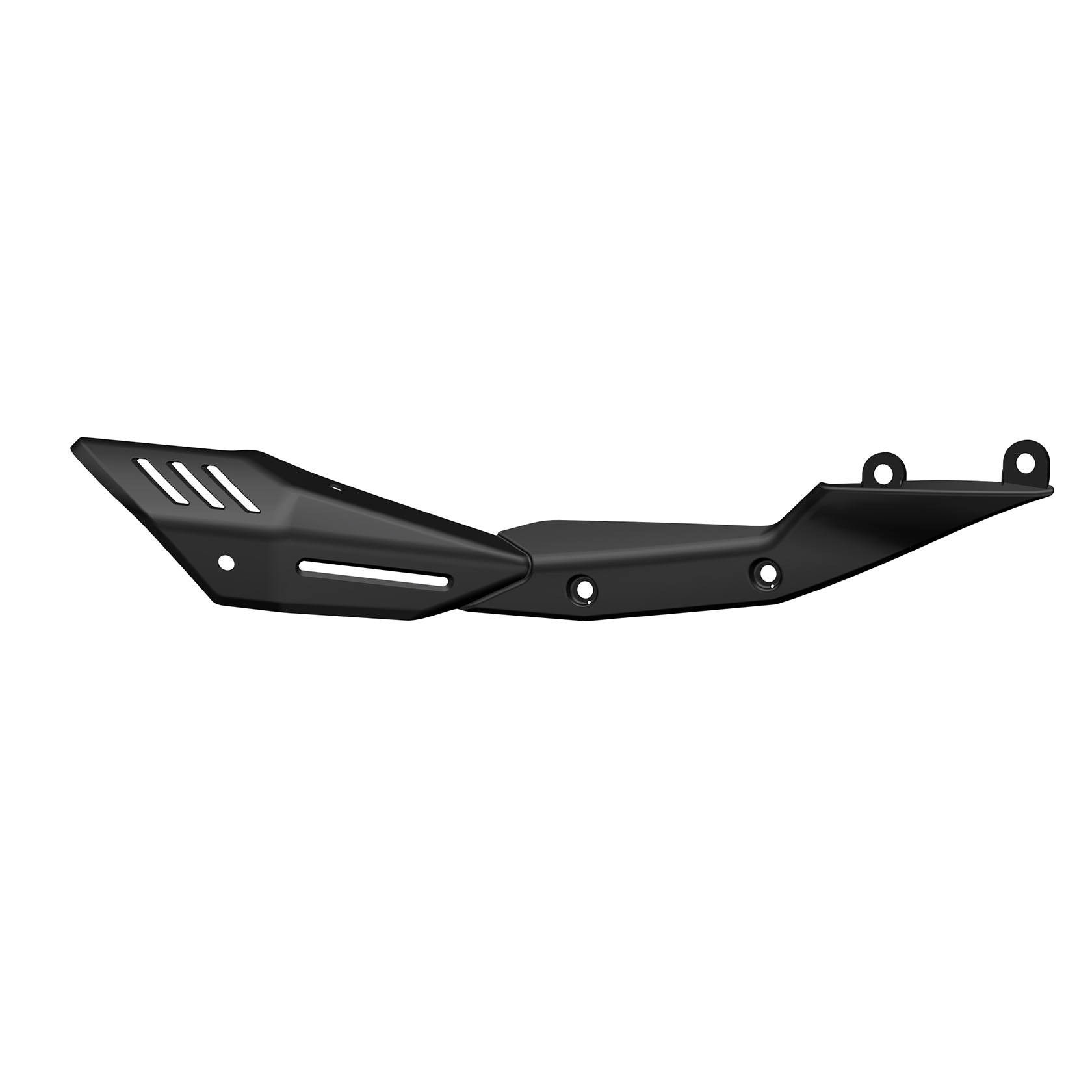

11. ZT703－T Muffler Heat Shield
|
|
|
|
|
|
|
|
12. ZT703-T Rear Mounted Silencer Right Mount Bracket
|
|
|
|
|
|
|
|

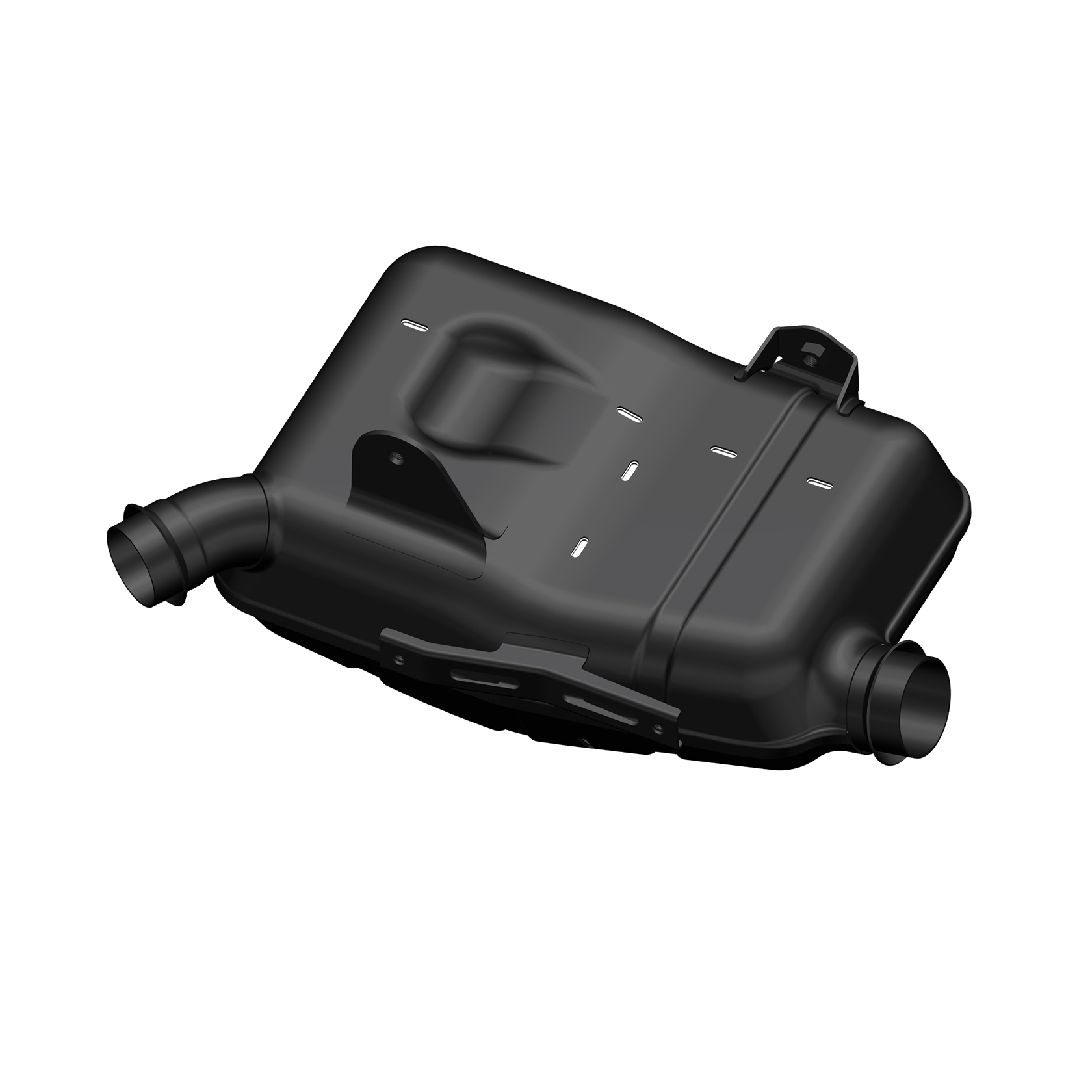

13. ZT703-T Middle Mounted Silencer (WX)
|
|
|
|
|
|
|
|

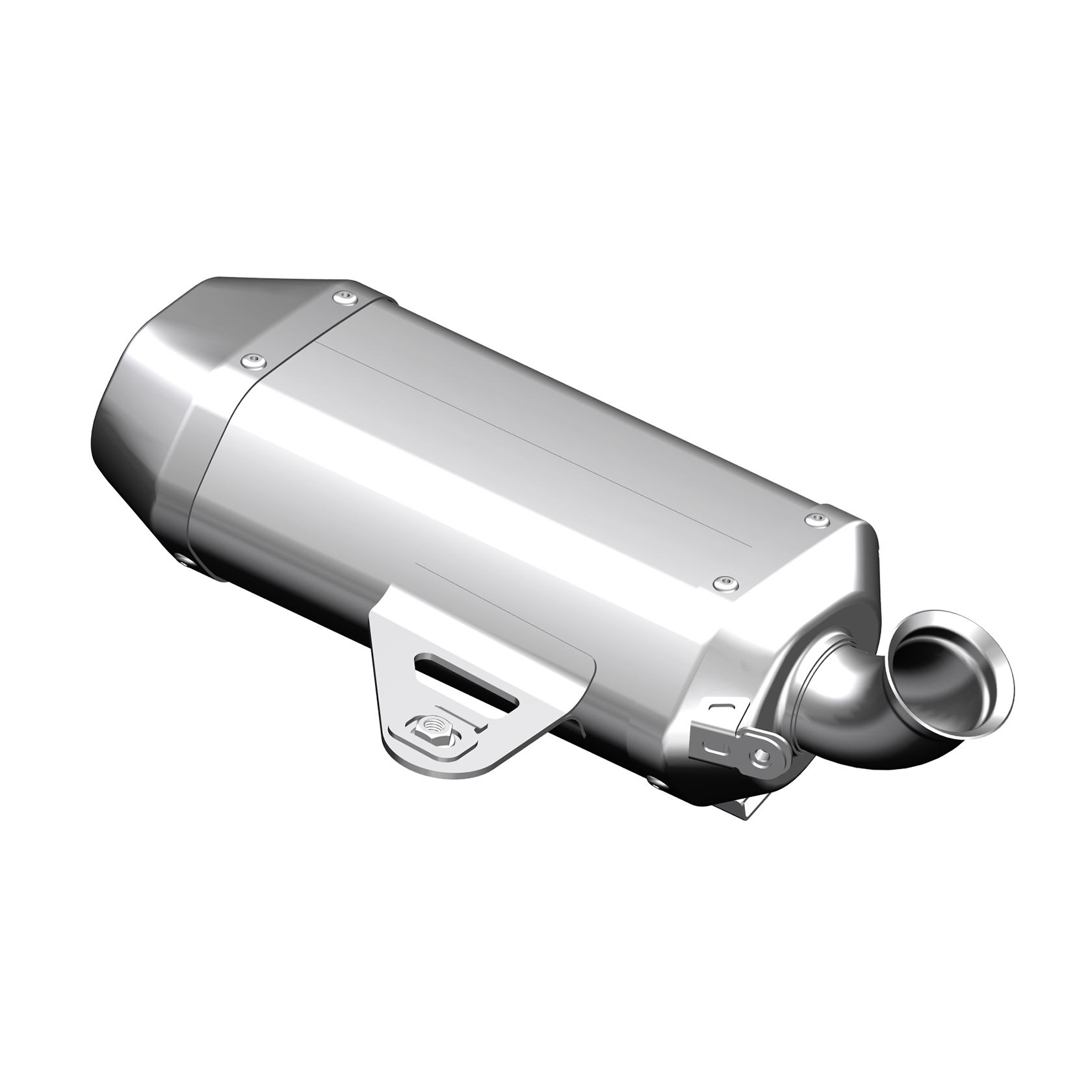

14. ZT703-T Rear Mounted Silencer (WX)
|
|
|
|
|
|
|
|
15. Non-standard internal plum bolt M6×16 (thread glue/304 stainless steel)
|
|
|
|
|
|
|
|
16. ZT368T-G muffler hot plate rubber buffer
|
|
|
|
|
|
|
|
17. ZT368T-G stainless steel flanging sleeve(φ6.4×φ9×6＋φ20×2)
|
|
|
|
|
|
|
|
18. Non standard plum blossom groove with column pan head bolt M8 × 1.25 × 35 - 22 (grade 10.9)
|
|
|
|
|
|
|
|
19. OSM Planar Oxygen Sensor (600mm)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
21. ZT350-R cable plastic staple
|
|
|
|
|
|
|
|
22. 0 level fire-retardant belting (black2.5×100)
|
|
|
|
|
|
|
|
