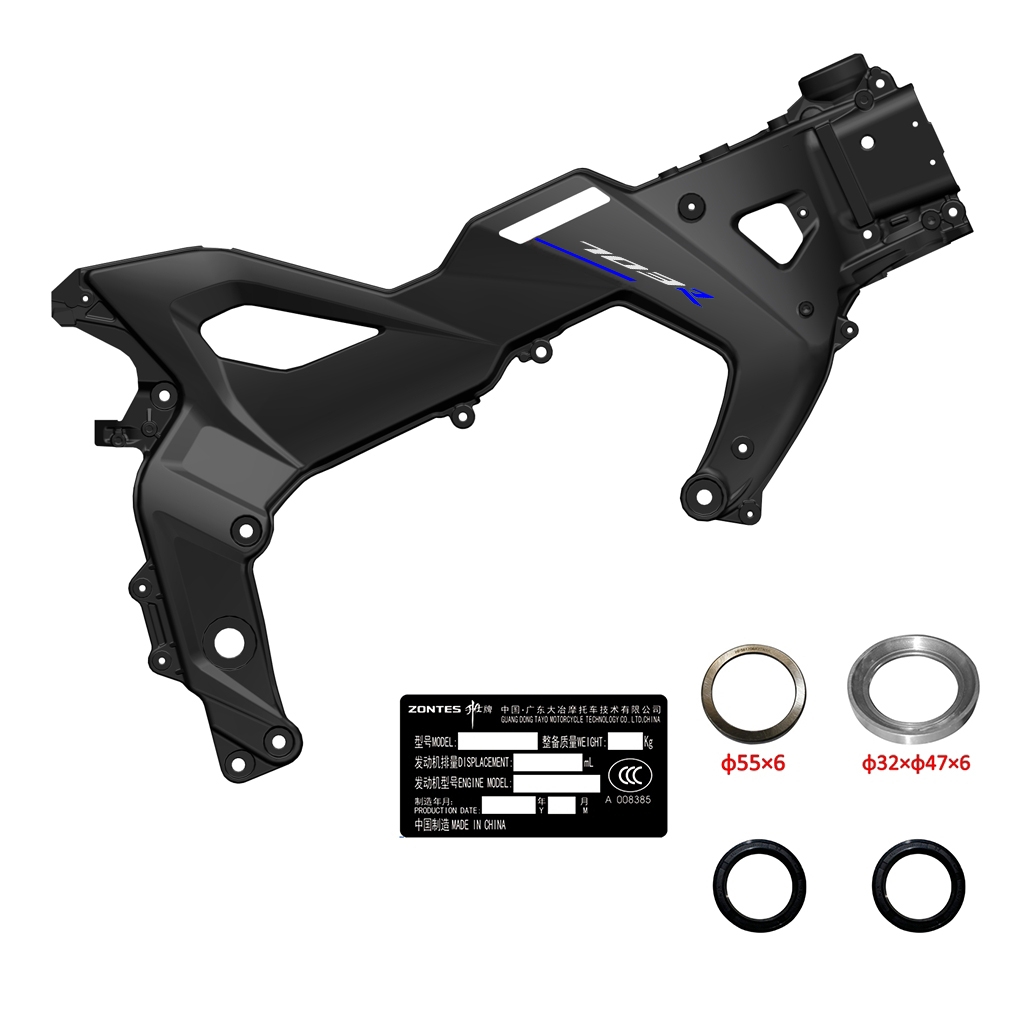

3. ZT700-F Paper Nameplate
|
|
|
|
|
|
|
|
4. Non standard plum blossom groove with column pan head bolt M10 × 1.25 × 60 - 45 (grade 10.9)
|
|
|
|
|
|
|
|
5. Non standard plum blossom groove with column pan head bolt M10 × 1.25 × 50 - 30 (grade 10.9)
|
|
|
|
|
|
|
|
6. ZT703-RR Main Frame Front Plug
|
|
|
|
|
|
|
|
7. Non standard plum blossom groove with column pan head bolt M10 × 1.25 × 35 (grade 10.9)
|
|
|
|
|
|
|
|
8. Non standard plum blossom groove with column pan head bolt M10 × 1.25 × 30 (grade 10.9)
|
|
|
|
|
|
|
|
9. Non standard plum blossom groove with column pan head bolt M10 × 1.25 × 20 (grade 10.9)
|
|
|
|
|
|
|
|
10. ZT703-R Engine Right Suspension Plate (II)
|
|
|
|
|
|
|
|
11. ZT703-R Engine Left Suspension Plate (II)
|
|
|
|
|
|
|
|
12. GB5789 Non-standard Bolt M14×1.5×75-35 (Grade 9.8/Dacromet)
|
|
|
|
|
|
|
|
13. GB5789 Non-standard Bolt M14×1.5×65-35 (Grade 9.8/Dacromet)
|
|
|
|
|
|
|
|
14. ZT703-F Gap Adjustment Screw(M22×1)
|
|
|
|
|
|
|
|
15. Hexagon Flange Recessed Bolt M12×1.25×276-30 (10.9/Dacromet)
|
|
|
|
|
|
|
|
16. Hexagon Flange Recessed Bolt M12×1.25×290-30 (10.9/Dacromet)
|
|
|
|
|
|
|
|
17. GB6187.1 M12×1.25(White Zinc)
|
|
|
|
|
|
|
|
18. ZT703-F Gap Adjustment Screw(M18×1-21)
|
|
|
|
|
|
|
|
19. ZT310T-M Rear armrest trunk installation holes decorative buckle
|
|
|
|
|
|
|
|

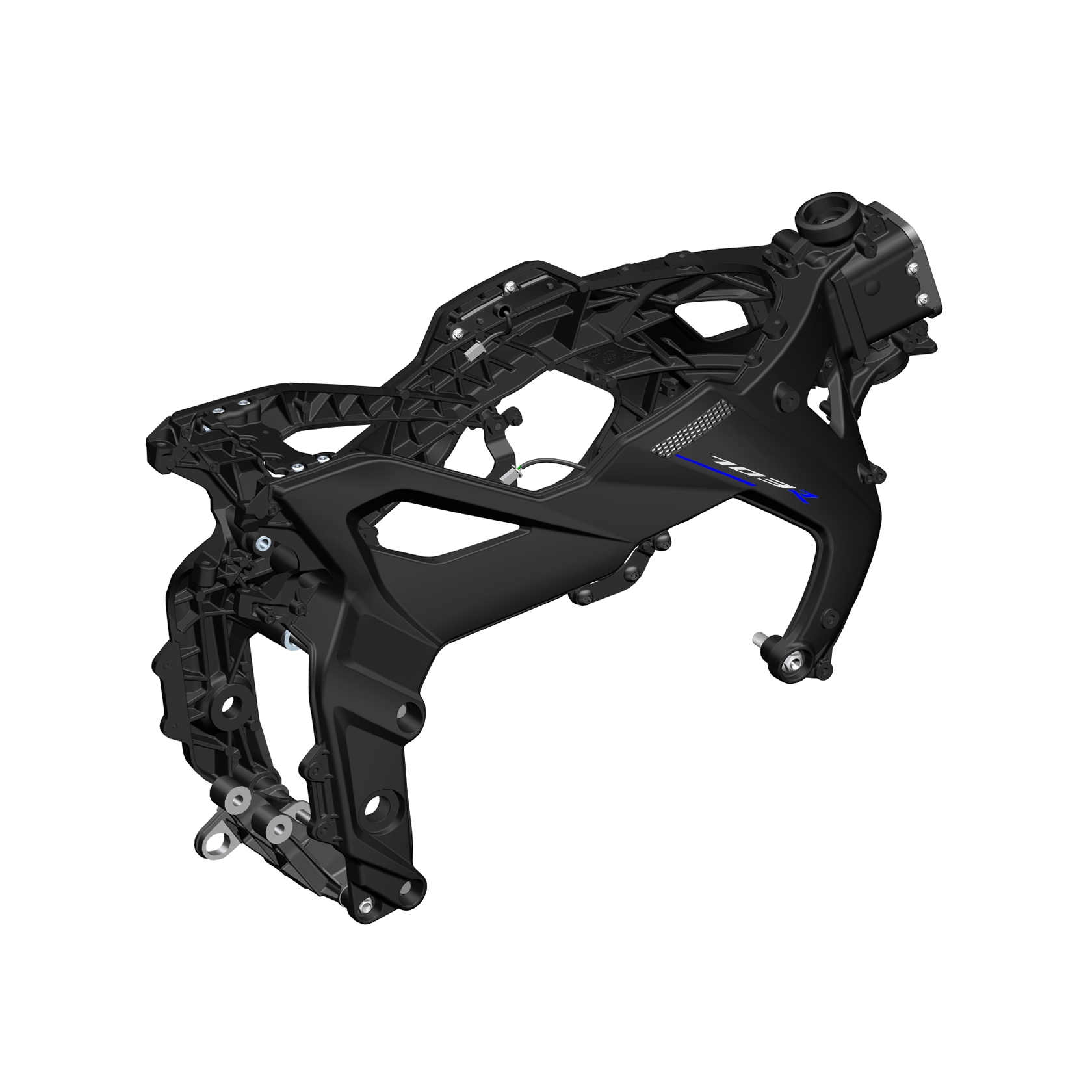

20. ZT703-T Main Frame Lower Section
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
22. Non-standard internal plum bolt M6×12 (thread glue/304 stainless steel)
|
|
|
|
|
|
|
|
23. ZT703-RR Left Frame Mesh Ambient Light
|
|
|
|
|
|
|
|
24. ZT703-RR Frame Left Atmosphere Lamp Decorative Grid
|
|
|
|
|
|
|
|
25. ZT703-RR Right Frame Mesh Ambient Light
|
|
|
|
|
|
|
|
26. ZT703-RR Frame Right Atmosphere Lamp Decorative Grid
|
|
|
|
|
|
|
|
27. ZT703-F Backlash Adjustment Screw(M18×1)
|
|
|
|
|
|
|
|
28. ZT250-S upper steel bowl
|
|
|
|
|
|
|
|
29. ZT150T-M lower seat ring
|
|
|
|
|
|
|
|
30. Oil Seal VC φ25×φ35×4
|
|
|
|
|
|
|
|
31. Inner plum blossom shaft shoulder screw M6×14+ φ8.5×2.9 (304 stainless steel)
|
|
|
|
|
|
|
|

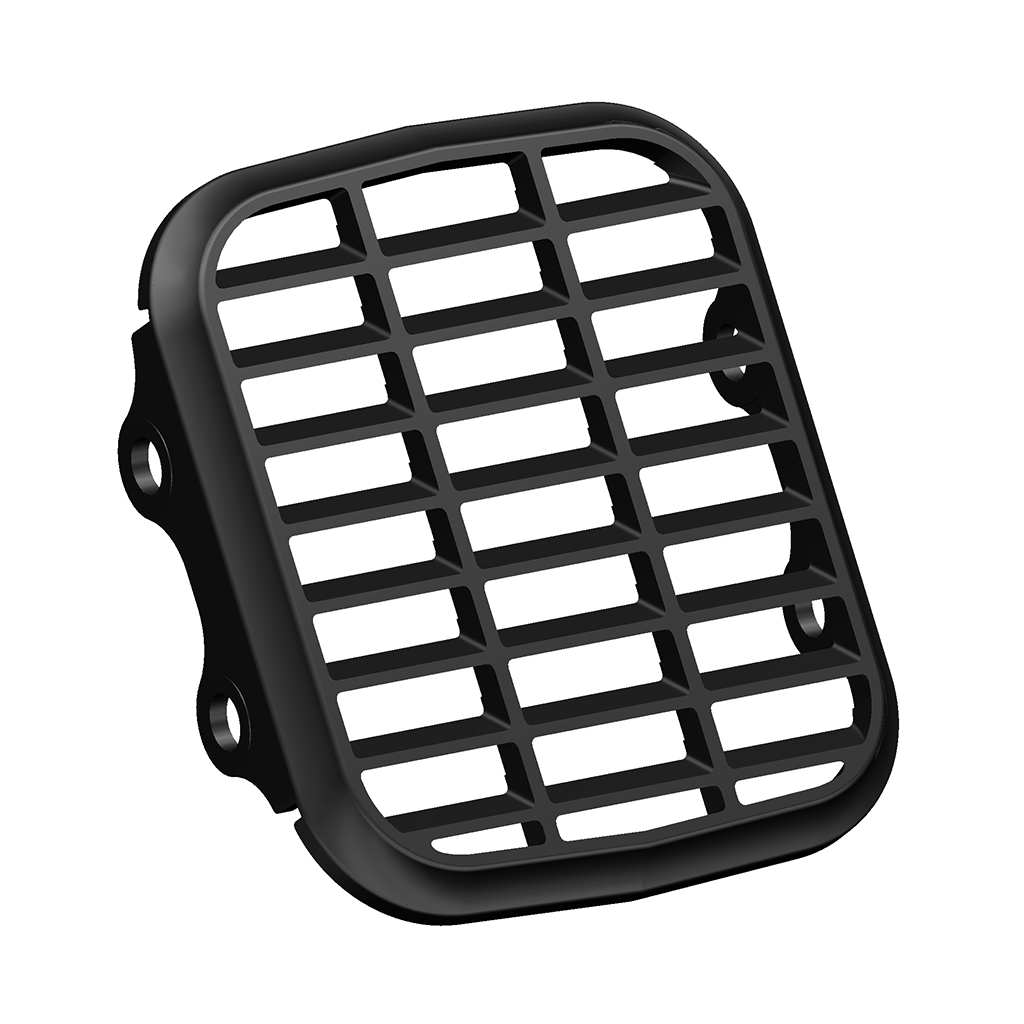

32. ZT703-R air Intake grille
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
37. Non-standard bolt M8×16 (environmental color)
|
|
|
|
|
|
|
|

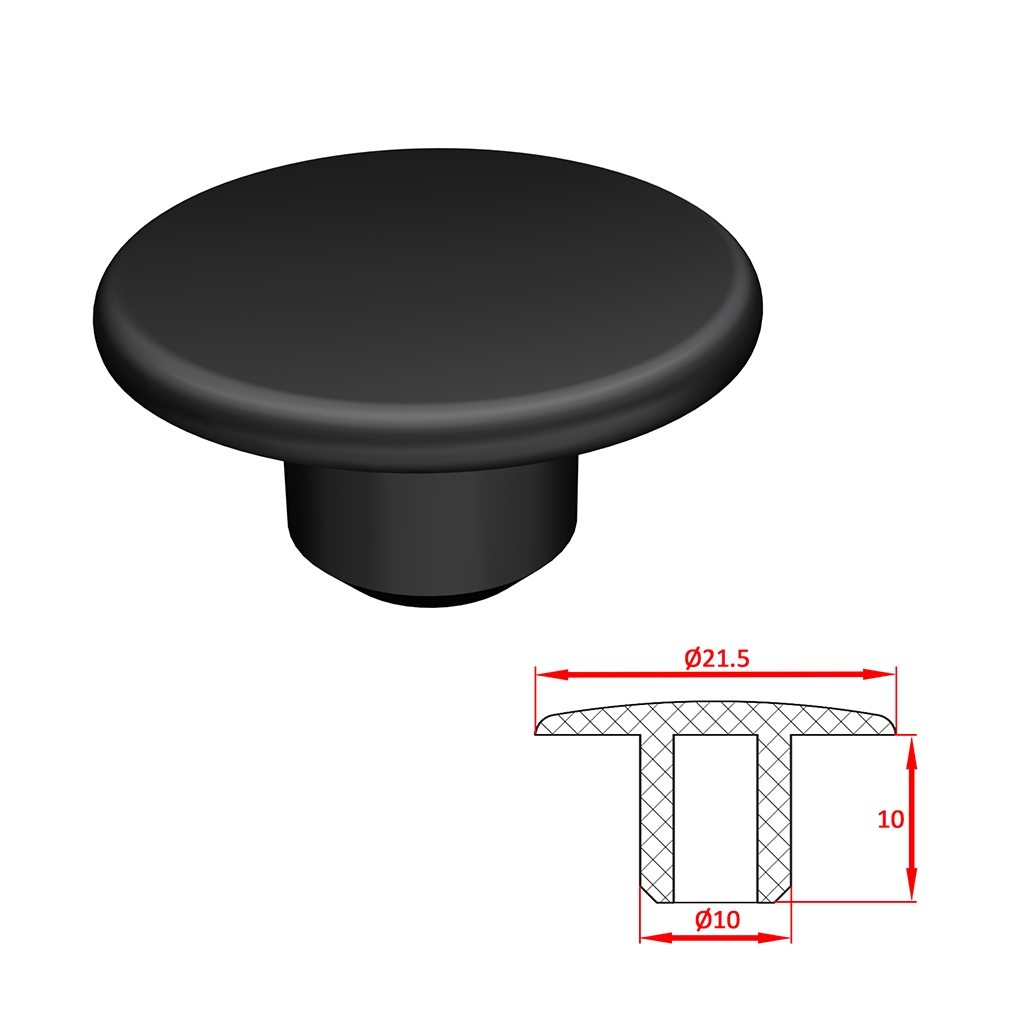

38. ZT703-R frame plug (10mm)
|
|
|
|
|
|
|
|
39. ZT703-R Fuel Tank Front Pad Rubber
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
