1. ZT703-F battery storage cover
|
|
|
|
|
|
|
|
2. ZT310-T storage box cover rotating shaft limit circlip
|
|
|
|
|
|
|
|
3. ZT703-F vehicle-mounted tools
|
|
|
|
|
|
|
|
4. Inner plum blossom shaft shoulder screw M6×14+ φ8.5×2.9 (304 stainless steel)
|
|
|
|
|
|
|
|
5. ZT703-F battery compartment electrical device rear bracket
|
|
|
|
|
|
|
|
6. Non standard internal plum blossom bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
7. ZT703-F vice frame(Ⅱ) after-sales assembly
|
|
|
|
|
|
|
|
8. ZT310 Electric seat lock
|
|
|
|
|
|
|
|
9. GB6177.1M10×1.25 (environmental color)
|
|
|
|
|
|
|
|
10. Non standard plum blossom groove with column pan head bolt M10 × 1.25 × 75 - 55 (grade 10.9)
|
|
|
|
|
|
|
|
11. Non standard plum blossom groove with column pan head bolt M10 × 1.25 × 60 - 45 (grade 10.9)
|
|
|
|
|
|
|
|
12. ZT703-F battery compartment electrical device front bracket
|
|
|
|
|
|
|
|
13. ZT368 lithium battery(6Ah)
|
|
|
|
|
|
|
|
14. ZT703－F GPS Antenna 4G Controller Bracket
|
|
|
|
|
|
|
|
15. ZT703-F lithium battery strap
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

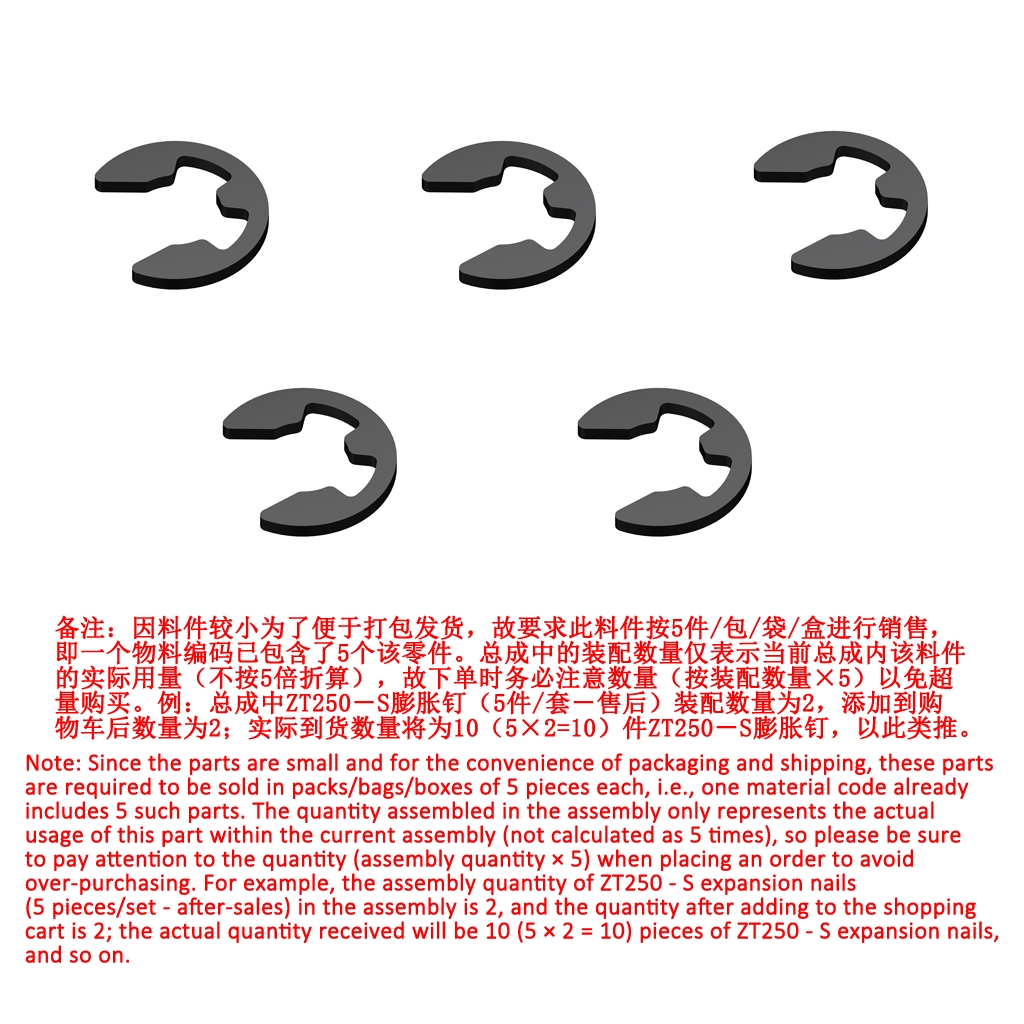

17. ZT250-S Expansion nail
|
|
|
|
|
|
|
|
18. ZT703-F battery compartment electrical device cover
|
|
|
|
|
|
|
|
19. Hexagonal large flange internal plum blossom bolt M6 × 35-25 (8.8/environmental color)
|
|
|
|
|
|
|
|
20. Non standard internal plum blossom bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
21. ZT703-F Battery Storage Cover Pivot
|
|
|
|
|
|
|
|
22. Flanged bushing φ6.2×φ8.4×3.5＋φ14×1.5
|
|
|
|
|
|
|
|
23. Buffer rubber of flanging bushing (φ8.5×φ14×1)
|
|
|
|
|
|
|
|
24. Hexagonal small flange internal plum blossom bolt M6 × 16 (9.8/zinc nickel alloy)
|
|
|
|
|
|
|
|
25. ZT703-F PKE main machine fixing bracket Ⅱ
|
|
|
|
|
|
|
|
26. Plywood M6×11×15(zinc-nickel)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
28. ZT703-F muffler side bracket glue stopper
|
|
|
|
|
|
|
|
29. ZT703-F muffler side bracket
|
|
|
|
|
|
|
|
30. ZT703-F Fuel Tank Rear Mounting Bracket
|
|
|
|
|
|
|
|
31. ZT250-S fuel tank gasket
|
|
|
|
|
|
|
|
32. ZT250-R fuel tank flat pad φ9×φ37.5×2 (environmental color)
|
|
|
|
|
|
|
|
33. ZT703-F Fuel Tank Rear Mounting Bracket Lamination
|
|
|
|
|
|
|
|
34. Non standard plum blossom groove with column pan head bolt M8 × 1.25 × 25 (grade 10.9)
|
|
|
|
|
|
|
|
35. ZT703-F Battery Hook Bracket
|
|
|
|
|
|
|
|
36. ZT703-F PKE mounting bushing Ⅱ
|
|
|
|
|
|
|
|
37. ZT310 Induction Key (Bracelet Edition-enlarge battery)
|
|
|
|
|
|
|
|
38. ZT310 induction key rubber ring
|
|
|
|
|
|
|
|
39. Bracelet key battery cover (enlarge battery)
|
|
|
|
|
|
|
|
40. Button battery (Camelion CR2032)
|
|
|
|
|
|
|
|
41. Flat Head Vertical Grain M6×18 Rivet Nut (Stainless Steel)
|
|
|
|
|
|
|
|
42. ZT703-F battery compartment battery pad (Ⅱ)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
44. Third-generation PKE assembly B (24 version/CR2032)
|
|
|
|
|
|
|
|
45. Non standard internal plum blossom bolt M6×8 (304 stainless steel)
|
|
|
|
|
|
|
|
46. Univsersal fuse (40A)
|
|
|
|
|
|
|
|
47. ZT703-F inner clay board
|
|
|
|
|
|
|
|
48. ZT350-K safety clip（improved）
|
|
|
|
|
|
|
|
