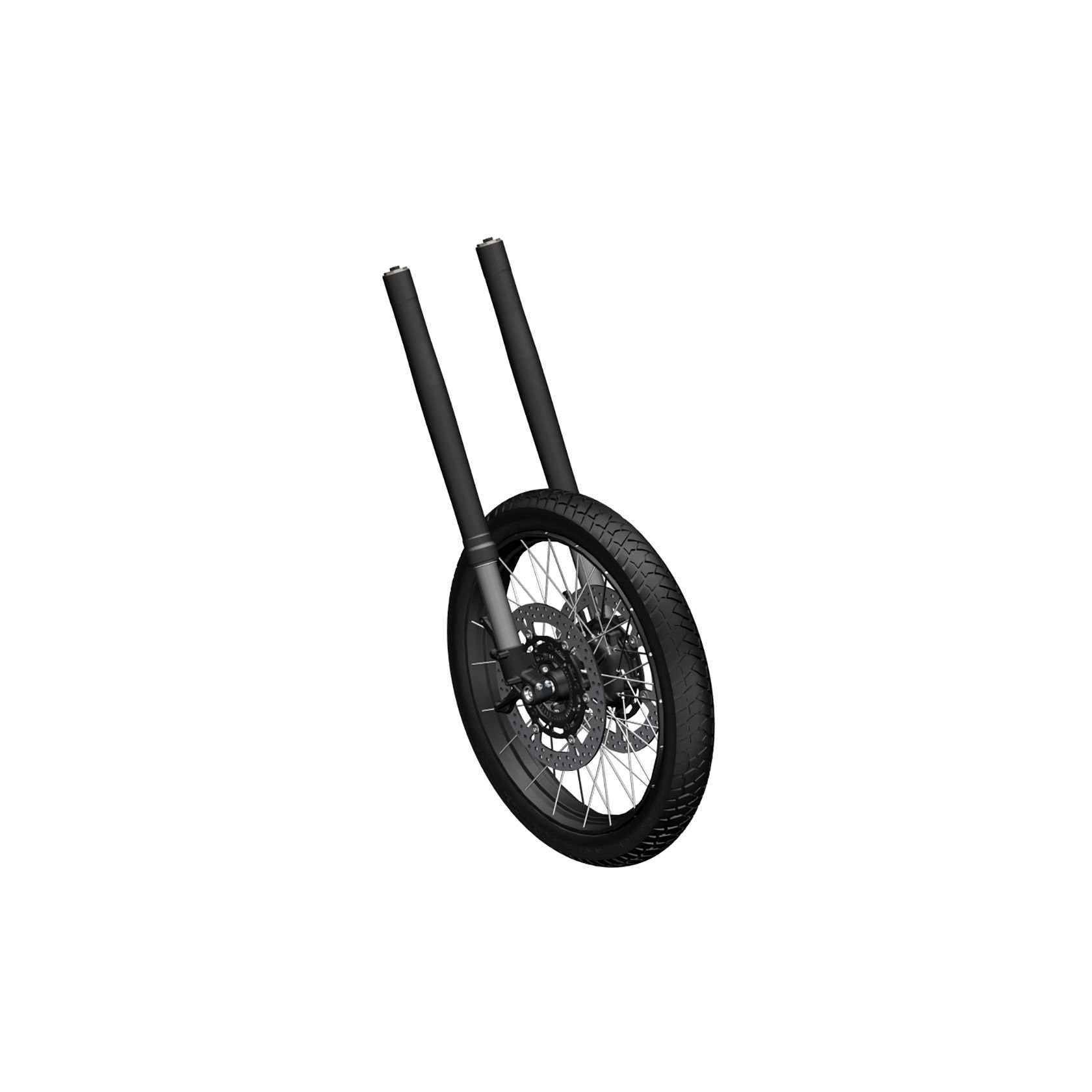

ZT703-F front absorber/front wheel assembly (ETC/21 inch front wheel)
单价总客 编码数量
   Return



1. ZT703-F aluminum alloy front wheel right fixed bushing
Code：1276800-066000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
16

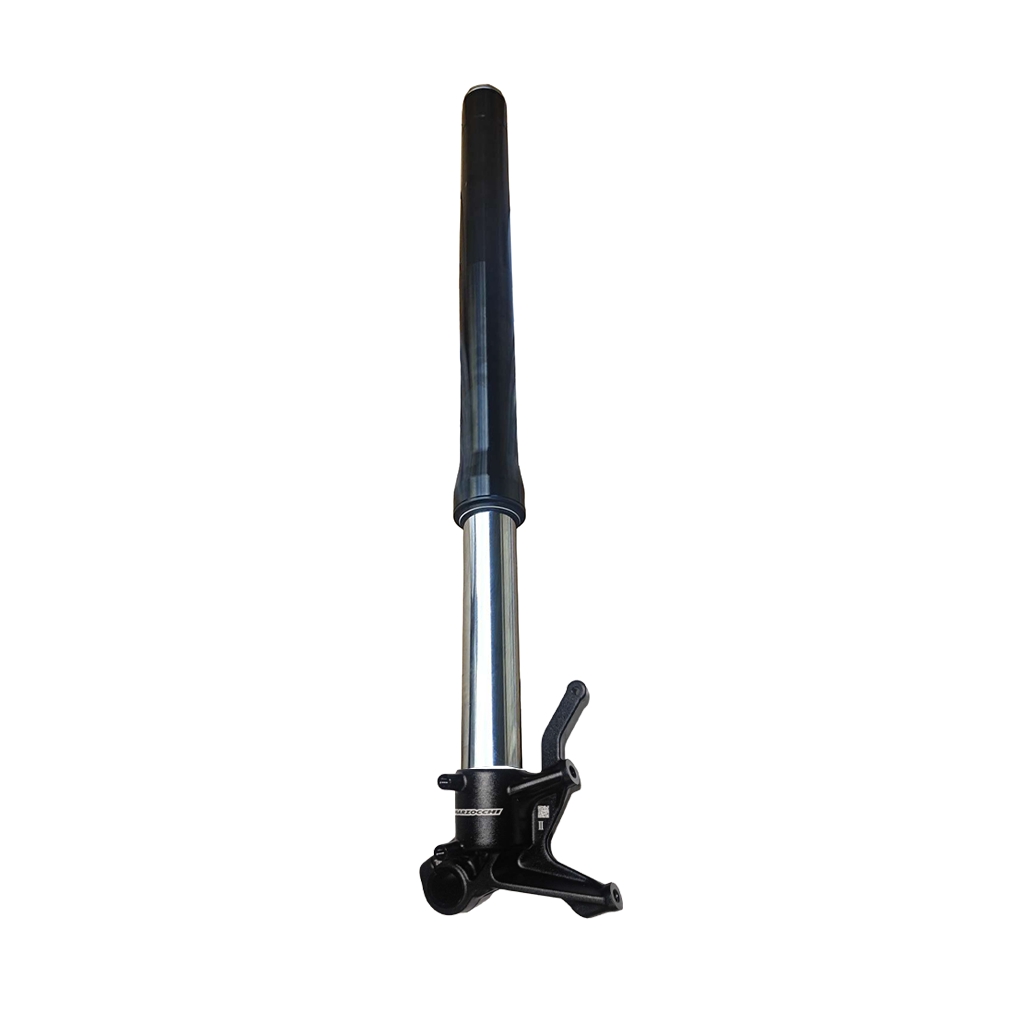

2. ZT703-F front left shock absorber (Ⅱ)
Code：1116800-019000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
1820
Remarks:Single front shock-absorbing assembly total shock-absorbing oil consumption is 440ml. It is recommended that all the shock absorbing oil be completely discharged out of the measuring cup and finally poured into total damping oil at a time. It is recommended to use 32 Kinematic viscosity.If there is leakage,it is recommended that the oil seal and the dust seal be replaced at the same time.Maintain the shock absorber every 20000 kilometers (12000 miles) by replacing the oil seal, dust seal, and shock absorber oil.
3. GB70.1M8×30 (10.9 grade/environmental color)
Code：1250205-161093
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
1

4. ZT703-F Aluminum Front Wheel Axle Sleeve (II) (φ20×φ28×15.5 Shoulder φ32)
Code：1276800-067100
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
12

5. Non-standard plum blossom groove shoulder bolt M8 × 25-φ10 × 6 (grade 10.9/zinc nickel black)
Code：1251100-407094
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
2

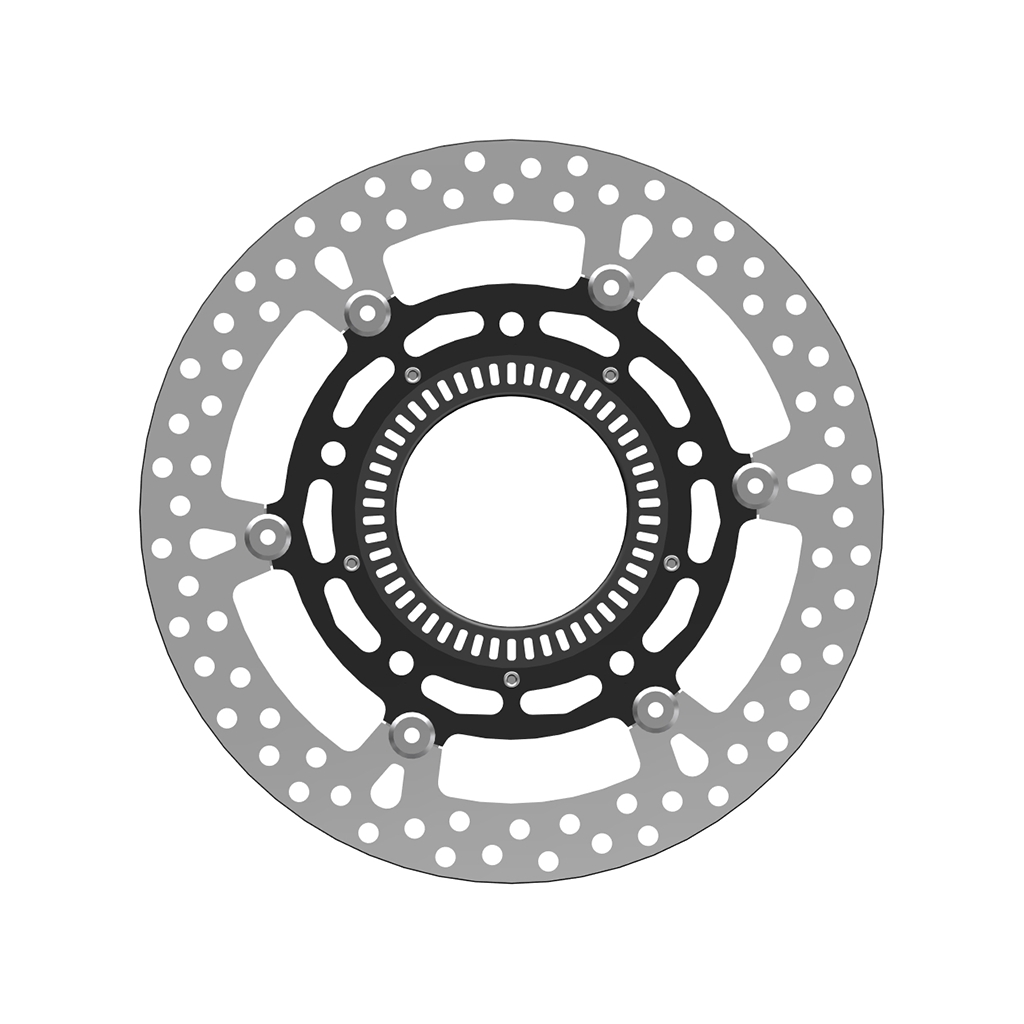

6. ZT703-F front right brake disc assembly (310×4.5/including ring gear/Ⅱ)
Code：1100101-590000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
405

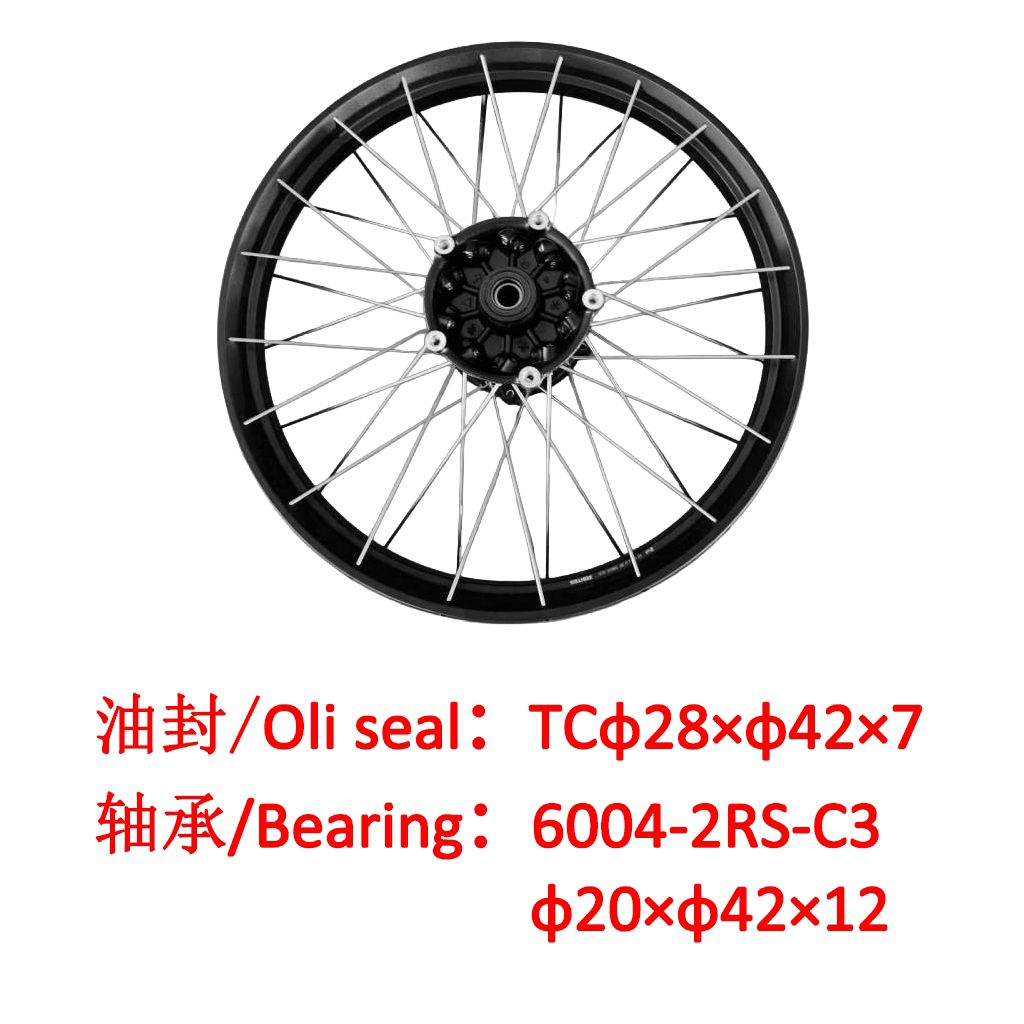

7. ZT703-F Front Vacuum Spoke Wheel(MT2.15×21-Black-Double Disc-Ⅱ）)
Code：1096800-046000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
1930

8. 90/90－21 ANAKEE ADVENTURE 54V TL E4
Code：1230100-744000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
880

9. ZT350 Tire Pressure Sensor N (M8 Elbow/120°)
Code：1184300-056000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
226
Remarks:The tire repair fluid should not be used because it will block the stoma of the pressure monitoring sensor,resulting in dificulty in inflating or failure of tire pressure momnitoring .

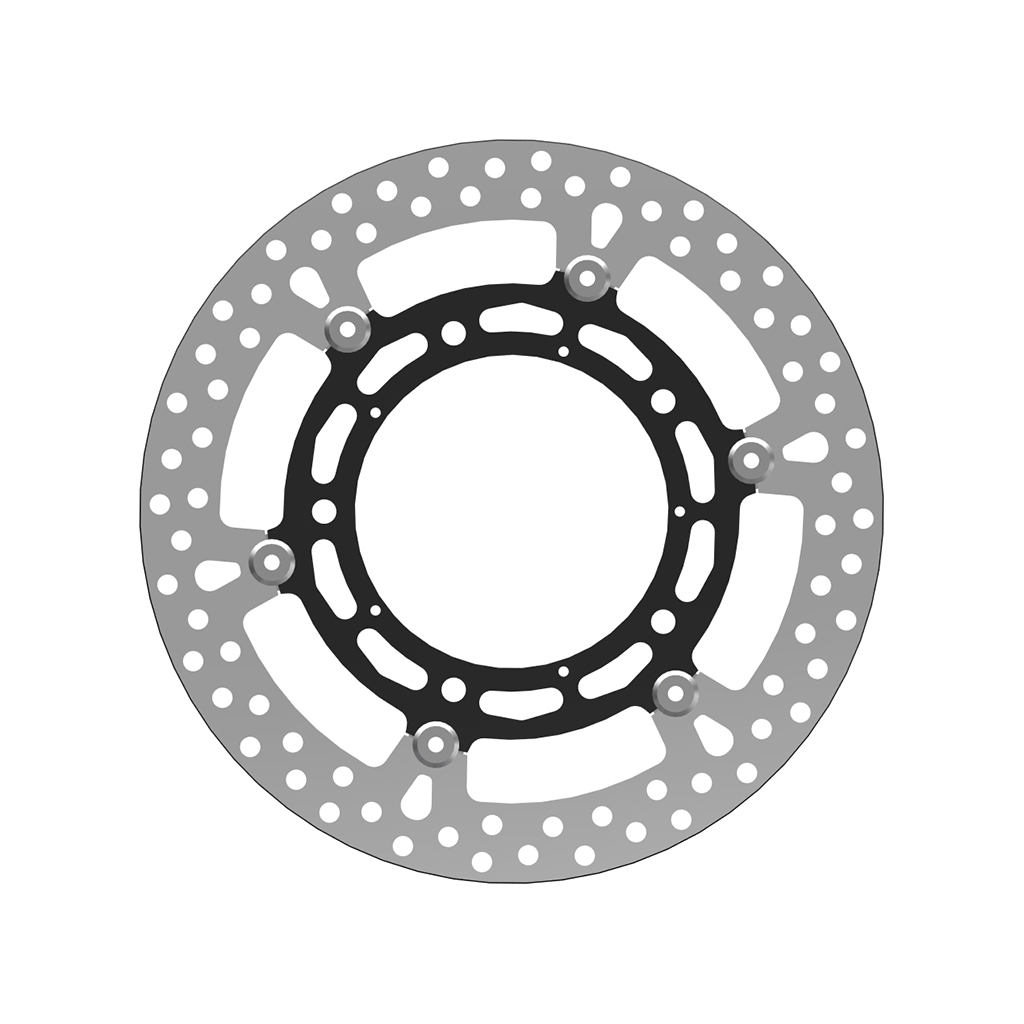

10. ZT703-F front left brake disc (310 × 4.5/Ⅱ)
Code：1100101-591000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
375

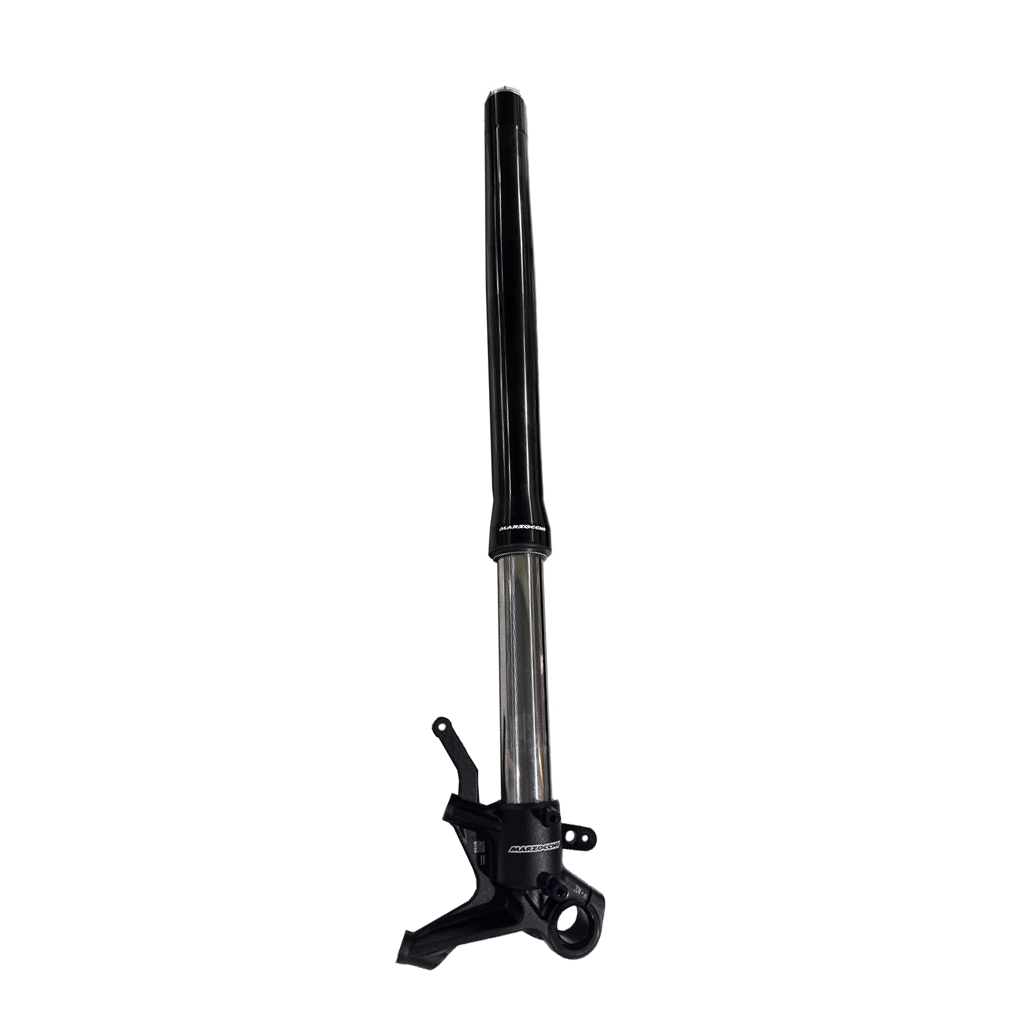

11. ZT703-F front right shock absorber (Ⅱ)
Code：1116800-020000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
1820
Remarks:Single front shock-absorbing assembly total shock-absorbing oil consumption is 440ml. It is recommended that all the shock absorbing oil be completely discharged out of the measuring cup and finally poured into total damping oil at a time. It is recommended to use 32 Kinematic viscosity.If there is leakage,it is recommended that the oil seal and the dust seal be replaced at the same time.Maintain the shock absorber every 20000 kilometers (12000 miles) by replacing the oil seal, dust seal, and shock absorber oil.
12. ZT703-F front wheel hollow shaft (Φ20×193/shoulder φ25×42.5)
Code：1096800-009000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
75

13. Oil seal TC φ28×φ42×7
Code：1244200-135000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
4

14. GB276 Deep groove ball bearing 6004-2RS-C3
Code：1250601-119000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
17

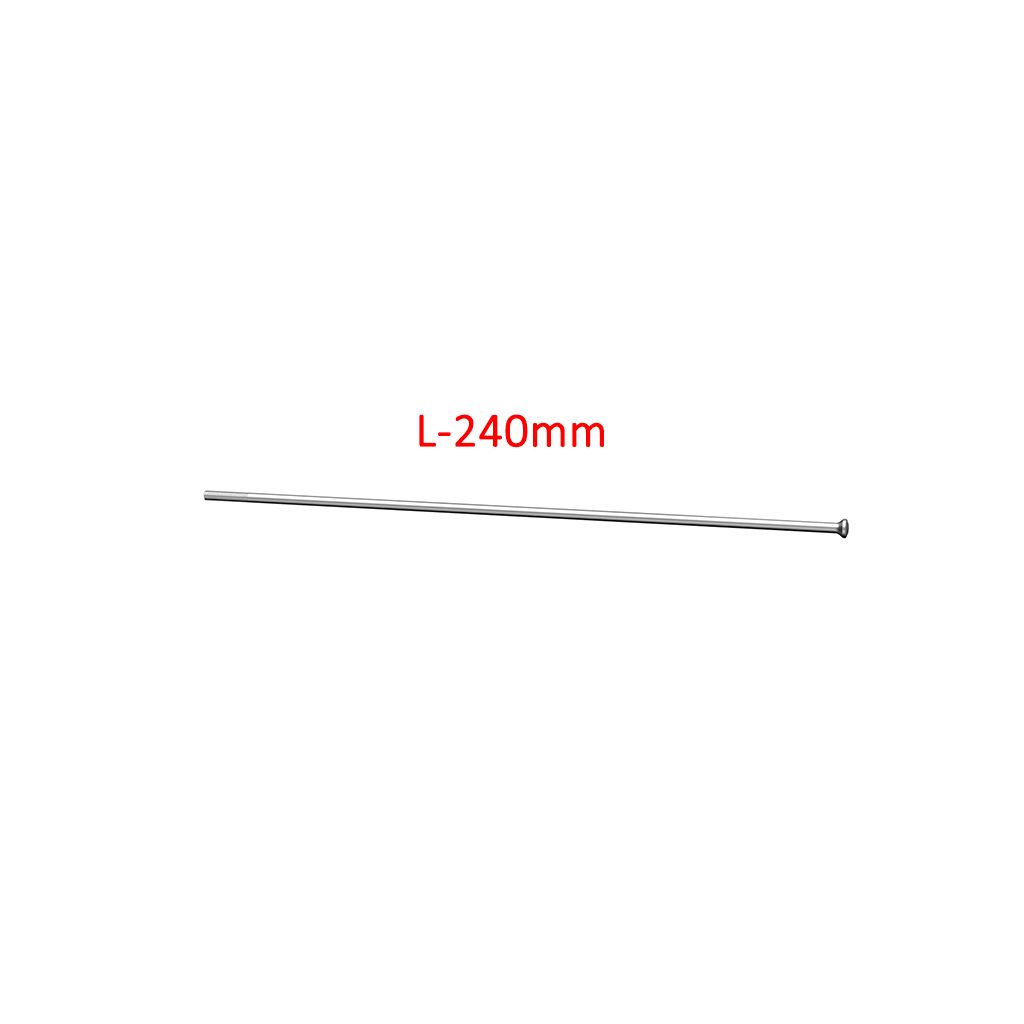

15. ZT703-F Vacuum Spoke Wheel Spoke(Φ3.6/L=240)
Code：1096800-060000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
5

16. ZT310-T vacuum spoke wheel nut
Code：1094200-056000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
5
Remarks:T30 plum hexagon wrench is reqiured.
17. ZT310－T Vacuum spoke wheel female set screw M4
Code：1094200-066000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
0.5
Remarks:2# inner hexagon wrench is reqiured.
18. ZT368T-G Front Aluminum Wheel Middle Spacer (φ27×φ21×102)
Code：1096400-047000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
40

19. ZT350 independent valve (M8 elbow/120°)
Code：1094300-016000
Local Inventory Unit Price (￥) Equipment Quantity Quantity Sum (￥)   Choose   Buy
in stock
23
Remarks:Only the valve part is included, not the tire pressure sensor body. Pay attention to the distinction before purchasing. If this part of the cap different from your vehicle,it can be replaced the cap by your vehicle.
