1. ZT368T-M balance block (matte black)
|
|
|
|
|
|
|
|
2. ZT368T-D right handle bar rubber sleeve（ETC）
|
|
|
|
|
|
|
|
3. GB/T845 cross recessed pan head self tapping screw ST2.6×8 (304)
|
|
|
|
|
|
|
|
4. GB/T 818 cross recessed pan head screw M4×30 (black)
|
|
|
|
|
|
|
|

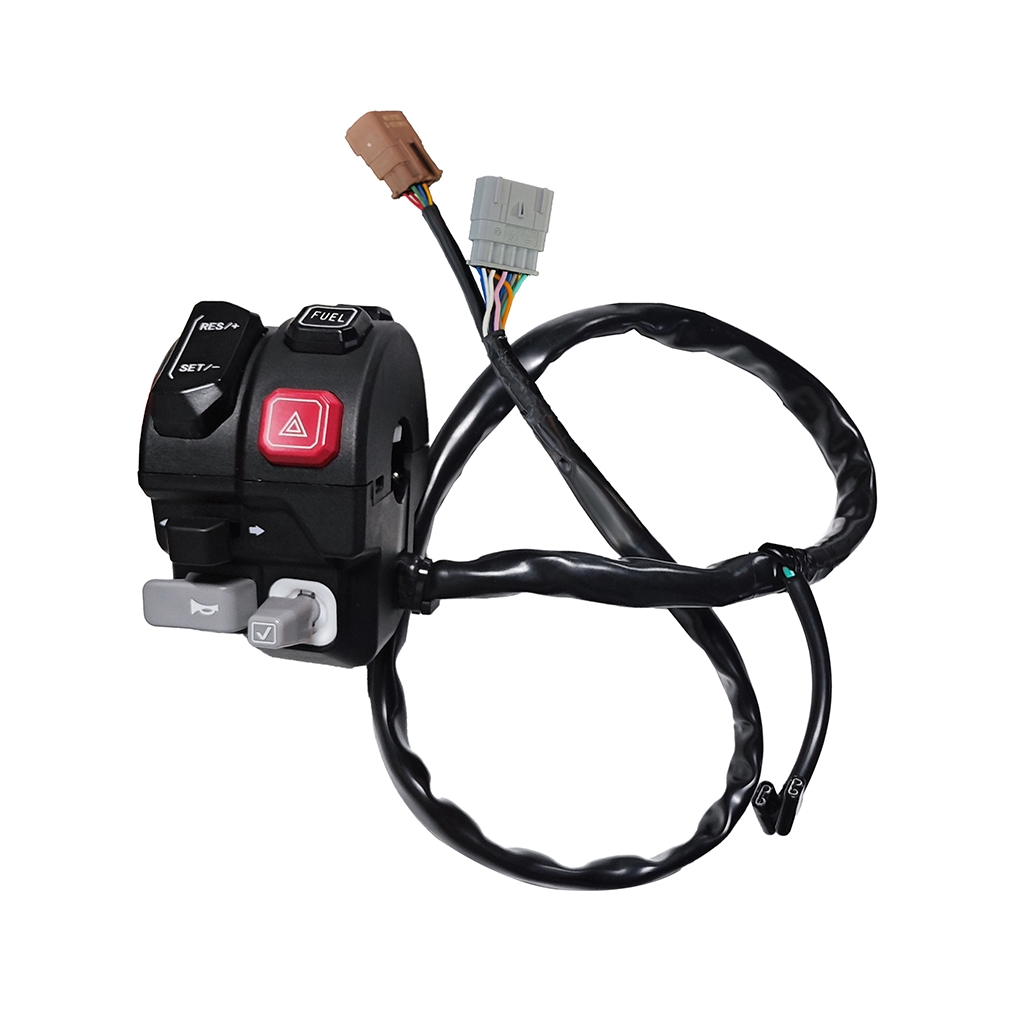

5. ZT368T-M Right handle switch（ETC）
|
|
|
|
|
|
|
|
6. GB/T93 Spring Washer M4
|
|
|
|
|
|
|
|
7. ZT703 Right Handle Plug Fixing Clamp (ETC)
|
|
|
|
|
|
|
|
8. GB70.1M6×30(stainless steel)
|
|
|
|
|
|
|
|

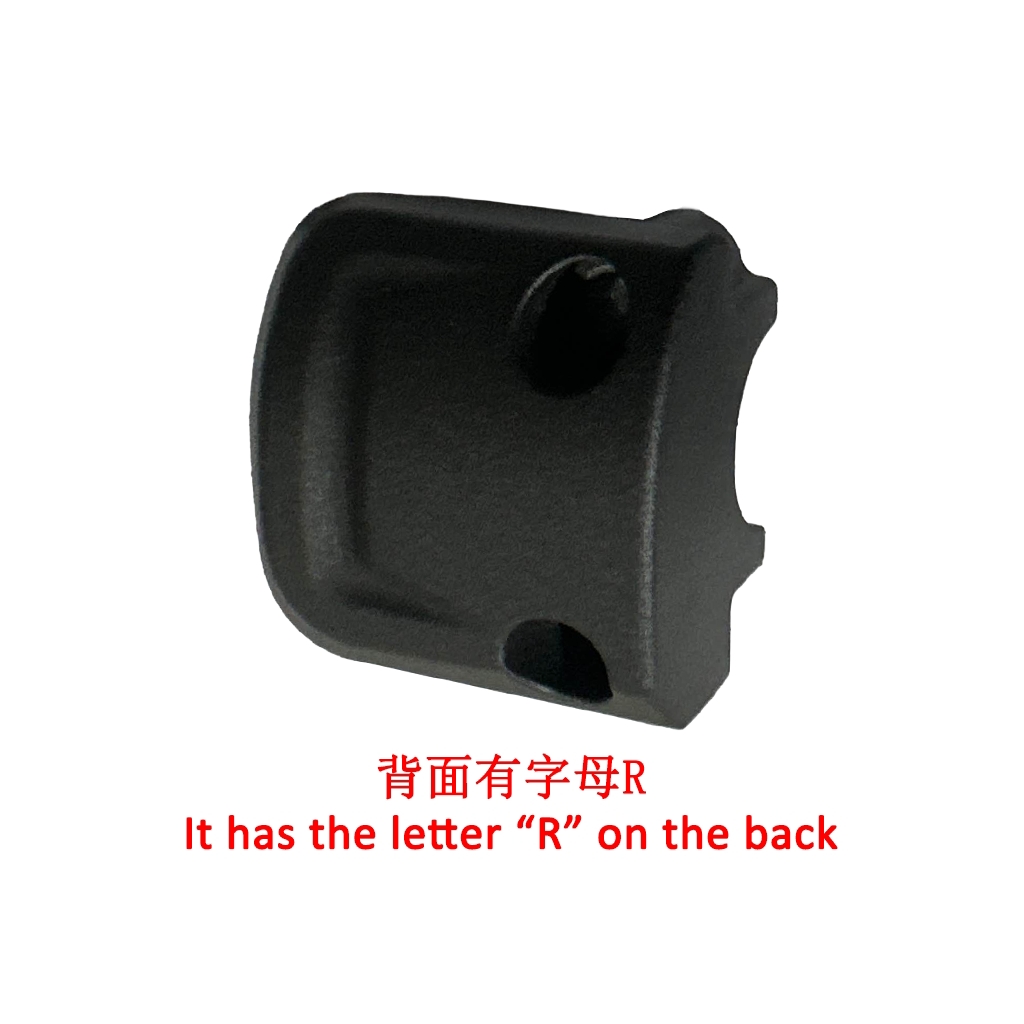

9. ZT368T-E Right Handlebar Half Cover (Matt Black)
|
|
|
|
|
|
|
|

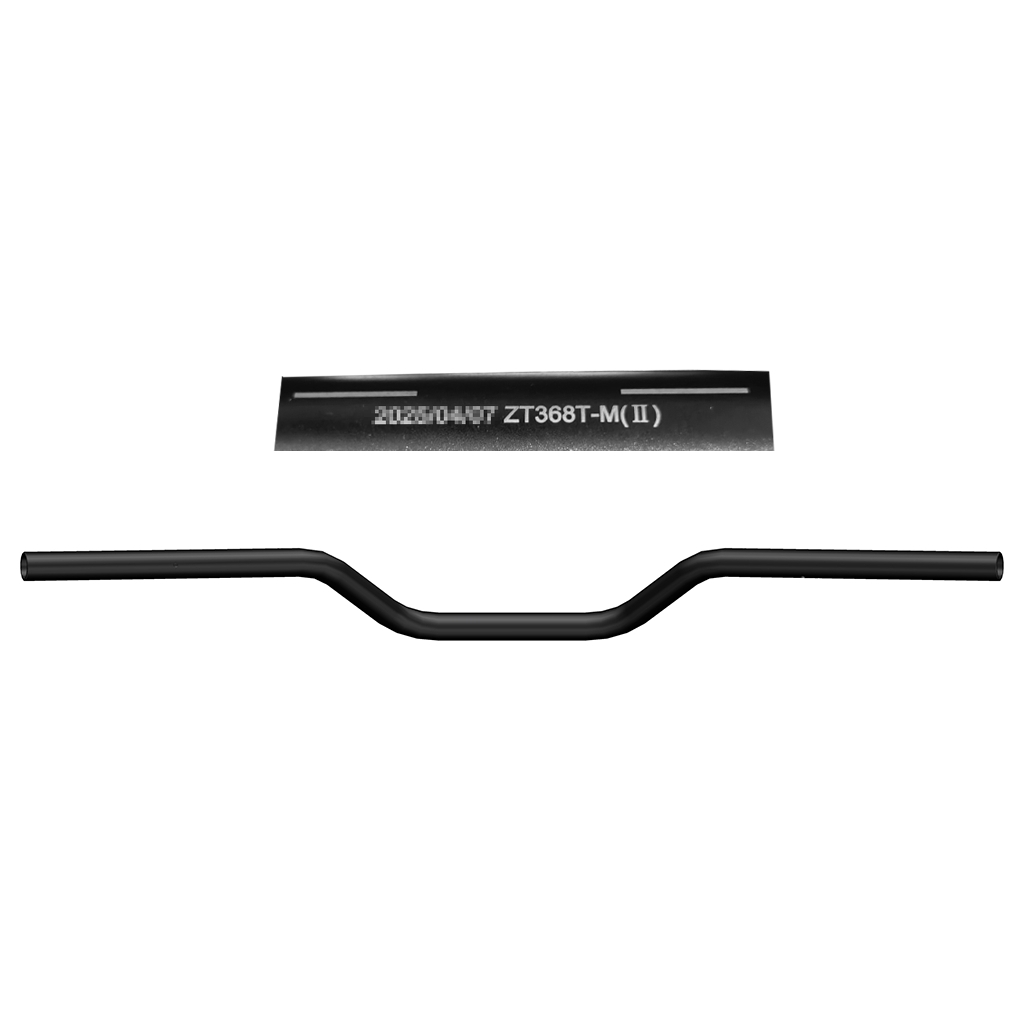

10. ZT368T-M Handlebar (Frosted Black/Ⅱ)
|
|
|
|
|
|
|
|

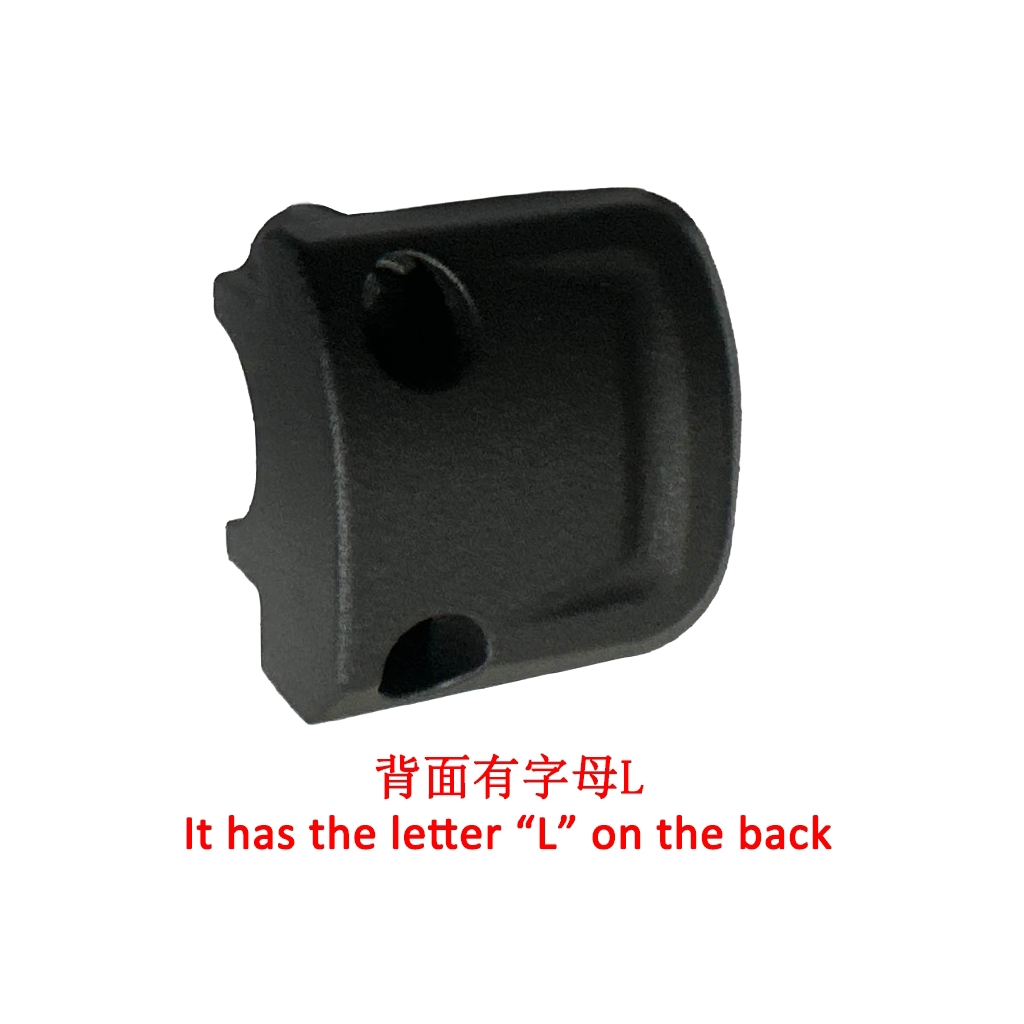

11. ZT368T-E Left Handlebar Half Cover (Matt Black)
|
|
|
|
|
|
|
|
12. Cross ball screw M5×25
|
|
|
|
|
|
|
|

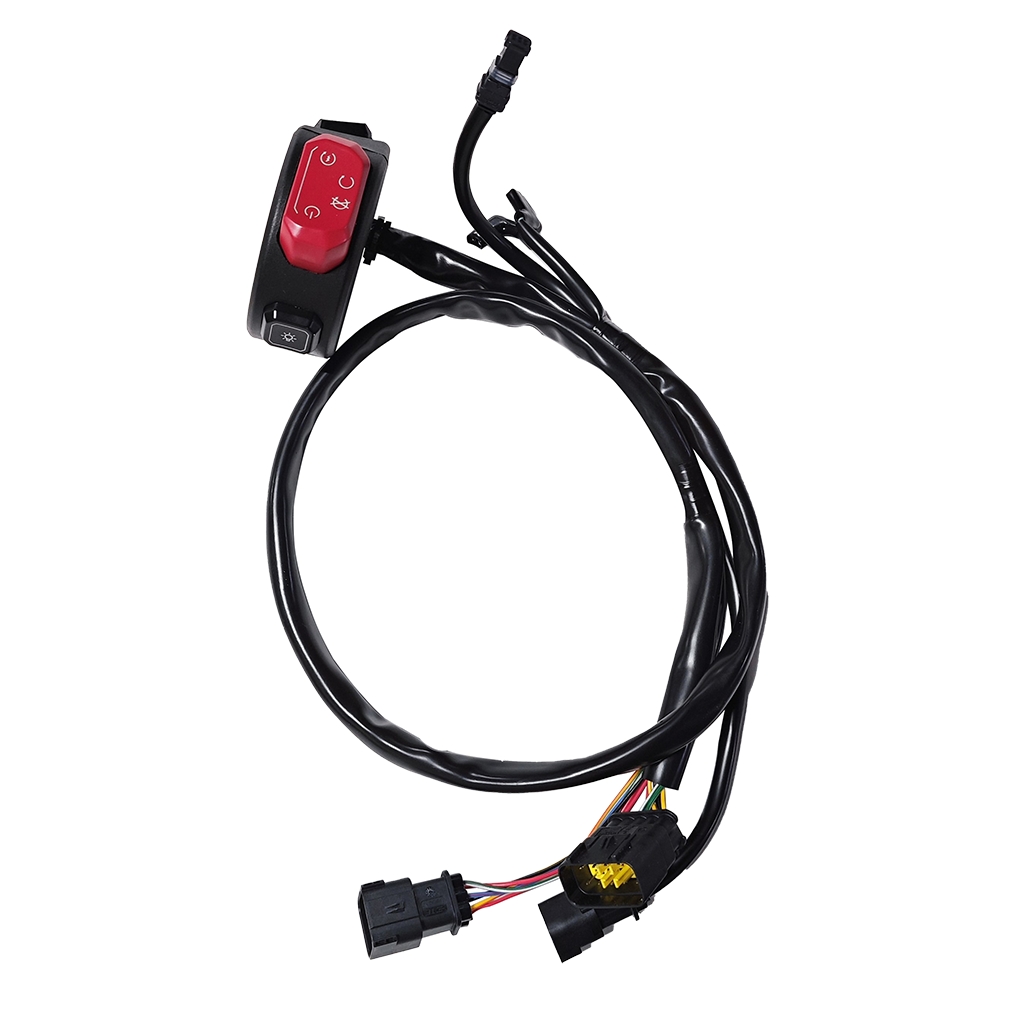

13. ZT368T-M Left handle switch（ETC）
|
|
|
|
|
|
|
|

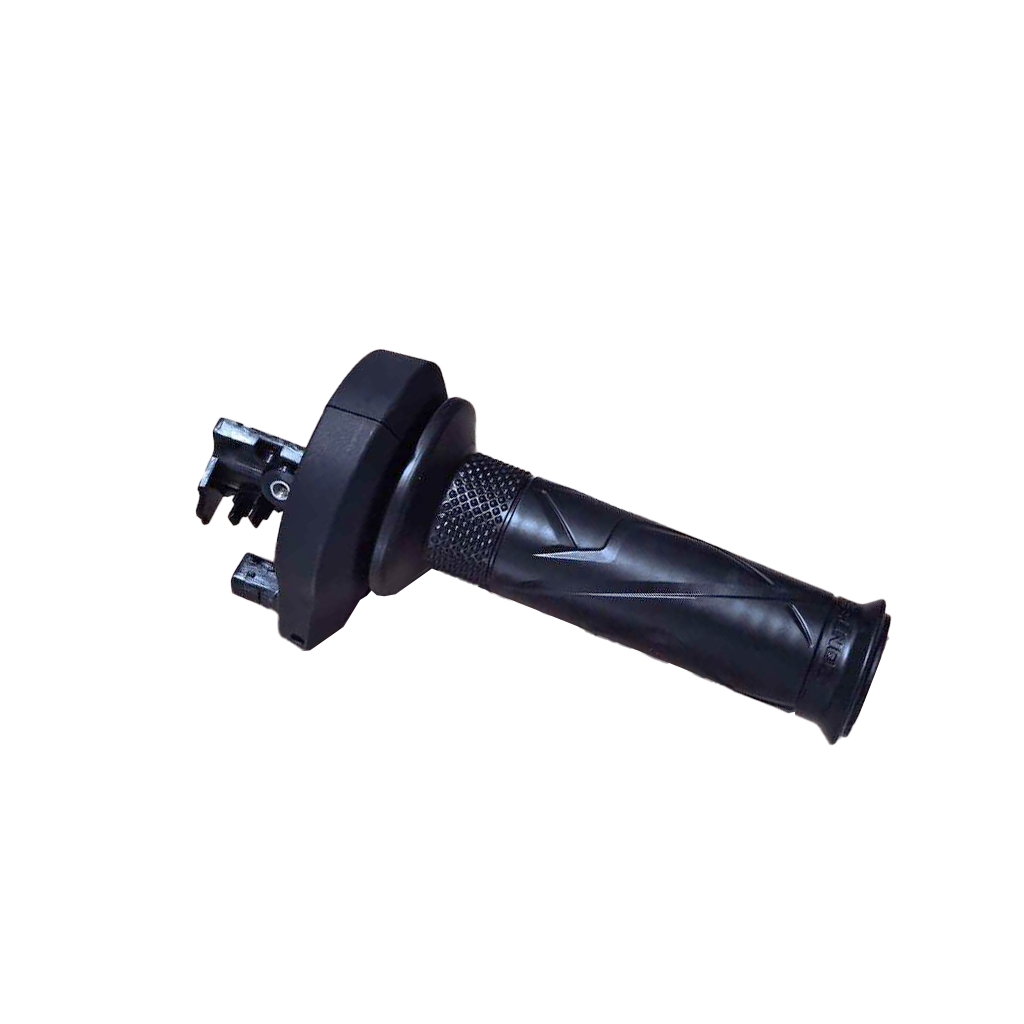

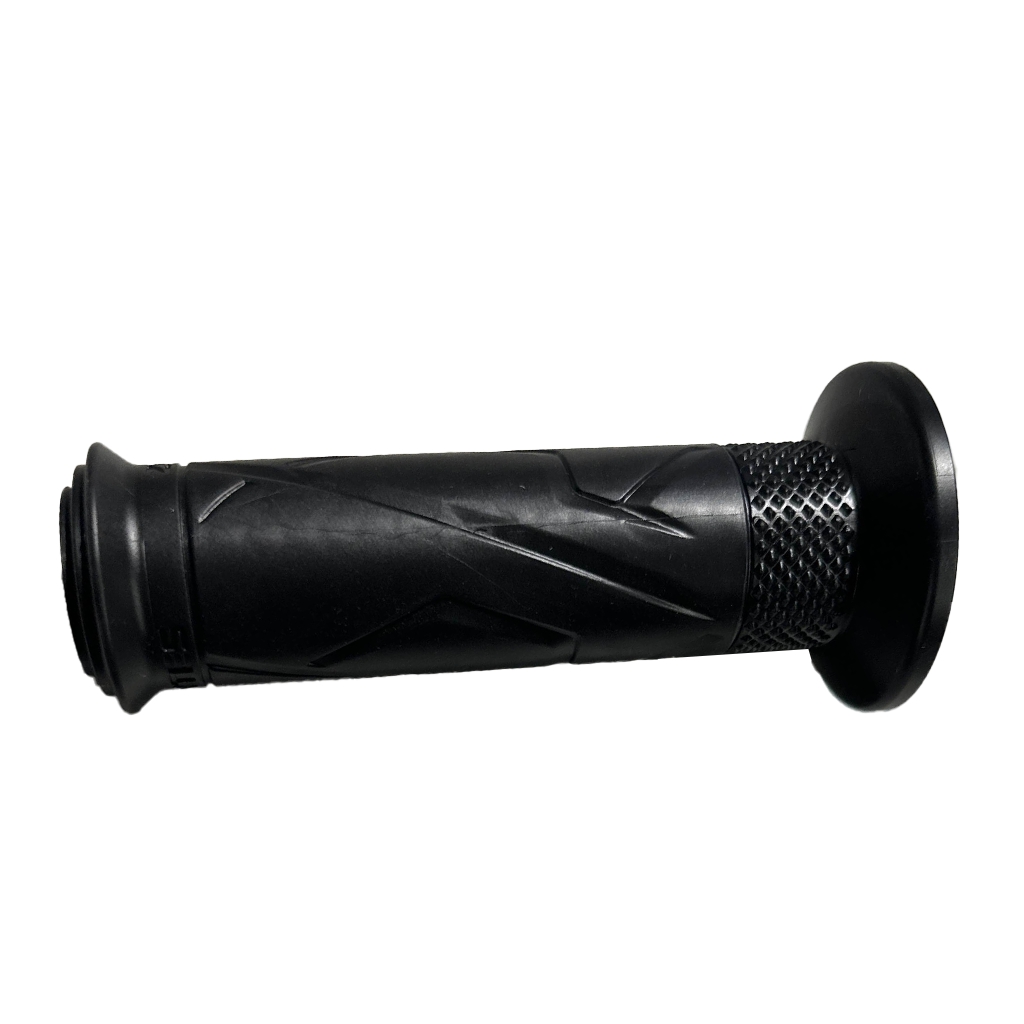

14. ZT368T-D left hand rubber sleeve（ETC）
|
|
|
|
|
|
|
|
15. ZT310T-M direction handle cover middle (extra black/ZONTES copybook/black foam/MES)
|
|
|
|
|
|
|
|
16. ZONTES copybook (electroforming/nickel/35mm)
|
|
|
|
|
|
|
|
17. P-240 foam (width 8mm length 1.2m thickness 6mm)
|
|
|
|
|
|
|
|
18. ZT368T-M direction handle cover lower part
|
|
|
|
|
|
|
|
19. ZT501T-G rear liceness rubber buffer
|
|
|
|
|
|
|
|
20. ZT368T-M upper part of the cover, handle bar
|
|
|
|
|
|
|
|
21. Inner plum blossom shaft shoulder screw M6×14+ φ8.5×2.9 (304 stainless steel)
|
|
|
|
|
|
|
|
22. Plywood M6×11×15(zinc-nickel)
|
|
|
|
|
|
|
|
23. ZT310T-M Balance Block(Rubber Column)
|
|
|
|
|
|
|
|
24. Handle bar tape（100×15×0.4/H）
|
|
|
|
|
|
|
|
