1. ZT703-R right rearview mirror
|
|
|
|
|
|
|
|
2. ZT703-R right rearview mirror rubber plug
|
|
|
|
|
|
|
|
3. ZT703－T Front Brake Direct Push Master Cylinder (NS/Φ17.46)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6. ZT703－R Front Disc Brake Master Cylinder Oil Cup Fixing Bracket (NS)
|
|
|
|
|
|
|
|
7. Non standard internal plum blossom bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
8. ZT703－T Front Disc Brake Half Cover (With Rearview Mirror Hole/Matte Black/NS)
|
|
|
|
|
|
|
|
9. Hexagonal Small Flanged Internal Star Bolt M6×25 (Grade 9.8 / Zinc-Nickel Alloy)
|
|
|
|
|
|
|
|
10. Disc brake pipe bolt M10×1-22
|
|
|
|
|
|
|
|
11. Disc brake pipe copper washer φ 15× φ 10.2 × 1.5
|
|
|
|
|
|
|
|
12. ZT703－R Brake Hose FMC-HU Section (A/NS)
|
|
|
|
|
|
|
|
13. ZT703－R Front Brake Hose Dual-Pass Connector Mounting Bracket
|
|
|
|
|
|
|
|
14. ZT703-RR Forward Brake Hose Clamping Sleeve
|
|
|
|
|
|
|
|
15. Hexagonal small flange internal plum blossom bolt M6 × 16 (9.8/zinc nickel alloy)
|
|
|
|
|
|
|
|
16. ZT703-T brake hosepipe FC-HU(A/NS)
|
|
|
|
|
|
|
|
17. ZT703－T Brake Hose Interconnection Section for Left and Right Calipers (A/NS)
|
|
|
|
|
|
|
|
18. ZT310-R Rear disc brake pipe clamp
|
|
|
|
|
|
|
|
19. Non standard internal plum blossom bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
20. Double Hole Disc Brake Oil Pipe Bolt M10×1.25×35
|
|
|
|
|
|
|
|
21. Single Hole Disc Brake Oil Pipe Bolt M10×1.25×22
|
|
|
|
|
|
|
|
22. ZT703－T Front Left Radial Caliper (NS/Φ27)
|
|
|
|
|
|
|
|
23. ZT703－T Front Right Radial Caliper (NS/Φ27)
|
|
|
|
|
|
|
|
24. Disc brake bleeder screw M6
|
|
|
|
|
|
|
|
25. Caliper bleeder screw rubber cap
|
|
|
|
|
|
|
|
26. GB70.1 M10×1.5×50-32 (Grade 10.9/Eco-friendly Color)
|
|
|
|
|
|
|
|
27. Wheel speed sensor(A)
|
|
|
|
|
|
|
|
28. Wheel speed sensor clamp
|
|
|
|
|
|
|
|
29. Hexagonal Small Flanged Internal Star Bolt M6×12 (Grade 9.8 / Zinc-Nickel Alloy)
|
|
|
|
|
|
|
|
30. ZT703－RR Front Brake Hose Directional Upper Bracket
|
|
|
|
|
|
|
|
31. ZT703－RR Front Brake Hose Directional Lower Bracket
|
|
|
|
|
|
|
|
32. ZT703-RR Radiator Fan Plug Fixed Bracket
|
|
|
|
|
|
|
|
33. ZT703-F double-hole pipe clamp (Φ 10)
|
|
|
|
|
|
|
|
34. Disc brake oil pipe hexagon head bolt M10 × 1 × 20
|
|
|
|
|
|
|
|
35. ZT703-RR brake pipe RC-HU（A/JL）
|
|
|
|
|
|
|
|
36. ZT703-T brake hosepipe RMC-HU(A/JL)
|
|
|
|
|
|
|
|
37. Non standard plum blossom groove with column pan head bolt M8 × 1.25 × 40- 25 (grade 10.9)
|
|
|
|
|
|
|
|
38. Non standard plum blossom groove with column pan head bolt M8 × 1.25 × 20 (grade 10.9)
|
|
|
|
|
|
|
|
39. ZT703－RR Hydraulic Control Unit Mounting Cylinder Link
|
|
|
|
|
|
|
|
40. ZT250-S flanging sleeve(φ6.4×φ9×6＋φ20×2)
|
|
|
|
|
|
|
|
41. ZT250-S Flanging bushing buffer
|
|
|
|
|
|
|
|
42. ZT703－RR Hydraulic Control Unit Mounting Bracket (A)
|
|
|
|
|
|
|
|
43. ZT703－RR Rear Disc Brake Master Cylinder Reservoir Mounting Bracket (JL)
|
|
|
|
|
|
|
|
44. ZT703－T Rear Brake Master Cylinder (JL)
|
|
|
|
|
|
|
|
45. Wheel Speed Sensor (Cable Length L=800/Angled Head)
|
|
|
|
|
|
|
|
46. ZT703－RR Rear Floating Caliper Assembly (JL)
|
|
|
|
|
|
|
|
47. ZT703-T Front Disc Brake Pad (TT2517HH)
|
|
|
|
|
|
|
|
48. ZT703-F rear disc brake pad (TFT101)
|
|
|
|
|
|
|
|

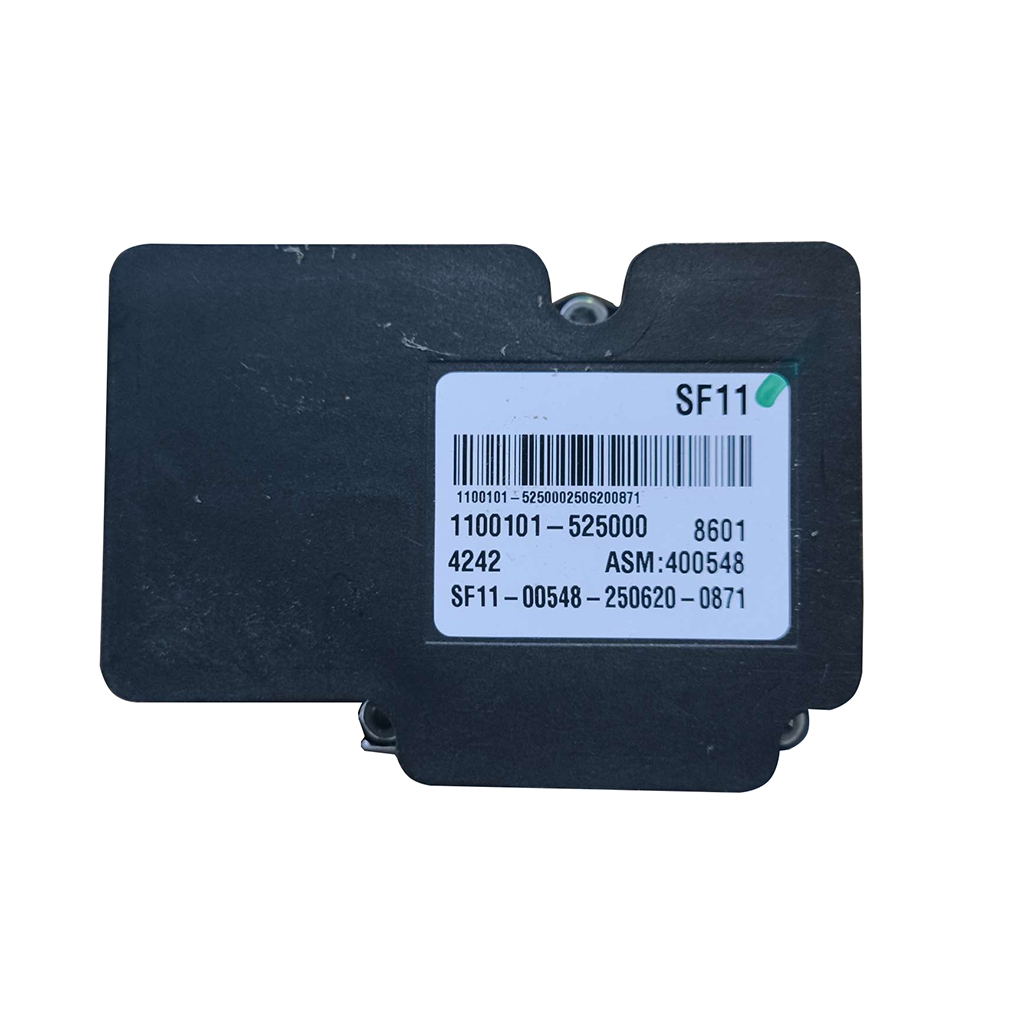

49. ZT703-R ABS Hydraulic Control Unit (A/wet type)
|
|
|
|
|
|
|
|
50. Fully synthetic brake oil DOT4 (G/800g/bottle)
|
|
|
|
|
|
|
|
