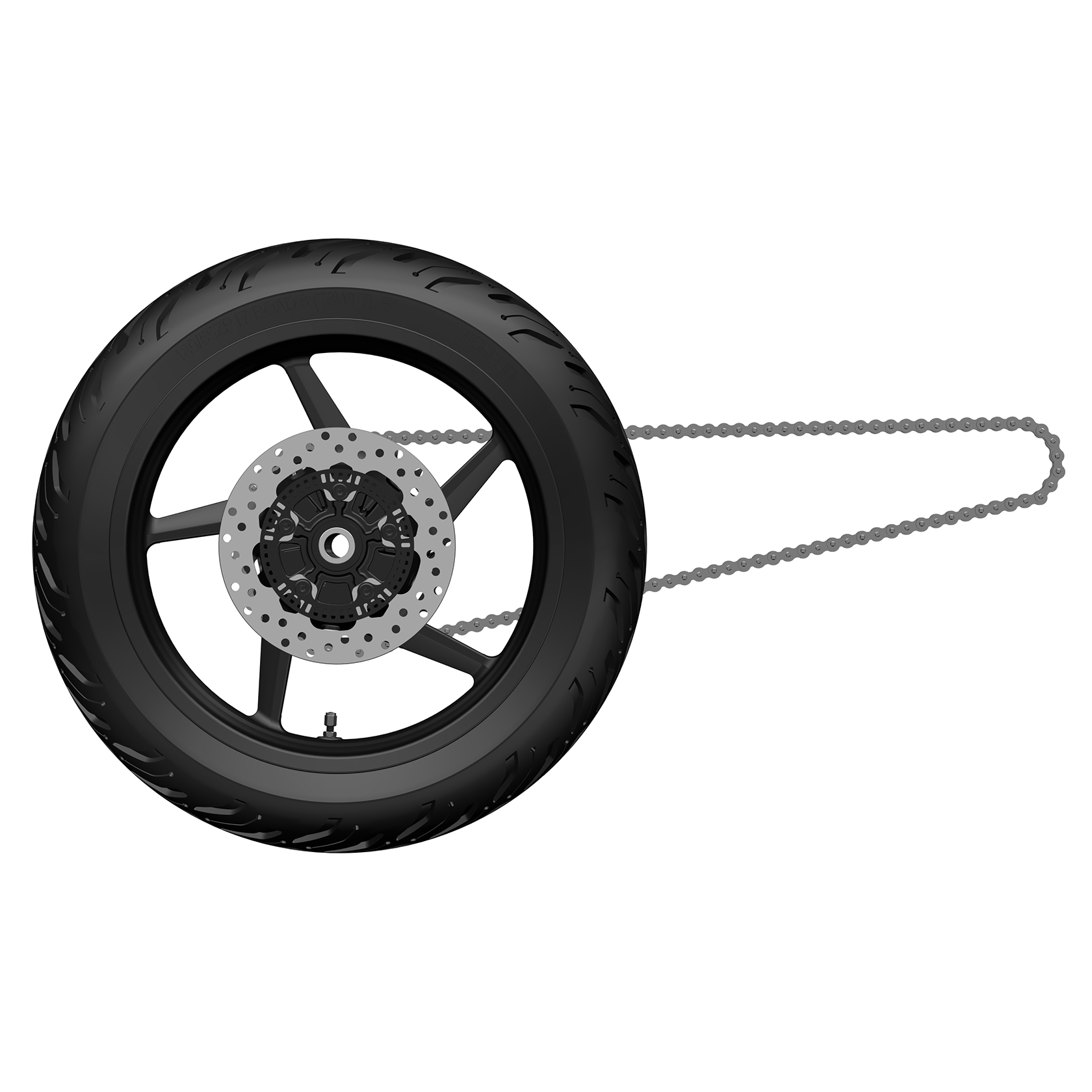

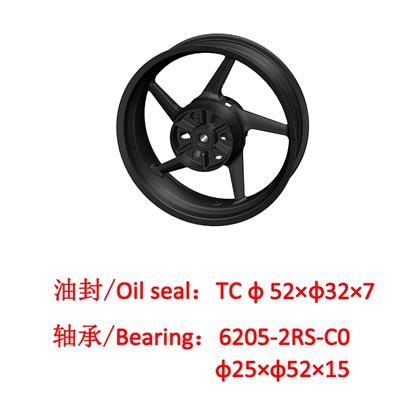

1. ZT703－T Rear Aluminum Wheel (MT5.5×17/Black/Sparkling Blue Decal)
|
|
|
|
|
|
|
|
2. GB276 deep groove ball bearing 6205-2RS-C0
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4. 180/55ZR17 ROAD 6 (73W) TL E4
|
|
|
|
|
|
|
|
5. ZT703－RR Sprocket Carrier (II)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7. GB276-6006-2RS/P5C3 deep groove ball bearing
|
|
|
|
|
|
|
|
8. GB893.1 Retaining Ring for Hole φ55
|
|
|
|
|
|
|
|
9. ZT703-RR Single Bearing Sprocket Holder Shaft Sleeve (II)
|
|
|
|
|
|
|
|
10. ZT703－RR Sprocket Carrier Cushion Rubber (II)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
12. GB6187.1 M8(White Zinc)
|
|
|
|
|
|
|
|

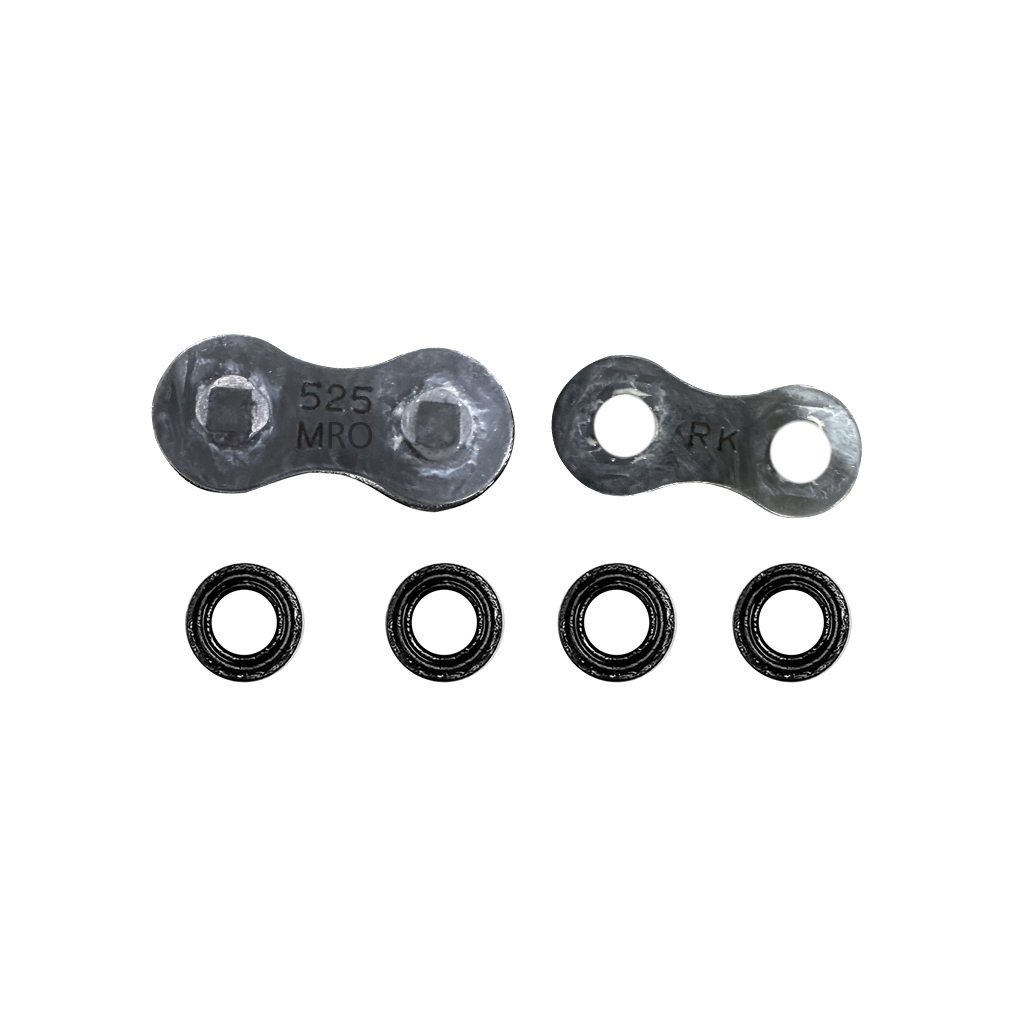

13. ZT703-T 120-section chain (525 oil seal chain/open type)
|
|
|
|
|
|
|
|
14. KD200-C rear wheel induction ring gear (50 teeth)
|
|
|
|
|
|
|
|
15. Non-standard plum blossom groove shoulder bolt M8 × 25-φ10 × 6 (grade 10.9/zinc nickel black)
|
|
|
|
|
|
|
|
16. ZT703-T rear brake disc (240×4.5)
|
|
|
|
|
|
|
|
17. ZT350 tire pressure sensor N (M8 straight head)
|
|
|
|
|
|
|
|
18. ZT703-RR Rear Wheel Right Axle Sleeve (II) (φ25×φ32×15.5 - Shoulder φ37)
|
|
|
|
|
|
|
|
19. ZT370MU rubber-covered output sprocket subassembly-16T
|
|
|
|
|
|
|
|
20. M22×1.0 Protruding Hexagon Lock Nut (Grade 8/Environmental Color Zinc)
|
|
|
|
|
|
|
|
21. φ22.4×φ35.5×4.5×4 Anti-loose washer (Dacromet)
|
|
|
|
|
|
|
|
22. ZT350 independent valve (M8 straight head)
|
|
|
|
|
|
|
|
23. ZT703-RR Single Bearing Rear Wheel Left Axle Sleeve (II) (φ25×φ35×15.2, Shoulder φ42)
|
|
|
|
|
|
|
|
