1. Wheel speed sensor clamp
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3. Non standard internal plum blossom bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
4. ZT310-R Rear disc brake pipe clamp
|
|
|
|
|
|
|
|
5. Non standard internal plum blossom bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
6. Hexagonal small flange internal plum blossom bolt M6 × 22(9.8/zinc nickel alloy)
|
|
|
|
|
|
|
|
7. ZT350T-D Front Brake Hose Bracket
|
|
|
|
|
|
|
|
8. GB70.1 Hexagon socket head bolt M10×1.5×60 (grade 12.9 / environmental protection color Zinc)
|
|
|
|
|
|
|
|
9. ZT368T-K Disc Brake Front Oil Pipe Clamp (Inverted Shock Absorber)
|
|
|
|
|
|
|
|
10. ZT250-S flanging sleeve(φ6.4×φ9×6＋φ20×2)
|
|
|
|
|
|
|
|
11. ZT250-S Flanging bushing buffer
|
|
|
|
|
|
|
|

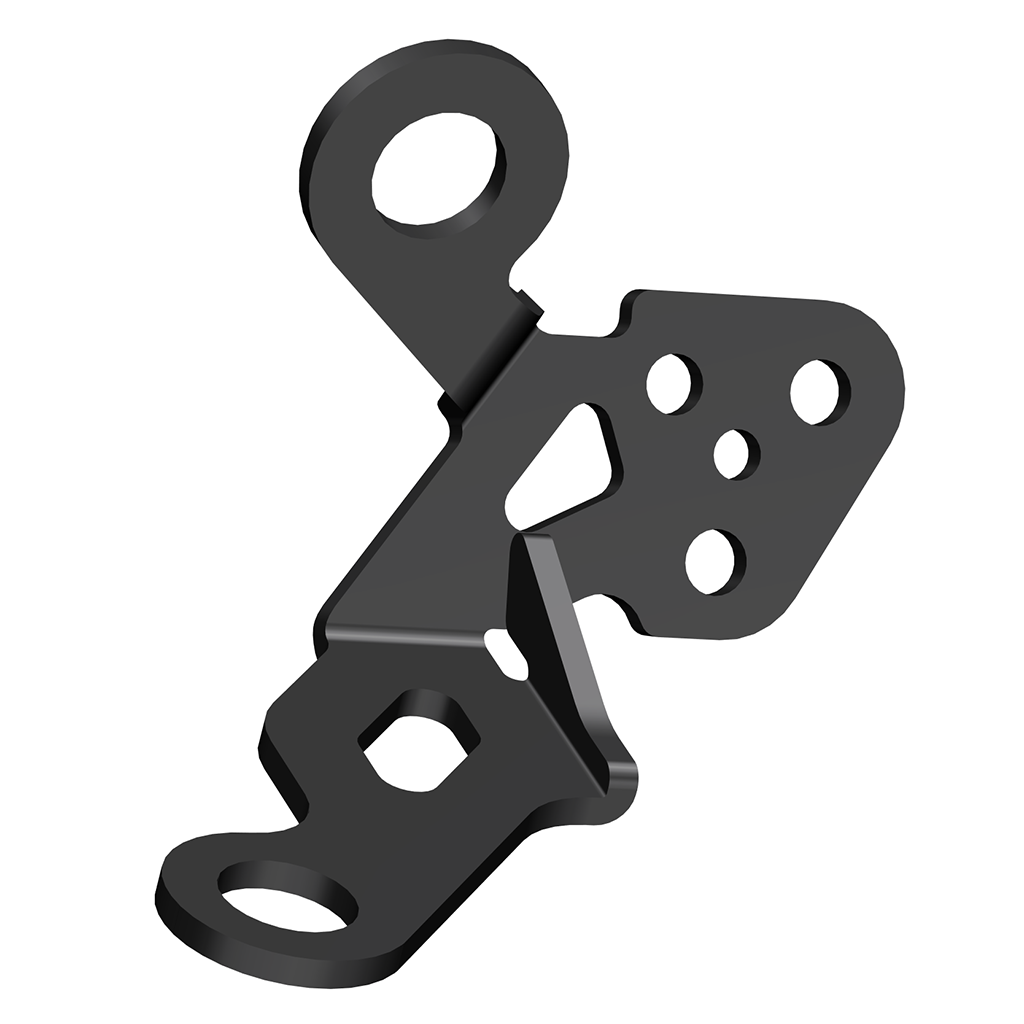

12. ZT368T-D Hydraulic Control Unit Bracket (C)
|
|
|
|
|
|
|
|
13. ZT350T-D front and rear oil inlet pipe bracket
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15. Hexagonal Small Flanged Internal Star Bolt M6×12 (Grade 9.8 / Zinc-Nickel Alloy)
|
|
|
|
|
|
|
|
16. ZT310 rubber buckle (50mm)
|
|
|
|
|
|
|
|
17. Hexagonal Flanged Internal Star Bolt M8×30 (Grade 10.9 / Eco-friendly Color Zinc)
|
|
|
|
|
|
|
|

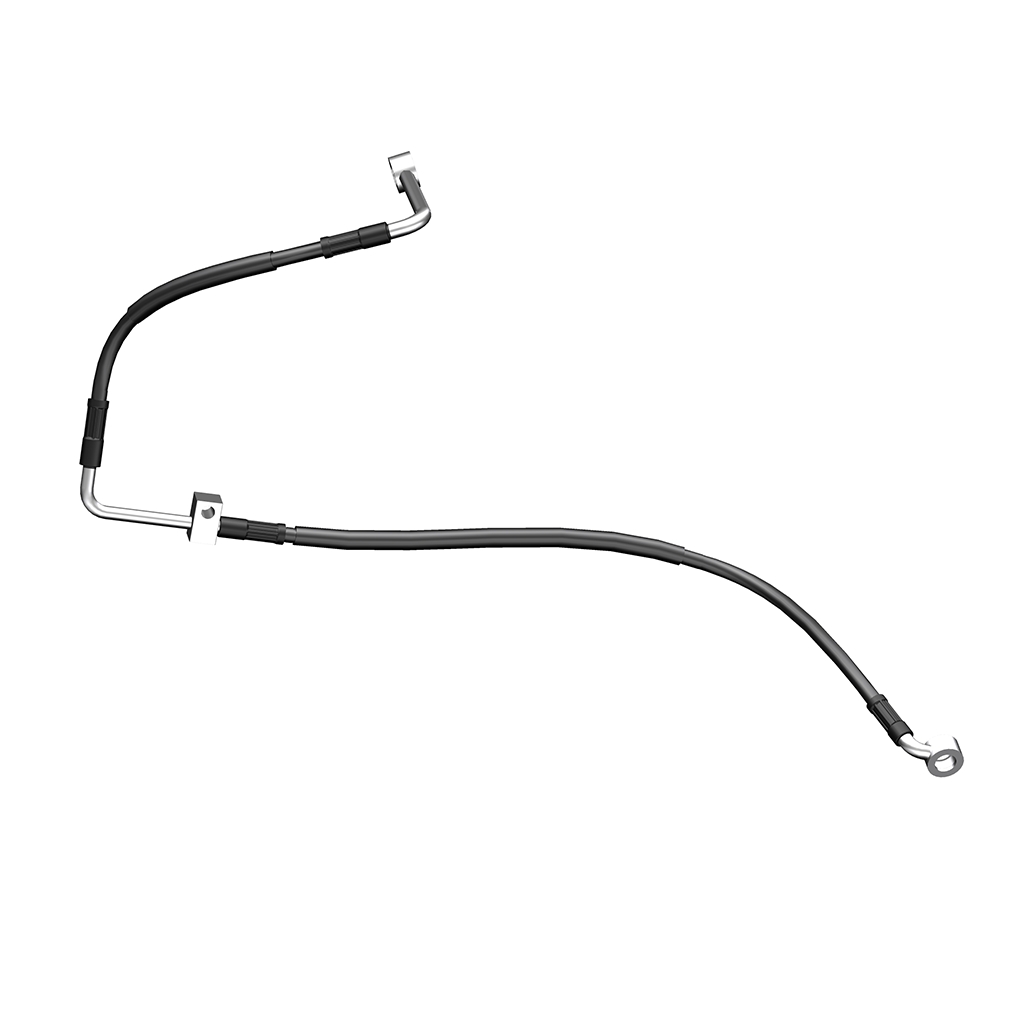

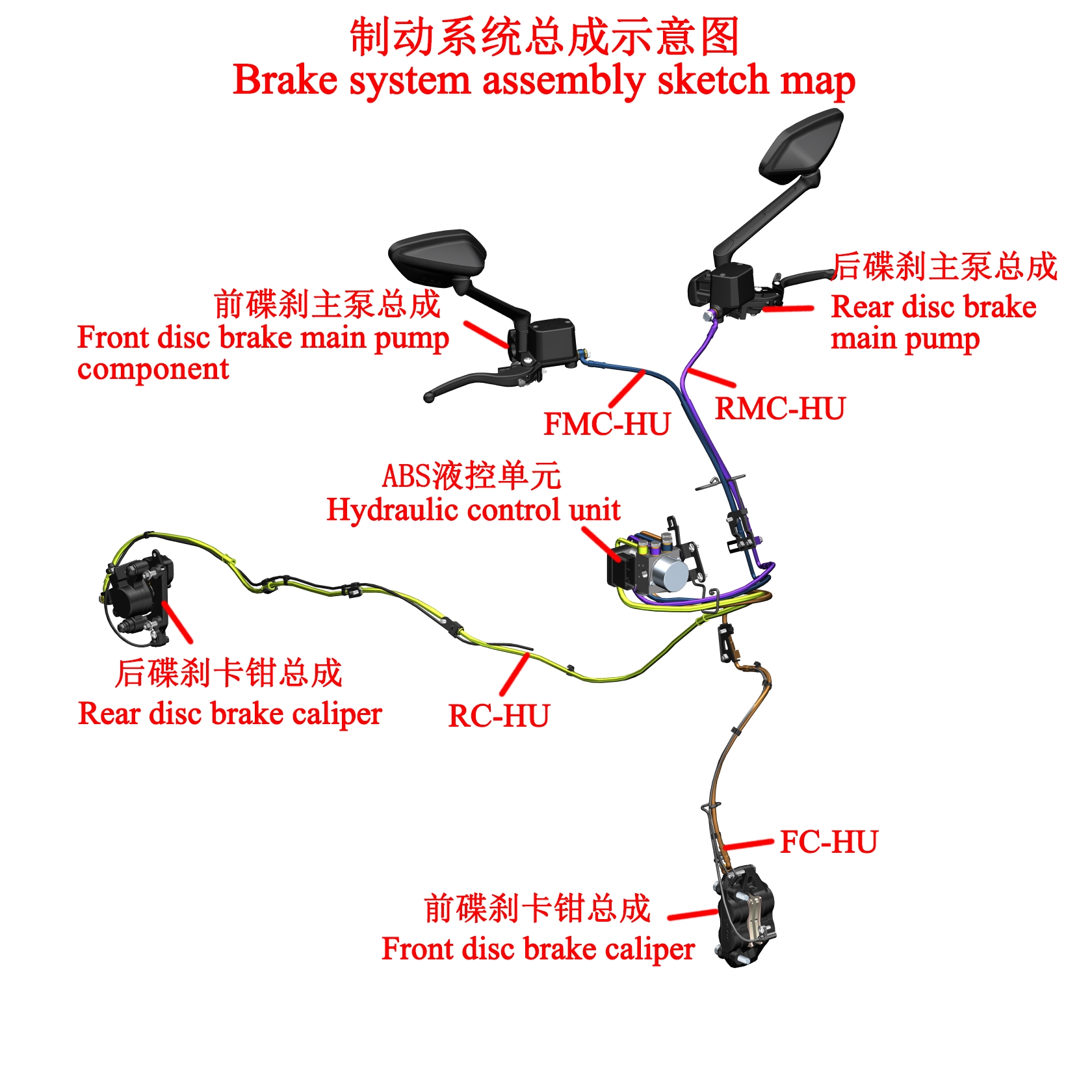

18. ZT368T-D Brake Hose RMC-HU Section (C)
|
|
|
|
|
|
|
|

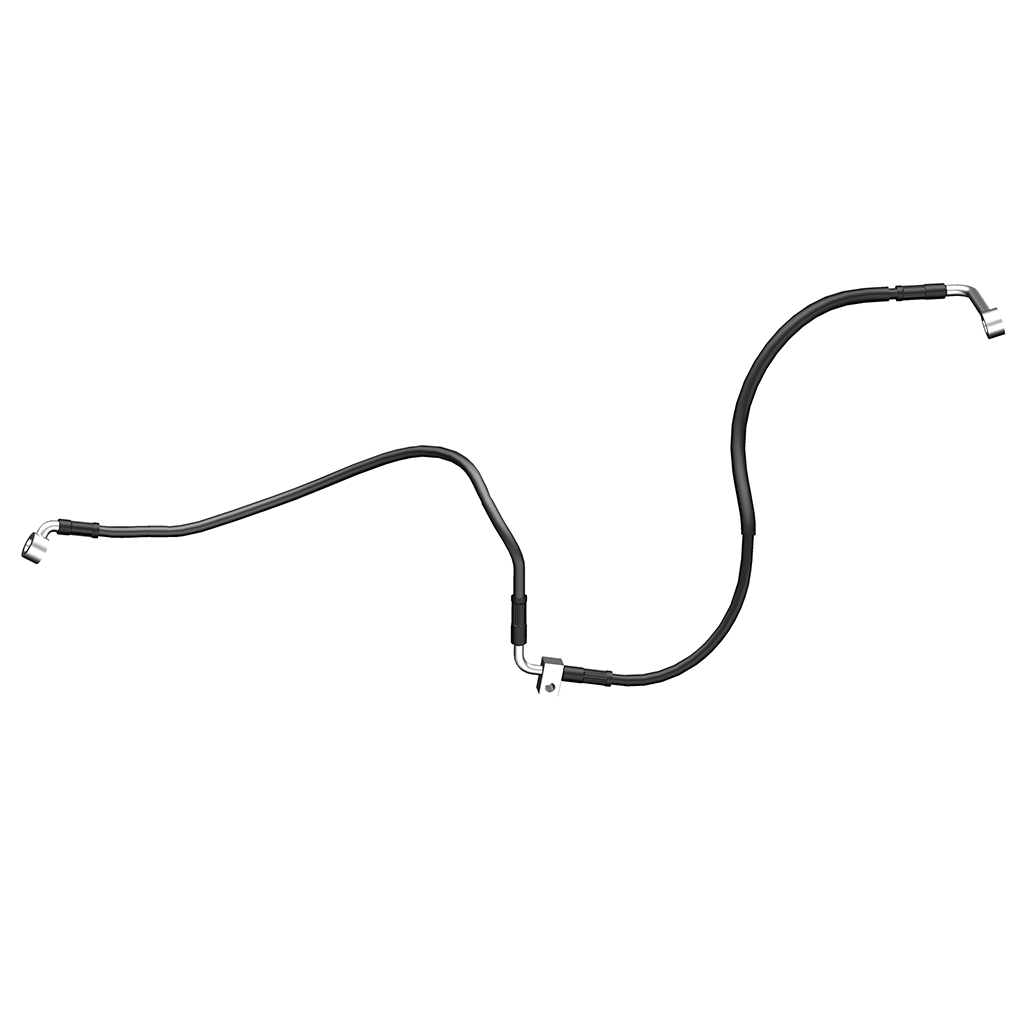

19. ZT368T-D Brake Hose FMC-HU Section (C)
|
|
|
|
|
|
|
|
20. ZT368T-D Brake Hose FC-HU Section (C)
|
|
|
|
|
|
|
|
21. ZT368T-D Brake Hose RC-HU Section (C)
|
|
|
|
|
|
|
|
22. Disc brake pipe copper washer φ 15× φ 10.2 × 1.5
|
|
|
|
|
|
|
|
23. Disc brake oil pipe hexagon head bolt M10 × 1 × 20
|
|
|
|
|
|
|
|
24. ZT368T-M ABS hydraulic control unit (C/ETC/wet type)
|
|
|
|
|
|
|
|
25. ZT368T-D left rearview mirror（Ⅱ）
|
|
|
|
|
|
|
|
26. 0 level fire-retardant belting (black2.5×100)
|
|
|
|
|
|
|
|
27. ZT368T-E Left Handlebar Half Cover (Matt Black)
|
|
|
|
|
|
|
|
28. GB70.1M6×30(stainless steel)
|
|
|
|
|
|
|
|
29. ZT368T-E Right Handlebar Half Cover (Matt Black)
|
|
|
|
|
|
|
|
30. ZT368T-D right rearview mirror（Ⅱ）
|
|
|
|
|
|
|
|
31. ZT368T-D right rearview mirror rubber plug
|
|
|
|
|
|
|
|
32. ZT368T-D left rearview mirror rubber plug
|
|
|
|
|
|
|
|
33. ZT368T-G rear disc brake main pump assembly (φ12.7/matte black/Ⅱ)
|
|
|
|
|
|
|
|

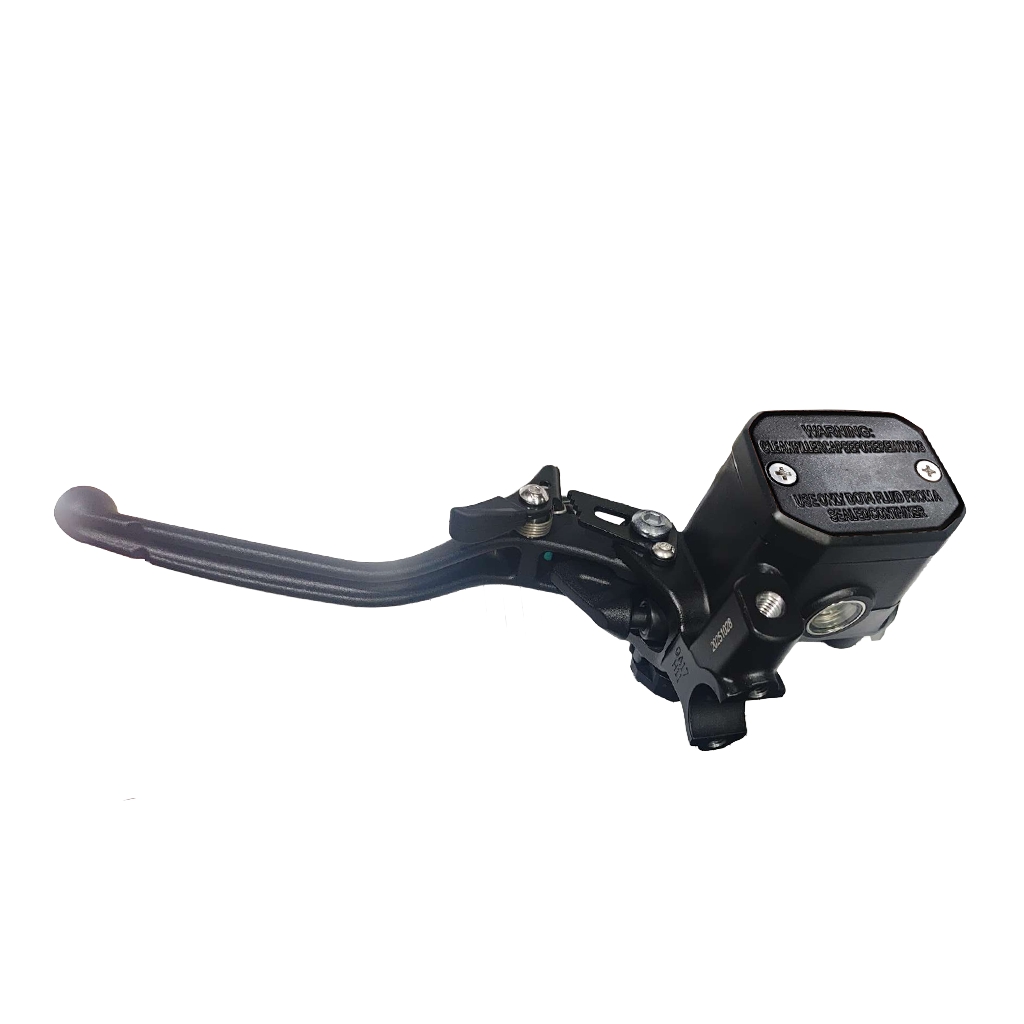

34. ZT368T-G front disc brake main pump assembly (φ12.7/matte black)
|
|
|
|
|
|
|
|
35. Disc brake pipe bolt M10×1-22
|
|
|
|
|
|
|
|
36. Caliper bleeder screw rubber cap
|
|
|
|
|
|
|
|
37. Disc brake bleeder screw M6
|
|
|
|
|
|
|
|
38. Disc brake oil pipe bolts M10×1×22 (with exhaust threaded holes)
|
|
|
|
|
|
|
|
39. ZT703-F front disc brake pads (TFT101)
|
|
|
|
|
|
|
|
40. ZT703-F integrated front right radial caliper (JL)
|
|
|
|
|
|
|
|
41. ZT310T-M rear disc brake caliper brake pad pin shaft anti-loose pin
|
|
|
|
|
|
|
|
42. ZT310T-M rear disc brake caliper brake pad pin shaft
|
|
|
|
|
|
|
|
43. ZT250-S rear disk brake pads (CM102)
|
|
|
|
|
|
|
|
44. ZT310T-M rear disc brake caliper elastic card
|
|
|
|
|
|
|
|

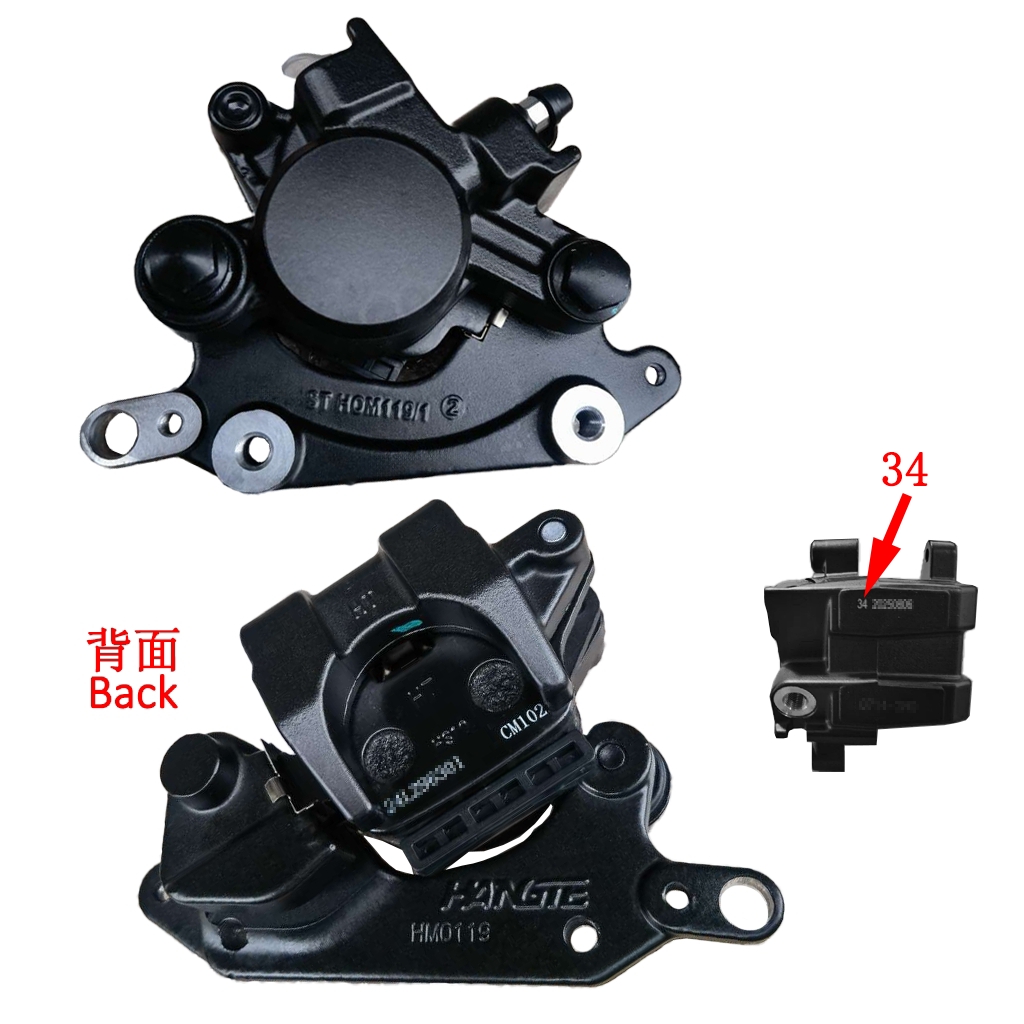

45. ZT368T-M Rear Disc Brake Caliper Assembly (Matte Black / Φ34)
|
|
|
|
|
|
|
|
46. ZT368T-G Front Brake Handle (φ14/dumb black/Ⅱ)
|
|
|
|
|
|
|
|
47. ZT368T-D front brake switch
|
|
|
|
|
|
|
|
48. GB/T 819 M4×14 (304 stainless steel)
|
|
|
|
|
|
|
|
49. ZT368T-D rear brake switch
|
|
|
|
|
|
|
|
50. ZT368T-G rear brake handle (φ12.7/dumb black/Ⅱ)
|
|
|
|
|
|
|
|
51. Hexagonal small flange internal plum blossom bolt M6 × 16 (9.8/zinc nickel alloy)
|
|
|
|
|
|
|
|
