1. Non standard plum blossom groove with column pan head bolt M10 × 1.25 × 30 (grade 10.9)
|
|
|
|
|
|
|
|
2. Non-standard ball head boltsM6×8 (Zinc Nickel Alloy)
|
|
|
|
|
|
|
|
3. Non standard internal plum blossom bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5. ZT703-F front left foot pedal
|
|
|
|
|
|
|
|
6. Non standard plum blossom groove with column pan head bolt M8 × 1.25 × 25 (grade 10.9)
|
|
|
|
|
|
|
|
7. ZT350-R shift lever rubber sleeve
|
|
|
|
|
|
|
|
8. ZT703-F shift lever folding rocker arm (with rubber sleeve)
|
|
|
|
|
|
|
|
9. ZT703-F shift lever rubber sleeve rocker arm torsional spring
|
|
|
|
|
|
|
|
10. ZT310-T storage box cover rotating shaft limit circlip
|
|
|
|
|
|
|
|
11. ZT310-VX storage box switch pin
|
|
|
|
|
|
|
|
12. Miniature rod end ball bearing SAJK6C
|
|
|
|
|
|
|
|
13. GB6170M6 (black zinc)
|
|
|
|
|
|
|
|
14. Non standard internal plum blossom bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
15. Hexagonal small flange internal plum blossom bolt M6 × 22(9.8/zinc nickel alloy)
|
|
|
|
|
|
|
|
16. ZT703-F adjusting screw of gear shift lever
|
|
|
|
|
|
|
|
17. GB6170M6-LH (black zinc)
|
|
|
|
|
|
|
|

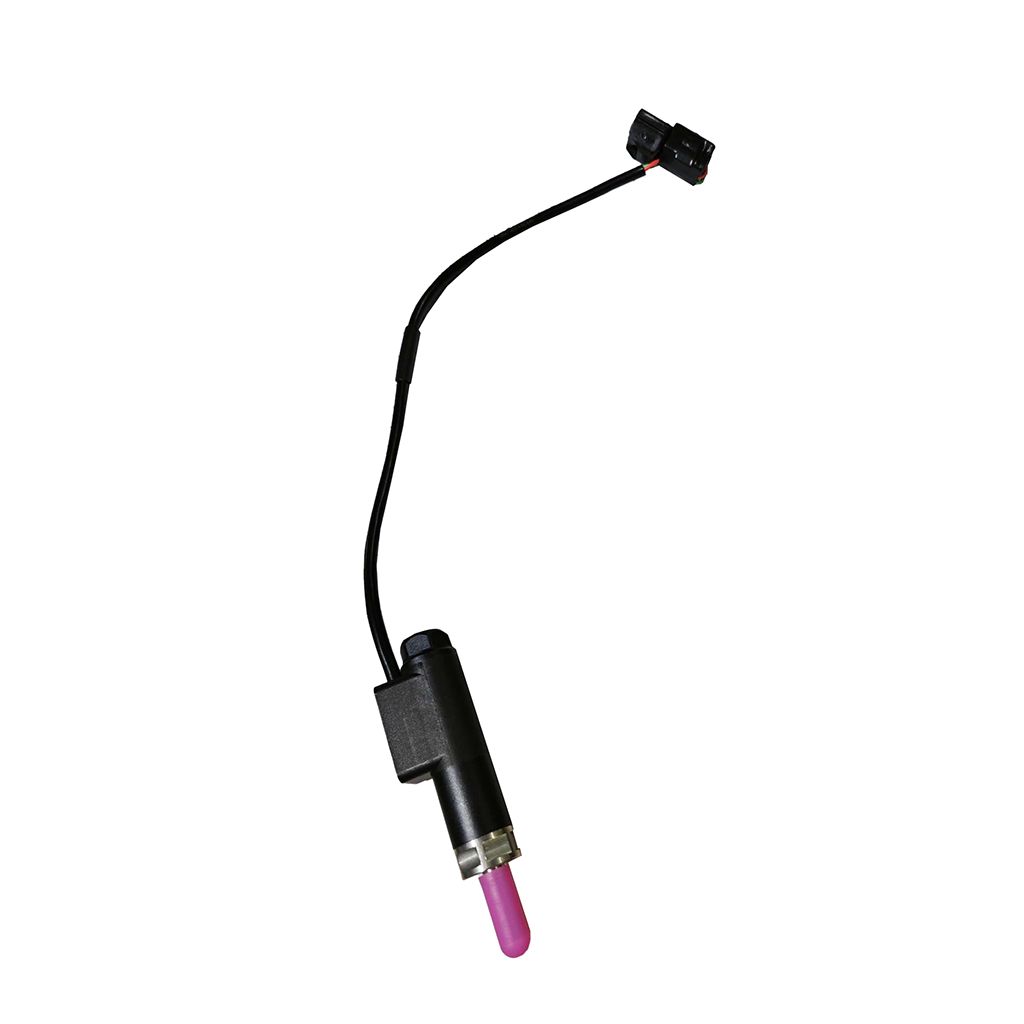

18. ZT703 Rod-Type Quick Shift Sensor (ETC)
|
|
|
|
|
|
|
|
19. Miniature rod end ball bearing SALJK6C
|
|
|
|
|
|
|
|
20. GB6177.1M6 (environmental color)
|
|
|
|
|
|
|
|
21. ZT703-F shift lever spline rocker arm
|
|
|
|
|
|
|
|

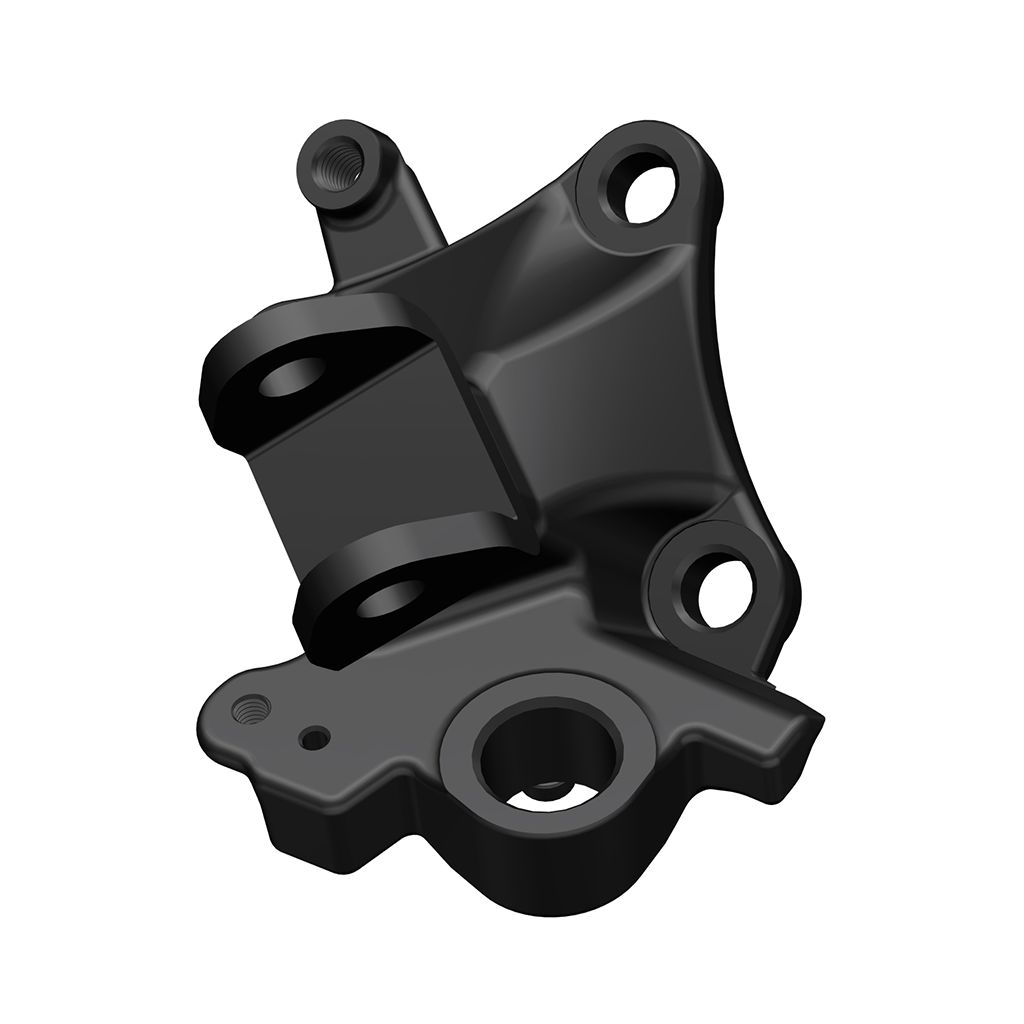

22. ZT703-F front left foot pedal bracket (Ⅱ)
|
|
|
|
|
|
|
|

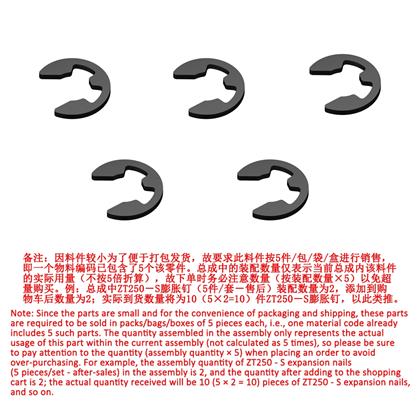

23. ZT250-S Pedal circlip
|
|
|
|
|
|
|
|
24. ZT703-F front pedal rubber cover
|
|
|
|
|
|
|
|
25. ZT703-F front pedal rubber cover fixing piece
|
|
|
|
|
|
|
|
26. ZT250-S front left foot pedal torsional spring
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
28. ZT703-F shift lever rocker arm (lucluding bearings)
|
|
|
|
|
|
|
|
29. ZT310-R pedal pin (total length 43mm)
|
|
|
|
|
|
|
|

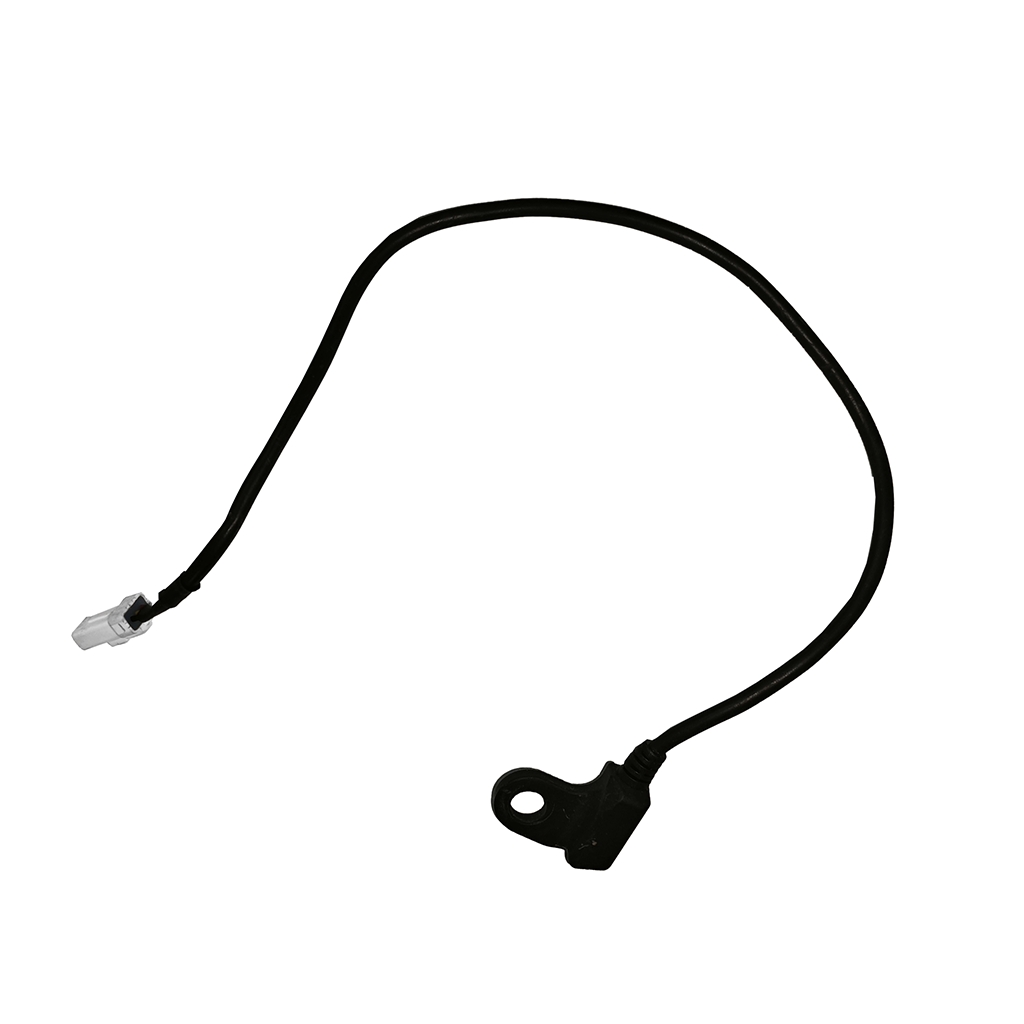

30. ZT703 hall type side stand flameout switch
|
|
|
|
|
|
|
|
31. Inner plum blossom shaft shoulder screw M5×13-diameter 7×3 (304 stainless steel)
|
|
|
|
|
|
|
|
32. Non-standard nut M10×1.5(Dacromet)
|
|
|
|
|
|
|
|
33. Non-standard bolt M10×1.5×45(with threaded hole)
|
|
|
|
|
|
|
|
34. KD200-C side stand sleeve φ10×φ17×24
|
|
|
|
|
|
|
|
35. ZT703-F Side Bracket (Matte Black/Ⅱ)
|
|
|
|
|
|
|
|

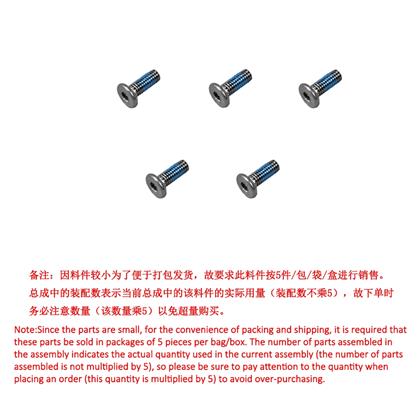

36. Stainless steel 304 screws M3×8
|
|
|
|
|
|
|
|

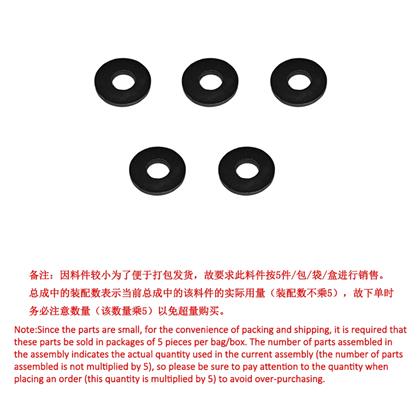

37. B3-03 Side support flameout switch magnetic steel gasket (φ8×φ3.2×1)
|
|
|
|
|
|
|
|
38. B3-03 Hall-type side support flameout switch magnetic steel
|
|
|
|
|
|
|
|
39. ZT703-F side bracket spring
|
|
|
|
|
|
|
|
40. ZT703-F side bracket retractor
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

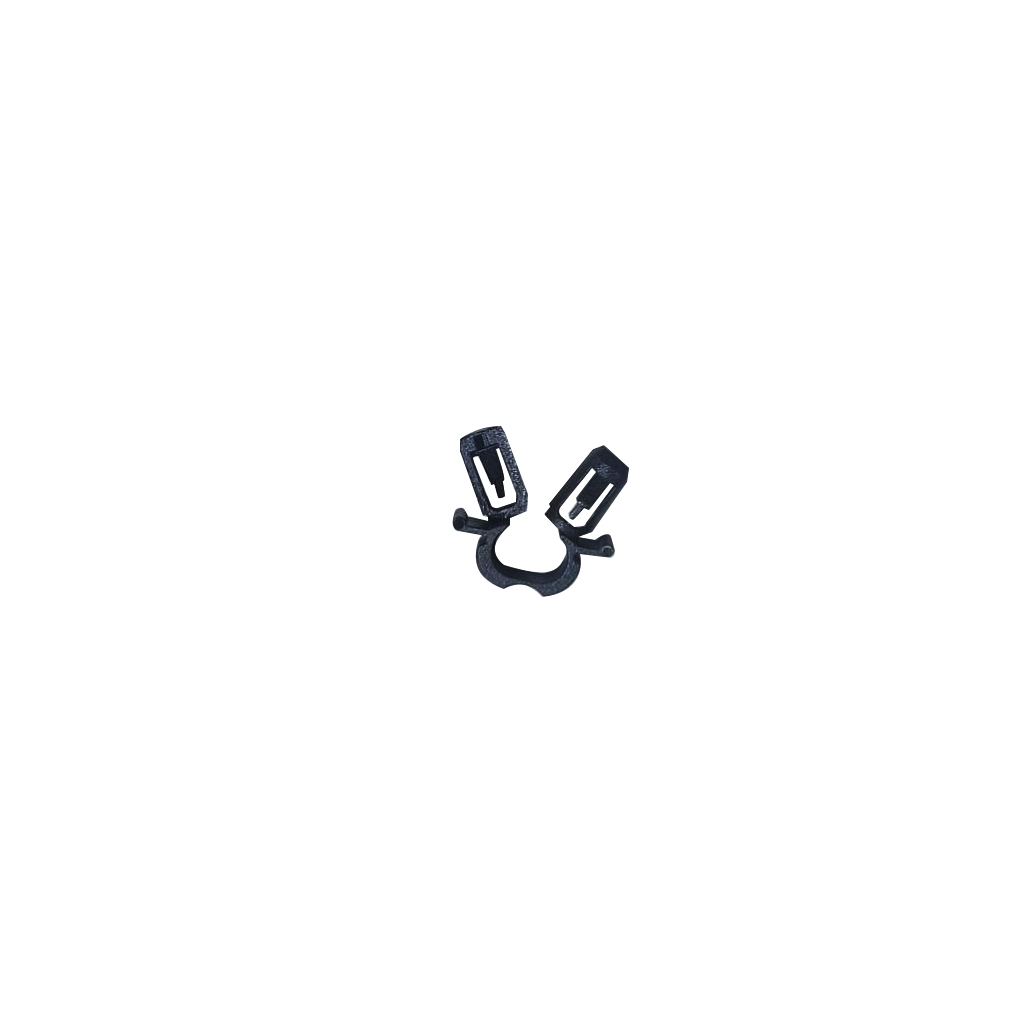

42. ZT703-F flameout switch wire clip
|
|
|
|
|
|
|
|
43. ZT703-T side stand flameout switch clip
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
