1. ZT250-S Expansion nail
|
|
|
|
|
|
|
|
2. Inner plum blossom shaft shoulder screw M6×14+ φ8.5×2.9 (304 stainless steel)
|
|
|
|
|
|
|
|
3. ZT501T-E rear part of windshield lining
|
|
|
|
|
|
|
|
4. ZT368T－E windshield lining front part
|
|
|
|
|
|
|
|
5. Non-standard cross tapping screws ST3.9×12 (Black Zinc)
|
|
|
|
|
|
|
|

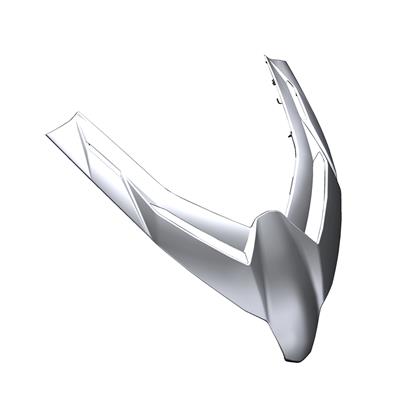

6. ZT368T-E Head Cover Upper Part (Mecha Gray)
|
|
|
|
|
|
|
|

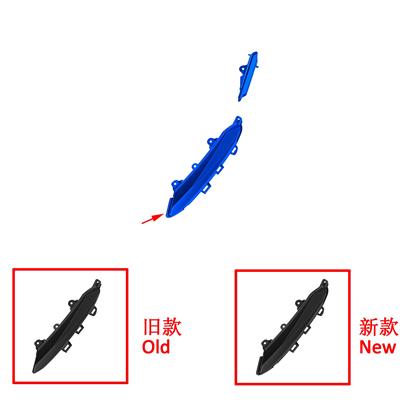

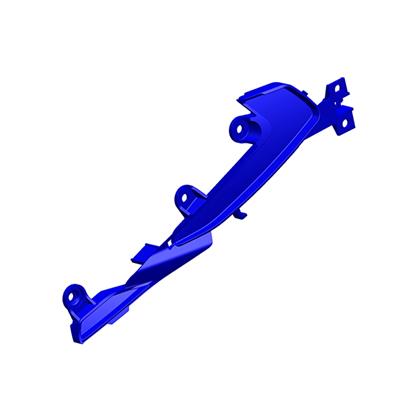

7. ZT368T－E left inner liner of upper part of front cover(blue)
|
|
|
|
|
|
|
|
8. ZT368T-E Headlight upper trim (white and transparent)
|
|
|
|
|
|
|
|

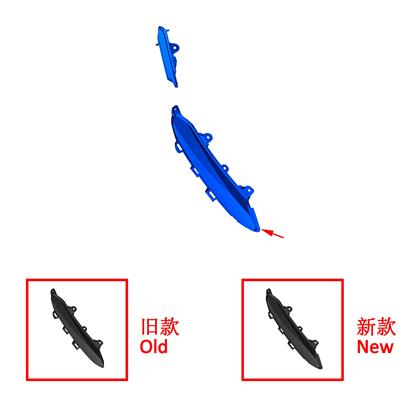

9. ZT368T－E right inner liner of upper part of front cover(blue)
|
|
|
|
|
|
|
|
10. Plywood M6×11×15(zinc-nickel)
|
|
|
|
|
|
|
|
11. ZT350T-E headlight ambient light (RGB-long)
|
|
|
|
|
|
|
|
12. ZT368T-E front ambient light controller (RGB model)
|
|
|
|
|
|
|
|
13. ZT250-S Side cover round rubber
|
|
|
|
|
|
|
|
14. ZT350T-E Ambient light mounting bracket in the middle of the head
|
|
|
|
|
|
|
|
15. Non standard internal plum blossom bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
16. ZT350T-E front ambient light (RGB model-short)
|
|
|
|
|
|
|
|
17. ZT350T － E － A1 Headlamp( B version)
|
|
|
|
|
|
|
|
18. Buffer rubber of flanging bushing (φ8.5×φ14×1)
|
|
|
|
|
|
|
|
19. Flanged bushing φ6.2×φ8.4×3.5＋φ14×1.5
|
|
|
|
|
|
|
|
20. Non standard internal plum blossom bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|

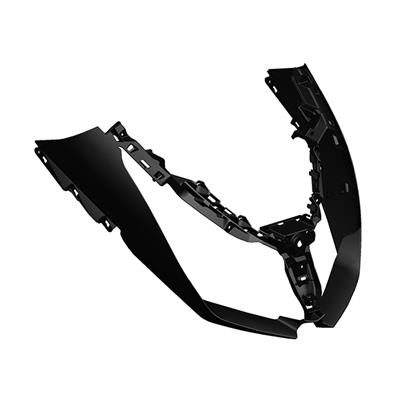

21. ZT350T－E lower part of the hood (Piano Black/after sale)
|
|
|
|
|
|
|
|
22. ZT368T-E front ambient light sheath
|
|
|
|
|
|
|
|
23. Hexagonal small flange internal plum blossom bolt M6 × 22(9.8/zinc nickel alloy)
|
|
|
|
|
|
|
|
24. Hexagonal small flange internal plum blossom bolt M6 × 16 (9.8/zinc nickel alloy)
|
|
|
|
|
|
|
|
25. ZT350T-E headlight mounting bracket
|
|
|
|
|
|
|
|
26. Black foam single side tape(wide1cm/length1m/thin2mm)
|
|
|
|
|
|
|
|

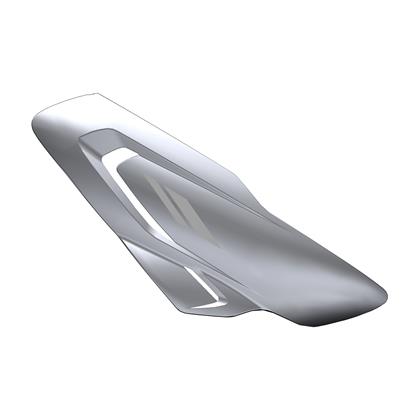

27. ZT368T-E Head Left Side Panel (Mecha Gray/Decal Cool Gray)
|
|
|
|
|
|
|
|
28. ZT368T－E head cover middle scaleboard
|
|
|
|
|
|
|
|
29. ZT368T-E Head Right Side Panel (Mecha Gray/Decal Cool Gray)
|
|
|
|
|
|
|
|

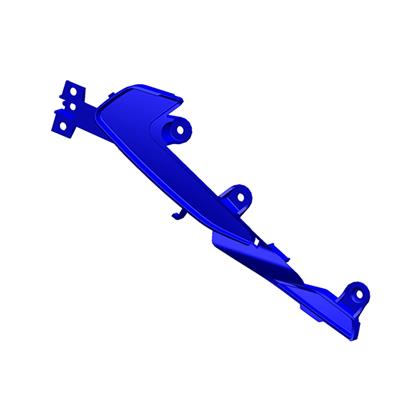

30. ZT368T-E head left panel backing (flash blue)
|
|
|
|
|
|
|
|
31. ZT368T-E head right side plate backing (flash blue)
|
|
|
|
|
|
|
|

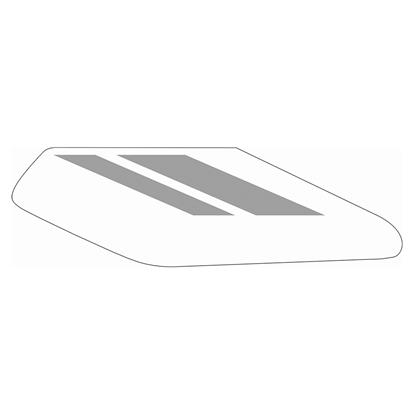

32. ZT368T-E Left side head panel decal (cold gray/polymer/high viscosity)
|
|
|
|
|
|
|
|

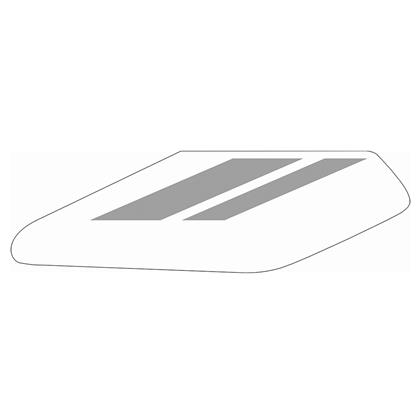

33. ZT368T-E head right side panel decal (cold gray/polymer/high viscosity)
|
|
|
|
|
|
|
|
34. ZT350T-E car head camera bracket
|
|
|
|
|
|
|
|

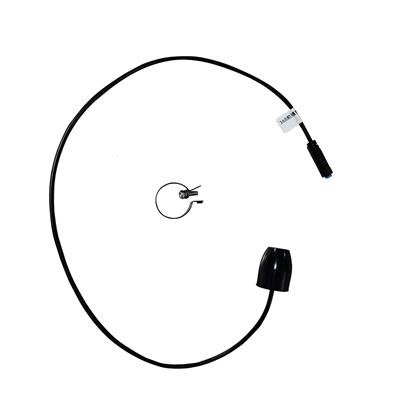

35. ZT368T Front Camera (L=600/II)
|
|
|
|
|
|
|
|
