1. ZT368T-G front disc brake main pump assembly (φ12.7/matte black)
|
|
|
|
|
|
|
|
2. ZT368T-G rear disc brake main pump assembly (φ12.7/matte black/Ⅱ)
|
|
|
|
|
|
|
|
3. ZT703-RR Clutch Rocker Arm Half Cover (No Mirror Hole/Matte Black)
|
|
|
|
|
|
|
|
4. GB70.1M6×30(stainless steel)
|
|
|
|
|
|
|
|
5. Disc brake pipe bolt M10×1-22
|
|
|
|
|
|
|
|
6. Disc brake pipe copper washer φ 15× φ 10.2 × 1.5
|
|
|
|
|
|
|
|

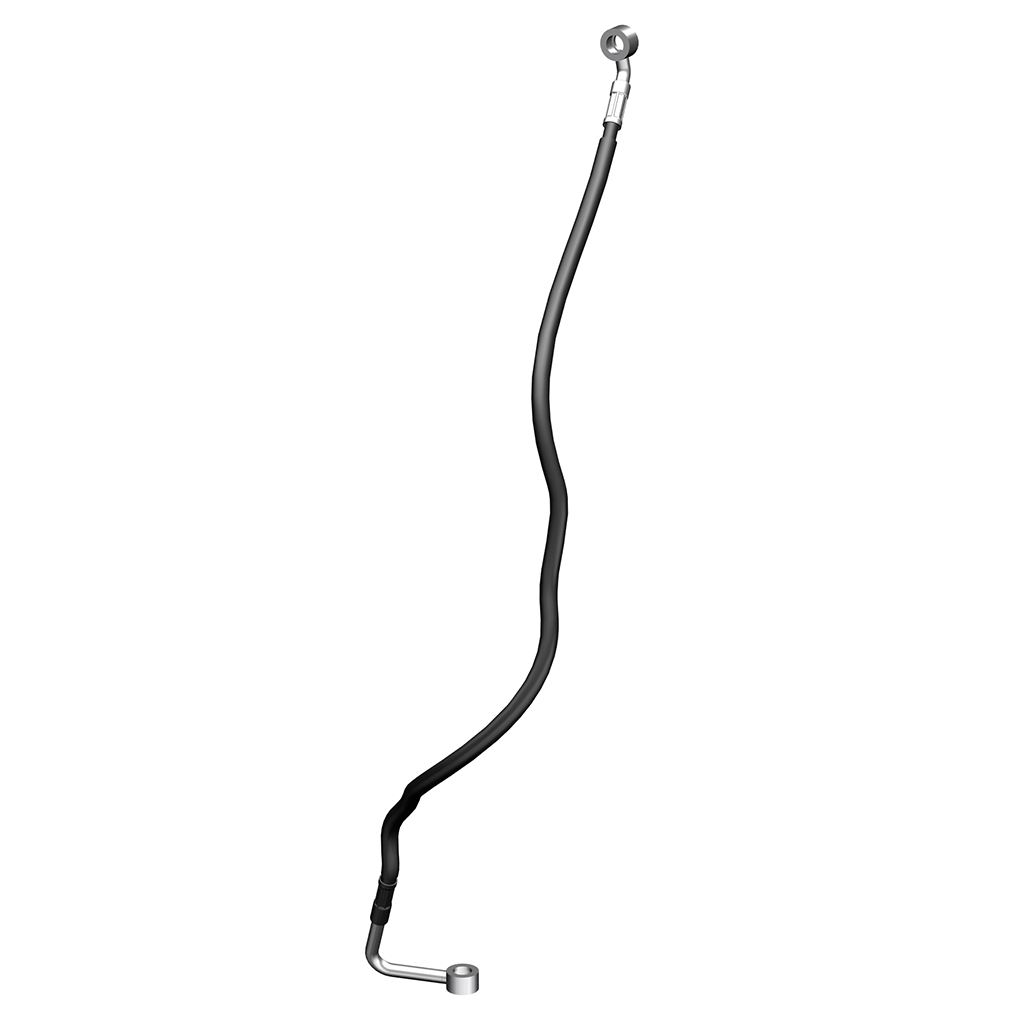

7. ZT368T-G brake hosepipe RMC-HU(C)
|
|
|
|
|
|
|
|

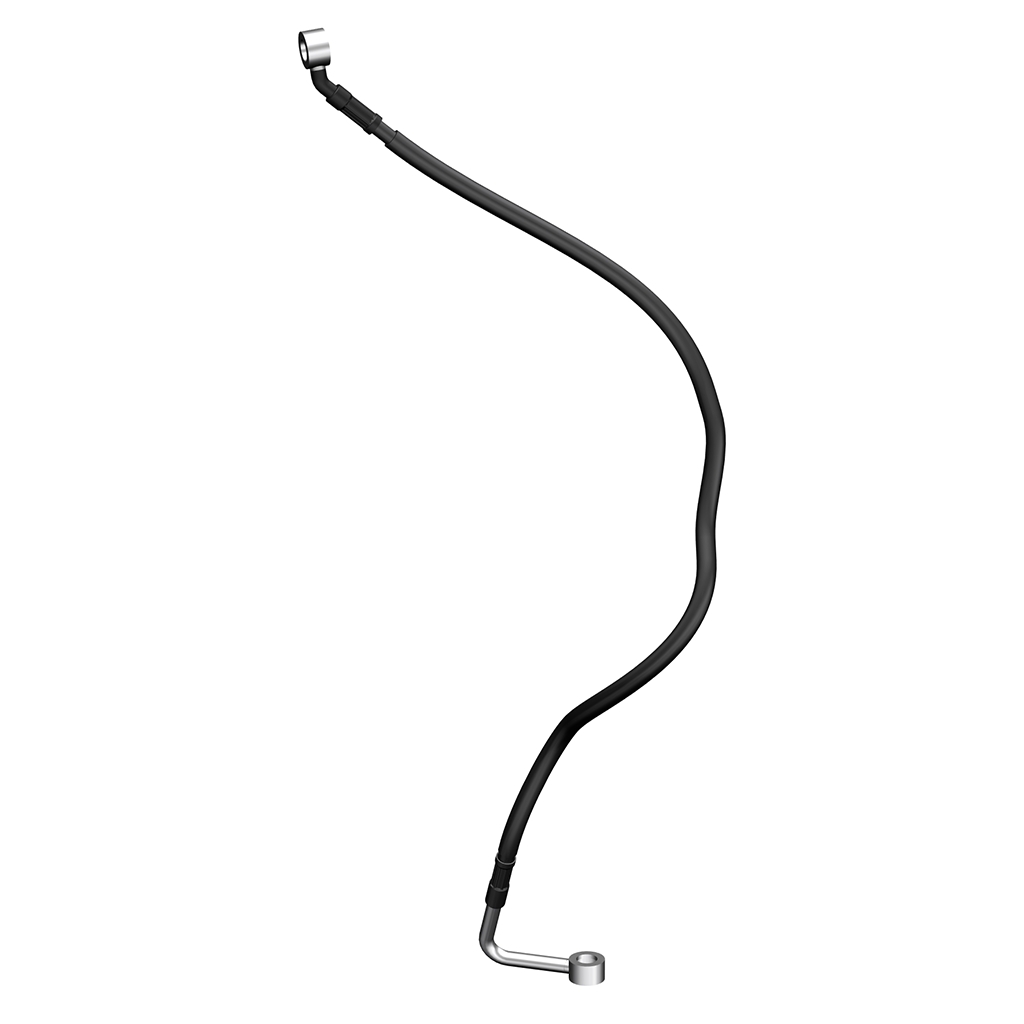

8. ZT368T-G brake hosepipe FMC-HU (C)
|
|
|
|
|
|
|
|
9. Disc brake oil pipe hexagon head bolt M10 × 1 × 20
|
|
|
|
|
|
|
|

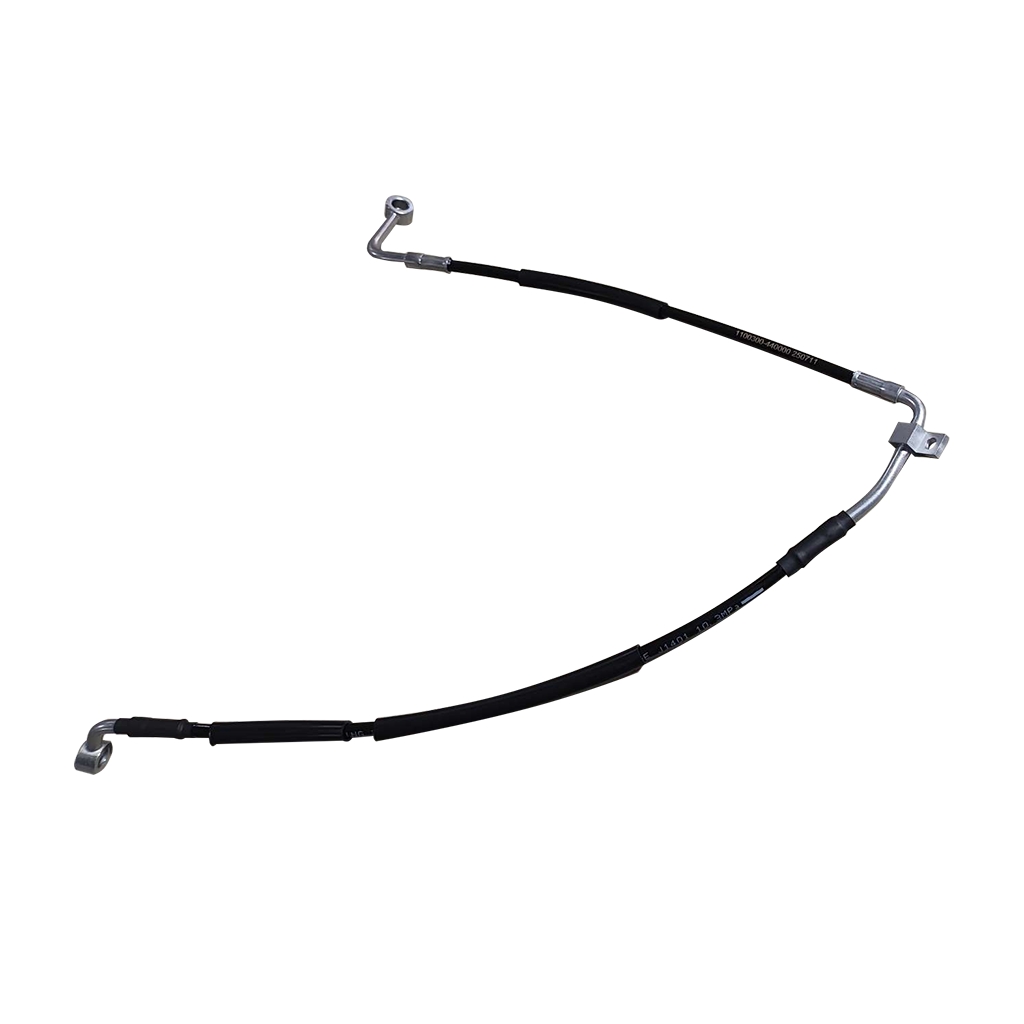

10. ZT368T-K brake pipe RC-HU（C）
|
|
|
|
|
|
|
|
11. ZT368T-G Brake Hose FC-HU Section (C/Low Seat Version)
|
|
|
|
|
|
|
|

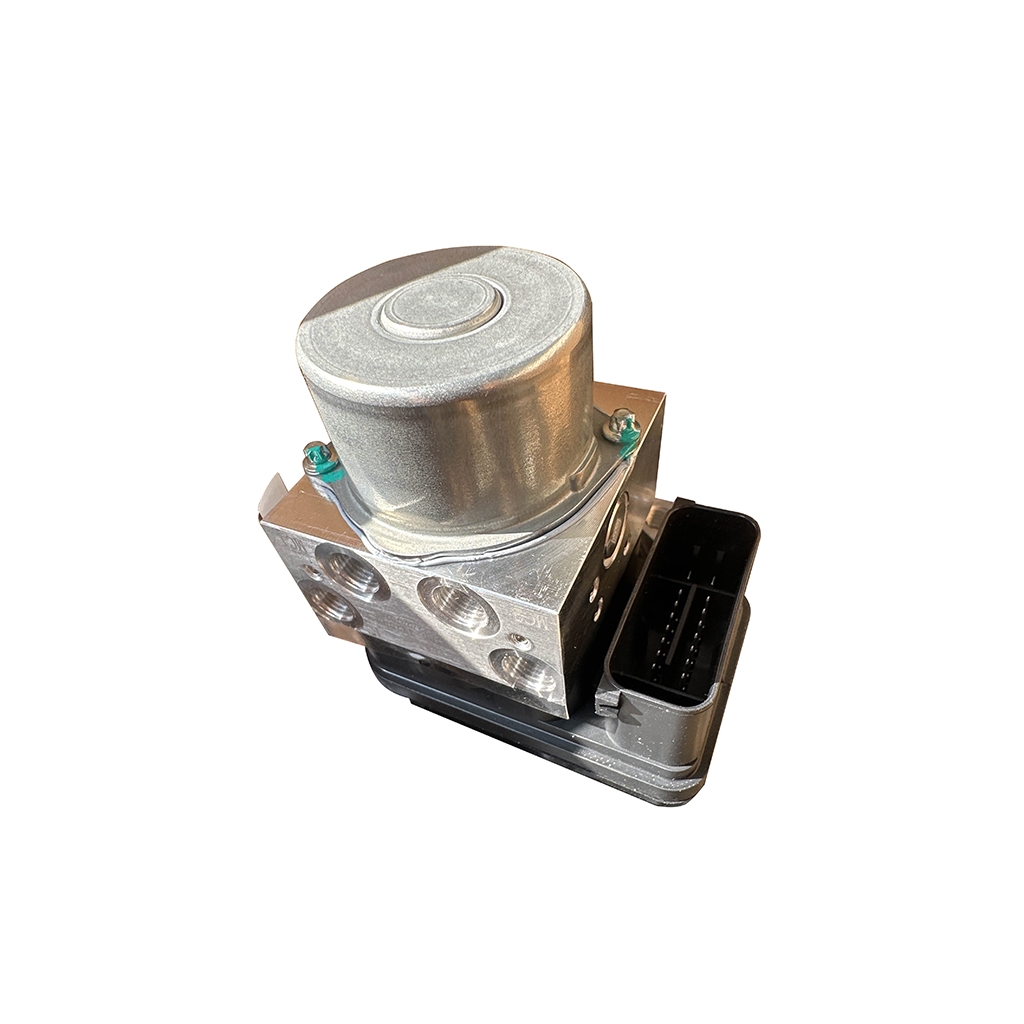

12. ZT368T-G ABS Hydraulic Control Unit (C/ETC/wet type)
|
|
|
|
|
|
|
|

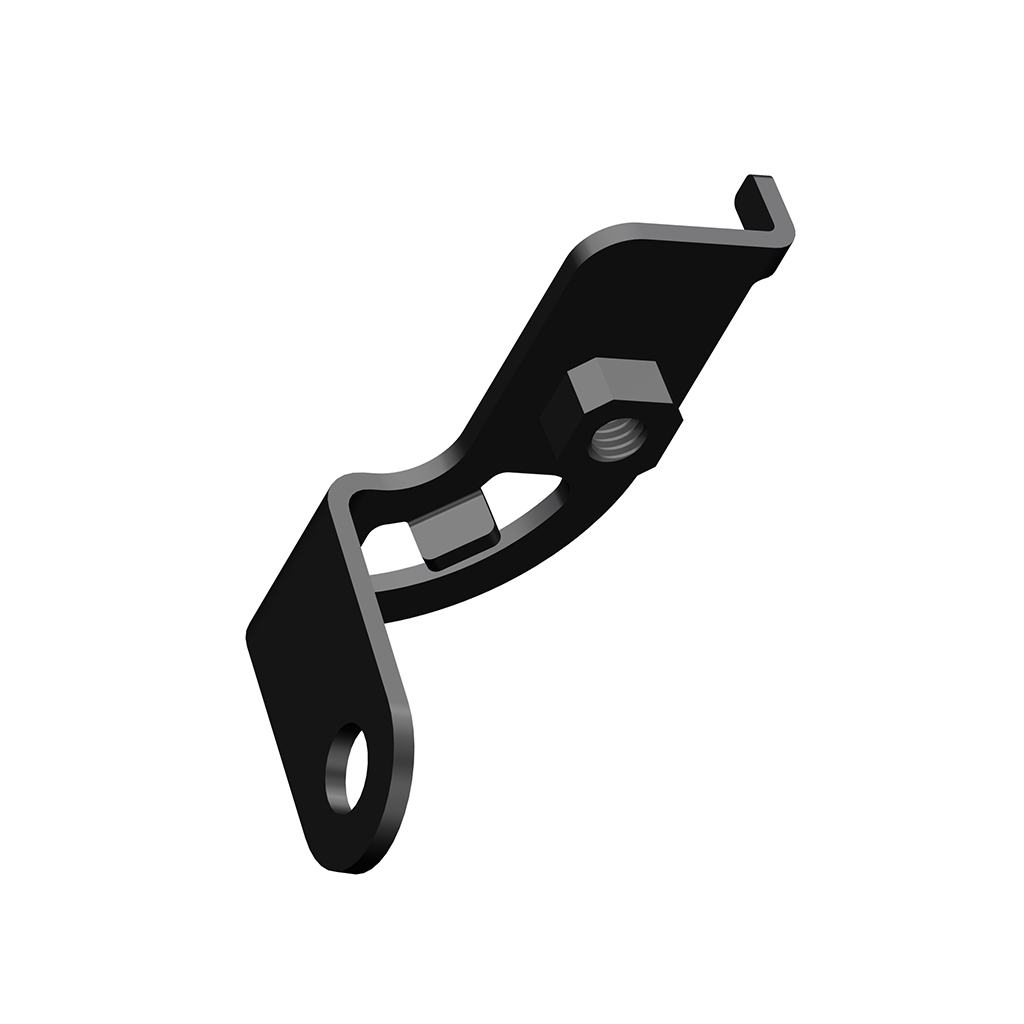

13. ZT368T-G Hydraulic Control Unit Bracket (C)
|
|
|
|
|
|
|
|
14. Hexagonal small flange internal plum blossom bolt M6 × 16 (9.8/zinc nickel alloy)
|
|
|
|
|
|
|
|
15. Non standard internal plum blossom bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
16. ZT250-S flanging sleeve(φ6.4×φ9×6＋φ20×2)
|
|
|
|
|
|
|
|
17. ZT250-S Flanging bushing buffer
|
|
|
|
|
|
|
|
18. ZT368T-G Front Oil Pipe Bracket (II)
|
|
|
|
|
|
|
|
19. Hexagonal Small Flanged Internal Star Bolt M6×12 (Grade 9.8 / Zinc-Nickel Alloy)
|
|
|
|
|
|
|
|
20. ZT368T-G Front oil outlet pipe clamp
|
|
|
|
|
|
|
|
21. Wheel speed sensor clamp
|
|
|
|
|
|
|
|
22. wheel speed sensor ( L=800 cm)
|
|
|
|
|
|
|
|
23. Caliper bleeder screw rubber cap
|
|
|
|
|
|
|
|
24. Disc brake oil pipe bolts M10×1×22 (with exhaust threaded holes)
|
|
|
|
|
|
|
|
25. Disc brake bleeder screw M6
|
|
|
|
|
|
|
|
26. ZT703-F integrated front right radial caliper (JL)
|
|
|
|
|
|
|
|
27. GB70.1 Hexagon socket head bolt M10×1.5×60 (grade 12.9 / environmental protection color Zinc)
|
|
|
|
|
|
|
|
28. ZT310-R Rear disc brake pipe clamp
|
|
|
|
|
|
|
|
29. Non standard internal plum blossom bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
30. GB/T6172.2 M6 (stainless steel hexagonal nylon locking thin nut)
|
|
|
|
|
|
|
|
31. Wheel speed sensor(A)
|
|
|
|
|
|
|
|
32. ZT368T-E Rear Disc Brake Caliper Assembly (Matte Black / Φ34)
|
|
|
|
|
|
|
|
33. Hexagonal Flanged Internal Star Bolt M8×30 (Grade 10.9 / Eco-friendly Color Zinc)
|
|
|
|
|
|
|
|
34. ZT368T-G right rearview mirror
|
|
|
|
|
|
|
|
35. ZT368T-G left rearview mirror
|
|
|
|
|
|
|
|
36. ZT368T-G Front Brake Handle (φ14/dumb black/Ⅱ)
|
|
|
|
|
|
|
|
37. ZT368T-D front brake switch
|
|
|
|
|
|
|
|
38. ZT703-F front disc brake pads (TFT101)
|
|
|
|
|
|
|
|
39. ZT368T-G rear brake handle (φ12.7/dumb black/Ⅱ)
|
|
|
|
|
|
|
|
40. ZT368T-D rear brake switch
|
|
|
|
|
|
|
|
41. Brake handle bolt M6×14－φ8×23.8 (environmental protection color)
|
|
|
|
|
|
|
|
42. GB/T6185 hexagonal nylon lock nut M6 (environmental color)
|
|
|
|
|
|
|
|
43. ZT703-F left rearview mirror rubber plug
|
|
|
|
|
|
|
|
44. ZT703-F right rearview mirror rubber plug
|
|
|
|
|
|
|
|
45. ZT250-S rear disk brake pads (CM102)
|
|
|
|
|
|
|
|
46. ZT310T-M rear disc brake caliper brake pad pin shaft
|
|
|
|
|
|
|
|
47. ZT310T-M rear disc brake caliper brake pad pin shaft anti-loose pin
|
|
|
|
|
|
|
|
48. ZT368T－E Rear Brake Parking Positioning Plate
|
|
|
|
|
|
|
|
49. ZT310T-M rear disc brake caliper elastic card
|
|
|
|
|
|
|
|
50. Brake lever bolt M6×13.5-φ8×20.5 (environmental color)
|
|
|
|
|
|
|
|
51. GB/T 819 M4×14 (304 stainless steel)
|
|
|
|
|
|
|
|
