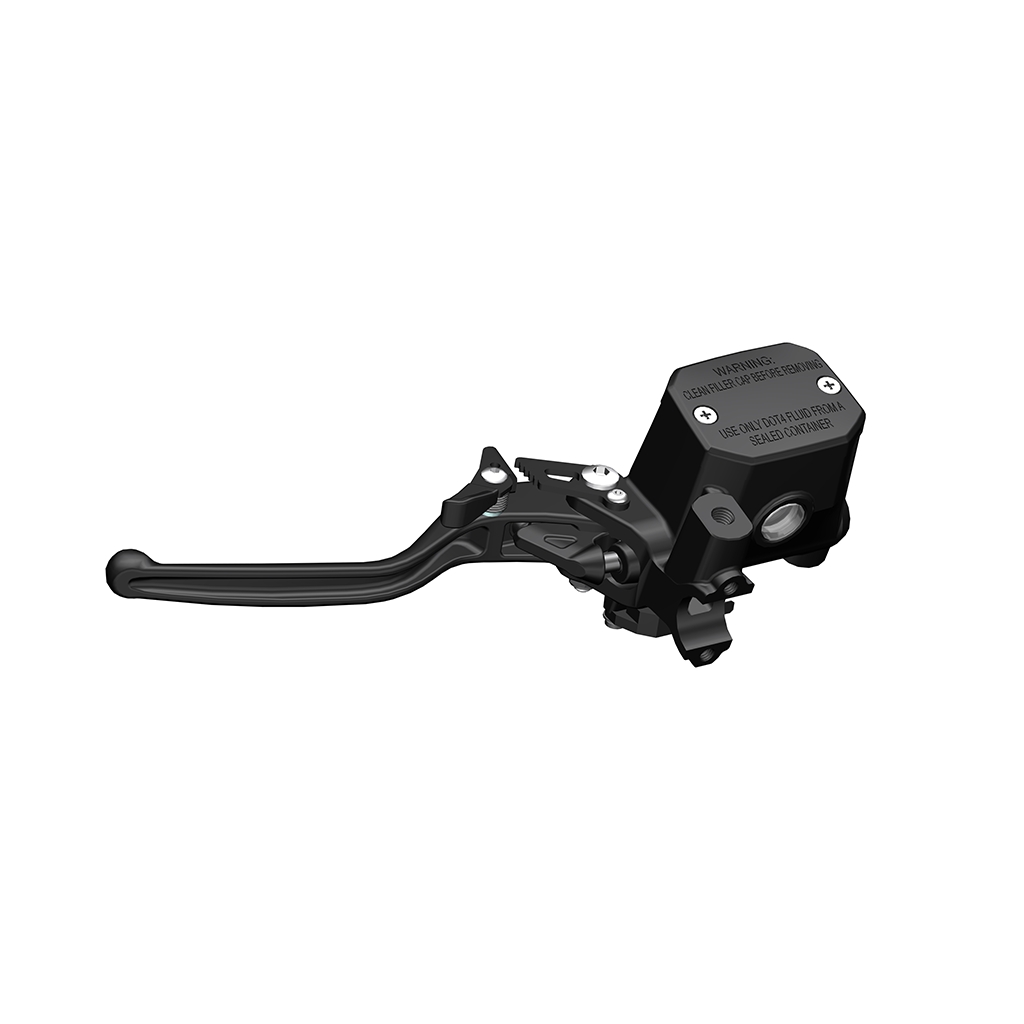

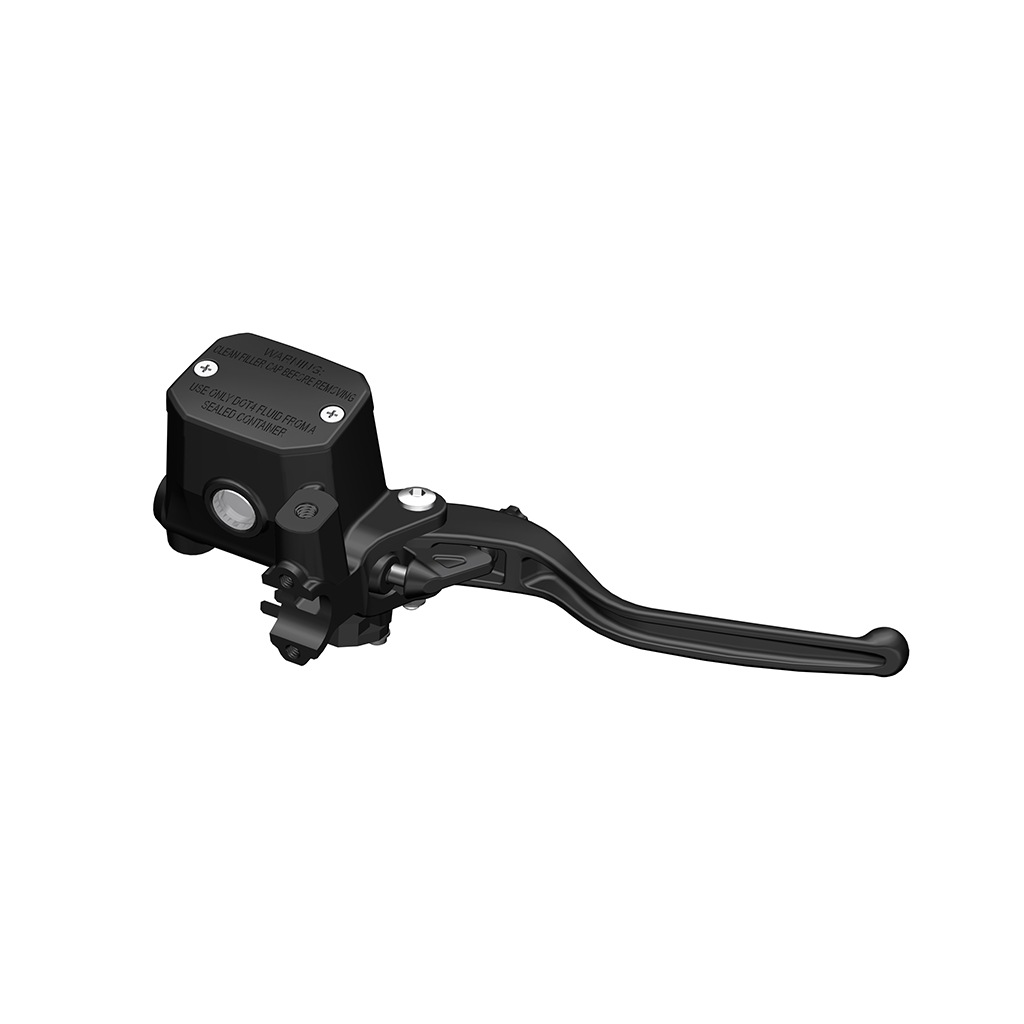

1. ZT368T-E front disc brake main pump assembly（φ14/Matt black/Ⅱ）
|
|
|
|
|
|
|
|

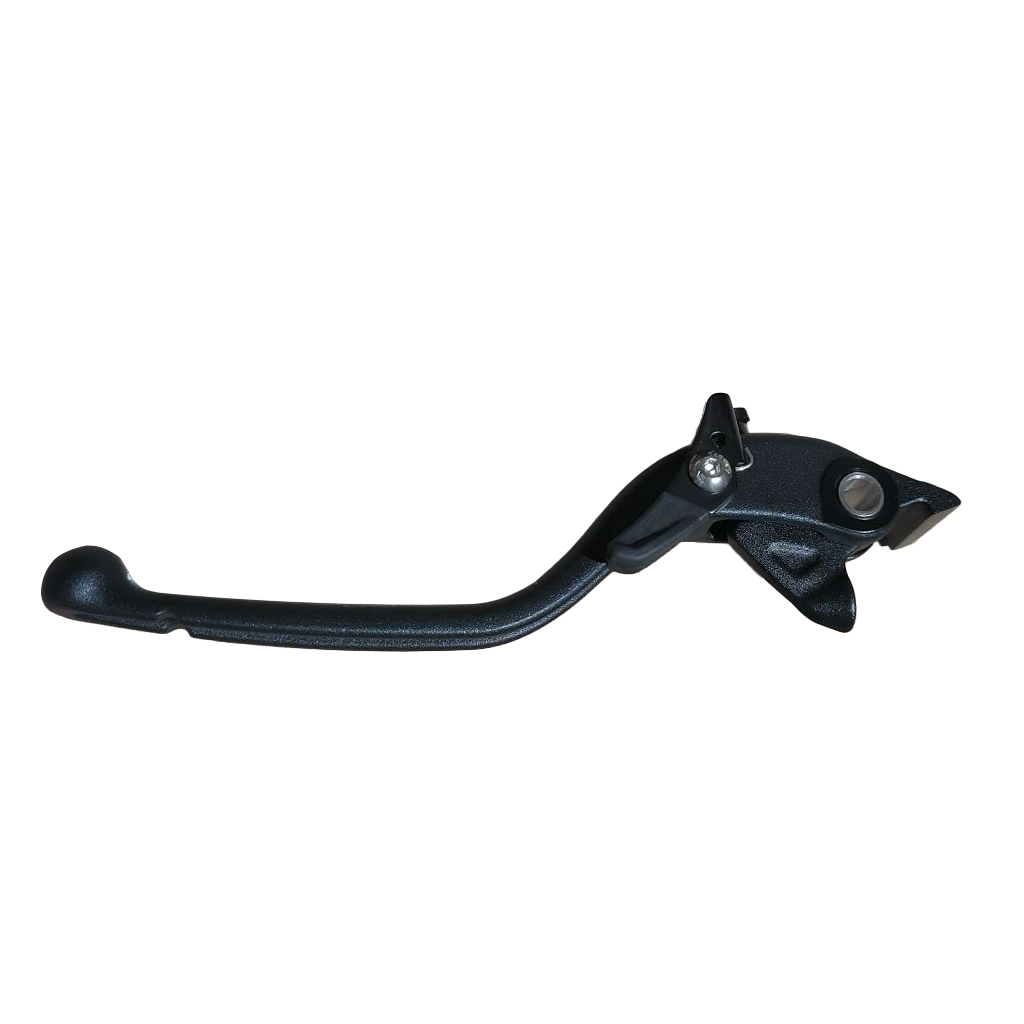

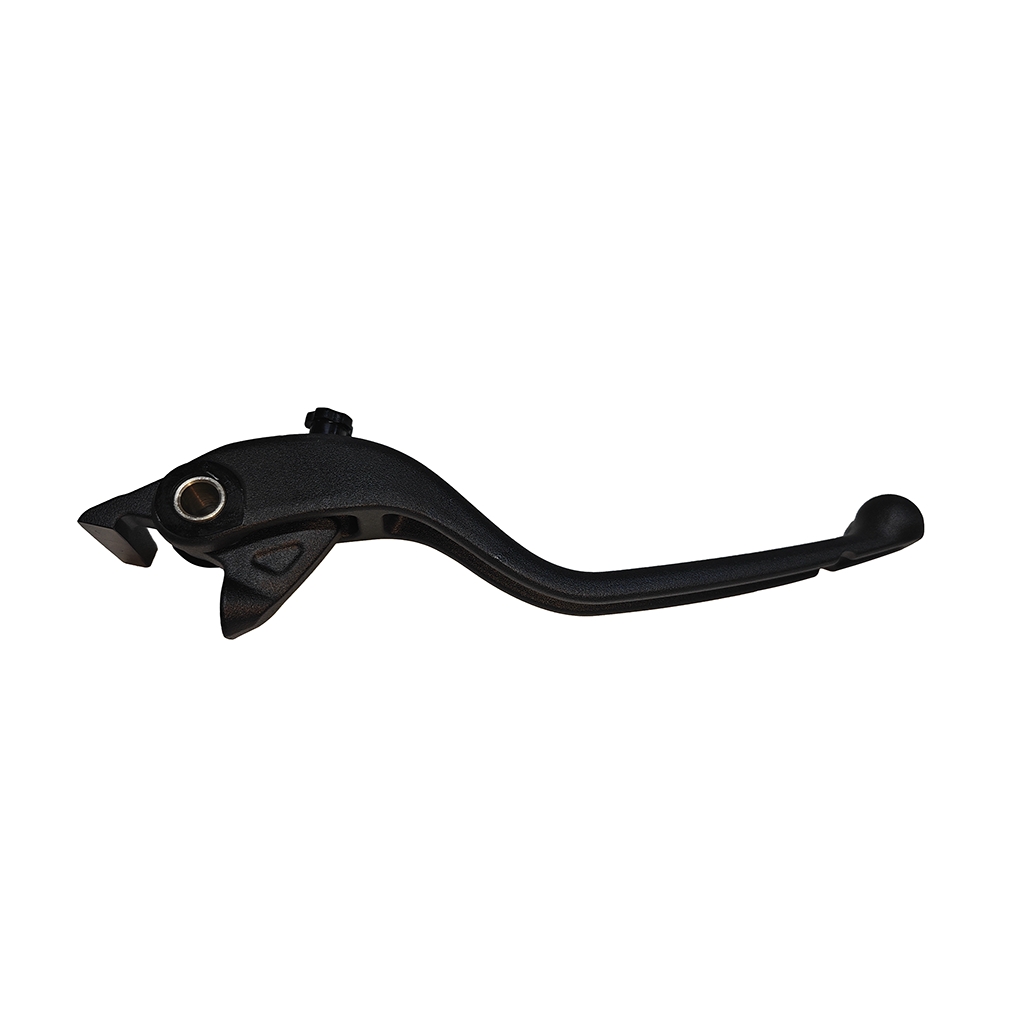

2. ZT368T-G Front Brake Handle (φ14/dumb black/Ⅱ)
|
|
|
|
|
|
|
|
3. ZT368T-D front brake switch
|
|
|
|
|
|
|
|
4. GB/T 819 M4×14 (304 stainless steel)
|
|
|
|
|
|
|
|
5. ZT368T-D right rearview mirror（Ⅱ）
|
|
|
|
|
|
|
|
6. ZT368T-D right rearview mirror rubber plug
|
|
|
|
|
|
|
|
7. Disc brake pipe bolt M10×1-22
|
|
|
|
|
|
|
|
8. Disc brake pipe copper washer φ 15× φ 10.2 × 1.5
|
|
|
|
|
|
|
|

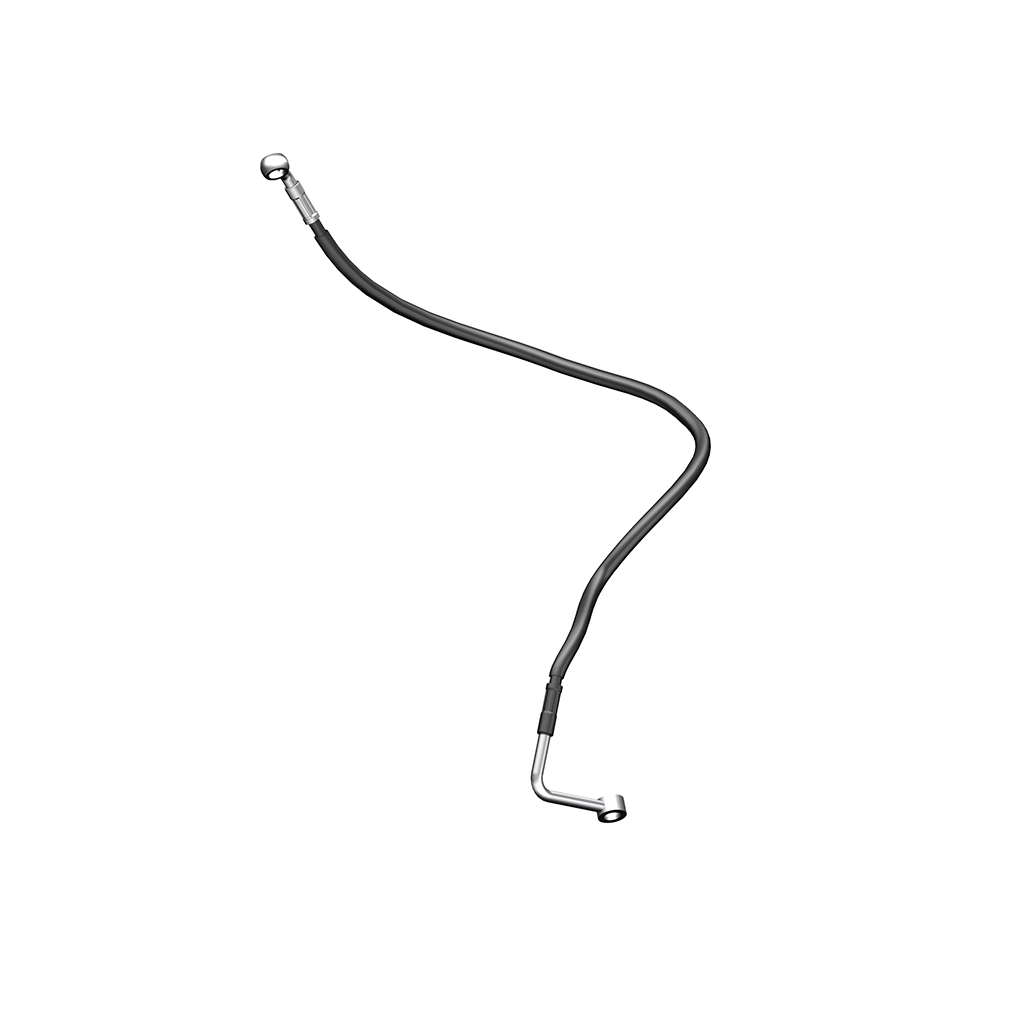

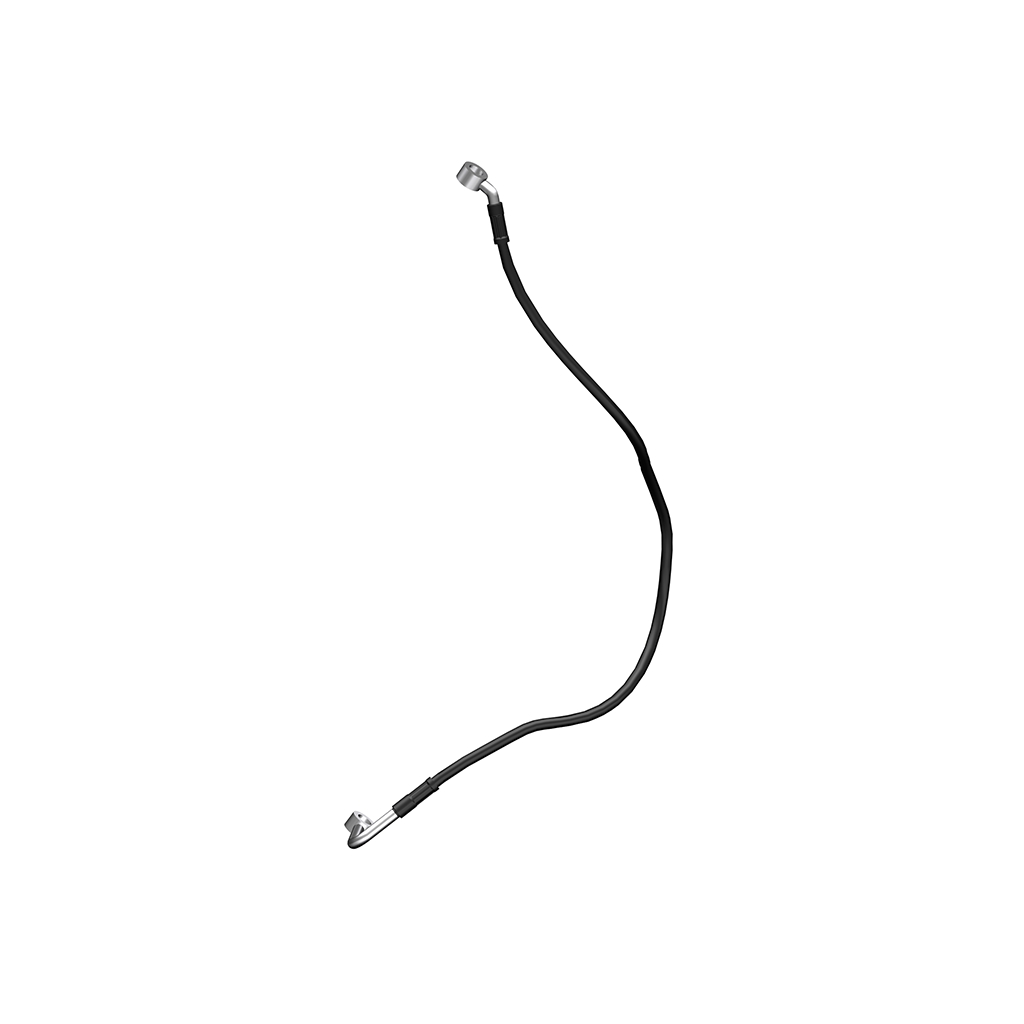

9. ZT368T-K brake hosepipe FMC-HU (C)
|
|
|
|
|
|
|
|
10. ZT368T－E rear disc brake main pump assembly（φ12.7/matt black/Ⅱ）
|
|
|
|
|
|
|
|
11. ZT368T-G rear brake handle (φ12.7/dumb black/Ⅱ)
|
|
|
|
|
|
|
|
12. ZT368T-D rear brake switch
|
|
|
|
|
|
|
|

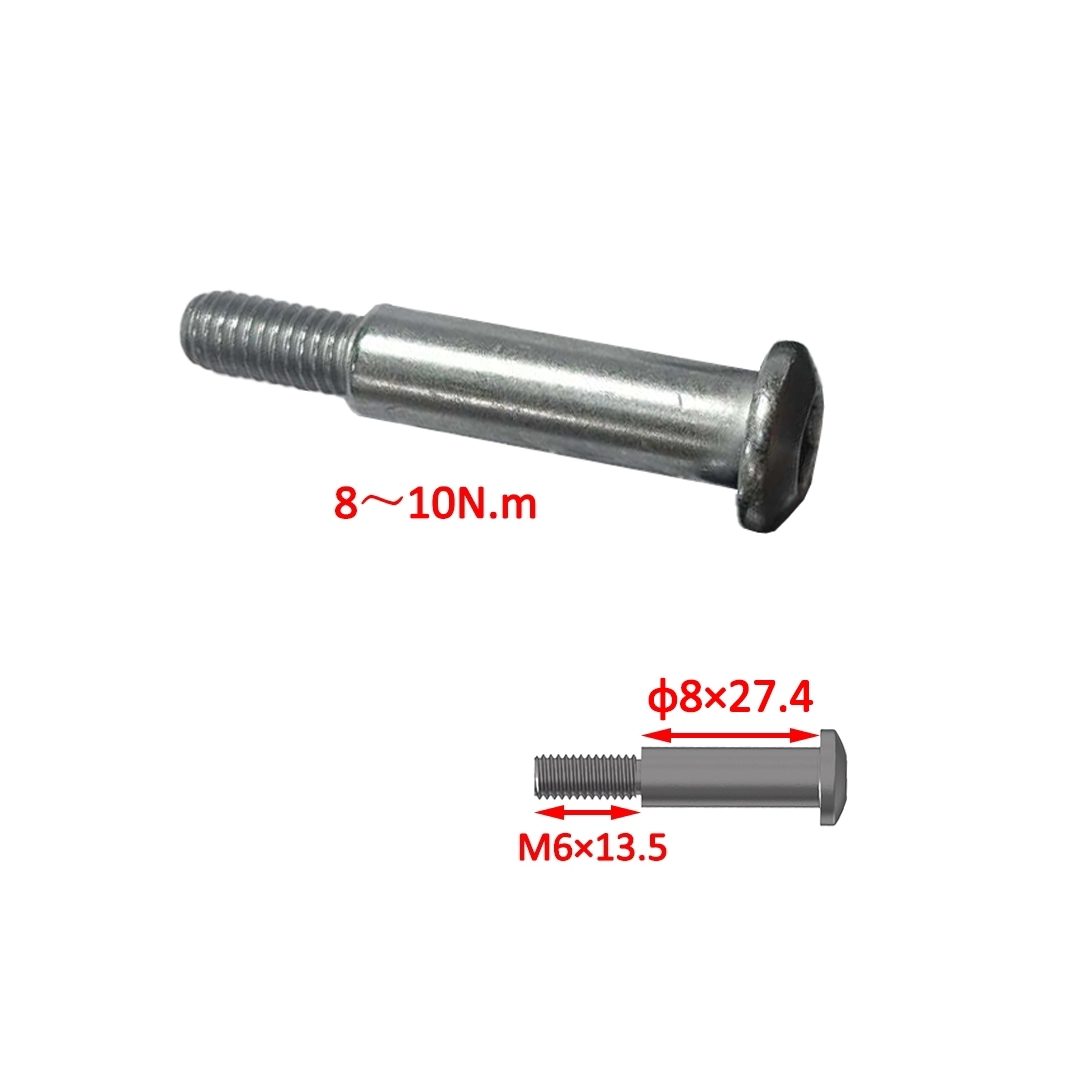

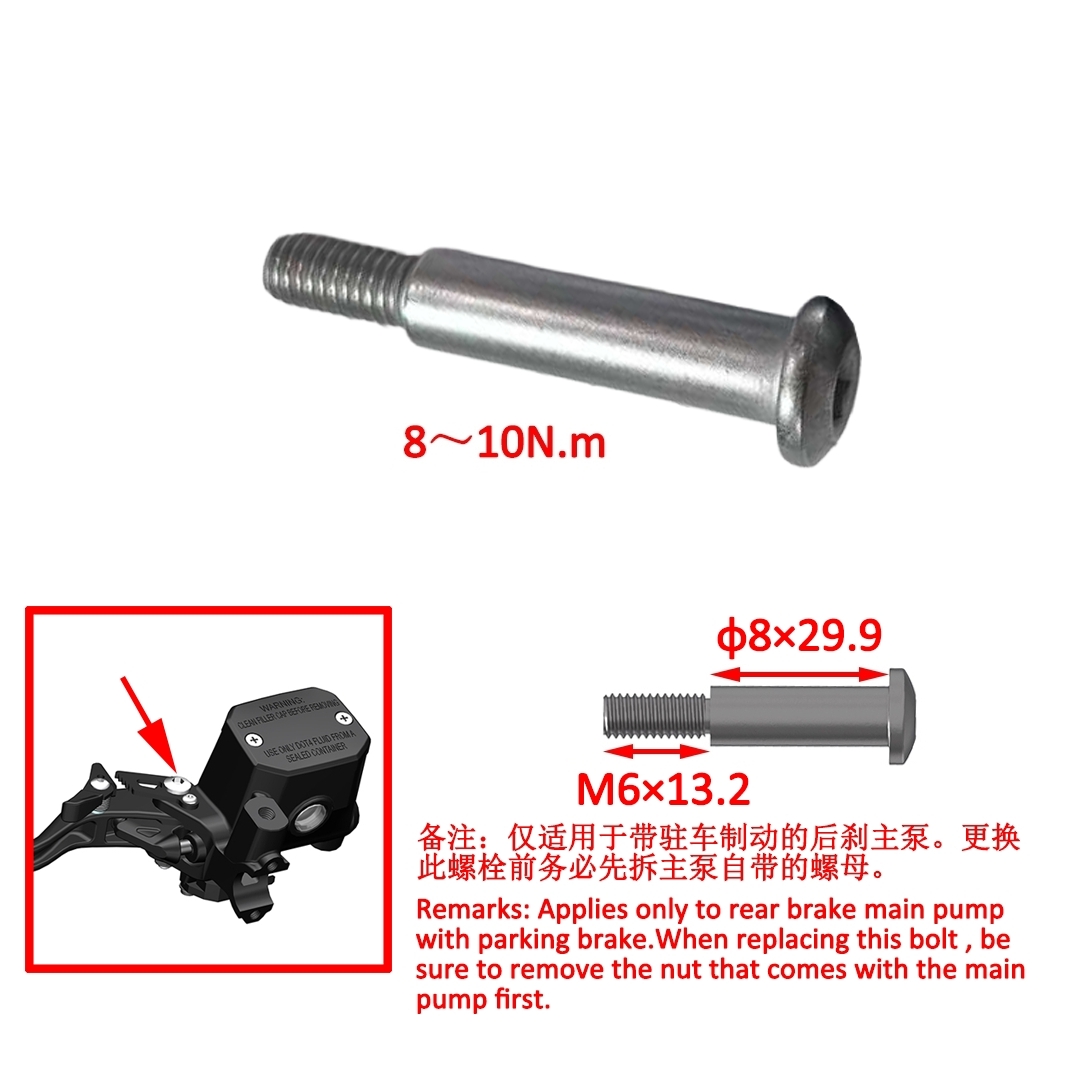

13. Brake handle bolt M6×14－φ8×23.8 (environmental protection color)
|
|
|
|
|
|
|
|
14. ZT368T-D left rearview mirror（Ⅱ）
|
|
|
|
|
|
|
|
15. ZT368T-D left rearview mirror rubber plug
|
|
|
|
|
|
|
|

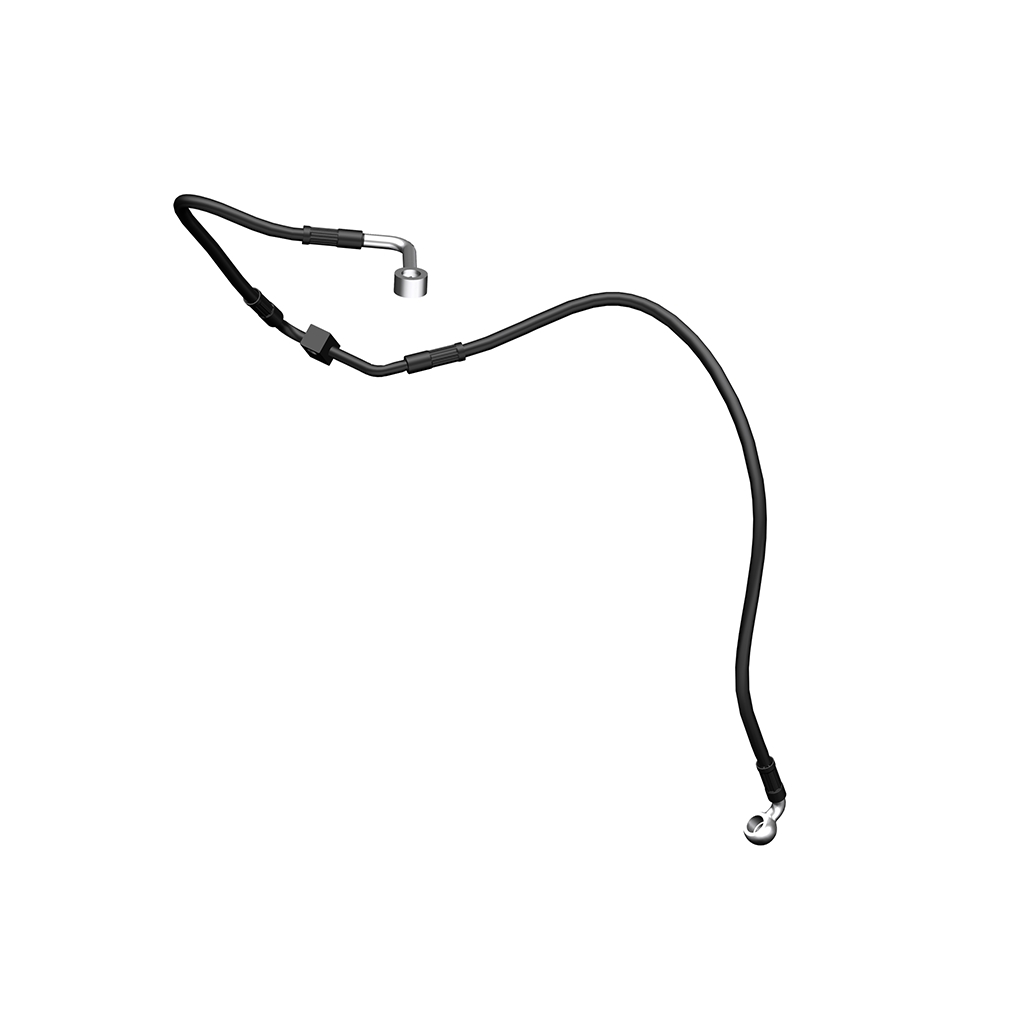

16. ZT368T-K brake hosepipe RMC-HU(C)
|
|
|
|
|
|
|
|
17. ZT368T-K brake hosepipe FC-HU (C)
|
|
|
|
|
|
|
|
18. Hexagonal small flange internal plum blossom bolt M6 × 22(9.8/zinc nickel alloy)
|
|
|
|
|
|
|
|
19. Caliper bleeder screw rubber cap
|
|
|
|
|
|
|
|
20. Disc brake bleeder screw M6
|
|
|
|
|
|
|
|
21. Disc brake oil pipe bolts M10×1×22 (with exhaust threaded holes)
|
|
|
|
|
|
|
|
22. ZT703-F integrated front right radial caliper (JL)
|
|
|
|
|
|
|
|
23. ZT703-F front disc brake pads (TFT101)
|
|
|
|
|
|
|
|
24. GB70.1 Hexagon socket head bolt M10×1.5×60 (grade 12.9 / environmental protection color Zinc)
|
|
|
|
|
|
|
|
25. Wheel speed sensor(A)
|
|
|
|
|
|
|
|
26. Non standard internal plum blossom bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
27. Wheel speed sensor clamp
|
|
|
|
|
|
|
|
28. ZT250-S flanging sleeve(φ6.4×φ9×6＋φ20×2)
|
|
|
|
|
|
|
|
29. ZT250-S Flanging bushing buffer
|
|
|
|
|
|
|
|
30. Hexagonal small flange internal plum blossom bolt M6 × 16 (9.8/zinc nickel alloy)
|
|
|
|
|
|
|
|

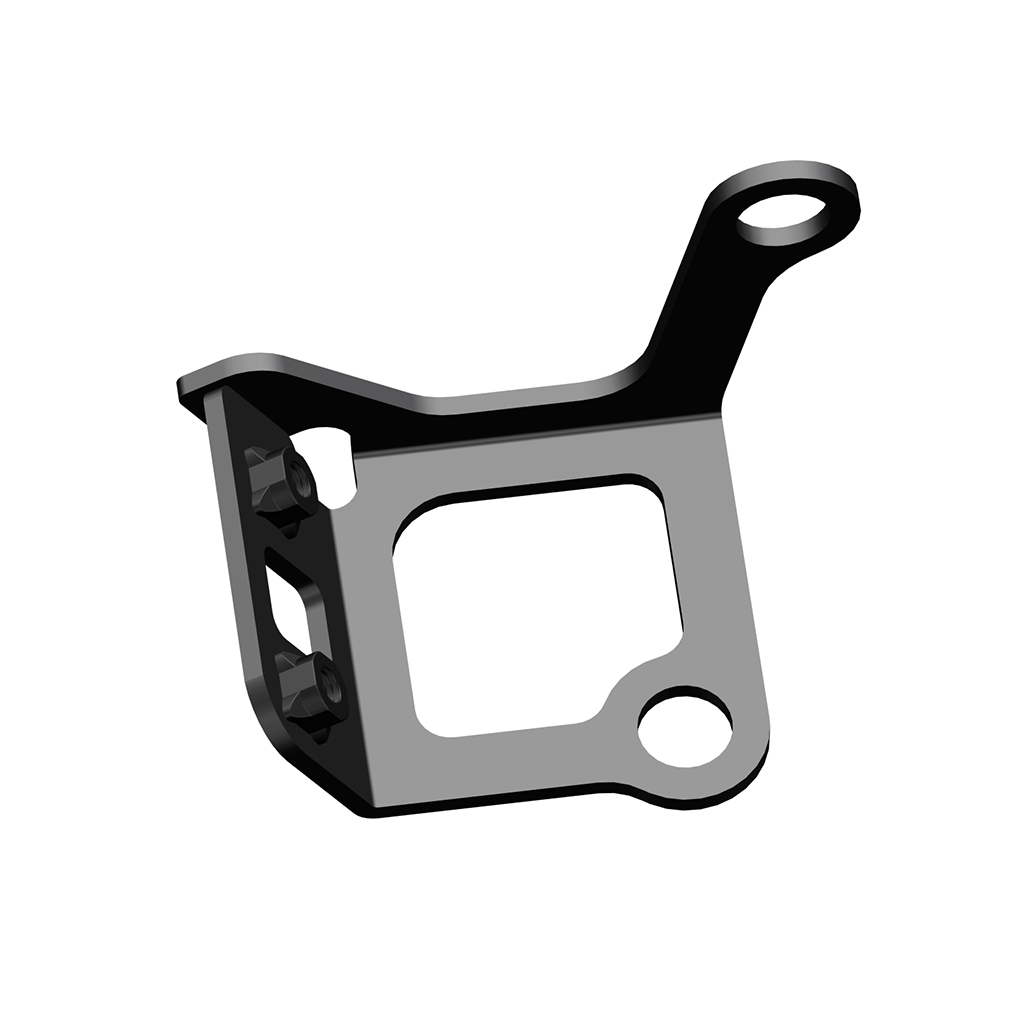

31. ZT368T-G Hydraulic Control Unit Bracket (C)
|
|
|
|
|
|
|
|
32. Disc brake oil pipe hexagon head bolt M10 × 1 × 20
|
|
|
|
|
|
|
|

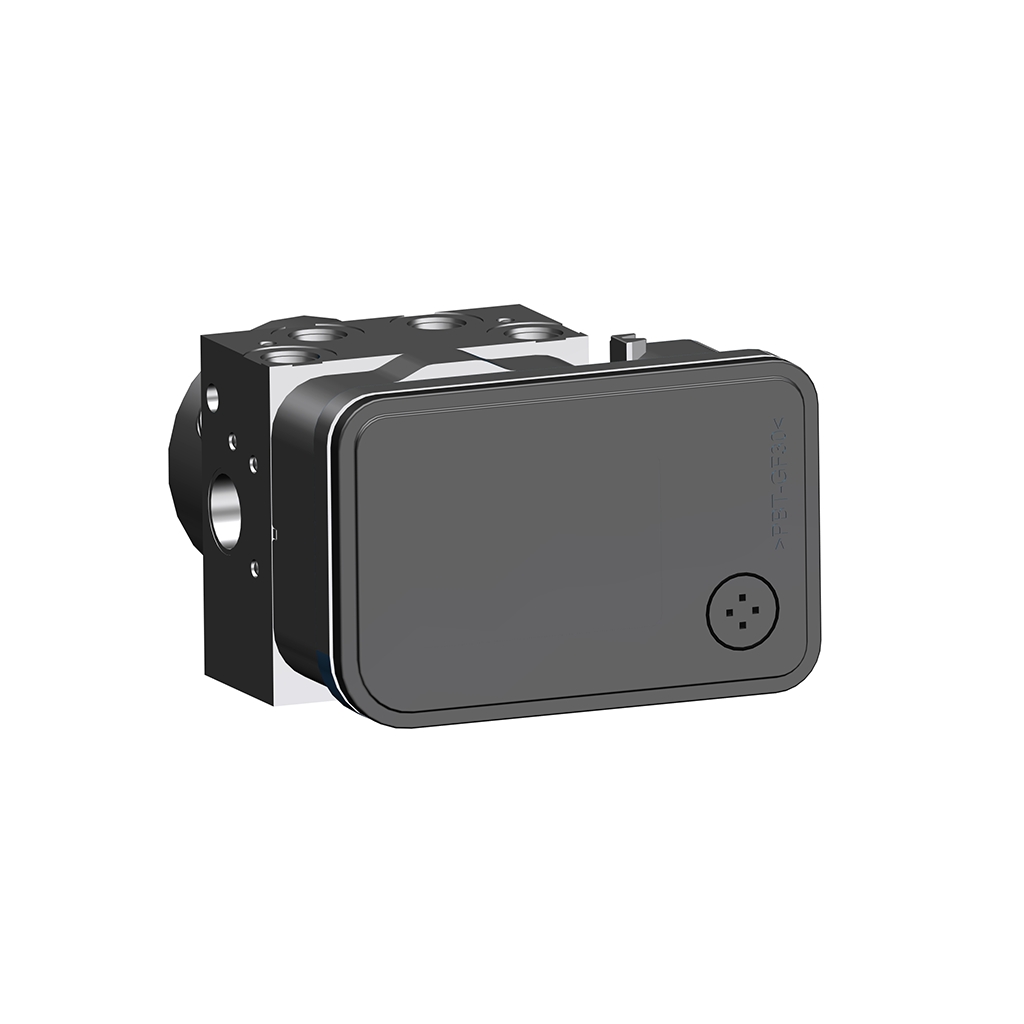

33. ZT368T-K ABS hydraulic control unit (C/ETC/wet type)
|
|
|
|
|
|
|
|

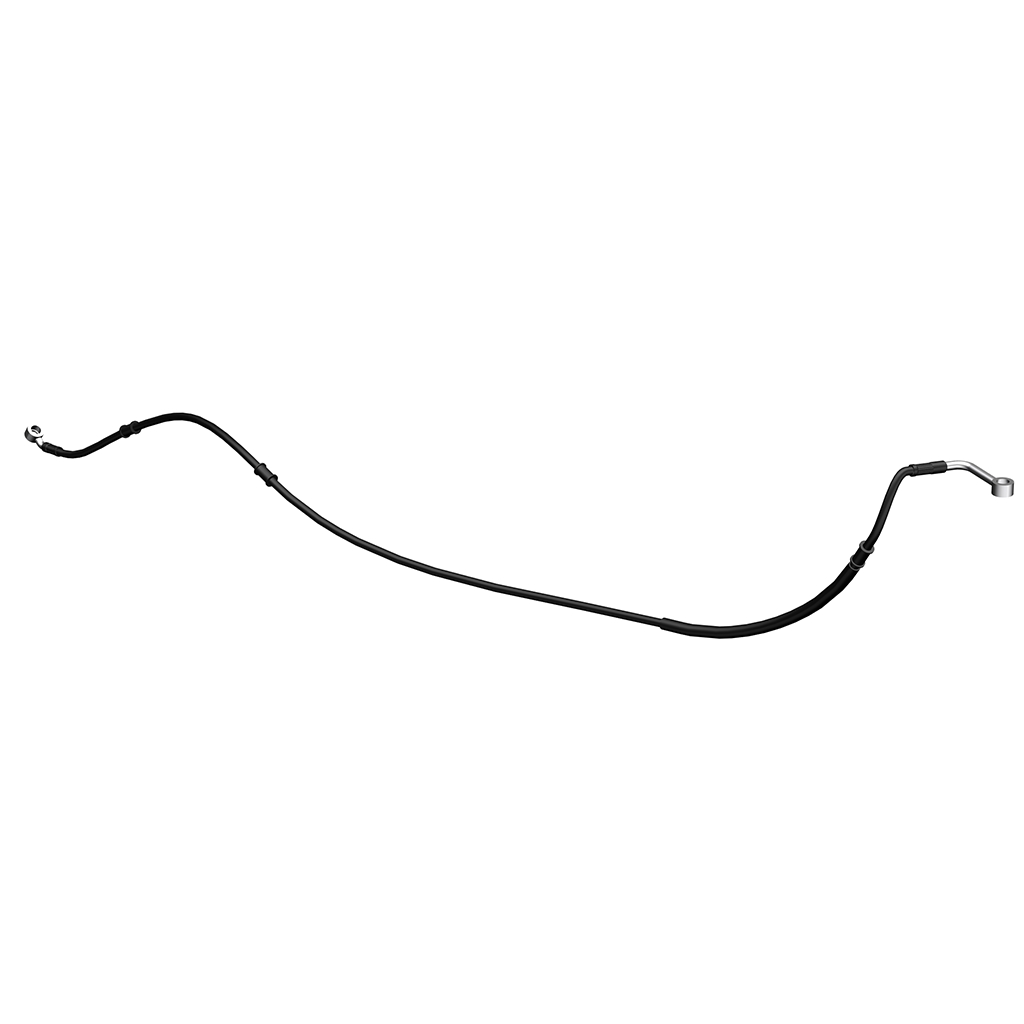

34. ZT368T-K brake pipe RC-HU（C）
|
|
|
|
|
|
|
|
35. wheel speed sensor ( L=800 cm)
|
|
|
|
|
|
|
|
36. ZT310-R Rear disc brake pipe clamp
|
|
|
|
|
|
|
|
37. Non standard internal plum blossom bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|

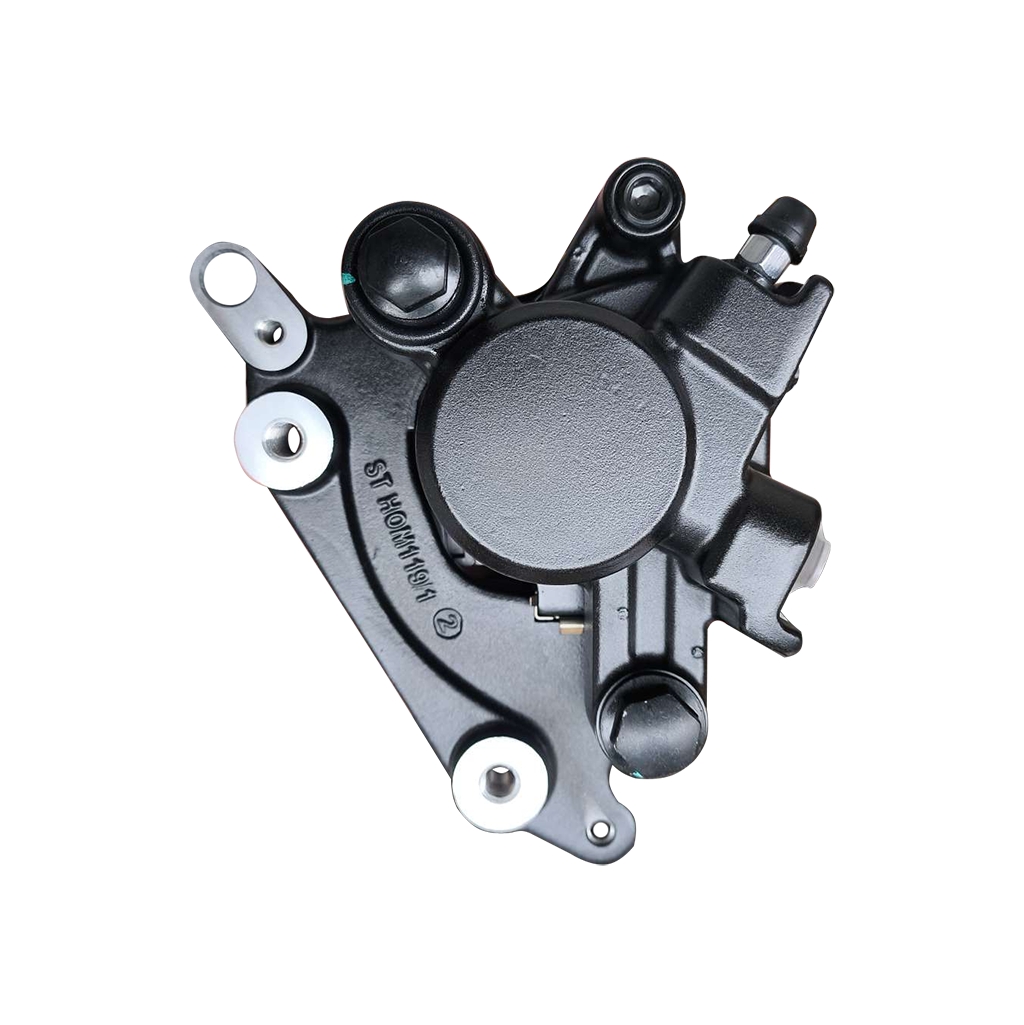

38. ZT368T-E Rear Disc Brake Caliper Assembly (Matte Black / Φ34)
|
|
|
|
|
|
|
|
39. ZT250-S rear disk brake pads (CM102)
|
|
|
|
|
|
|
|
40. ZT310T-M rear disc brake caliper brake pad pin shaft anti-loose pin
|
|
|
|
|
|
|
|
41. ZT310T-M rear disc brake caliper brake pad pin shaft
|
|
|
|
|
|
|
|
42. Hexagonal Flanged Internal Star Bolt M8×25 (Grade 8.8 / Eco-friendly Color Zinc)
|
|
|
|
|
|
|
|
43. ZT310T-M rear disc brake caliper elastic card
|
|
|
|
|
|
|
|
44. ZT368T－E Rear Brake Parking Positioning Plate
|
|
|
|
|
|
|
|
45. GB70.2 M4×10 (stainless steel)
|
|
|
|
|
|
|
|
