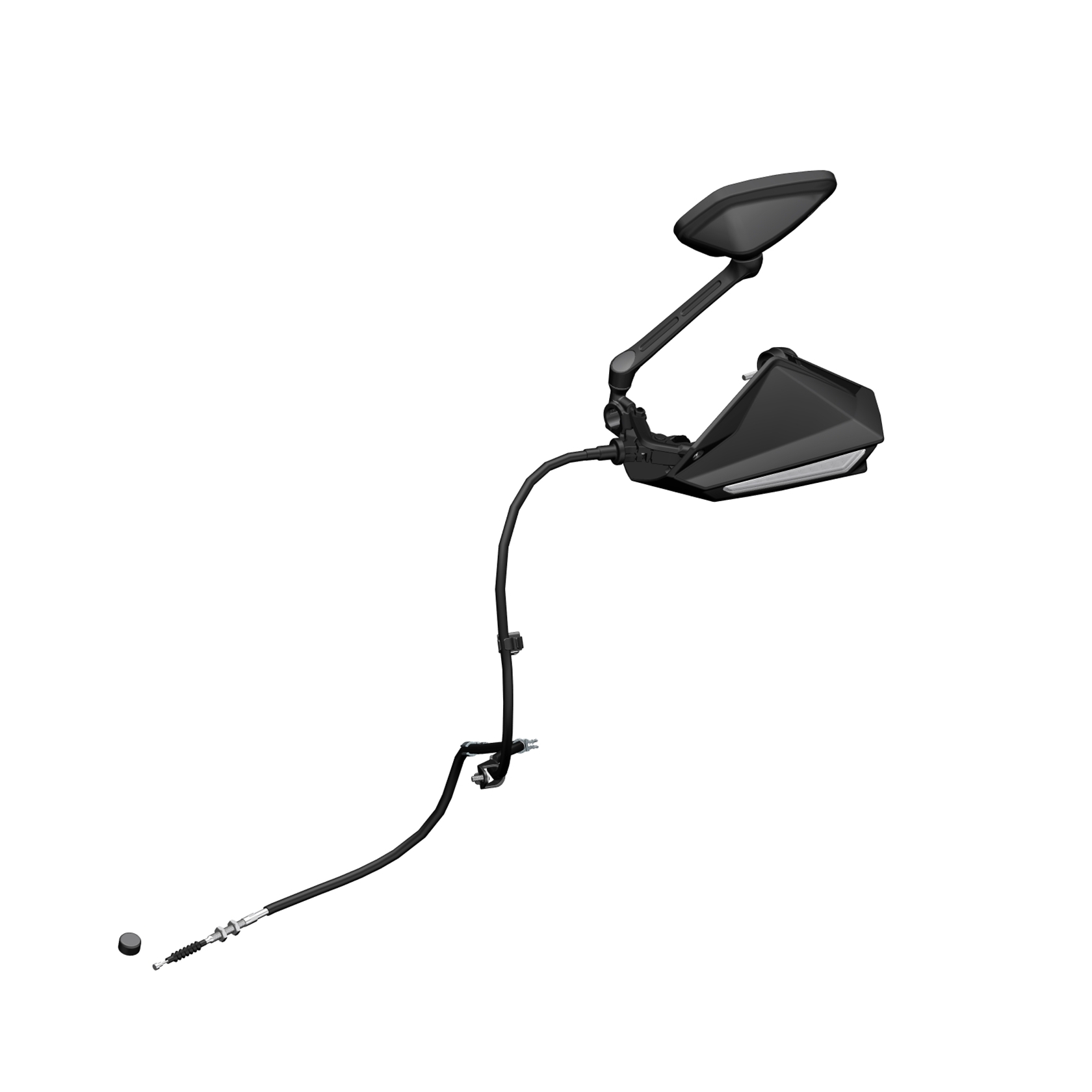

1. ZT703-F Clutch Handle Assembly(Matte Black)
|
|
|
|
|
|
|
|
2. ZT703-F clutch rocker arm assy
|
|
|
|
|
|
|
|
3. ZT703-F clutch rocker arm half cover (with rearview mirror hole/matte black)
|
|
|
|
|
|
|
|
4. GB16674 M6×25 (Grade 9.8/Zinc-Nickel Black)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6. ZT703-T Clutch Cable Clamp
|
|
|
|
|
|
|
|
7. ZT703-F clutch line limit bracket
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9. GB818 cross recessed pan head screw M4×12(color Zinc)
|
|
|
|
|
|
|
|

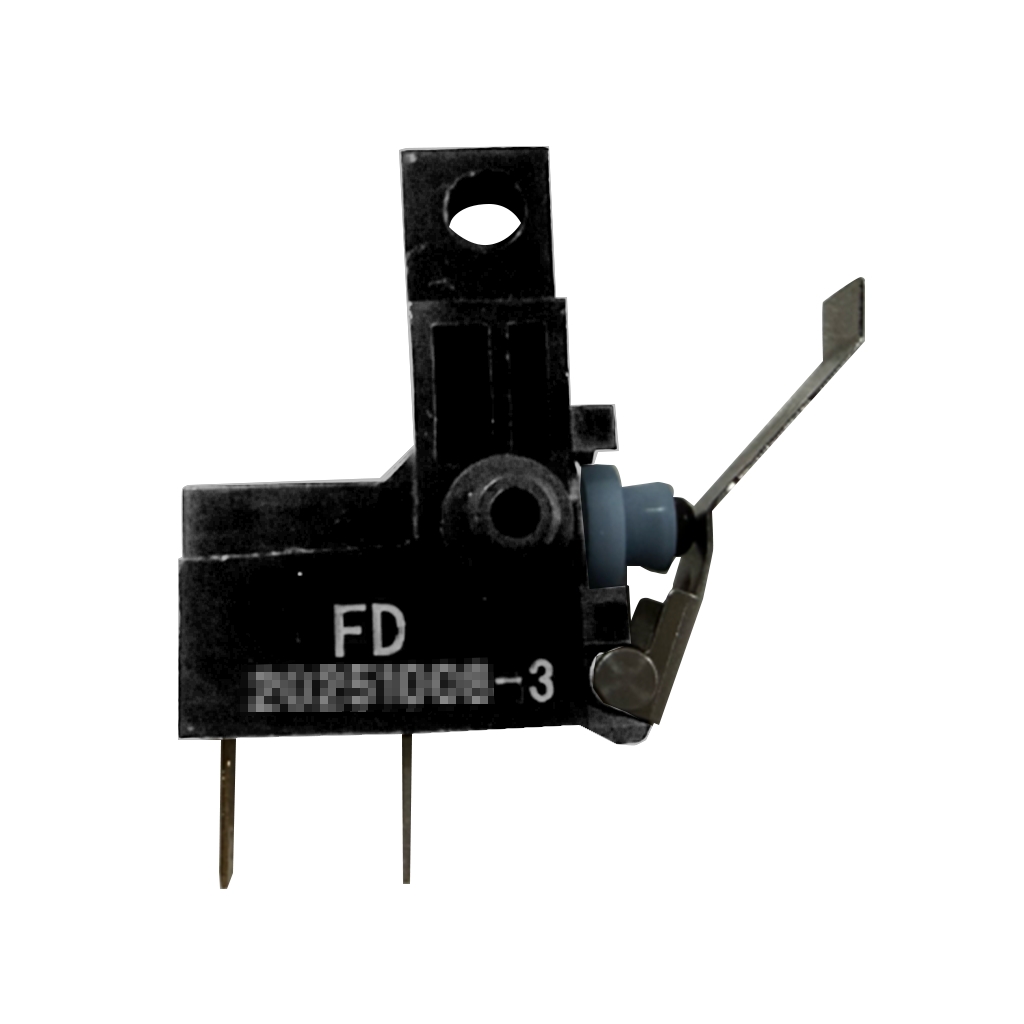

10. ZT703 spring leaf clutch switch (ETC)
|
|
|
|
|
|
|
|

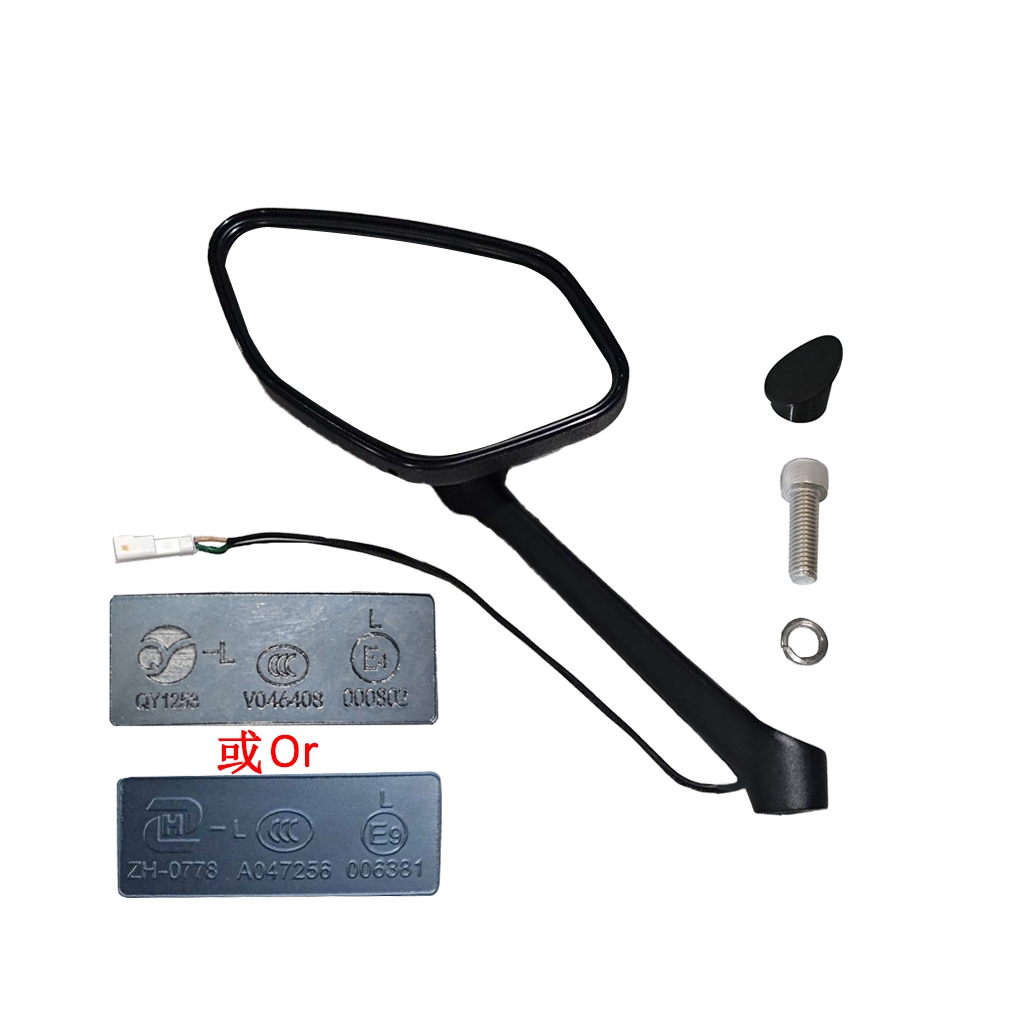

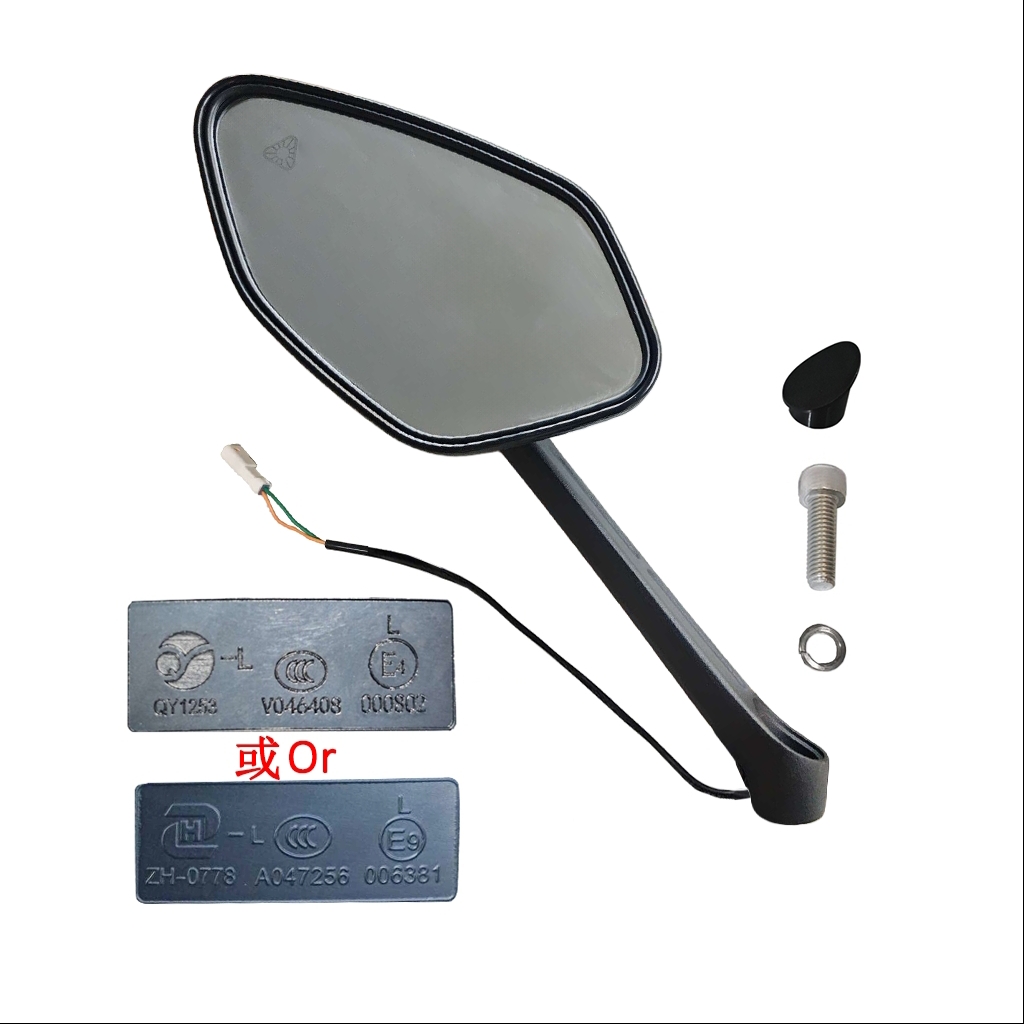

11. ZT703-F left rearview mirror（Ⅲ）
|
|
|
|
|
|
|
|
12. ZT703-F left handle protect cover
|
|
|
|
|
|
|
|
13. ZT703-F-A3 front left turn signal lamp (E-mark)
|
|
|
|
|
|
|
|
14. ZT703-F left turn signal box
|
|
|
|
|
|
|
|
15. Non-standard cross tapping screws ST3.9×12 (Black Zinc)
|
|
|
|
|
|
|
|
16. ZT703-F handle protect cover connection bracket (left)
|
|
|
|
|
|
|
|
17. GB6170M6 (environmental color)
|
|
|
|
|
|
|
|
18. ZT703-F Left Hand Handlebar Balance Weight(210g)
|
|
|
|
|
|
|
|
19. GB70.1 M6x60 (stainless steel)
|
|
|
|
|
|
|
|
20. GB6170M6 (black zinc)
|
|
|
|
|
|
|
|
21. ZT703-F hand guard adapter stud
|
|
|
|
|
|
|
|
22. Non-standard flat gasket φ6.5 × φ22 × 1.5 (environmental protection color)
|
|
|
|
|
|
|
|
23. ZT703-F clutch line adjusting solenoid waterproof rubber sleeve
|
|
|
|
|
|
|
|
24. ZT703-F clutch tie rod rocker arm rubber sleeve
|
|
|
|
|
|
|
|
25. ZT703-F left rearview mirror rubber plug
|
|
|
|
|
|
|
|
26. Inner plum blossom shaft shoulder screw M5×13-diameter 7×3 (304 stainless steel)
|
|
|
|
|
|
|
|
27. Threaded cable tie(φ6,150*5.5)
|
|
|
|
|
|
|
|
28. Inner plum blossom shaft shoulder screw M6×14+ φ8.5×2.9 (304 stainless steel)
|
|
|
|
|
|
|
|
29. ZT703-F Clutch Rocker Arm Handle Bolt
|
|
|
|
|
|
|
|
