ZT184MP left crankcase cover sub-assembly (dark gray) (aftermarket/parts assembly)
单价总客 编码数量
   De retour



1. ZT184MP Left Crankcase Cover Assembly (dark grey)
Code de marchandise：4050358-003051
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
235
Remarks: The part assembly contains bearings or oil seals. The specific links are as follows: www.zontes.com＞Mine＞More function＞The download section。
2. ZT184MP magneto stator sub-component
Code de marchandise：1051058-001000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
155
Remarks: It is necessary to apply a circle of flat sealant on the joint surface of the black rubber sleeve and the left cover of the engine.
3. ZT173YMM Stator pressure plate
Code de marchandise：1051353-005000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
4
Remarks: Confirm you have ability to assemble correctly by yourself, and fasten the screws with thread glue.

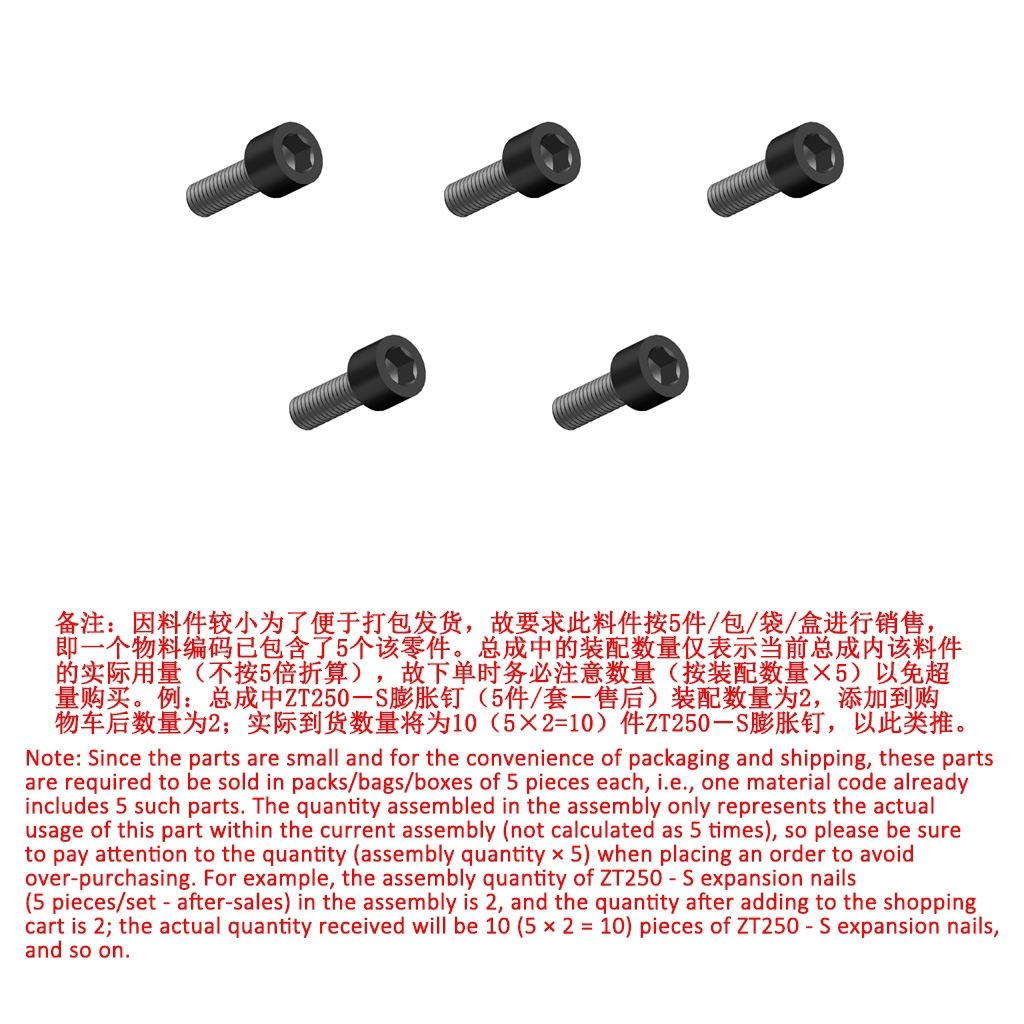

4. GB70.1M5×15－5# Hexagon socket head screw (grade 10.9/black oxide)(5 pcs/after-sale)
Code de marchandise：1251201-020094
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
4
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
5. GB70.1M6×35 internal hexagonal screw (8.8 grade/black oxide)
Code de marchandise：1251201-002094
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
2
Remarks: Thread fastening rubber must be used to prevent loosening
