ZT368T-M direction handle sub-assembly
单价总客 编码数量
   De retour



1. ZT368T-D throttle cable (Integrated)
Code de marchandise：1156400-017000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
56

2. ZT500-T right handle bar rubber sleeve
Code de marchandise：1246700-008000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
16

3. ZT368T-M balance block (matte black)
Code de marchandise：1136400-058022
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
39

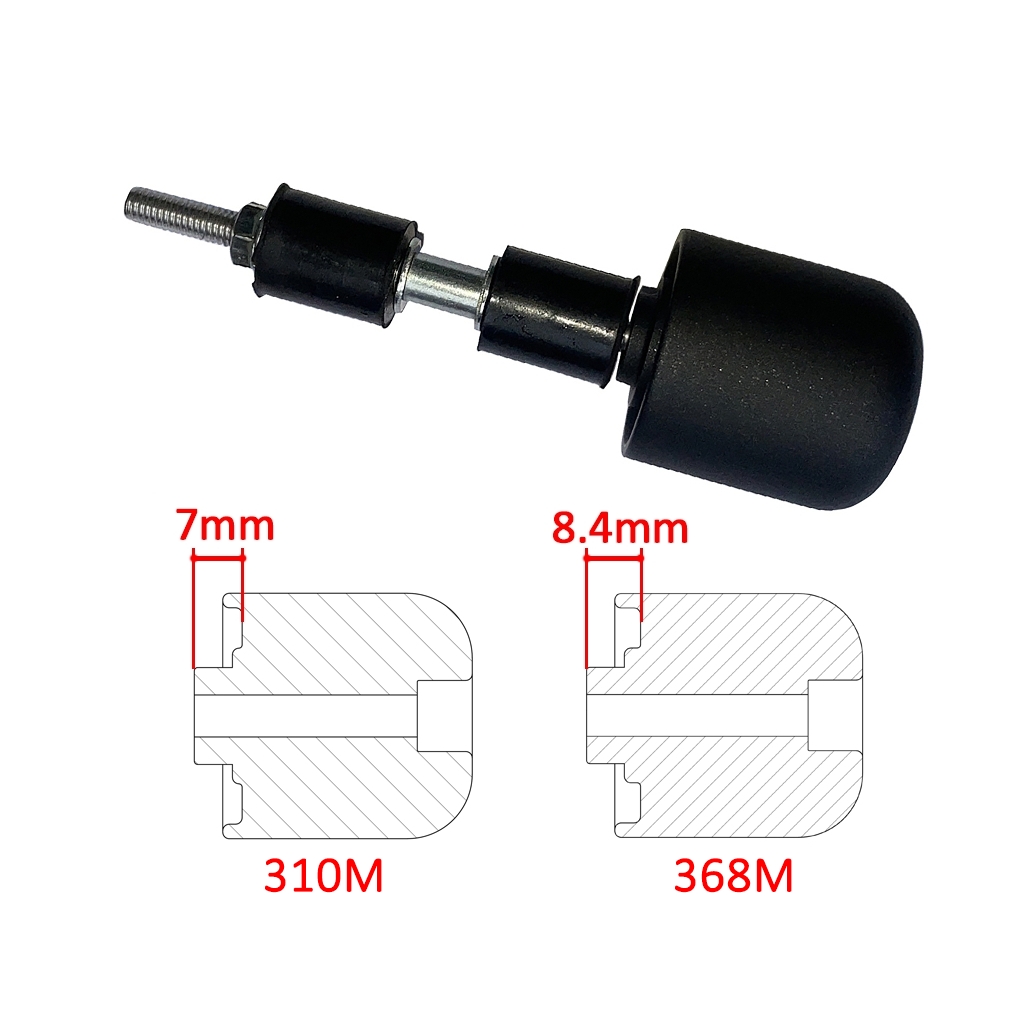

Note: For models ZT150/155/250/350/368T-M/D, please note that starting from the first ten days of July 2023, they will be switched to the 310M matte black version. Vehicles produced during this period need to be clearly confirmed. For vehicles produced before June 30, 2023 (including June 30), purchase the glossy black "1136200-005000 ZT310T-M balance weight (heavier)". The two versions only differ in color, with the old version being heavier and in glossy black, and the 310M version being matte black. If unsure, you can also purchase two pieces of the 368 version or the heavier "1136200-005000 ZT310T-M balance weight (heavier)". Starting from March 16, 2026, the 310M version will be discontinued and can be replaced by the 368M version.
4. ZT368T-M Right handle switch
Code de marchandise：1186400-059000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
155
Remarks:The switch without the anti-rotation bolt,If the hand switch anti-rotation bolt is missing, can be purchased "1251100-219000 Cross ball screw M5×30".
5. ZT368T-M handle bar (matte black)
Code de marchandise：1136400-023000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
135

6. ZT350 right handlebar switch (matte black-750-four hole )
Code de marchandise：1184300-070000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
150

7. GB70.1M6×30(stainless steel)
Code de marchandise：1250205-031091
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
2

8. ZT310T-M Left handle switch
Code de marchandise：1186200-025000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
155
Remarks:The switch without the anti-rotation bolt,If the hand switch anti-rotation bolt is missing, can be purchased "1251100-219000 Cross ball screw M5×30".
9. ZT500-T left hand rubber sleeve
Code de marchandise：1246700-007000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
16

10. Cross ball screw M5×30
Code de marchandise：1251100-219000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
1
Note: If the left or right hand switch anti-rotation bolt is missing,you can purchase this bol.
11. ZT310T-M direction handle cover middle (extra black/ZONTES copybook/black foam/MES)
Code de marchandise：4046201-069021
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
80

12. ZT501T-G rear liceness rubber buffer(5 pcs/after-sale)
Code de marchandise：1246400-316000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
8
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
13. ZT368T-M handle bar upper part of the cover assembly
Code de marchandise：1226400-861000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
56
Note: Includes the upper cover of the steering handle and 2 pcs rear license plate buffer rubber.
14. ZT368T-M direction handle cover lower part assembly (WX)
Code de marchandise：1226500-070000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
56

15. Hexagon socket head screw M6×14+8.5×3 SUS302
Code de marchandise：1251100-328000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
1.5
Remarks:It can be used as an alternative to "1251100-120093 Non-standard bolts M6×16 (environmental color)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel)"+"1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5"+"1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) " or "1251100-102000 Non-standard bolt M6×16 (304 stainless steel）"+"1244100-037000 φ12×φ8.5×2.5 circle buffer glue"+"1274100-018000 ZT250-S muffler anti-hot plate sleeve" fixing structres.
16. Plywood M6×11×15(zinc-nickel)(5 pcs/after-sale)
Code de marchandise：1251300-202094
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
4
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
17. ZT310 rubber buckle (50mm)(5 pcs/after-sale)
Code de marchandise：1244300-119000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
8
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
18. ZONTES copybook (electroforming/nickel/35mm)
Code de marchandise：1210362-001000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
8

19. P-240 foam (width 8mm length 1.2m thickness 6mm)
Code de marchandise：1246400-061000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
10

20. ZT310T-M Balance Block(Rubber Column) (5 pcs/after-sale)
Code de marchandise：1136200-013000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
4
Note: This is a post-sales part in the balance weight. The number of rubber columns used in balance weights varies among different vehicle models, so please purchase the appropriate quantity according to actual needs. Since the parts are small for easy packing and shipping, this part is required to be sold in packs/bags/boxes of 5 pieces. The assembly quantity in the assembly indicates the actual usage of this part in the current assembly (the assembly quantity is not multiplied by 5), so please be sure to pay attention to the quantity when placing an order (this quantity is multiplied by 5) to avoid over-purchasing.
