1. ZT1P79MP left crankcase press assembly (long wheelbase) - Aftersale
Code de marchandise：4050176-008000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
1356

2. φ12.2×φ20×35.3 Upper hanging bush
Code de marchandise：1051371-016000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
39

3. φ15.3×φ2.2 nitrile rubber O-ring
Code de marchandise：1051468-020000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
1

4. φ23×φ2 nitrile rubber O-ring
Code de marchandise：1051468-023000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
1

5. M14×1.5 filler cap nut(after-sale)
Code de marchandise：1251300-205000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
5

6. 13.8×2.5 Acrylate rubber o-rings(5 pcs/after-sale)
Code de marchandise：1051453-014000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
4
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
7. YM10×1.25-M10×1.25×190 studs bolts
Code de marchandise：1251111-009000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
15

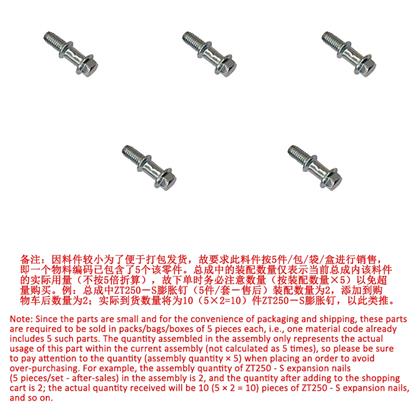

8. ZT1P58MJ main bracket reset spring column(5 pcs/after-sale)
Code de marchandise：1251100-707000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
8
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
9. M12×1.5×15 ablassschraube (9.8 grade/environmental color Zinc)
Code de marchandise：1251100-066093
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
5
Remark: It is recommended to replace the combination seal 12×φ20×2 at the same time of replacing the oil. ZT310/350 &250-S/R series knight car the standard torque is 24±4N.m;KD/ZT125/150/155-U/U1/G1/Z2/GK is 25±3N.m;ZT125/310/350/368 series scooters 25N.m.
10. Combined sealing gasket 12×φ20×2
Code de marchandise：1244100-033000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
4
Remarks: It is recommended to replace with the new parts after disassembly to prevent leakage.
11. M10×1.25×10 oil plug bolt(after-sale)
Code de marchandise：1251100-704000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
4

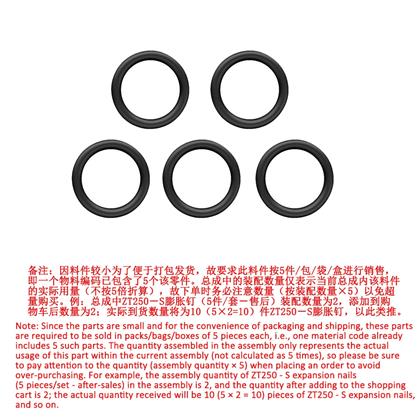

12. φ11.11×φ1.78 Fluorine rubber O-ring(5 pcs/after-sale)
Code de marchandise：1051468-036000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
8
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
13. 8.3×15.5×1 copper gasket(5 pcs/after-sale)
Code de marchandise：1251513-024019
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
8
Note: Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
14. Non-standard bolt M8×25 (color Zinc)
Code de marchandise：1251100-123093
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
2
Remarks: Standard torque when used for the gearbox oil drain port of the scooter series: 20 N.m. Torque when used for the rear disc brake caliper: 30 N.m. 14# socket.
15. 53 × 50.5 trapezoidal strainer
Code de marchandise：1050870-010000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
25

16. ZT1P72MN pressure relief valve subassembly
Code de marchandise：1050870-008000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
58

17. 9.8×2.4 Hydrogenated nitrile rubber O-ring
Code de marchandise：1051454-025000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
1

18. M10×1 oil pressure switch (15kPa)
Code de marchandise：1050861-011000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
65
Remark:Tighten to the standard torque of 12±0.5 Nm; otherwise, the box body's screw threads will be damaged.
19. M20×1.5 Hexagon Hollow 14 Stud Bolts (Grade 9.8/Oxidized Black)
Code de marchandise：1251100-327094
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
24

20. ZT1P77MP refined filter seal component (carton packaging)-B
Code de marchandise：1050871-006000
Inventaire local Prix unitaire (￥) Quantité demandée Quantité montant (￥)   Sélection   Acheter
Adéquat
51
Remarks: Suitable for 24-series 368 and 350 series scooter models, not applicable to ETC series models. To disassemble and assemble the fine filter, you need to purchase a 14-sided 65mm cap-type filter wrench + a 1/2" (12.5mm) ratchet wrench; the Sata model number of the filter wrench is 97401. Regularly check or replace according to the maintenance schedule in the user manual. The fine filter comes in two appearances, one with only English and the other with both Chinese and English, and both have the same quality, with random delivery. The code printed on the surface of the fine filter is 1050871-001000, and the outer contour dimensions are approximately φ65×65mm.
